3-Terminal 500mA Negative Voltage Regulator

Preview

Download Datasheet

View All

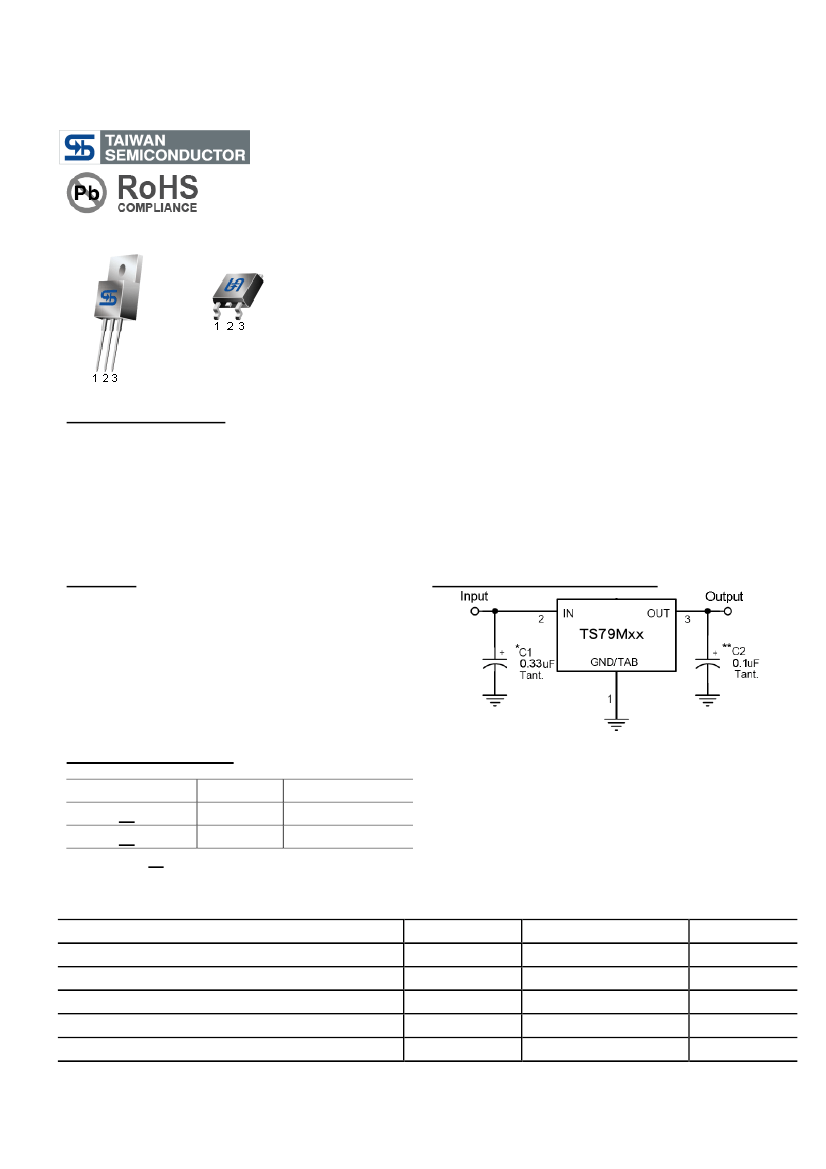

TS79M00A Series

3-Terminal 500mA Negative Voltage Regulator

TO-220

TO-252

(DPAK)

Pin Definition:

1. Input

2. Ground (tab)

3. Output

General Description

The TS79M00A series of fixed output negative voltage regulators are intended as complements to the popular

TS78M00A series device. These negative regulators are available in the same seven-voltage options as the TS7900A

devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative

TS79M00A Series. Available in fixed output voltage options from -5.0 to -24 volts, these regulators employ current

limiting, thermal shutdown, and safe-area compensation--making them remarkably rugged under most operating

conditions. With adequate heat sinking they can deliver output currents in excess of 0.5 ampere.

This series is offered in 3-pin TO-220 & TO-252 package.

Features

●

Output Voltage Range -5 to -24V

Output current up to 0.5A

No external components required

Internal thermal overload protection

Internal short-circuit current limiting

Output transistor safe-area compensation

Standard Application Circuit

●

Output voltage offered in 2% tolerance

Ordering Information

Part No.

TS79MxxACZ C0

TS79MxxACP RO

A common ground is required between the input and the

output voltages. The input voltage must remain typically

2.0V above the output voltage even during the low point on

the Input ripple voltage.

XX = these two digits of the type number indicate voltage.

* = Cin is required if regulator is located an appreciable

distance from power supply filter.

** = Co is not needed for stability; however, it does improve

transient response.

Package

TO-220

TO-252

Packing

50pcs / Tube

2.5Kpcs / 13” Reel

Note: Where

denote voltage option

Absolute Maximum Rating

(Ta = 25

C unless otherwise noted)

Parameter

Input Voltage

Power Dissipation

Operating Junction Temperature

Storage Temperature Range

Note: * TS79M05A to TS79M18A

** TS79M24A

*** Follow the derating curve

1/10

Symbol

STG

Limit

-35

-40

Internal Limited

0~+125

-65~+150

Unit

Version: A07
