1000-116-2003 datasheet, PDF - EEWORLD Datasheet

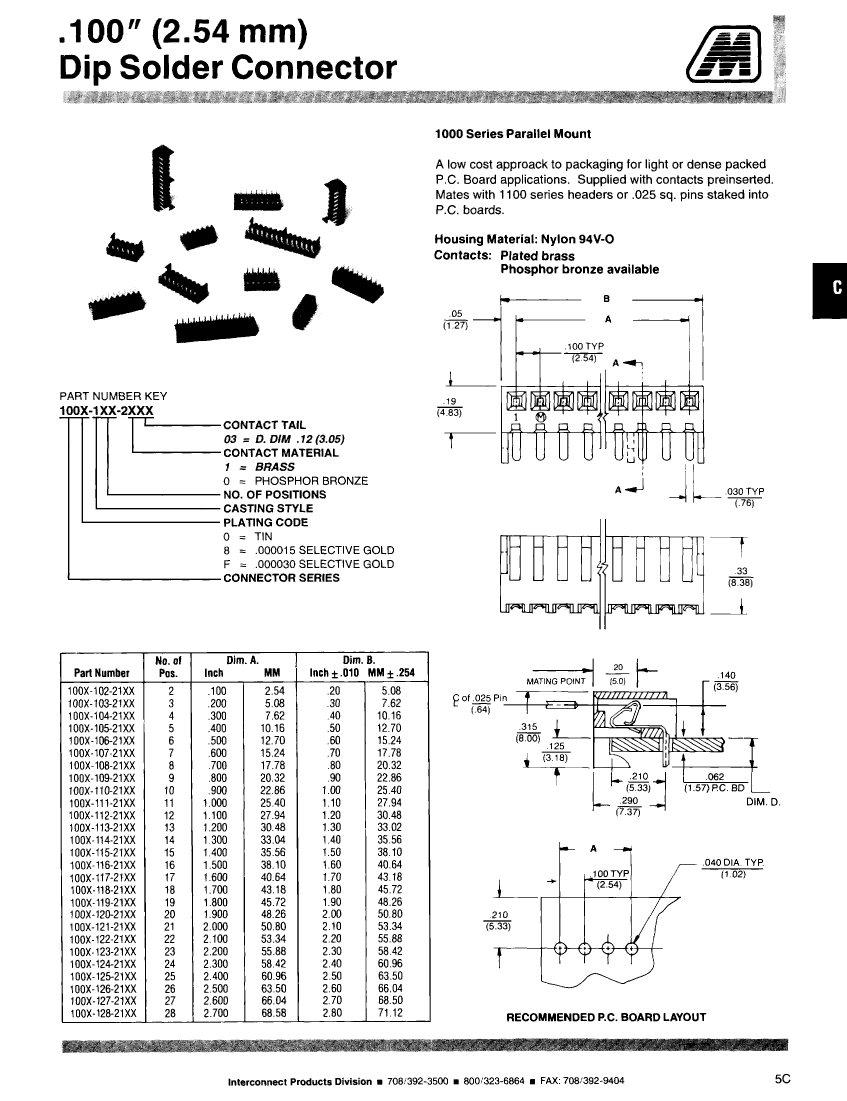

1000-116-2003: DescriptionDIP Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Red Insulator, Plug; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1000-116-2003 Overview

DIP Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Red Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	WITH HOOKS
body width	0.315 inch
subject depth	0.31 inch
body length	1.6 inch
Body/casing type	PLUG
Connector type	DIP CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	TIN (100) OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	500000000000 Ω
Insulator color	RED
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	100
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	200u inch
Rated current (signal)	3.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1
