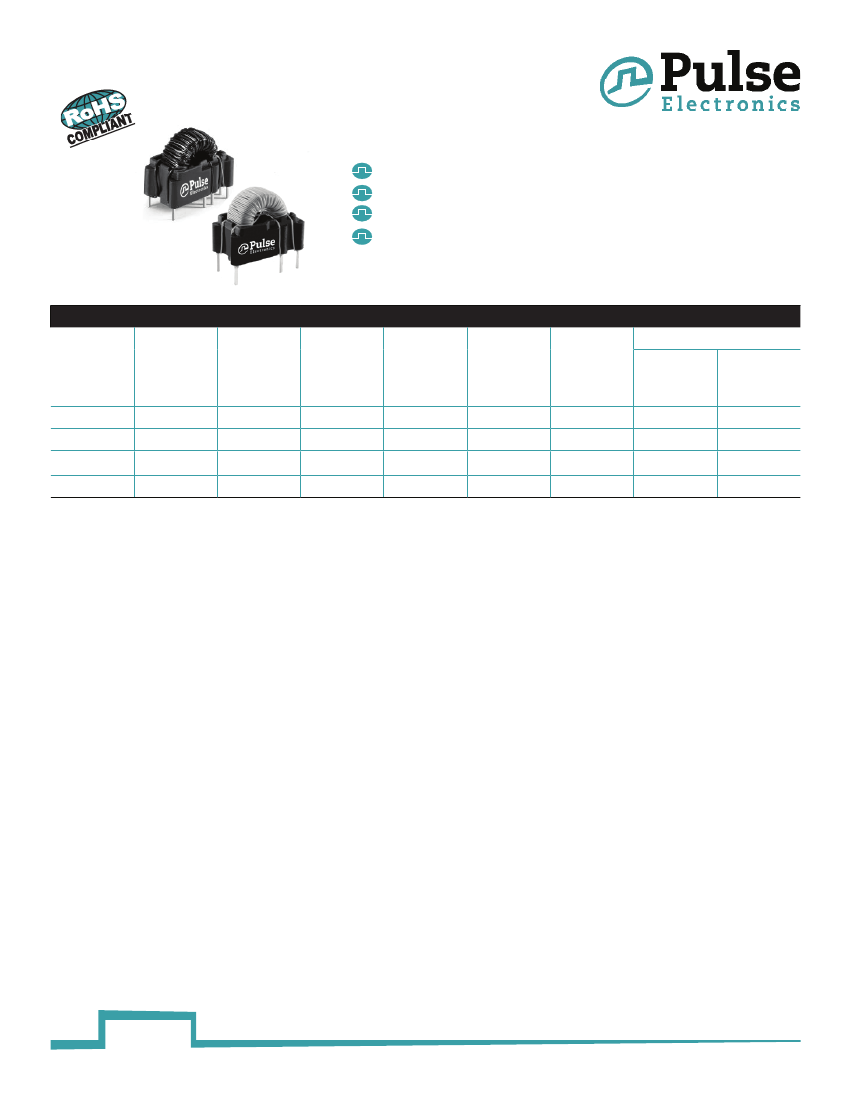

High Isolation Gate Drive Transformers
Rugged design for Industrial Applications
UL recognized, TUV approved to IEC 60950
Up to 4250Vrms gate to drive isolation
IEC 61558, IEC 61010 & IEC 60601 reinforced
insulation compliant designs
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
4, 5
Number
P0584NL
P0585NL
P0584ANL
P0585ANL
Turns
Ratio
1:1:1
1:1:1:1:1
1:1:1
1:1:1:1:1
ET
(V *
µsec
MAX)
95
95
115
115
Primary
Inductance
(1-10)
(µH MIN)
450
450
686
686
Leakage
Inductance
Gate to Drive
(µH MAX)
0.5
3.0
0.8
4.6
DCR Drive
(1-10)
(mΩ
±20%)
80
330
710
710
Hi-Pot
DCR Gates
(mΩ
±20%)
72
180
710
710
Drive-Gate
(Vrms)
3000
3000
4250
4250
Gate-Gate
(Vrms)
1500
1500*
1500
1500*
Notes:
1. These gate drive transformers are meant to operate between 50 and 300 kHz with
3
a 12V, 45% bipolar waveform.
2. The peak flux density should remain below 2100 Gauss to ensure that the core does
not saturate. Use the following procedure to calculate the peak flux density:
A. Calculate the Volt-µsec product (ET):
ET = 10 * (Drive Voltage) * (Don) / (Frequency in kHz)
B. Calculate the operating flux density (B): B
PK
(Gauss) = X * ET/Ff where:
Ff = 1 for unipolar drive applications and 2 for bipolar drive applications,
X = 40 for -NL, 33 for -ANL
3. The temperature rise of the component is calculated based on the total core loss and
copper loss:
A. To calculate total copper loss (W), use the following formula:
Copper Loss (W) = Irms
2
* (DCR_Drive + (# of Gates) * DCR_Gates)
B. To calculate total core loss (W), use the following formula:
Copper Loss (W) = 7.5E-5 * (Frequency in kHz)
1.67
* (X * ET/1000)
2.532
X = 20 for -NL, 16 for -ANL
C. To calculate temperature rise, use the following formula:
.833
Temperature Rise (C) = 60.18 * (Core Loss(W) + Copper Loss (W))
4. 500Vrms Hi-Pot between pins 5 & 6
5. NL versions, which use triple insulated Teflon wire on the drive winding and magnetic
wire on the gate windings , are TUV certified.
ANL versions, which use triple insulated wire on both the drive and gate windings, are
compliant with IEC 61558, IEC 61010 & IEC 60601.
1
pulseelectronics.com
P515.C (04/15)
High Isolation Gate Drive Transformers

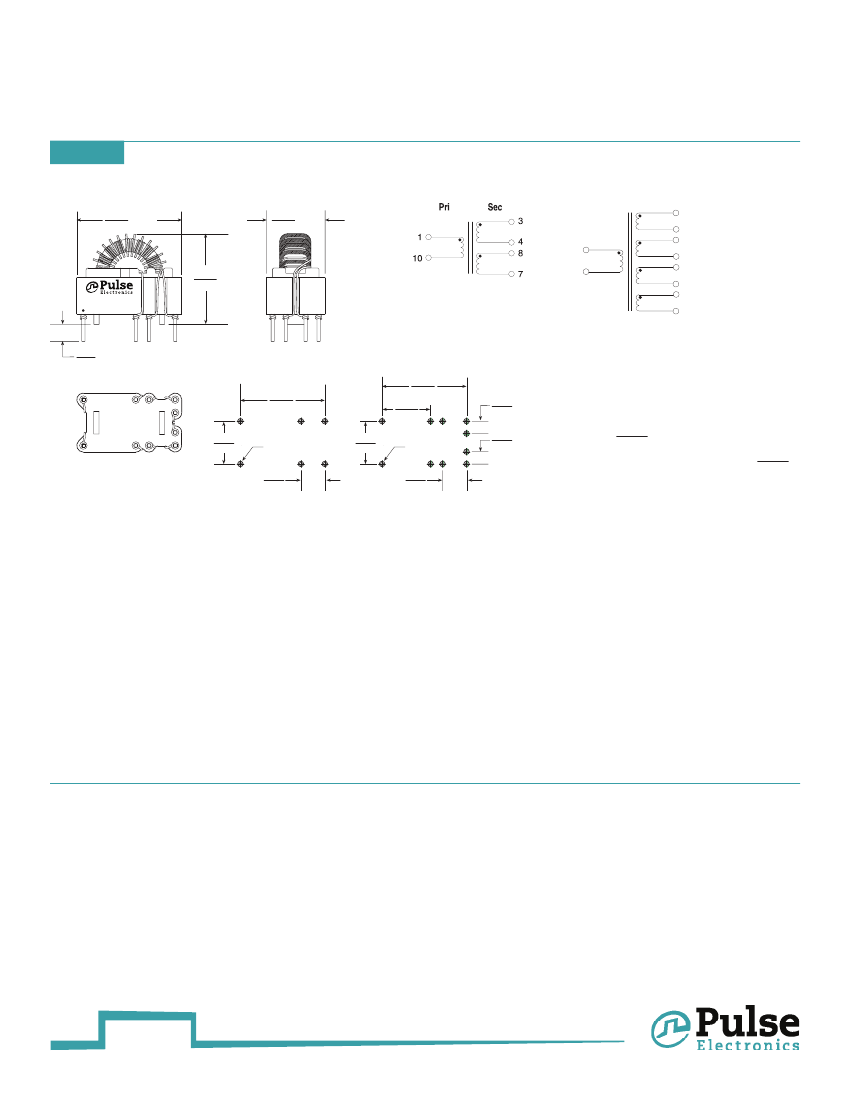

Mechanicals
PO58xxNL
P0584NL/P0584ANL
.810 MAX
20,57
.480 MAX
12,19
DRIVE
Schematics
P0585NL/P0585ANL
2
GATE
GATE
GATE
GATE
GATE
1
GATE
DRIVE
3
9
.750 MAX
19,05
Date Code Country of Origin
10
8
4
5
7
6
P058xxNL
.130
3,30
P0584NL/P0584ANL (6 pins)
P0585NL/P0585ANL (10 pins)
1
4
10
.350
8,89
1
.700
17,78
7
10
.350
8,89
.700
17,78
.400
10,16
(10X) .040
.200
5,08
7
.100
2,54
.100
2,54
Weight
.............................5 grams
Tray
.....................................80/tray
Inches
mm
.010
Unless otherwise specified, all tolerances are
±
0,25
Dimension:
10
7
(6X) .040
.200
5,08
4
1
4
SUGGESTED PCB HOLE PATTERN
