* Standard target is 120 mm square of mild steel perpendicular to ultrasonic beam.
940 Series
High power transducer
Microprocessor controlled
IP 67 sealing
High output current
Termination
Cable
Cable
Connector cable
Connector cable
Cable
Cable
Connector cable
Connector cable
Catalog
Listing
940-F4Y-2D-001-180E
940-F4Y-2D-002-180E
940-F4X-2D-001-180E
940-F4X-2D-002-180E
940-F4Y-2D-001-300E
940-F4Y-2D-002-300E
940-F4X-2D-001-300E
940-F4X-2D-002-300E
SPECIFICATIONS
Catalog Listings
940-F4Y-2D-001-180E
940-F4Y-2D-002-180E
940-F4X-2D-001-180E
940-F4X-2D-002-180E
1500 mm (59.05 in.)
200 mm (7.87 in.)
8°
940-F4Y-2D-001-300E
940-F4Y-2D-002-300E
940-F4X-2D-001-300E
940-F4X-2D-002-300E
700 mm (27.5 in.)
150 mm (5.91 in.)
8°
19 - 30 VDC
<25
mA without load
<35
mA without load
Reverse polarity
0 - 500 mA
8 Hz
2% of setpoint
25 Hz
2.5% of setpoint
±
1 mm
4-turn potentiometer
Short circuit
– 15 to 70°C (5 to 158°F)
– 25 to 85°C (– 13 to 185°F)
IP 67
Stops transmission and reception when input is connected to 0 VDC. Last output will be stored until input is disconnected
Avoids mutual interference from several sensors by interconnecting the hold input from each sensor.
Illuminates when sensor detects target
Max. Sensing Distance
Min. Sensing Distance
Beam Angle
POWER SUPPLY
Supply Voltage
Supply Current
Circuit Protection
OUTPUT CHARACTERISTICS
Load Current
Switching Frequency
Hysteresis
Repeatability
Setpoint Adjustment
Circuit Protection
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Sealing
SPECIAL FEATURES
Hold Input
Synchronization Input
LED Indicator
B82
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Ultrasonic Sensors
Compact 18 mm Diameter Digital

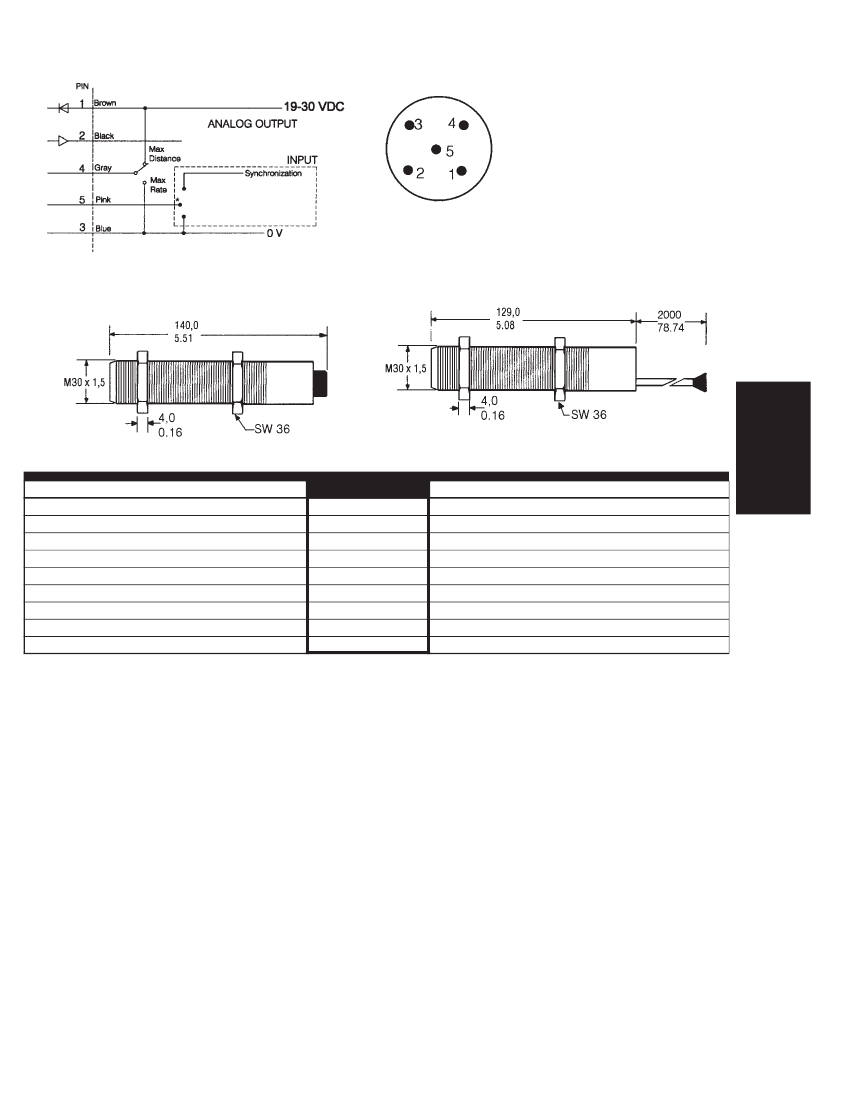

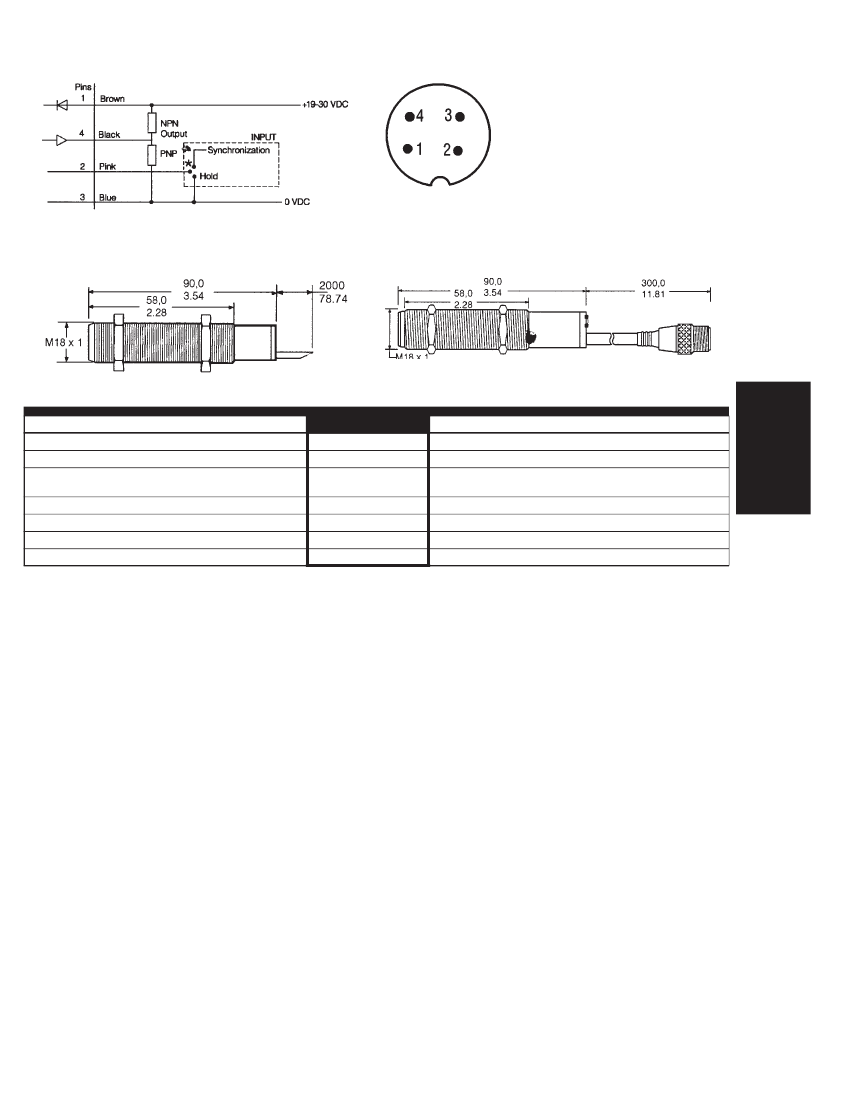

WIRING DIAGRAM
940 Series
940-F4X/Y-20-001/2-300E Versions only
4-pin DC Micro
(M12 x 1)
Pin
Color
1
BRN
2
PINK
3
BLU
4
BLK
*Normal operation with no connection
MOUNTING DIMENSIONS
(For reference only)
940-F4X/Y-20-001/2-180E
940-F4X/Y-2D-001/2-300E
ACCESSORIES
Catalog Listing
Mounting clamp
Beam deflector
Focusing beam deflector
Straight connector w/o cable
Right angle connector w/o cable
24 VDC Power supply, Relay output, 110 VAC input
24 VDC POwer supply, On/Off delay, 110 VAC input
43178389-018
43192871-003
43192871-004
66195044-001
66195045-001
FF-MADB24RB
FF-MADC24RB
Feature
Allows mounting to a flat surface
Allows right angle mounting (Approx. dim. 50 x 170 mm)
Reduces beam angle by approximately 1/2 (Approx. dim.
35 x 52 mm)
Connector has screw terminals for wiring connection
Connector has screw terminals for wiring connection
See page B102 for more information
See page B102 for more information
Proximity
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
B83
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Ultrasonic Sensors
30 mm Diameter Analog
FEATURES
Measuring range up to 2000 mm (78.74
in.)
High repeatability
ORDER GUIDE
Sensor
Package
Style
30 mm dia.
Stainless Steel
Sensing
Range*
mm (in.)
300 - 2000
(11.81 - 78.74)
150 - 1200
(5.90 - 47.24)
Analog
Output
1.5 - 10 V
1.25 - 10 V
Termi-
nation
Cable
Cable
Connector
Catalog
Listing
940-A4Y-AD-1C0-130E
940-A4Y-AD-1C0
940-A4V-AD-1C0
940 Series
* Standard target is 120 mm square of mild steel perpendicular to ultrasonic beam.
SPECIFICATIONS
Catalog Listings
940-A4Y-AD-1C0-130E
Max. Range
Max. Sensing Distance
Min. Sensing Distance
Beam Angle
POWER SUPPLY
Supply Voltage
Supply Current
Circuit Protection
OUTPUT CHARACTERISTICS
Load Current
Switching Frequency
Repeatability
Linearity
Output Adjustment
Output Mode
Circuit Protection
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Sealing
SPECIAL FEATURES
Hold Input
Synchronization Input
LED Indicator
Stops transmission and reception of sensor when input is connected to 0 VDC. Analog output would be zero.
Avoids mutual interference from several ultrasonic sensors (external synchronization unit required; see Accessories)
Illuminates when sensor detects a target
0 to 50°C (32 to 122°F)
0 to 70°C (32 to 158°F)
IP 65
6 Hz
±2
mm
<0.2%
4 Turn Potentiometer
Max. Range or Max. Rate selected by wiring terminal connection
Short Circuit
10 mA max.
11 Hz
±1
mm
19 - 30 VDC
<20
mA without load
Reverse polarity
2000 mm (78.74 in.)
Max. Rate
1000 mm (39.37 in.)
300 mm (11.8 in.)
8°
940-A4Y-AD-1C0
940-A4V-AD-1C0
Max. Range
1200 mm (47.2 in.)
Max. Rate
600 mm (23.6 in.)
150 mm (5.91 in.)
10°
B84
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Ultrasonic Sensors
30 mm Diameter Analog
WIRING DIAGRAM
940 Series
CONNECTOR VERSION
ONLY
Pin
1
2
3
4
5
Color
BRN
WHT
BLU
BLK
GRAY
*Normal operation with connection
+19-30
VDC
MOUNTING DIMENSIONS
(For reference only)
940-A4V-AD-1C0
940-A4Y-AD-1C0-130E
940-A4Y-AD-1C0
Proximity
ACCESSORIES
Catalog Listing
Mounting clamp, 30 mm sensor
Beam deflector
Focusing beam deflector
Compact deflector
2 meter cable, Straight connector
5 meter cable, Straight connector
2 meter cable, Right angle connector
5 meter cable, Right angle connector
Synchronization unit
43178389-030
43192871-001
43192871-002
66195116-001
RKT5-612/2M
RKT5-612/5M
RKWT5-612/2M
RKWT5-612/5M
55000001
Feature
Allows mounting to a flat surface
Allows right angle mounting (Approx. dim. 50 x 170 mm)
Reduces beam angle by approximately 1/2
Allows right angle mounting (Approx. dim. 35 x 52 mm)
Used for wiring to connector version
Used for wiring to connector version
Used for wiring to connector version
Used for wiring to connector version
Controls up to 100 sensors
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
B85
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Ultrasonic Sensors
Compact 30 mm Diameter Analog and Digital, RS232/RS485 Interface
FEATURES
Programmable
RS232 or RS485 interface
ORDER GUIDE
Sensor
Package
Style
30 mm dia.
Stainless Steel
Sensing
Range*
mm (in.)
300 - 3000
(11.8 - 118)
Analog
Output
0 - 10 V
4 - 20 mA
0 - 10 V
4 - 20 mA
150 - 1500
(5.9 - 59.1)
0 - 10 V
4 - 20 mA
0 - 10 V
4 - 20 mA
272,1g (9.6 oz)
100 - 600
(3.94 - 23.6)
0 - 10 V
Digital
Output
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
PNP, N.O./N.C.
Catalog
Listing
942 Series
0 - 10 VDC/4 - 20 mA output
Two N.O. PNP outputs or one N.O.
PNP/one N.C. PNP output
Interface
RS232
RS232
RS485
RS485
RS232
RS232
RS485
RS485
RS232
942-A4N-2D-1C1-130E
942-A4N-2D-1D1-130E
942-A4N-2D-1E1-130E
942-A4N-2D-1F1-130E
942-A4N-2D-1C1-220S
942-A4N-2D-1D1-220S
942-A4N-2D-1E1-220S
942-A4N-2D-1F1-220S
942-A4N-2D-1C1-300E
* Standard target is 120 mm square of mild steel perpendicular to ultrasonic beam.
SPECIFICATIONS
Catalog Listings
942-A4N-2D-1C1-130E
942-A4N-2D-1D1-130E
942-A4N-2D-1E1-130E
942-A4N-2D-1F1-130E
3000 mm (118 in.)
300 mm (11.8 in.)
8°
942-A4N-2D-1C1-220S
942-A4N-2D-1D1-220S
942-A4N-2D-1E1-220S
942-A4N-2D-1F1-220S
1500 mm (59.1 in.)
150 mm (5.91 in.)
10°
19 - 30 VDC
<
30 mA without load
Reverse Polarity
0 - 100 mA
Programmable (0 - 255 mm)
Programmable 5-30 Hz
Programmable 5-30 Hz
±2
mm or
±0.4%
of reading
Programmable within sensing range
Short circuit
Programmable 5-30 Hz
Programmable 5-30 Hz
±2
mm or
±0.4%
of reading
3 mm or
±0.5%
Programmable
Short circuit
– 15 to 70°C (5 to 150°F
– 25 to 85°C (– 13 to 185°F)
IP 65
Stops transmission and reception when input is connected to 0 VDC. Analog output would be zero.
Avoids mutual interference from several sensors by interconnecting the Hold input from each sensor.
Illuminates when sensor detects target
Analog Output: Span, Offset, Positive or Negative slope
Digital Output: Hysteresis, N.O./N.C.
Programmable 5-50 Hz
Programmable 5-50 Hz
942-A4N-2D-1C1-300E
600 mm (23.6 in.)
100 mm (3.94 in.)
8°
Max. Sensing Distance
Min. Sensing Distance
Beam Angle
POWER SUPPLY
Supply Voltage
Supply Current
Circuit Protection
OUTPUT CHARACTERISTICS (DIGITAL)
Load Current
Hysteresis
Switching Frequency
Repeatability
Setpoint Adjust
Circuit Protection
OUTPUT CHARACTERISTICS (ANALOG)
Switching Frequency
Repeatability
Linearity
Output Adjust
Circuit Protection
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Sealing
SPECIAL FEATURES
Hold Input
Synchronization input
LED Indicator
Programmable Parameters
B86
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
