HMC849LP4CE
v04.0613
HIGH ISOLATION SPDT
NON-REFLECTIVE SWITCH, DC - 6 GHz
Typical Applications
The HMC849LP4CE is ideal for:
Features
High Isolation: up to 60 dB
Single Positive Control: 0/+3V to +5V
High Input IP3: +52 dBm
Non-Reflective Design
“All Off” State
16 Lead 4x4 mm QFN Package: 16 mm²
SWITCHES - SPDT - SMT
• Cellular/4G Infrastructure
• WiMAX, WiBro & Fixed Wireless
• Automotive Telematics
• Mobile Radio
• Test Equipment

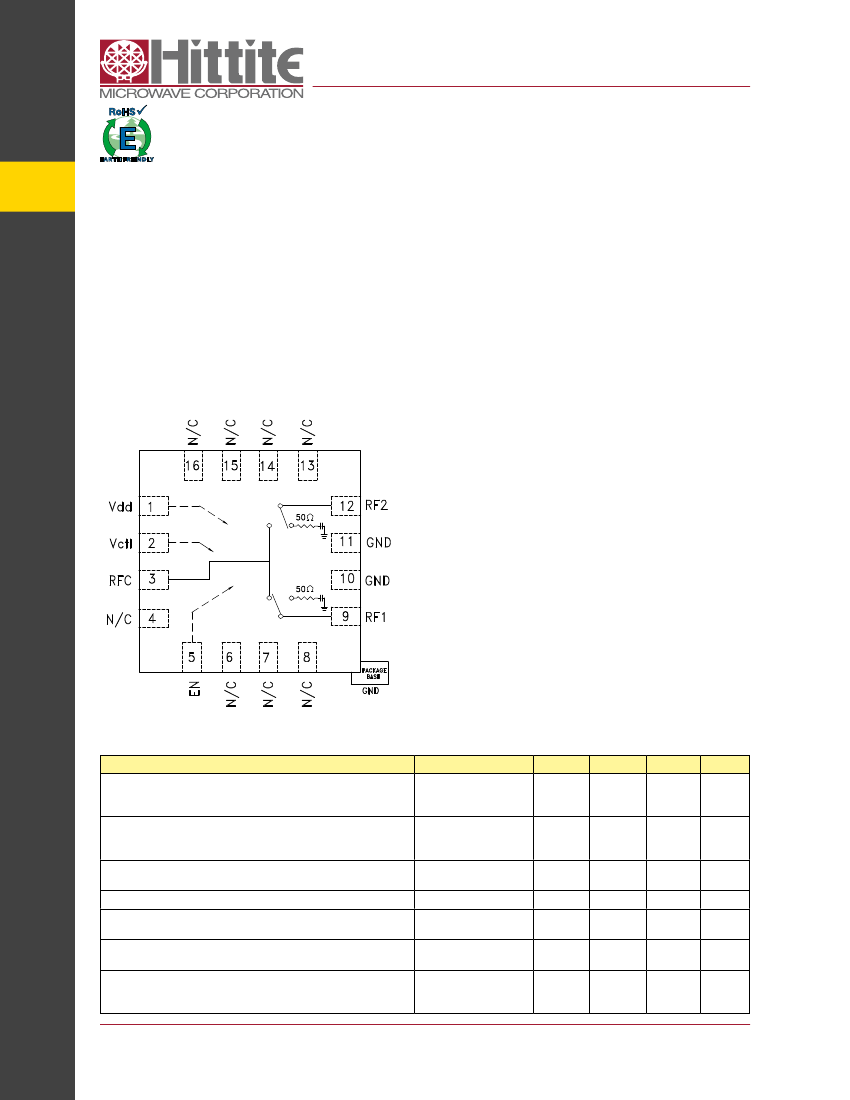

Functional Diagram
General Description
The HMC849LP4CE is a high isolation non-reflec-
tive DC to 6 GHz GaAs pHEMT SPDT switch in a low
cost leadless surface mount package. The switch is
ideal for cellular/WiMAX/4G Infrastructure applicati-
ons yielding up to 60 dB isolation, low 0.8 dB inser-
tion loss and +52 dBm input IP3. Power handling
is excellent up through the 5 - 6 GHz WiMAX band
with the switch offering a P1dB compression point of
+31 dBm. On-chip circuitry allows a single positive
voltage control of 0/+3V or 0/+5V at very low DC
currents. An enable input (EN) set to logic high will put
the switch in an “all off” state.
Electrical Specifications,
T
A
= +25 °C, Vctl = 0/Vdd, Vdd = +3V to +5V, 50 Ohm System
Parameter
Insertion Loss
Frequency
DC - 2.0 GHz
2.0 - 4.0 GHz
4.0 - 6.0 GHz
DC - 2.0 GHz
2.0 - 4.0 GHz
4.0 - 6.0 GHz
DC - 4.0 GHz
4.0 - 6.0 GHz
DC - 6.0 GHz
+3V
+5V
0.35 - 4.0 GHz
DC - 6.0 GHz
29
34
53
48
40
Min.
Typ.
0.8
1.0
1.7
60
55
52
17
13
15
30
35
52
Max.
1.3
1.5
2.5
Units
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
Isolation (RFC to RF1/RF2)
Return Loss (On State)
Return Loss (Off State)
Input Power for 1 dB Compression
Input Third Order Intercept
(Two-Tone Input Power = +7 dBm Each Tone)
Switching Speed
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
DC - 4.0 GHz
80
150
600
ns
ns
1
For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC849LP4CE
v04.0613
HIGH ISOLATION SPDT
NON-REFLECTIVE SWITCH, DC - 6 GHz

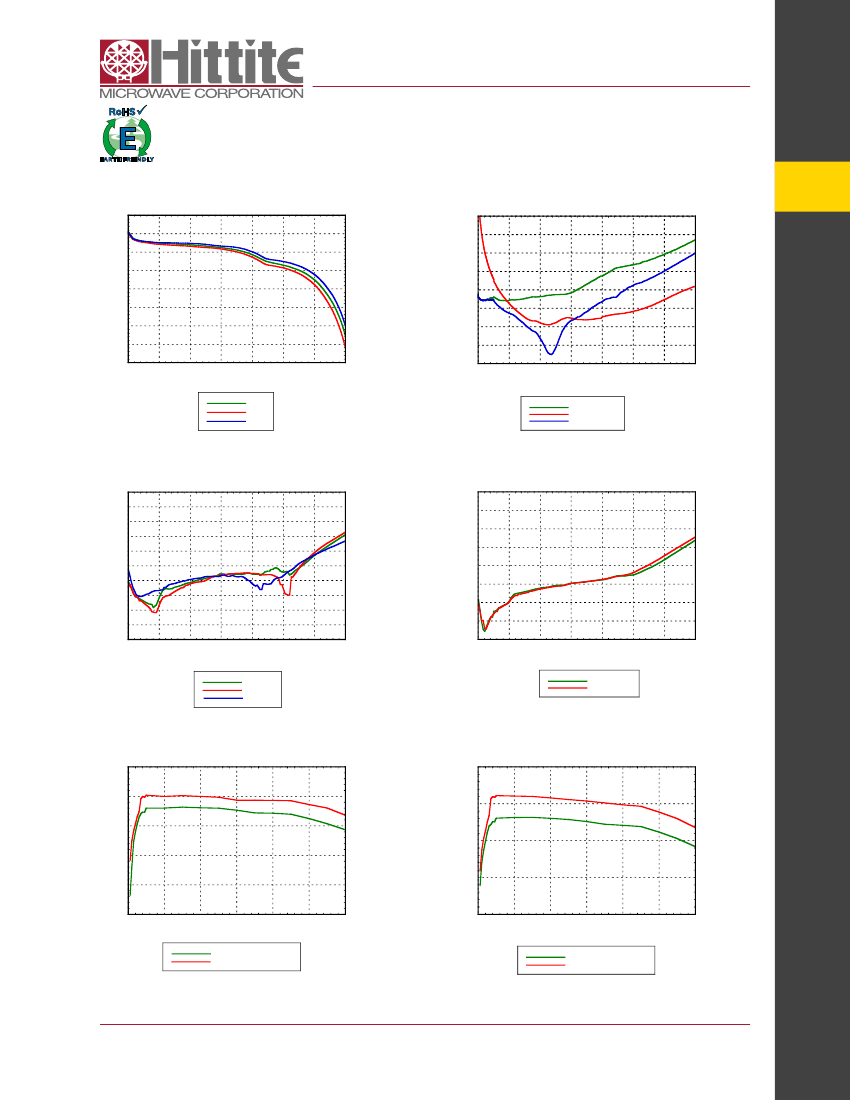

Insertion Loss
0
-0.5
Return Loss
[1]
0
-1.5
-2
-2.5
-3
-3.5
-4
0
1
2
3
4
5
6
7
RETURN LOSS (dB)
-1
-10
-15
-20
-25
-30
-35
-40
0
1
2
3
4
5
6
7
FREQUENCY (GHz)
+25C
+85C
-40C
FREQUENCY (GHz)
RFC
RF1, RF2 OFF
RF1, RF2 ON
Isolation Between
Ports RFC and RF1 / RF2
0
-20
ISOLATION (dB)
Isolation Between Ports RF1 and RF2
0
-10
-20
ISOLATION (dB)
-30
-40
-50
-60
-40
-60
-80
-70
-100
0
1
2
3
4
5
6
7
FREQUENCY (GHz)
RF1
RF2
ALL OFF
-80
0
1
2
3
4
5
6
7
FREQUENCY (GHz)
RFC-RF1 ON
RFC-RF2 ON
0.1 and 1 dB Input Compression
Point, Vdd = 5V, Linear
40
0.1 and 1 dB Input Compression
Point, Vdd = 3V, Linear
35
INPUT COMPRESSION (dBm)
35
INPUT COMPRESSION (dBm)
30
30
25
25
20
20
15
0
1
2
3
4
5
6
15
0
1
2
3
4
5
6
FREQUENCY (GHz)
0.1 dB Compression Point
1dB Compression Point
FREQUENCY (GHz)
0.1 dB Compression Point
1 dB Compression Point
[1] RFC is reflective in “all off” state.
For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
SWITCHES - SPDT - SMT
2
-5
INSERTION LOSS (dB)
HMC849LP4CE
v04.0613
HIGH ISOLATION SPDT
NON-REFLECTIVE SWITCH, DC - 6 GHz

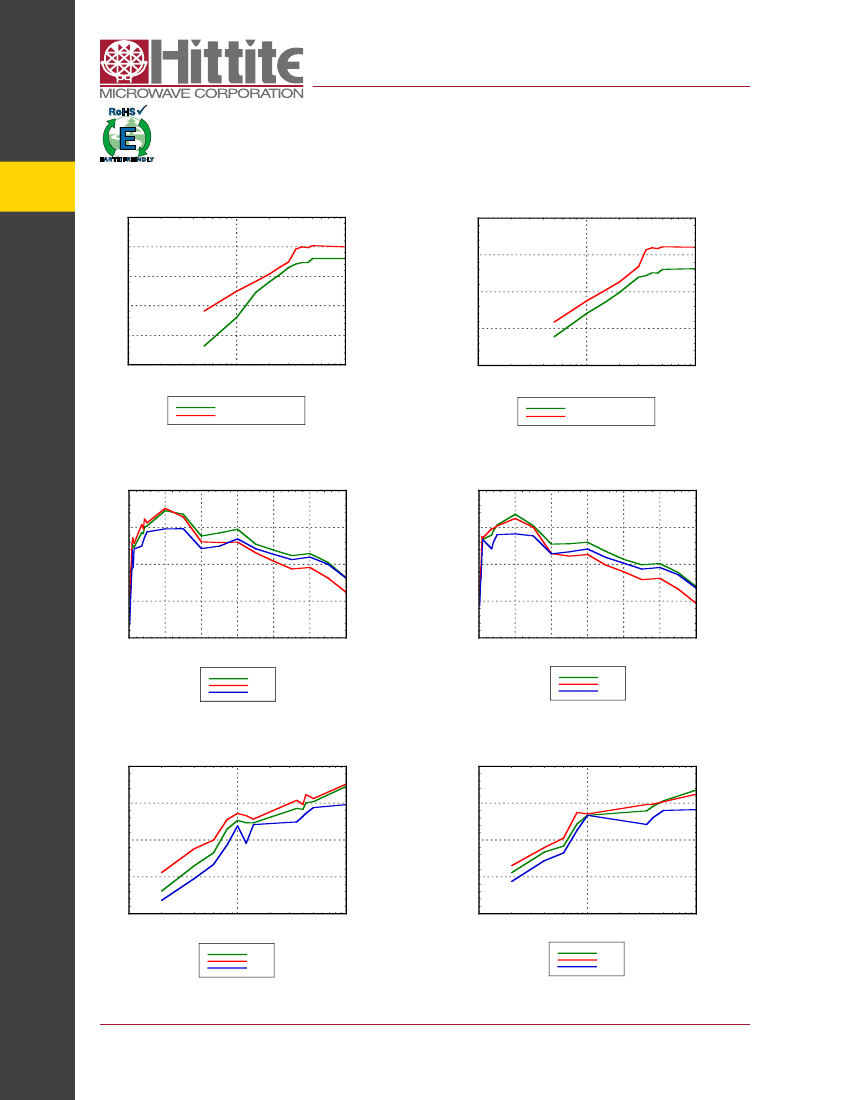

0.1 and 1 dB Input Compression
Point, Vdd = 5V
40
0.1 and 1 dB Input Compression
Point, Vdd = 3V
35
SWITCHES - SPDT - SMT
INPUT COMPRESSION (dBm)
35
INPUT COMPRESSION (dBm)
0.1
1
30
30
25
25
20
20
15
0.01
15
0.01
0.1
1
FREQUENCY (GHz) in log scale
0.1 dB Compression Point
1 dB Compression Point
FREQUENCY (GHz) in log scale
0.1 dB Compression Point
1 dB Compression Point
Input Third Order Intercept
Point, Vdd = 5V, Linear
60
Input Third Order Intercept
Point, Vdd = 3V, Linear
60
55
55
IP3 (dBm)
50
IP3 (dBm)
0
1
2
3
4
5
6
50
45
45
40
40
0
1
2
3
4
5
6
FREQUENCY (GHz)
+25C
+85C
-40C
FREQUENCY (GHz)
+25C
+85C
-40C
Input Third Order Intercept
Point, Vdd = 5V
60
Input Third Order Intercept
Point, Vdd = 3V
60
55
55
IP3 (dBm)
50
IP3 (dBm)
0.1
1
50
45
45
40
0.01
40
0.01
0.1
1
FREQUENCY (GHz) in log scale
+25C
+85C
-40C
FREQUENCY (GHz) in log scale
+25C
+85C
-40C
3
For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC849LP4CE
v04.0613
HIGH ISOLATION SPDT
NON-REFLECTIVE SWITCH, DC - 6 GHz
Absolute Maximum Ratings
Bias Voltage (Vdd)
Control Voltage (Vctl, EN)
RF Input Power *
Through Path 3V/5V
Termination Path 3V/5V
Channel Temperature
Continuous Pdiss (T = 85 °C)
(derate 17.6 mW/°C for through path, and
6.8 mW/°C for termination path above 85 °C)
Through Path
Termination Path
Thermal Resistance
(channel to package bottom)
Through Path
Termination Path
Storage Temperature
Operating Temperature
ESD Sensitivity (HBM)
56.8 °C/W
147.3 °C/W
-65 to +150 °C
-40 to +85 °C
Class 1A
Vctl
Low
High
Low
High
30.60 / 33 dBm
26.4 dBm
150 °C
7V
-1V to Vdd +1V
Bias Voltage & Current
3
5
0.80
0.85
Digital Control Voltages
State
1.144 W
0.441 W
Low
High
Bias Condition
0 to +0.8 Vdc @ <1 µA Typical
+2.0 to +5.0 Vdc @ 30 µA Typical
Truth Table
Control Input
EN
Low
Low
High
High
Signal Path State
RFC - RF1
OFF
ON
OFF
OFF
RFC - RF2
ON
OFF
OFF
OFF
* The RF input power is quite lower than the breakdown
power levels. Hence, the only concern with this product
is the thermal limit.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
SWITCHES - SPDT - SMT
4
Vdd
(V)
Idd (Typ.)
(mA)
HMC849LP4CE
v04.0613
HIGH ISOLATION SPDT
NON-REFLECTIVE SWITCH, DC - 6 GHz

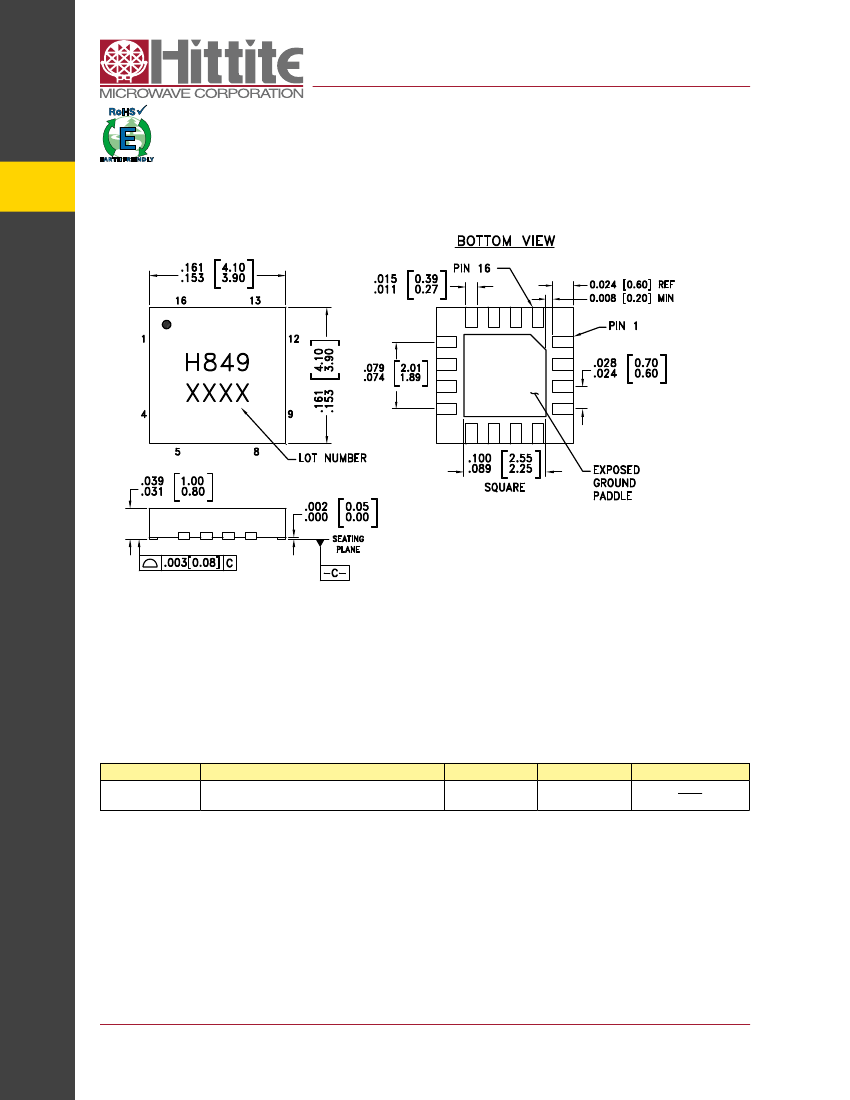

Outline Drawing
SWITCHES - SPDT - SMT
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC849LP4CE
Package Body Material
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
100% matte Sn
MSL Rating
MSL1
[2]
Package Marking
[1]
H849
XXXX
[1] 4-Digit lot number XXXX
[2] Max peak reflow temperature of 260 °C
5
For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
