TS324/TS2902
Low Power Quad Operational Amplifiers
DIP-14
SOP-14
Pin Definition:
1. Output A
14. Output D
2. Input A (-) 13. Input D (-)
3. Input A (+) 12. Input D (+)
4. Vcc
11. Gnd
5. Input B (+) 10. Input C (+)
6. Input B (-) 9. Input C (-)
7. Output B
8. Output C
General Description
TS324/TS2902 contains four independent high gain operational amplifiers with internal frequency compensation. The
four op-amps use a split power supply. The device has low power supply current drain, regardless or the power
supply voltage. The low power drain also makes the TS324/TS2902 a good choice for battery operation. When your
project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply.
Use ordinary +5V common to practically any digital system or personal computer application, without requiring an
extra 15V power supply just to have the interface electronics you need. TS324/TS2902 is a versatile, rugged
workhorse with a thousand-and-one uses, from amplifying signals from a variety of transducers to dc gain blocks, or
any op-amp function. The attached pages offer some recipes that will have your project cooking in no time.
Features
●
●
●
●
●
Single supply operation: 3V to 32V
Low input bias currents
Internally compensated
Common mode range extends to negative supply
Single and split supply operation

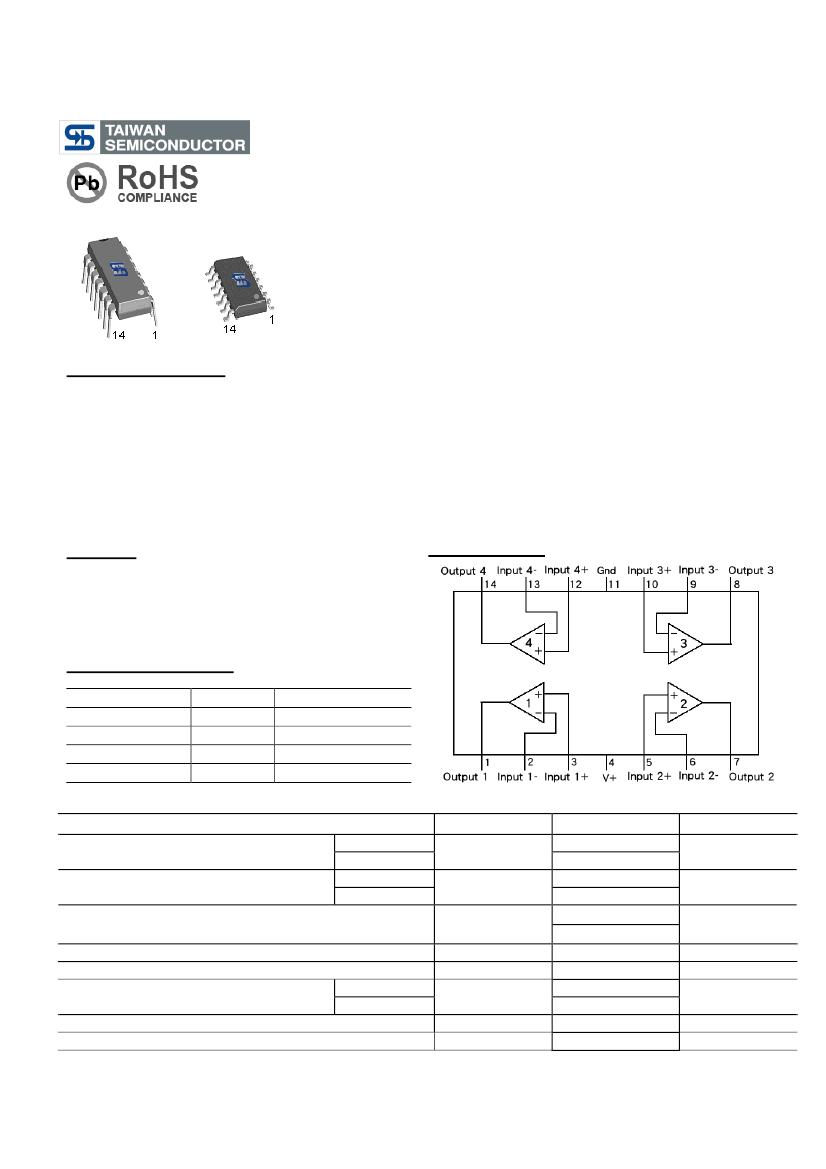

Block Diagram
Ordering Information
Part No.
TS324CD14 C4
TS324CS14 RL
TS2902CD14 C4
TS2902CS14 RL
Package
DIP-14
SOP-14
DIP-14
SOP-14
Packing
50pcs / Tube
2.5Kpcs / 13” Reel
50pcs / Tube
2.5Kpcs / 13” Reel
Absolute Maximum Rating
Parameter
Supply Voltage
TS324
TS2902
TS324
TS2902
Symbol
V
CC
Limit
Unit
+32 or ±16
V
+26 or ±13
Differential Input Voltage
32
V
IDR
V
(Split Power Supplies)
26
-0.3 to 32
Input Common Mode Voltage Range (note 1)
V
ICR
V
-0.3 to 26
Input Forward Current (note 2)
I
IF
50
mA
Output Short Circuit Duration
tsc
Continuous
TS324
0 ~ +70
o
Operating Temperature Range
T
OPR
C
TS2902
-40 ~ +85
o
Junction Temperature
T
J
+150
C
o
Storage Temperature Range
T
STG
-65 ~ +150
C
Note 1: For supply. Voltages less than 32V/26V for the TS324/TS2902 the absolute maximum input voltage is equal to
the supply voltage.
Note 2: This input current will only exist when the voltage is negative at any of the input leads. Normal output states
will reestablish when the input voltage returns to a voltage greater than -0.3V.
1/8
Version: A07
TS324/TS2902
Low Power Quad Operational Amplifiers
Electrical Characteristics
(Vcc = 5V, Ta=25 C; unless otherwise specified.)
o
Characteristics
Symbol
TS324
Min
Typ
Max
Min
TS2902
Typ
Max
Unit
Input Offset Voltage
V
CC
= 5.0V to 30V, V
IC
= 0V to Vcc -1.7 V,
--
2.0
7.0
--
2.0
7.0
mV
Vo= 1.4V, R
S
= 0Ω
Vio
--
--
9.0
--
--
10
T
LOW
≤
Ta
≤T
HIGH
Average Temperature Coefficient of Input
o
ΔIio/ΔT
--
7.0
--
--
7.0
--
uV/ C
Offset Voltage
Input Offset Current
--
5.0
50
--
5.0
50
Iio
nA
T
LOW
≤
Ta
≤T
HIGH
--
--
150
--
--
200
Average Temperature Coefficient of input
o
ΔIio/ΔT
--
10
--
--
10
--
pA/ C
Offset Current
Input Bias Current
--
-90
-250
--
-90
-250
I
IB
nA
T
LOW
≤
Ta
≤T
HIGH
--
--
-500
--
--
-500
Input Common-Mode Voltage Range
V
CC
= 30 V (Note1)
V
ICR
0
--
28.3
0
--
24.3
V
V
CC
= 30 V, T
LOW
≤
Ta
≤T
HIGH
0
--
28
0
--
24
Differential Input Voltage Range
V
IDR
--
--
V
CC
--
--
V
CC
V
Large Signal Open-Loop Voltage Gain
R
L
= 2.0K, V
CC
=15V, For Large V
O
Swing,
A
VOL
25
100
--
25
100
--
V/mV
T
LOW
≤
Ta
≤T
HIGH
15
--
--
15
--
--
Channel Separation
--
--
-120
--
--
-120
--
dB
1.0 KHz to 20KHz
Common Mode Rejection Ratio
CMRR
65
70
--
50
70
--
dB
R
S
≤
10 kΩ
Power Supply Rejection Ratio
PSRR
65
100
--
50
100
--
dB
Output Voltage -- High Limit
V
OH
V
V
CC
= 30 V, R
L
= 2 kΩ
26
--
--
22
--
--
V
CC
= 30 V, R
L
= 10 kΩ
27
28
--
23
24
--
Output Voltage -- Low Limit
V
OL
--
5.0
20
--
5.0
100
mV
V
CC
= 5.0 V, R
L
= 10 kΩ
Output Source Current
I
O+
20
40
--
20
40
--
mA
V
ID
=+1.0V,V
CC
=15V
Output Sink Current
V
ID
= -1.0 V, V
CC
= 15 V
I
O-
10
20
--
10
20
--
mA
V
ID
= -1.0 V, V
O
= 200 mV
12
50
--
12
50
--
uA
Output Short Circuit to Ground (Note 2)
I
OS
--
40
60
--
40
60
mA
Power Supply Current
V
CC
= 30 VV
O
= 0 V, R
L
=
∞
I
CC
--
1.5
3.0
--
1.5
3.0
mA
V
CC
= 5.0 V, V
O
= 0 V, R
L
=
∞
--
0.7
1.2
--
0.7
1.2
Notes 1: The input common mode voltage or either input signal voltage should not be allowed to go negative by more
than 0.3 V. The upper end of the common mode voltage range is Vcc 17V, but either or both inputs can go to
+32V.
Note 2: Short circuits from the output to Vcc can cause excessive heating and eventual destruction. Destructive
dissipation can recruit from simultaneous shorts on all amplifiers.
2/8
Version: A07
TS324/TS2902
Low Power Quad Operational Amplifiers
Electrical Characteristics Curve

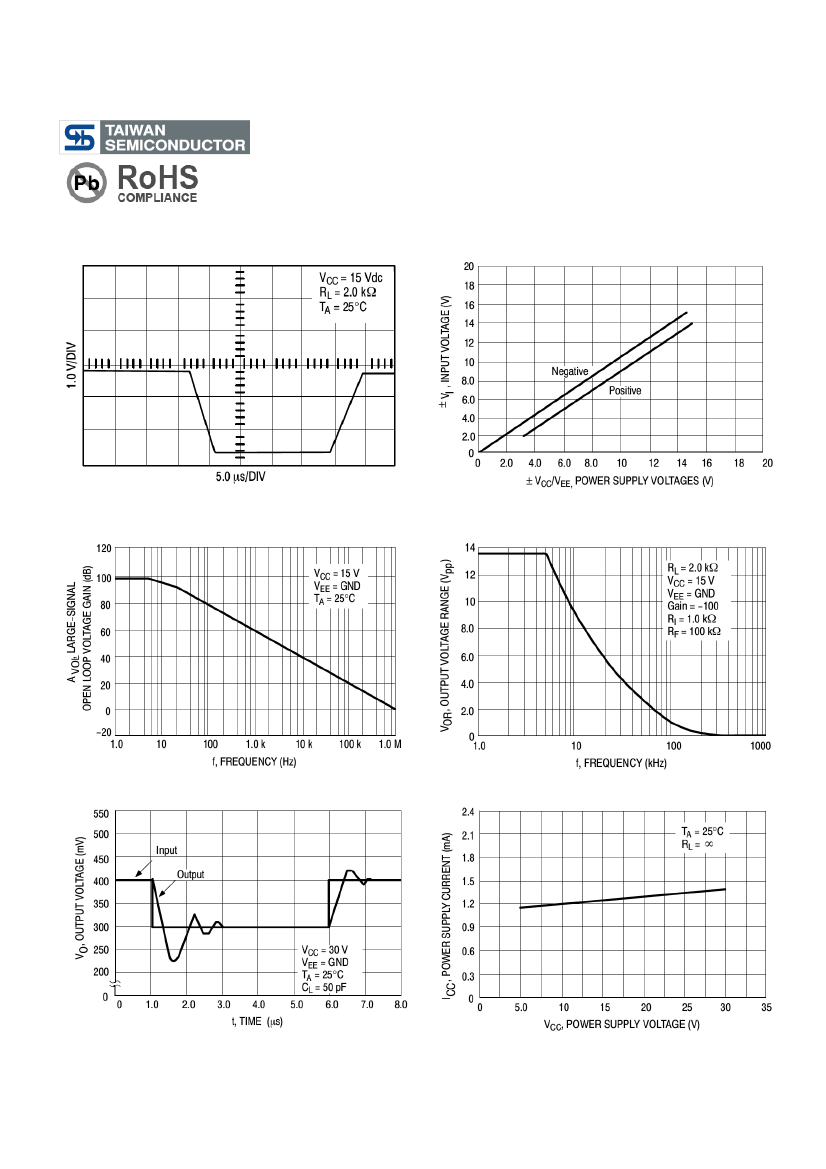

Figure 1. Large Signal Voltage Follower
Response
Figure 2. Input Voltage Range
Figure 3. Open Loop Frequency
Figure 4. Large Signal Frequency Response
Figure 5. Small-Signal Voltage Follower Pulse
Response (Noninverting)
Figure 6. Power Supply Current vs. Supply
Voltage
3/8
Version: A07
TS324/TS2902
Low Power Quad Operational Amplifiers
Application Description
The TS324/TS2902 made using four internally compensated, two-stage operational amplifiers. The first stage
performs not only the first stage gain function but also performs the level shifting and transconductance reduction
functions. By reducing the transconductance, a smaller compensation capacitor (only 5.0pF) can be employed, thus
saving chip area. Another feature of this input stage is that the input common mode range can include the negative
supply or ground, in single supply operation, without saturating either the input devices or the differential to single-
ended converter. The second stage consists of a standard current source load amplifier stage.
Each amplifier is biased from an internal-voltage regulator, and which has a low temperature coefficient thus giving
each amplifier good temperature characteristics as well as excellent power supply rejection.

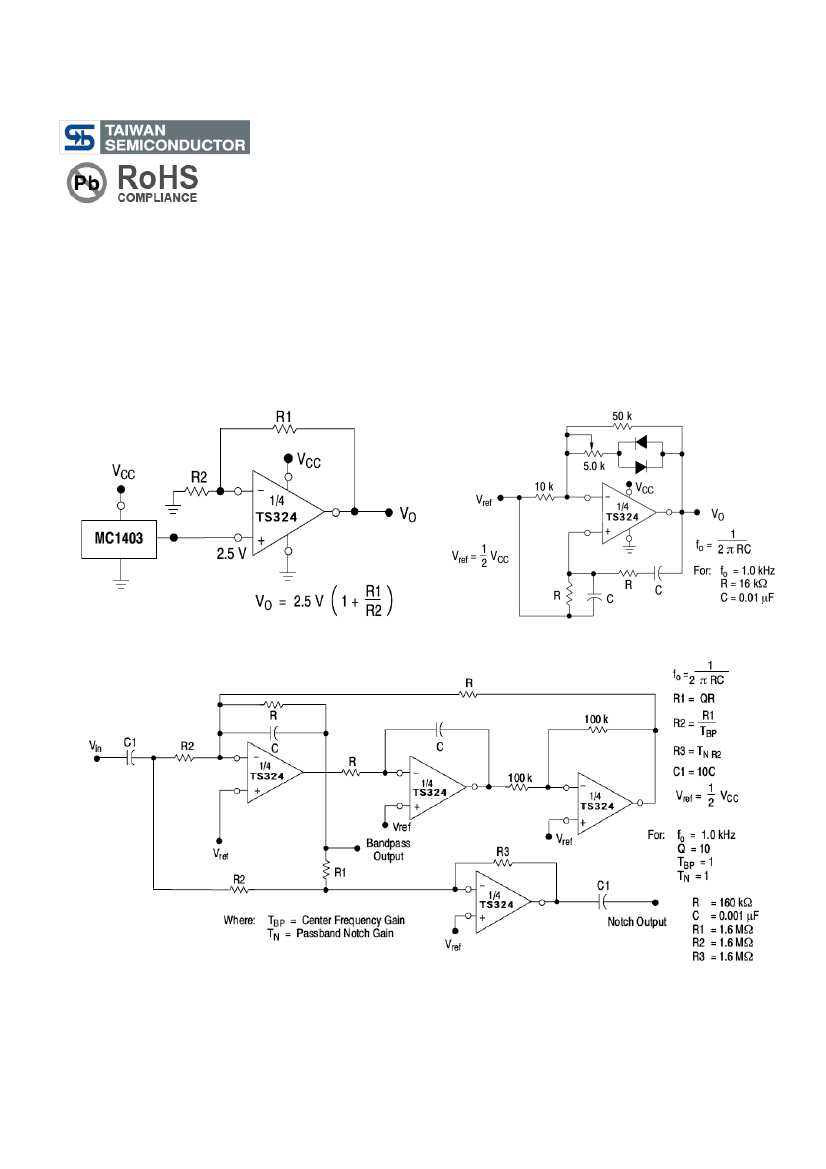

Figure 7. Voltage Reference
Figure 8. Wien Bridge Oscillator
Figure 9. Bi-Quad Filter
4/8
Version: A07
TS324/TS2902
Low Power Quad Operational Amplifiers
Application Description (Continues)

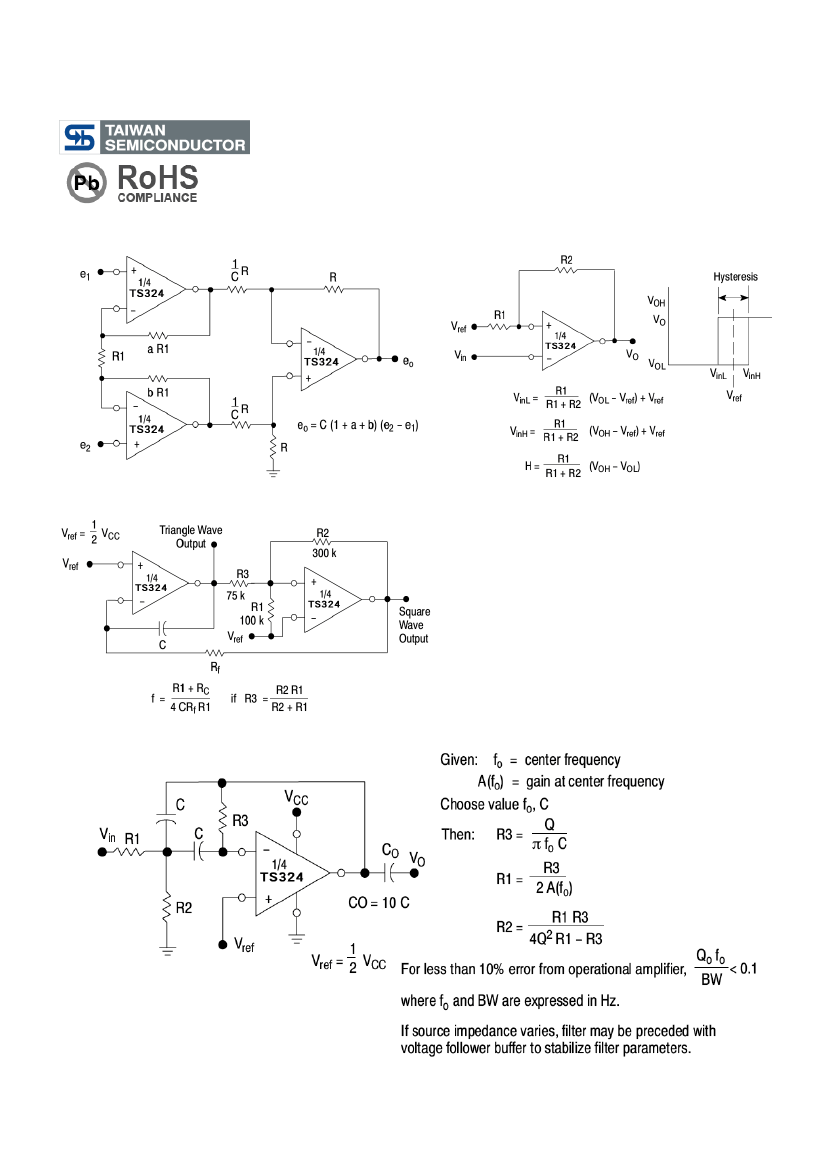

Figure 10. High Impedance Differential Amplifier
Figure 11. Comparator with Hysteresis
Figure 12. Function Generator
Figure 13. Multiple Feedback Bandpass Filter
5/8
Version: A07
