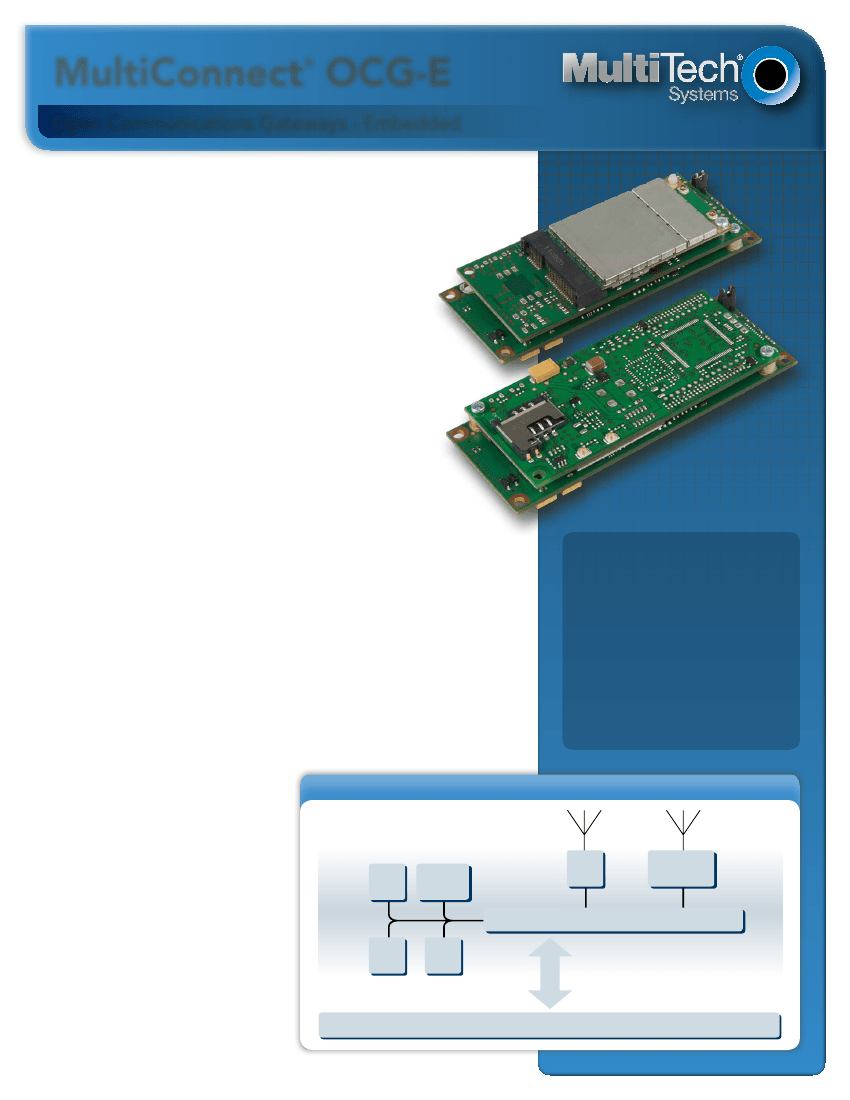

MultiConnect OCG-E
®
Open Communications Gateways - Embedded
The MultiConnect
®
OCG-E open communications gateways
with CoreCDP
™
comprise an open Linux development
environment and a fully certified hardware offering that
includes multiple interfaces and internal peripherals
in one application-ready end user solution.
Applications that require device networking
capability can now be embedded directly onto
select MultiTech hardware, providing a flexible,
quick and cost-effective way to bring your solution to
market.
Hardware
·
400 MHz ARM9
™
CPU
·
256MB NAND flash and 64MB SDRAM
·
Carrier approved 2G or 3G cellular connectivity
·
Non-cellular models available
·
Optional dedicated GPS receiver
·
80-pin board-to-board connector
·
Multiple interfaces available (serial, USB host and device, Ethernet and more)
Benefits
• Linux-based open source
software
• Proven hardware for the
development and deployment
of custom applications
• Cost-effective alternative to
custom manufacturing
• Comprehensive service and
developer support
CoreCDP Software
·
Custom Linux distribution
·
Provides complete Linux build environment
·
Cross-compile thousands of open source software packages
·
Create custom applications in a short period of time
Developer Kit
·
Customized development board for use with all models
·
Includes all physical interfaces,
cables, power supply and antennas
necessary to develop your application
·
Speeds hardware and software
development
Support
·
Advanced developer support
available
·
Established developer community
available at www.multitech.net
·
Two-year warranty
Real-time
Clock
Temp
Sensor
64MB
SDRAM
256MB
NAND Flash
GPS
2G/3G Cellular
SocketModem
®
UART/USB
UART
ARM9, 400 MHz
CPU
80 pin B2B connector
Battery / GPIO / ADC / SPI / I2C / JTAG / Ethernet / USB Host / USB Device / GPS PPS - Data / Serial UARTs / LEDs

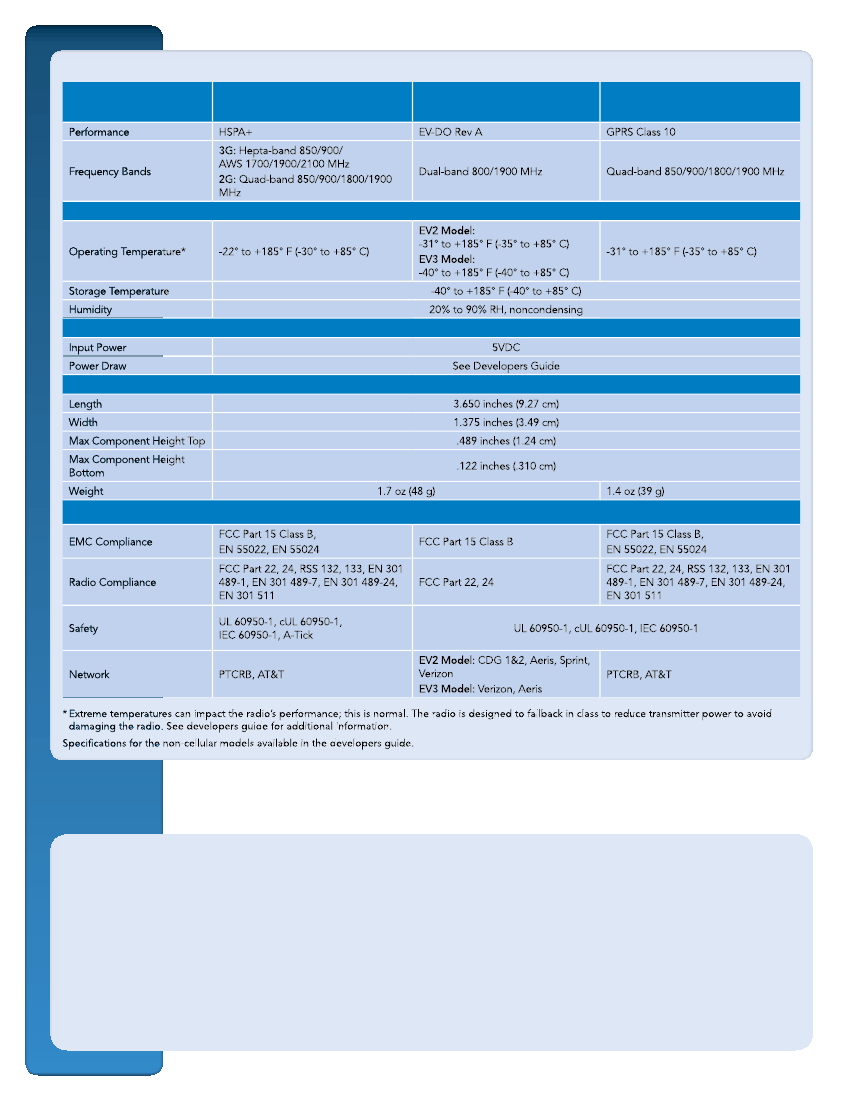

Specifications
Models
MT100EOCG-H5
MT100EOCG-EV2
MT100EOCG-EV3
MT100EOCG-G2
Environmental
Power Requirements
Physical Description
Certifications
CoreCDP Software Specifications
(Version 2.1.0)
Linux Kernel 2.6.35.14
Utilizes OpenEmbedded framework
Tested with the following Linux OS:
Ubuntu 9.10 & 11.04 (recommended)
Fedora Core 12 – 15
openSUSE 11.4
Drivers to support all peripherals included on the platform
hardware
Programming Languages: Python, Java (JamVM), Perl, Ruby,
C/C++, PHP
Networking: PPP, iptables
Web Server: lighttpd
Remote shell: SSH
Database: sqlite3
Network file system: samba
Software Development Kit: MultiConnect SDK
Hardware Specifications
Processor & Memory
400 MHz ARM9 CPU
256MB NAND flash
64MB SDRAM
Developer kit includes an industrial grade 2GB SD flash
memory card
Interfaces & Peripherals (continued)
Reset
Battery Backup
SD Card Detect
SD Card Protect
GPS PPS (Pulse Per Second)
GPS Transmit Data
RTC (Real Time Clock)
Dedicated GPS receiver (Optional)
2G or 3G Cellular modem
Temperature sensor
Interfaces & Peripherals
1 x 10/100BaseT Autosensing Ethernet Interface
1 x Serial TTL Interface (DTR, RXD, TXD, RTS, DCD, CTS)
1 x Serial TTL Interface (Debug or Data, RXD, TXD)
1 x USB 2.0 Full Speed Device Interface
1 x USB 2.0 Full Speed Host Interface
1 x SPI Bus Interface (6-Pin)
1 x I2C Bus Interface (2-Pin)
1 x JTAG Debug Interface (6-Pin)
1 x SDIO Memory Card Interface (6-Pin)
4 x ADC Inputs
6 x General Purpose Inputs
4 x General Purpose Outputs
1 x Cellular Link Status LED Output
2 x Ethernet LED Outputs (Speed & Link)
1 x Status (Heartbeat)/User Definable LED Output
3 x Cellular Signal Strength/User Definable LED Outputs
1 x User Definable LED Output
6 x VCC DC Input Pins (5V)
6 x Logic Ground Pins
Onboard LEDs
2G: Link status
Connections
80-Pin Board-to-Board
Manufacturer: Hirose
Part number: DF12 (3.0) -80DP-0.5V/86
Cellular Antenna: UFL
GPS Antenna: UFL
SIM: Standard 1.8/3V SIM receptacle (G2 & H4 models)
GPS
Position: 2.5 meters
Acquisition: Hot start 1 second; cold start 29 seconds avg.
Sensitivity: Tracking -161 dBm
Protocol: NMEA-0183 V3.01, GGA, GLL, GSA, GSV, RMC, VTG
Highlights
Proven Hardware Platform
All MultiConnect OCG-E models are based on MultiTech’s proven hardware design featuring our
SocketModem
®
cellular communication devices and an ARM9 400MHz processor. The hardware is optimized for
application development utilizing our CoreCDP Linux distribution.
Linux-Based Open Source
The MultiConnect OCG-E uses the OpenEmbedded framework as the base to provide a custom Linux
distribution, known as CoreCDP. This allows developers to cross-compile thousands of open source software
packages and to create custom applications in a very short period of time. In many cases, existing applications
can easily be run with little or no modification.
Carrier Approved
All MultiConnect OCG-E models are carrier and PTCRB or CDG approved, relieving customers the burden and
expense of obtaining these approvals independently. This also provides a faster time-to-market and improved
return on investment.
Embedded OCG Pin-Out
The MultiConnect OCG-E interfaces to your design via an 80-pin board-to-board connector giving you full
access and control of the numerous interfaces and peripherals. Local connectivity options include serial, USB
device and host, Ethernet, SPI, I2C. In addition, there are several user definable GPIOs, ADCs and LEDs that
can be utilized to enhance your products overall design. Also included are serial and JTAG debug ports to help
speed application development and debug.
Developer Kit
The Developer Kit allows you to plug in the MultiConnect OCG-E communications device and use it for testing,
programming and evaluation.
Ordering Information
Cellular Only Models*
Product
MT100EOCG-H5
MT100EOCG-EV2-N2
MT100EOCG-EV2-N3
MT100EOCG-EV2-N16
MT100EOCG-EV3-N3
MT100EOCG-EV3-N16
MT100EOCG-G2
Description
3G, HSPA+ Open Communications Gateway
3G, EV-DO Open Communications Gateway (Sprint)
3G, EV-DO Open Communications Gateway (Verizon)
3G, EV-DO Open Communications Gateway (Aeris)
3G, EV-DO Open Communications Gateway (Verizon)
3G, EV-DO Open Communications Gateway (Aeris)
2G, GPRS Open Communications Gateway
Description
3G, HSPA+ Open Communications Gateway w/GPS
3G, EV-DO Open Communications Gateway w/GPS (Sprint)
3G, EV-DO Open Communications Gateway w/GPS (Verizon)
3G, EV-DO Open Communications Gateway w/GPS (Aeris)
3G, EV-DO Open Communications Gateway w/GPS (Verizon)
3G, EV-DO Open Communications Gateway w/GPS (Aeris)
2G, GPRS Open Communications Gateway w/GPS
Description
Open Communications Gateway
Open Communications Gateway w/GPS
Description
Developer Kit for all Open Communications Gateway Models
Region
Global
USA
USA
USA
USA
USA
Global
Region
Global
USA
USA
USA
USA
USA
Global
Region
Global
Global
Region
Global
Services & Warranty
MultiTech’s comprehensive Support
Services programs offer a full array of
options to suit your specific needs.
These services are aimed at protecting
your investment, extending the life of
your solution or product, and reducing
total cost of ownership. Our seasoned
technical experts, with an average
tenure of more than 10 years, can
walk you through smooth installations,
troubleshoot issues and help you with
configurations. Products include a 2-year
warranty.
Cellular & GPS Models*
Product
MT100EOCG-H5-GP
MT100EOCG-EV2-GP-N2
MT100EOCG-EV2-GP-N3
MT100EOCG-EV2-GP-N16
MT100EOCG-EV3-GP-N3
MT100EOCG-EV3-GP-N16
MT100EOCG-GP-G2
Installation Support
MultiTech’s Installation Support Service
delivers priority service with the ability
to work one-on-one with an experienced
MultiTech technical support engineer,
to guide you through the installation
process for our products.
Non-cellular Models
Product
MT100EOCG
MT100EOCG-GP
Developer Kit Model
Product
MT100EOCG-DK
Technical Support Services
At MultiTech, we’re committed to
providing you personalized attention
and quality service while providing you a
quick response to your product support
needs. We have several options of
support for you to choose from.
For additional information on Support
Services as well as other service
offerings, please contact your MultiTech
representative or visit
www.multitech.com/support.go.
* Product customization available. Contact your MultiTech representative for details.
