820KR05-213R001 datasheet, PDF

Datasheet> All Categories > The connector> 820KR05-213R001

820KR05-213R001: DescriptionCONN RCPT FMALE 5POS GOLD SOLDER; CategoryThe connector; File Size186KB，2 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

820KR05-213R001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	820KR05-213R001	-	-	View	Buy Now

820KR05-213R001 Overview

CONN RCPT FMALE 5POS GOLD SOLDER

820KR05-213R001 Parametric

Parameter Name	Attribute value
Connector type	socket, female socket
Number of pins	5
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	Panel mount, partition wall; through hole, right angle
Termination	welding
Fastening type	push-pull
towards	Marked
Intrusion protection	IP67 - dust and water resistant
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	shield
Rated current	-
Voltage - Rated	280V
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

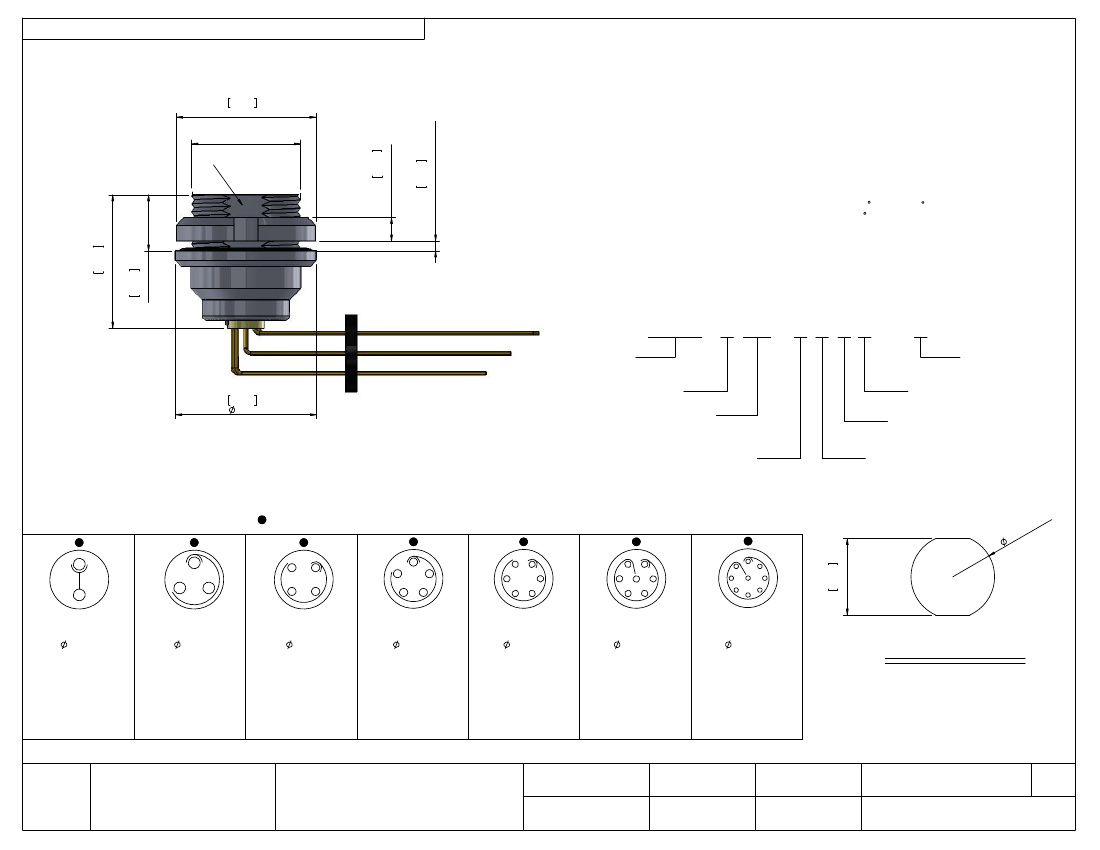

DESCRIPTION: QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT - IP67

0.709

18.00

M14*1.0

12.50 [0.492]

(ACROSS FLATS)

0.098

2.50

0.138

3.50

(MAX. PANEL THICKNESS)

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

SHELL : BRASS

SHELL PLATING : NICKEL

NUT : BRASS

NUT PLATING : NICKEL

LATCH SLEEVE : BRASS

LATCH SLEEVE PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 5.0 Nm [44.0 IN/lbs]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 67

0.748

19.00

0.276

7.00

820K R YY - 2 1 3 R 00 1

SERIES

11.00 [0.433]

0.709

18.00

1 = GOLD FLASH

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

BOARD MOUNT (PANEL MOUNT)

R = RIGHT ANGLE

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2 = FEMALE

**NOTE**

SEE PAGE 2 FOR BOARD LAYOUTS

CHART A

= KEY LOCATION

**VIEW FROM TERMINATION END**

[0.

5.1

]

2 POSITION

10 AMP MAX.

= 0.90 [0.035]

3 POSITION

8 AMP MAX.

= 0.90 [0.035]

4 POSITION

7 AMP MAX.

= 0.70 [0.028]

5 POSITION

6.5 AMP MAX.

= 0.70 [0.028]

6 POSITION

2.5 AMP MAX.

= 0.50 [0.020]

7 POSITION

2.5 AMP MAX.

= 0.50 [0.020]

9 POSITION

2 AMP MAX.

= 0.50 [0.020]

0.535

13.60

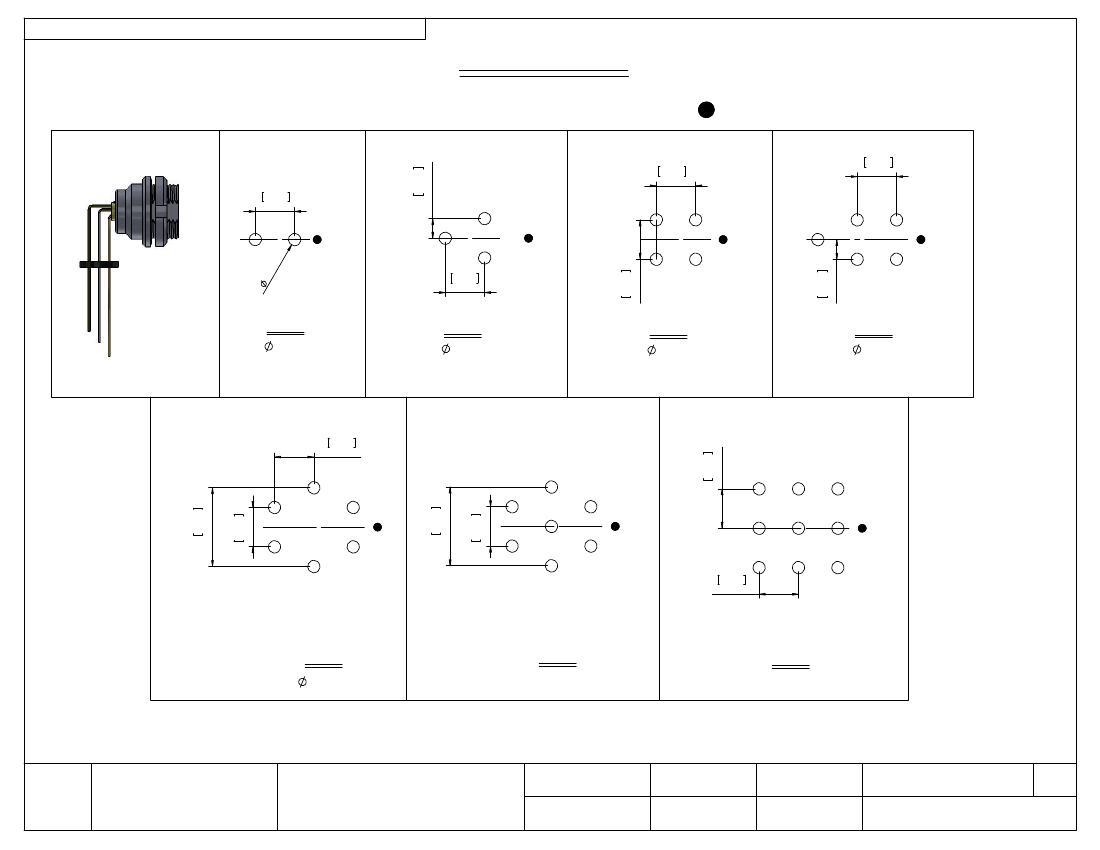

PANEL CUTOUT

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1200V

WORKING VOLTAGE

= 400V

CONTACT

RESISTANCE

= 7.5 m

Ω

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

CONTACT

RESISTANCE

= 7.5 m

Ω

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

CONTACT

RESISTANCE

= 10 m

Ω

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

CONTACT

RESISTANCE

= 10 m

Ω

TEST VOLTAGE

= 800V

WORKING VOLTAGE

= 260V

CONTACT

RESISTANCE

= 10 m

Ω

TEST VOLTAGE

= 600V

WORKING VOLTAGE

= 200V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

DATE:

SCALE:

SHEET

REV:

M. SIGMON

CHECKED:

DATE:

02-6-16

N.T.S.

DWG NO.

820KRYY-213R001
