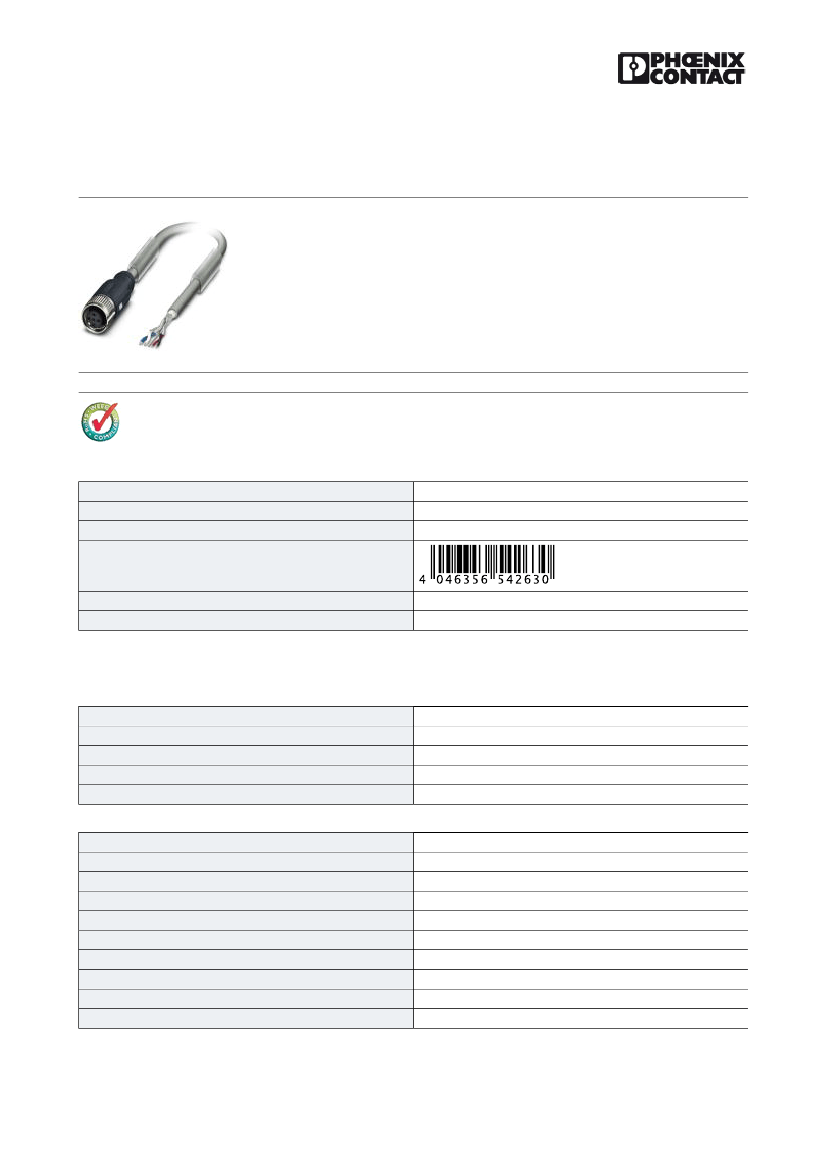

Bus system cable - SAC-5P- 5,0-923/FS CAN SCO - 1419030
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Bus system cable, CANopen®, 5-position, PUR halogen-free, Gray RAL 7001, Free cable end, on
Socket straight M12-SPEEDCON, A-coded, Cable length: 5 m
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85444290
GERMANY
0
1
Page 395 (PC-2011)
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Length of cable
4A
60 V
5
< 5 mΩ
5m
General characteristics
Coding
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Status display
A - standard
II
3
IP65/IP67/IP69K
CuSn
Ni/Au
TPU GF
TPU
Zinc die-cast, nickel-plated
No
06.09.2012 Page 1 / 4
https://www.phoenixcontact.com/us/produkte/1419030
Bus system cable - SAC-5P- 5,0-923/FS CAN SCO - 1419030
Technical data
Conductor data
Cable type
Cable type (abbreviation)
Conductor cross section
Conductor cross section
Conductor cross section
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Material conductor insulation
Conductor material
Insulation resistance
Insulation resistance
Conductor resistance
Conductor resistance
Working capacitance
Working capacitance
Nominal voltage, conductor
Nominal voltage, conductor
Test voltage, conductor
Test voltage, conductor
Halogen-free
Ambient temperature (operation)
CAN Bus/DeviceNet
923
2x 0.2 mm² (signal line)
2x 0.32 mm² (Power supply)
1x 0.32 mm² (Drain wire)
24
22
19x 0.12 mm
19x 0.15 mm
2.05 mm ±0.1 mm (signal line)
1.4 mm ±0.05 mm (Power supply)
Red-black, blue-white
2 cores to the pair
Aluminum-lined polyester foil
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
70 %
Gray RAL 7001
6.70 mm
67 mm
67 mm
5000000
67 mm
10 m
3 m/s
7 m/s²
PUR
PE (Power supply)
Foamed PE (signal line)
Tin-plated Cu litz wires
≥ 5 GΩ*km (signal line)
≥ 100 MΩ*km (Power supply)
≤ 78.4 Ω/km (signal line)
≥ 51.6 Ω/km (Power supply)
39.3 pF (Signal line, Core-Core)
78.7 pF (Signal line, Core-Shield)
30 V (signal line)
300 V (Power supply)
1500 V (signal line)
2000 V (Power supply)
complying with IEC 60754-1/2
-40 °C ... 80 °C (cable, fixed installation)
06.09.2012 Page 2 / 4
https://www.phoenixcontact.com/us/produkte/1419030
Bus system cable - SAC-5P- 5,0-923/FS CAN SCO - 1419030
Technical data
Conductor data
Ambient temperature (operation)
-20 °C ... 75 °C (cable, flexible installation)
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060307
27060307
27061801
27060307
27279218
27279218
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC000830
EC000830
EC001855
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121616
26121616
26121604
26121616
26121616
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
06.09.2012 Page 3 / 4
https://www.phoenixcontact.com/us/produkte/1419030
Bus system cable - SAC-5P- 5,0-923/FS CAN SCO - 1419030
Drawings
Schematic diagram
3
5
4
Dimensioned drawing
44,5
M12
Ø12
Pin assignment M12 socket, 5-pos., A-coded, socket side view
M12 x 1 female connector, straight
Circuit diagram
1
2
3
4
5
SH
RD
BK
WH
BU
Contact assignment of the M12 socket
© Phoenix Contact 2012 - all rights reserved
http://www.phoenixcontact.com
06.09.2012 Page 4 / 4
Ø15
2
1
