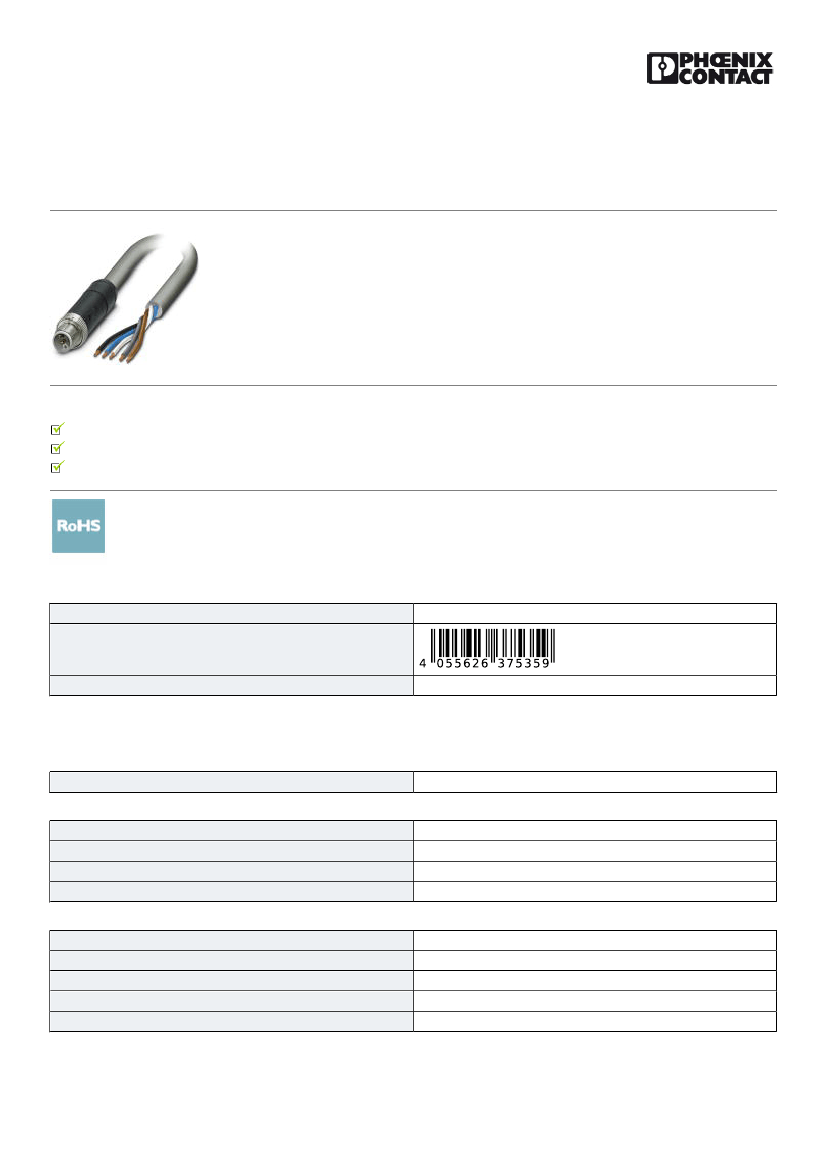

Power cable - SAC-5P-M12MSL/ 3,0-510 FE - 1424610
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Power cable, 5-position, PVC, gray RAL 7001, Plug straight M12, L-coded, on free cable end, cable length: 3
m
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: DC connectors for up to 12 A and 63 V DC
Key Commercial Data
Packing unit
GTIN
GTIN
4055626375359
1 pc
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
12 A
63 V DC
5
black
≥ 100 MΩ
11/02/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1424610
Power cable - SAC-5P-M12MSL/ 3,0-510 FE - 1424610
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
L - Power
M12 connector IEC 61076-2-111
No
Unwired
III
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuSn
Ni/Au
PA
PA
Zinc die-cast, nickel-plated
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-111
V0
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Conductor cross section
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Wire colors
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
PVC gray
510
20233 / 10493 (80°C/300 V)
5x 1.5 mm²
16
78x 0.15 mm
2.35 mm ±0.05 mm
≥ 0.25 mm
Brown, white, blue, black, gray
gray RAL 7001
approx. 1.3 mm
9.1 mm ±0.25 mm
5xD
10 x D
2000000
10 x D
10 m
3 m/s
10 m/s²
11/02/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1424610
Power cable - SAC-5P-M12MSL/ 3,0-510 FE - 1424610
Technical data
Cable
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
PVC
PVC
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 13 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
According to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Resistance to oil
Ambient temperature (operation)
According to DIN EN 60811-404, 168 h at 60 °C
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

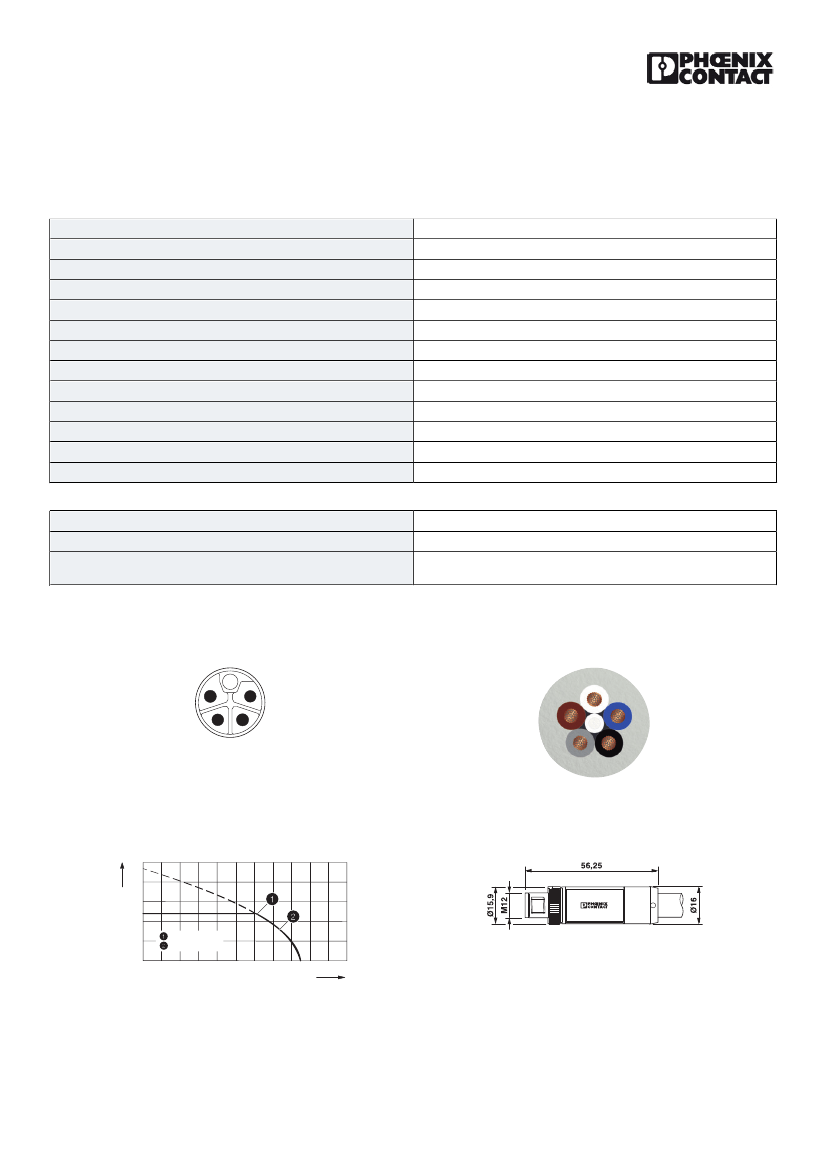

Drawings
Schematic diagram
FE
Cable cross section
4
1
3
2
Pin assignment of M12 connector, 5-pos., L-coded, pin side view
PVC gray [510]
Diagram
I [A]
25
20
15
10
5
0
0
10
20
30
40
50
60
70
80
90 100 110
T [°C]
Dimensional drawing
= Plug
= Socket
Plug, M12 x 1, straight, shielded
11/02/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1424610
Power cable - SAC-5P-M12MSL/ 3,0-510 FE - 1424610
Circuit diagram
1
2
4
3
FE
BN
WH
BK
BU
GY
Contact assignment of the M12 plug
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
16 A
14
E468743
cUL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
16 A
14
E468743
EAC
RU C-
DE.AI30.B.00767
11/02/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1424610
Power cable - SAC-5P-M12MSL/ 3,0-510 FE - 1424610
Approvals
cULus Listed
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/02/2018 Page 5 / 5
