1754590000

Description
Board Connector, 5 Contact(s), 1 Row(s), Male, Screw Terminal, Plug
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1754590000 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Screw Terminal, Plug

1754590000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberSLZF7.62/5
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeSCREW
Total number of contacts5
UL Flammability Code94V-0
Base Number Matches1

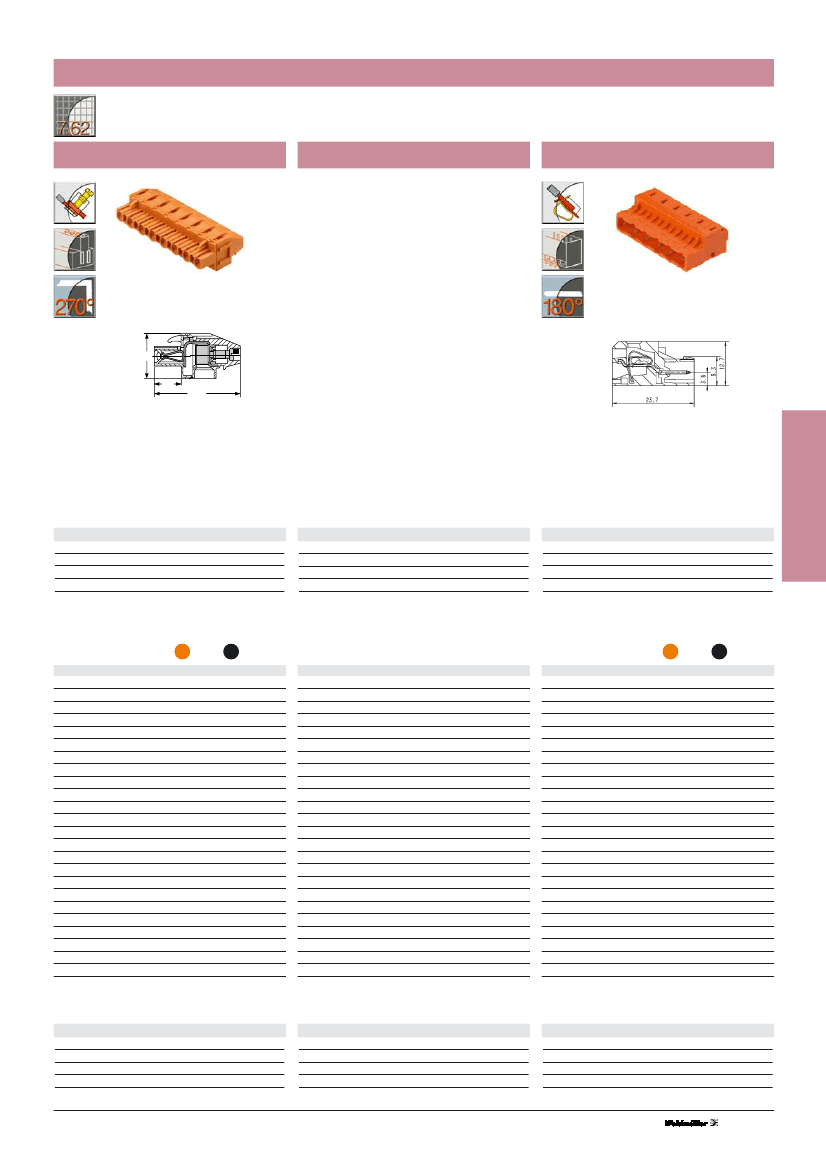

Omnimate Range - Pitch 7.62 mm
Socket blocks BLZ 7.62/270B
Pin headers SLZF 7.62
14
8.4
26.9
Technical Data
VDE
UL
300
10
12
CSA
300
10
12
Technical Data
VDE
UL
300
10
14
CSA
300
10
14
Rated voltage
V
500*
Rated current
A
13
Clamping range max.
mm
2
/AWG
2.5
*Overvoltage category III / Pollution severity 3
Additional technical data see page 226
Rated voltage
V
500*
Rated current
A
16
Clamping range max.
mm
2
/AWG
1.5
*Overvoltage category III / Pollution severity 3
Additional technical data see page 226
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
Type
BLZ 7.62/2/270B
BLZ 7.62/3/270B
BLZ 7.62/4/270B
BLZ 7.62/5/270B
BLZ 7.62/6/270B
BLZ 7.62/7/270B
BLZ 7.62/8/270B
BLZ 7.62/9/270B
BLZ 7.62/10/270B
BLZ 7.62/11/270B
BLZ 7.62/12/270B
Cat. No.
1703330000
1703340000
1703350000
1703360000
1703370000
1703380000
1703390000
1703400000
1703410000
1703420000
1703430000
Cat. No.
1703440000
1703450000
1703460000
1703470000
1703480000
1703490000
1703500000
1703510000
1703520000
1703530000
1703540000
Qty.
100
100
100
50
50
50
50
50
50
50
50
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
Type
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
SLZF
7.62/2
7.62/3
7.62/4
7.62/5
7.62/6
7.62/7
7.62/8
7.62/9
7.62/10
7.62/11
7.62/12
Cat. No.
1754450000
1754460000
1754470000
1754480000
1754490000
1754500000
1754510000
1754520000
1754530000
1754540000
1754550000
Cat. No.
1754560000
1754570000
1754580000
1754590000
1754600000
1754610000
1754620000
1754630000
1754640000
1754650000
1754660000
Qty.
100
100
100
50
50
50
50
50
50
50
50
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
193
196
199
207
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
196
199
207, 208
153
Omnimate Range
Pitch 7.62 mm
