802-40-038-10-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-40-038-10-002000

802-40-038-10-002000: DescriptionCONN HDR PIN; CategoryThe connector The connector; File Size466KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

802-40-038-10-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	802-40-038-10-002000	-	-	View	Buy Now

802-40-038-10-002000 Overview

CONN HDR PIN

802-40-038-10-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	802
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38
Base Number Matches	1

Preview

Download Datasheet

View All

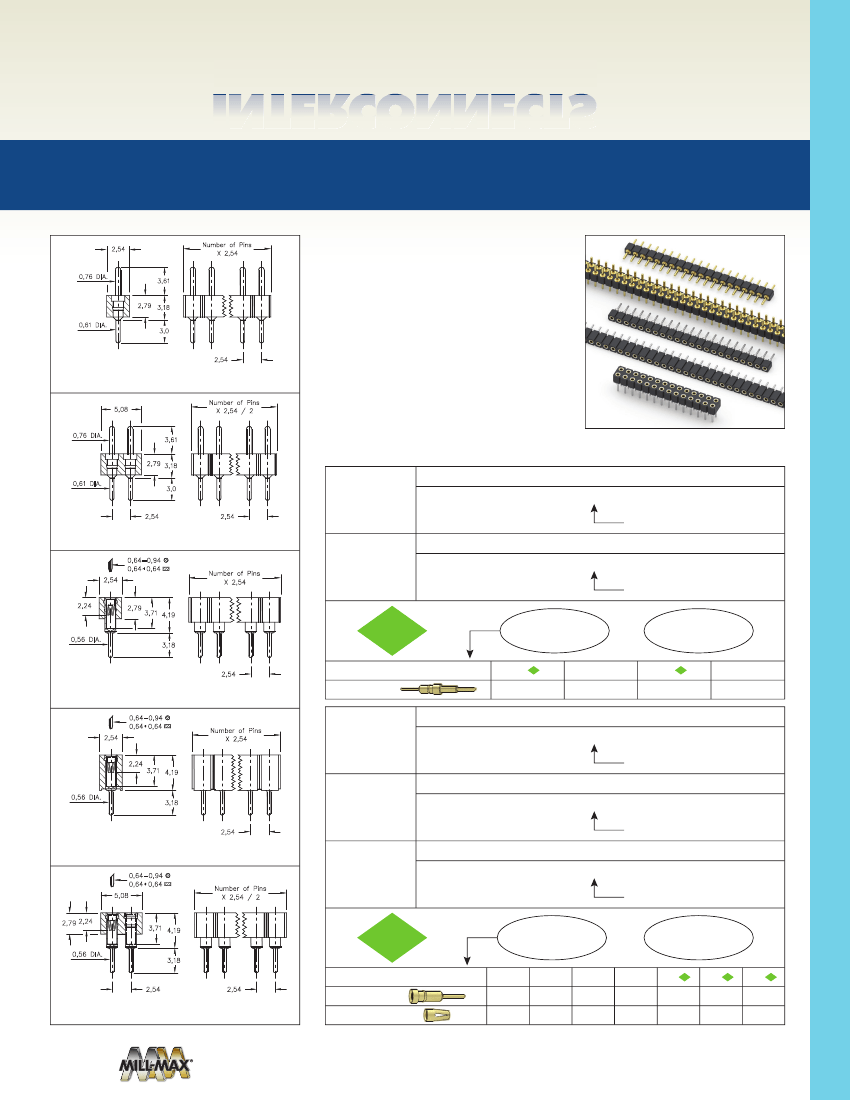

INTERCONNECTS

SERIES 800, 801, 802, 803 • 2,54 GRID (0,76 DIA. PINS),

LOW PROFILE HEADERS & VERSATILE SOCKETS • SINGLE & DOUBLE ROW STRIPS

Number of Pins

X 2,54

2,54

•

Series 800 and 802 single and double row pin

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

0,76 DIA.

3,61

headers use MM #5016 pins. See page 215 for

details

sockets use MM #1303 receptacles. See page

180 for details

6- nger BeCu #47 contact rated at 4.5 amps.

Receptacles accept 0,76 diameter and 0,64

square pins. See page 256 for details

suitable for all soldering operations

2,79

0,61 DIA.

3,18

3,0

2,54

FIG. 1

5,08

Number of Pins

X 2,54 / 2

0,76 DIA.

•

Insulators are high temperature thermoplastic,

3,61

2,79 3,18

0,61 DIA.

ORDERING INFORMATION

Series 800...002

3,0

FIG. 1

2,54

Single Row Low Pro le Pin Header

800 XX 0_ _ 10 002000

01-64

2,54

FIG. 2

0,64-0,94

0,64 0,64

2,54

Number of Pins

X 2,54

Specify number of pins

Series 802...002

FIG. 2

RoHS - 2

Double Row Low Pro le Pin Header

802 XX 0_ _ 10 002000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

0,25µm Au

2,24

2,79

3,71 4,19

0,56 DIA.

2011/65/EU

3,18

2,54

SPECIFY PLATING CODE XX=

Pin Plating

5,08µm Sn/Pb

5,08µm Sn

FIG. 3

0,64-0,94

0,64 0,64

2,54

Number of Pins

X 2,54

Series 801...002

FIG. 3

Series 801...012

Low Pro le Socket

short insulator)

801 XX 0_ _ 10 002000

01-64

2,24

3,71 4,19

Specify number of pins

0,56 DIA.

3,18

FIG. 4

2,54

Low Pro le Socket

long insulator)

801 XX 0_ _ 10 012000

01-36

Specify number of pins

0,64-0,94

0,64 0,64

5,08

Number of Pins

X 2,54 / 2

FIG. 5

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2,79 2,24

3,71 4,19

2011/65/EU

0,56 DIA.

3,18

2,54

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

Au Flash

5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn 5,08µm Sn

0,25µm Au 0,76µm Au

2,54µm Sn/Pb

0,25µm Au 0,76µm Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 53 | INTERCONNECTS

FIG. 4

Series 803...002

Double Row Low Pro le Socket

803 XX 0_ _ 10 002000
