TR1504T-731: DescriptionChip Transponder Inductors; File Size58KB，2 Pages; ManufacturerECM [ECM Electronics Limited.]

Download Datasheet View All

TR1504T-731 Overview

Chip Transponder Inductors

Preview

Download Datasheet

View All

ECM Chip Transponder Inductors

TR Series

High Shock Resistance

High Temperature Tolerance

Ferrite Core

2 Standard Sizes

Taped and Reeled

Typical Reel Size 3000pcs

The TR series of surface mountable wound inductors was the very first of its type specifically

designed for transponder applications. Continuous product developments mean the TR range

continues to be the most effective antenna coil available for a wide choice of applications. Its length

and cross sectional area is optimised to achieve maximum sensitivity on the coils axis.

For designs such as industrial and automotive applications, that need to withstand high shock and

vibration characteristics (Higher than 1.0m drop test), high shock versions are also available.

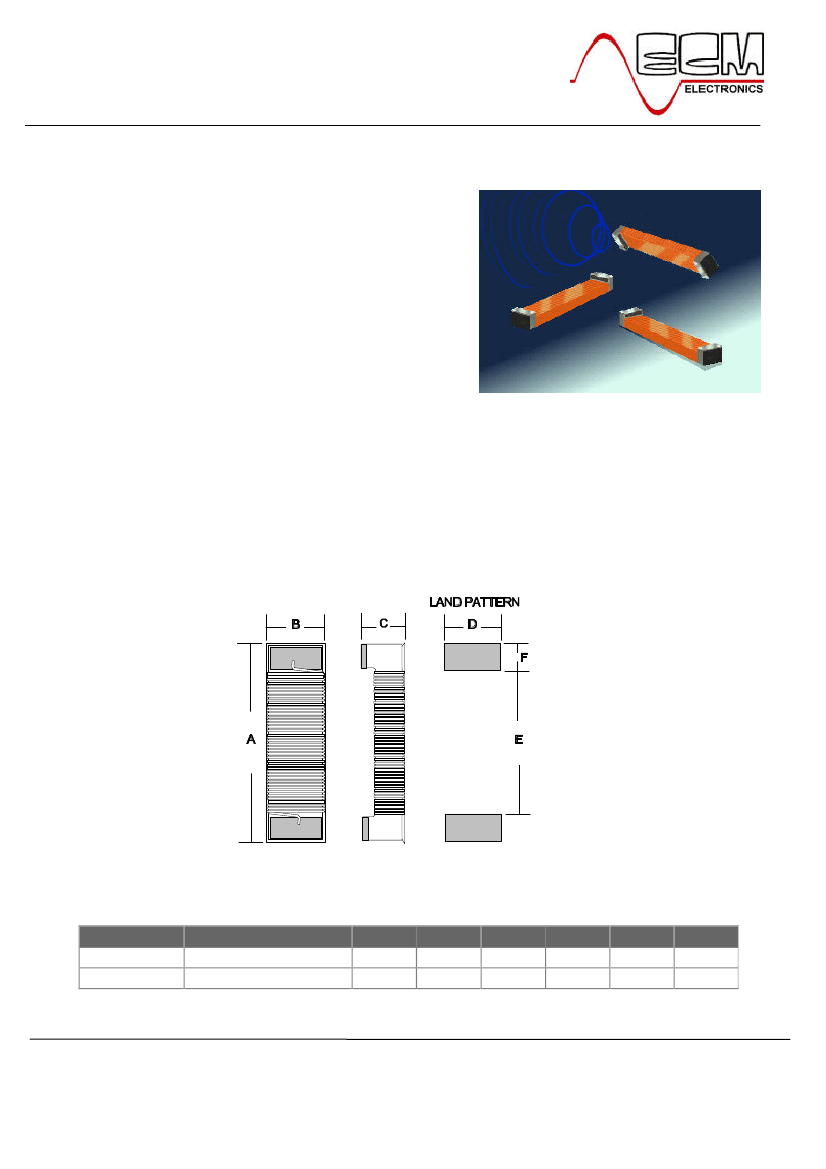

COMPONENT OUTLINE

DIMENSIONS (mm)

ECM Type Inductance Range

TR1102

290uH~16.2mH

TR1504

410uH~4.91mH

11.0

15.0

2.2

4.3

2.3

2.8

4.8

9.2

13.0

1.0

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 1
