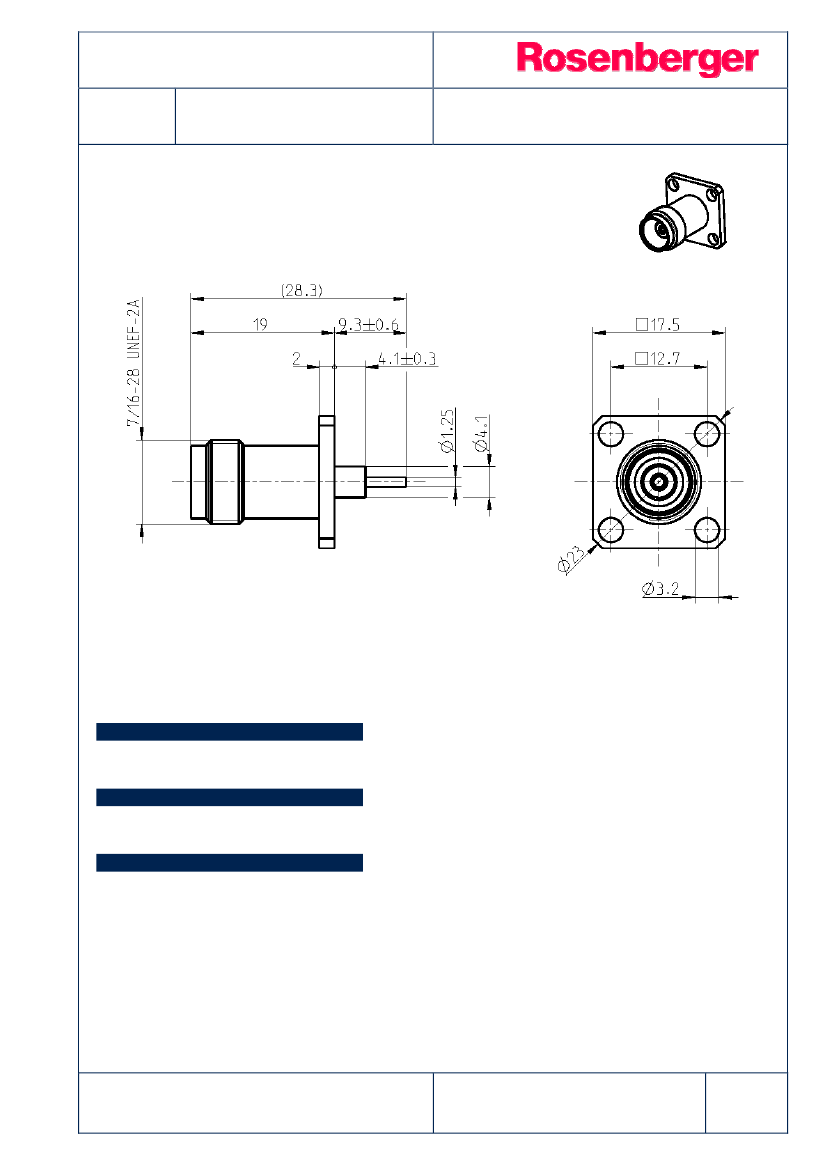

Technical Data Sheet
TNC 50
PANEL JACK
COAXIAL END
56K405-500N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
Documents
Panel piercing
B6
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
CuBe
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/08.13/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
TNC 50
PANEL JACK
COAXIAL END
56K405-500N5
50
DC to 10 GHz
35 dB, DC to 1 GHz
30 dB, 1 to 2.5 GHz
27 dB, 2.5 to 4 GHz
0.05 dB, DC to 4 GHz
5 x10
3
M
1.5 m
1 m
1500 V rms
500 V rms
80 W @ 2 GHz
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- - Interface only –
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
500
15 N
1.7 Nm
0.46 Nm to 0.69 Nm
-65 °C to +165 °C
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 204, Condition B
MIL-STD-202, Method 213, Condition G
MIL-STD-202, Method 106
compliant
N/A
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
Tooling
Suitable cables
N/A
Weight
Weight
9.9 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Inge Mühlauer
Date
10.08.04
Approved
Sa. Krautenbacher
Date
19.03.14
Rev.
d00
Engineering change number
14-0352
Name
T. Krojer
Date
19.03.14
RF_35/08.13/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
