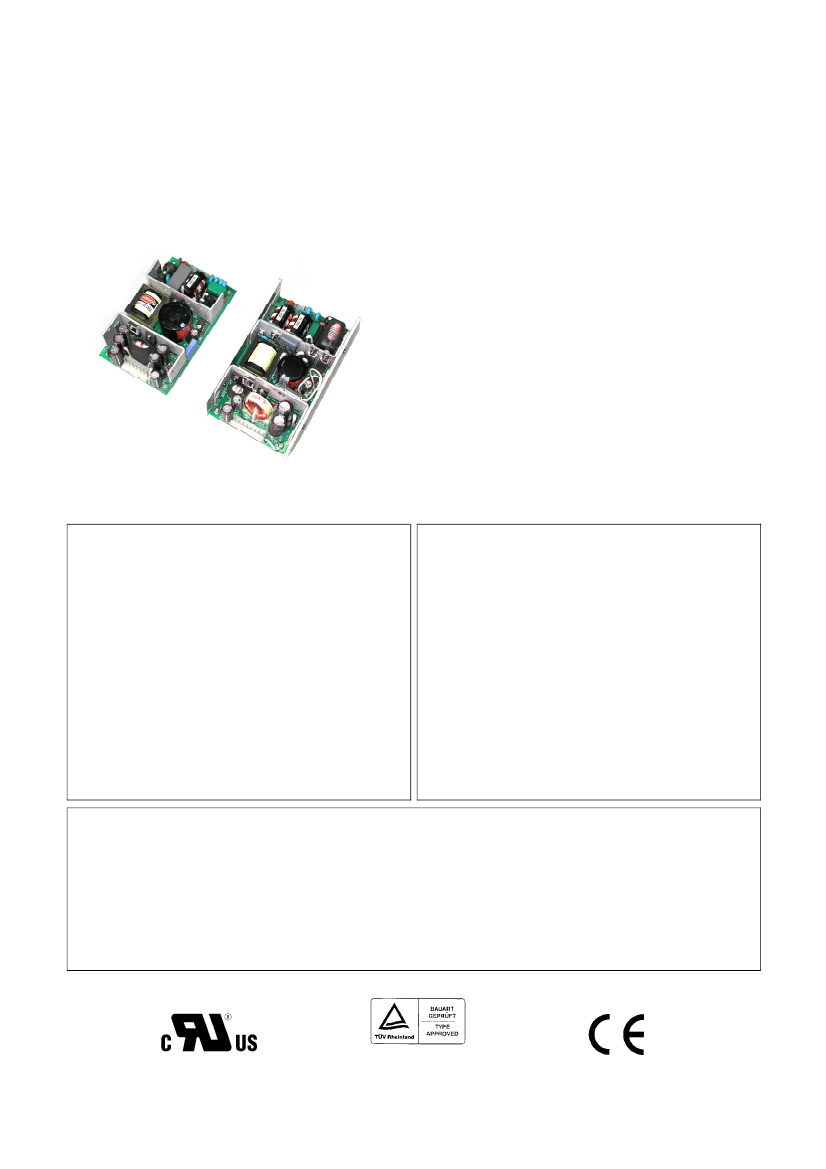

UNIVERSAL INPUT HARMONIC CORRECTION AC-DC OPEN

FRAME SINGLE & MULTIPLE OUTPUT 50-100 WATTS

INTERNAL SWITCHING POWER SUPPLIES

TPVP93

SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

MEET IEC1000-3-2 HARMONIC CORRECTION

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET CISPR PUB. 22 CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Typ. 90-264Vac with PFC.

Input Connector:

Molex V-M connector.

Input Frequency:

47-63Hz.

Inrush Current:

Typ. 23A @230Vac.

Input Current:

Typ. 1.5A@115Vac, 0.8A@230Vac.

Dielectric Withstand:

Meet IEC950.

EMI:

Meet CISPR PUB.22 Class B.

Hold-up Time:

Typ. 43mS @ 115Vac & 230Vac.

Over Temp. Protection (OTP):

Optional for

U-Bracket format.

Power Factor Correction:

Meet Harmonic Correction

per IEC1000-3-2.PF typ.0.98-0.99.

Earth Leakage:

Less than 0.63mA.

Overload Protection (OLP):

Fully protected against output

overload and short circuit.

Consult the factory for OLP setting.

OUTPUT SPECIFICATION

Output Voltage:

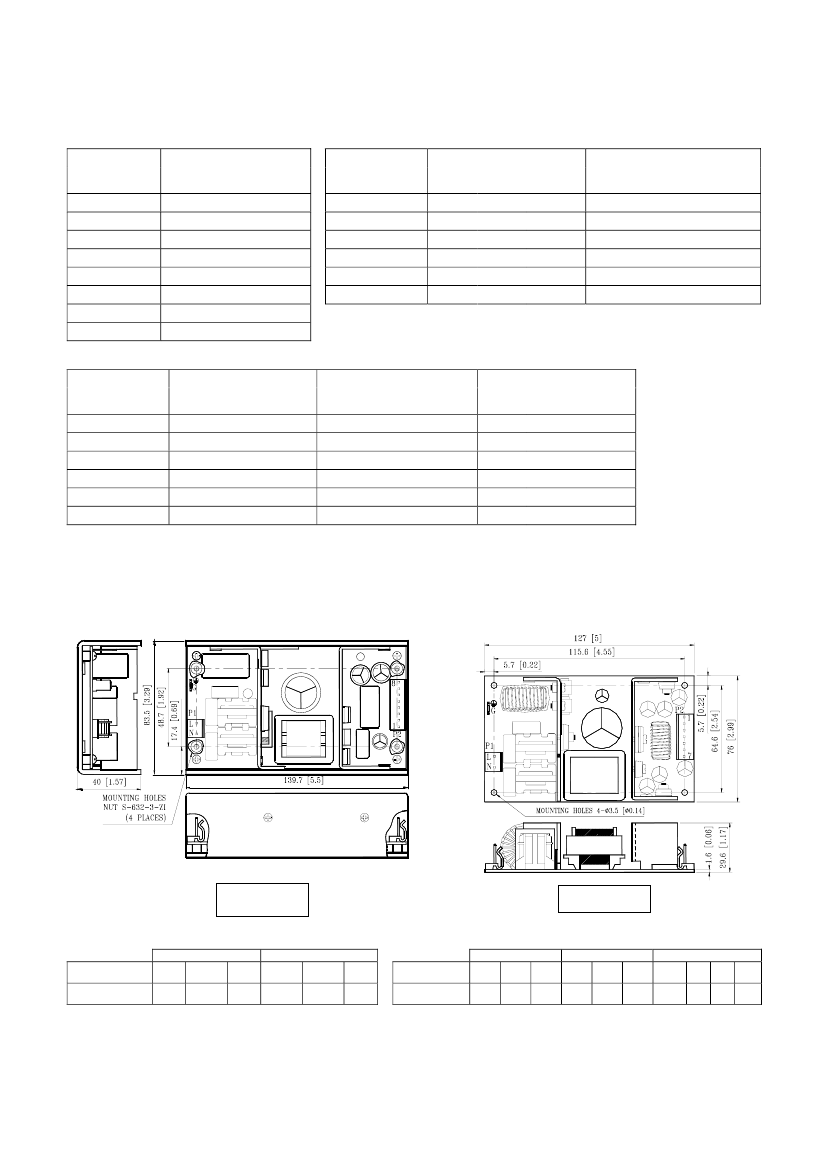

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

Molex V-M connector.

Output Wattage:

Typ. 50 Watts. convection.

Max. 93 Watts under forced air flow.

Line Regulation:

Typ. 0.1-0.5%.

Load Regulation:

Main VO1: typ. ±1-2.0%.

Aux. VO2: typ. ±3-5.0% (Stacked on).

VO2: typ. ±2-3.0% (P.R.).

Aux. VO3: typ. ±2-3.0% (P.R.).

Noise & Ripple:

Typ. 1% peak to peak.

OVP:

Installed in main VO1 only.

Adjustability:

Available at main VO1.

OR-ing Diodes:

Installed in VO1 & VO2.

Operating Temperature:

0 to +50°C at full load and

30 cfm forced air flow for full load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. 0.04% /°C.

Cooling:

At least 20 cfm forced cooling air is required

for 90 watts and up load

Construction:

PCB or U-bracket open frame format.

GENERAL SPECIFICATION

Efficiency:

Typ. 75%.

Switching Frequency:

Fixed freq. at 65K Hz.

Circuit Topology:

PWM Fixed-frequency Forward Circuit.

Transient Response:

Output voltage returns in

less than 0.5mS following

a 25% load change.

Safety Standard:

UL1950/ EN60950 Class I.

Power Density:

2.5-5.0 Watts / Cubic Inch PCB format.

1.7- 3.37 Watts / Cubic Inch U-Bracket format.
