56S107-108N5

Description
TNC STRAIGHT PLUG
CategoryThe connector    The connector
File Size78KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

56S107-108N5 Online Shopping

Suppliers Part Number Price MOQ In stock
56S107-108N5 - - View Buy Now

56S107-108N5 Overview

TNC STRAIGHT PLUG

56S107-108N5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.551 inch
Body diameter0.63 inch
Body/casing typePLUG
Cable typeRG-142B/U
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance1.5 mΩ
Contact styleCOAX
Durability500 Cycles
Insertion loss0.05 dB
Insulation resistance5000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
Maximum operating frequency10 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeSOLDER LUG
Total number of contacts1
Technical Data Sheet

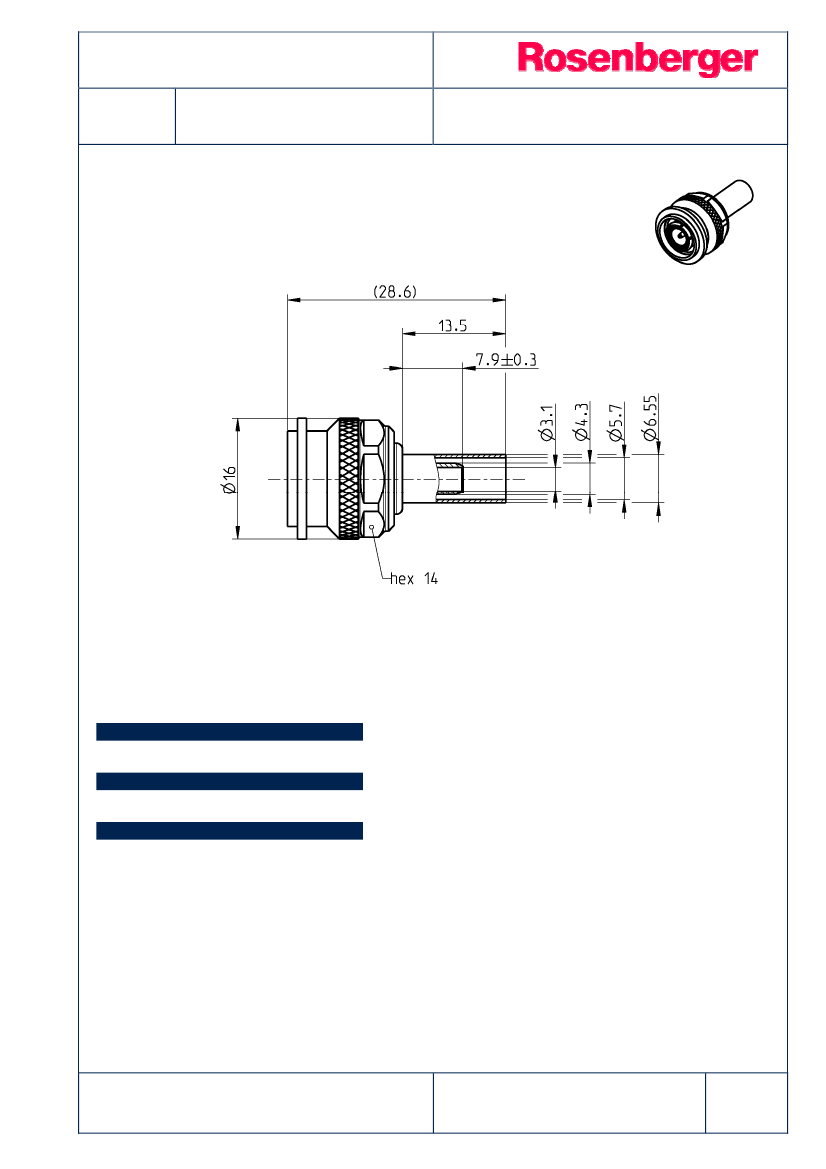

TNC 50
STRAIGHT PLUG
56S107-108N5
Dieses Dokument ist urheberrechtlich geschützt
This document is protected by copyright
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
51 P10
Documents
Assembly instruction
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
Material
Plating
Brass
AuroDur®, gold plated
Brass
Flash white bronze over silver(e.g. Optargen®)
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Copper
Flash white bronze over silver(e.g. Optargen®)
RF_35/08.13/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
