LTMM-110-02-S-D-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> LTMM-110-02-S-D-RA

LTMM-110-02-S-D-RA: DescriptionCONN SHROUD STACKER 20POS RA; CategoryThe connector The connector; File Size302KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LTMM-110-02-S-D-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LTMM-110-02-S-D-RA	-	-	View	Buy Now

LTMM-110-02-S-D-RA Overview

CONN SHROUD STACKER 20POS RA

LTMM-110-02-S-D-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LTMM
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION AV

DO NOT

SCALE FROM

THIS PRINT

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM PIN ROTATION: 2°.

3. MINIMUM PUSHOUT FORCE: 1 LB.

4. NOTE DELETED.

5. MINIMUM RETENTION FOR LOCKING CLIPS: 12 OZ.

6. MUST BE MEASURED AT BEND.

7. DUE TO THE HIGH AMOUNT OF INSERTION FORCE

NEEDED, THE -LC OPTION IS NOT COMPATIBLE WITH

AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL

PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.

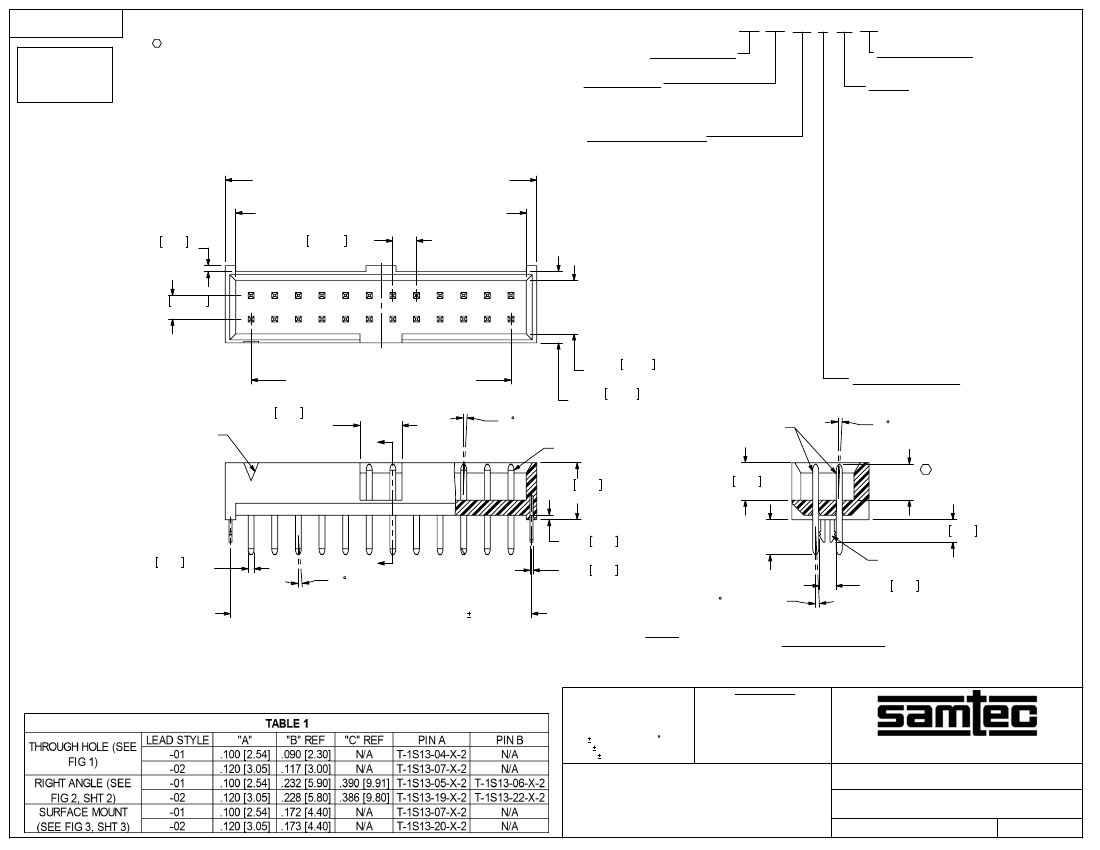

LTMM-1XX-XX-XX-D-XX-XX

No OF POSITIONS

-02 THRU -25

TERMINAL STYLE

-01: .100[2.54] POST HEIGHT (STANDARD)

-02: .120[3.05] POST HEIGHT

(SEE TABLE 1)

PLATING SPECIFICATION

-G: 20µ" SELECTIVE GOLD IN CONTACT AREA,

3µ" SELECTIVE GOLD ON TAIL

-T: MATTE TIN CONTACT AND TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-H: 30µ" SELECTIVE GOLD IN CONTACT AREA,

3µ" SELECTIVE GOLD ON TAIL

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-TM: MATTE TIN ON ENTIRE PIN

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

.1774 4.506

REF

.2374 6.030

REF

PIN A

POLARIZED OPTION

XX INDICATES POS TO BE OMMITTED

(NO OF POS X .07874[2.0000] + .0938[2.383])REF

(NO OF POS X .07874[2.0000] + .0238[.605])REF

.020 0.51

REF

.07874 2.0000 REF

.07874 2.0000

REF

(NO OF POS - 1) X .07874[2.00] REF

.140 3.56 REF

ONLY FOR POS

-05 THRU -25

OPTION

LEAVE BLANK FOR THROUGH HOLE

(SEE FIG 1 & TABLE 1)

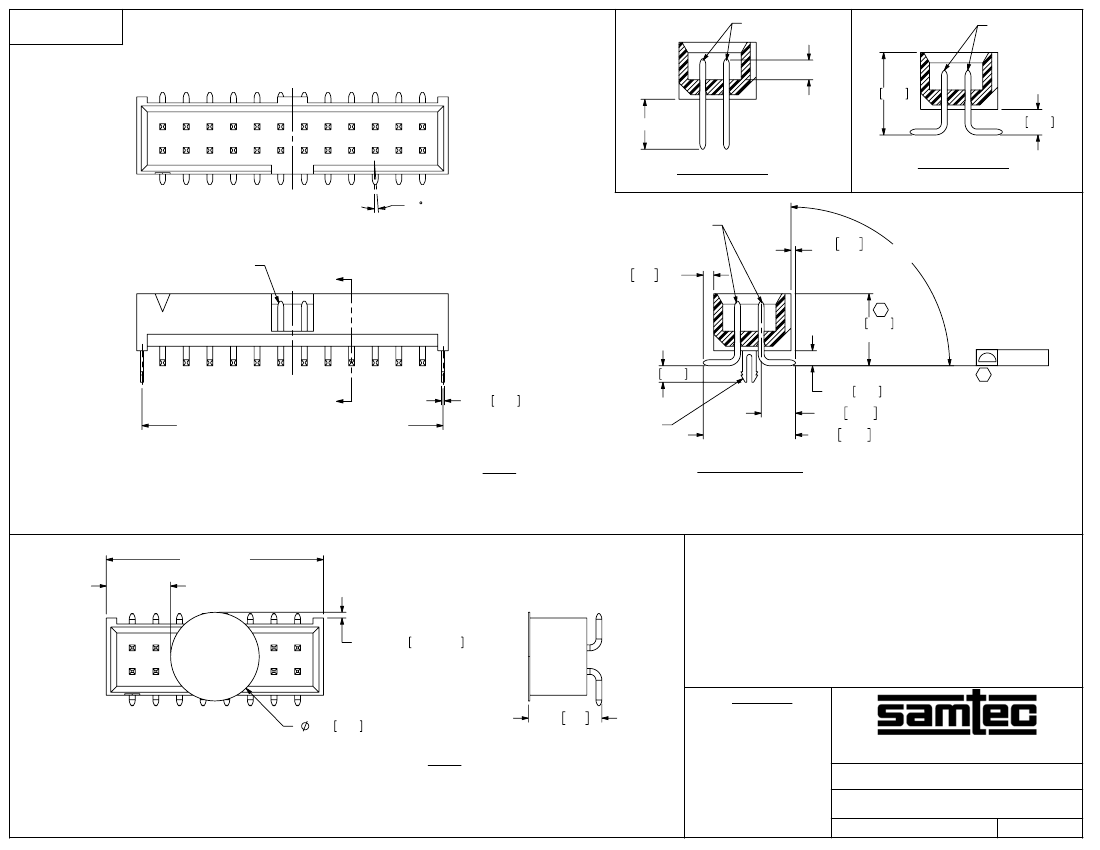

-RA: RIGHT ANGLE

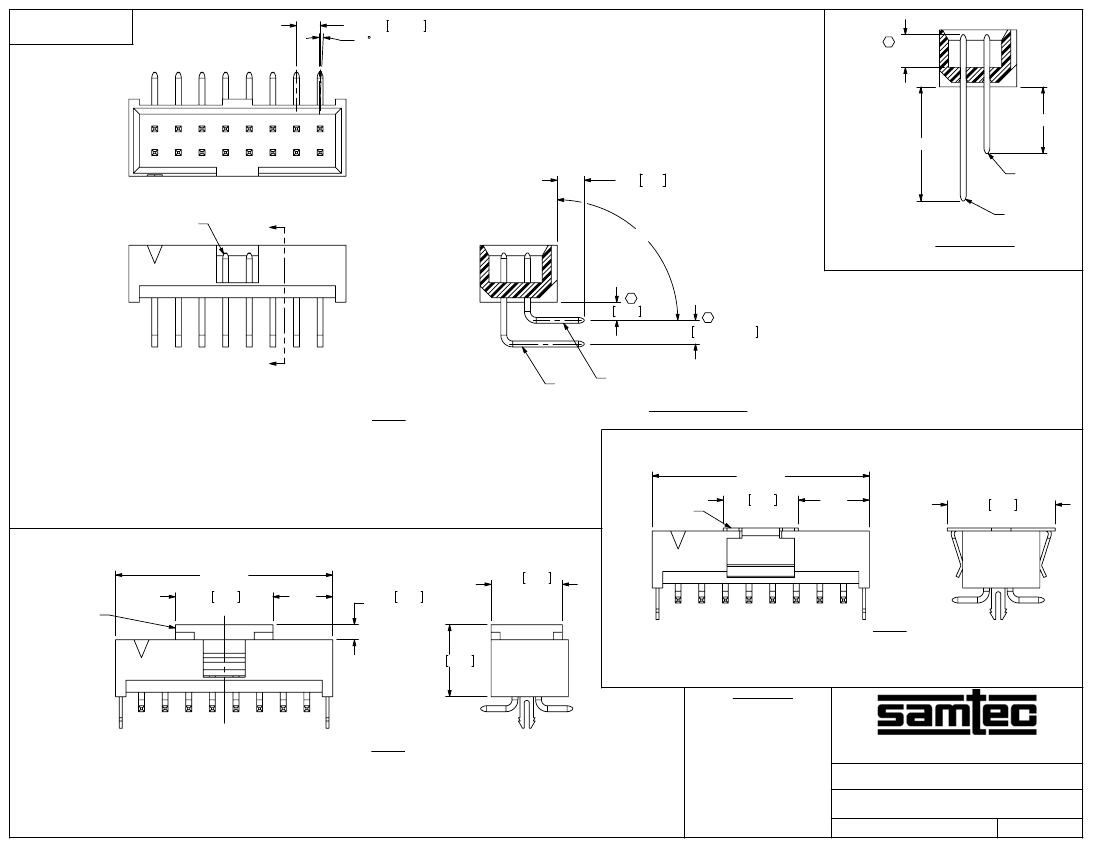

(SEE FIG 2, SHT 2 & TABLE 1)

-SM: SURFACE MOUNT

(SEE FIG 3, SHT 3 & TABLE 1)

-LC: LOCKING CLIP (SEE NOTE 7)

(USE LC-05-TM FOR TH STYLE,

SEE FIG 1)

(USE LC-07-TM FOR -SM STYLE,

SEE FIG 3, SHT 3)

(NOT AVAILABLE FOR -RA STYLE)

-P: PICK & PLACE PAD

(USE PPP-24, SEE FIG 4, SHT 2)

(-SM OPTION ONLY)

(ONLY AVAILABLE IN 04-25 POSITIONS)

-M: METAL PICK AND PLACE PAD

(USE MPP-07, SEE FIG 5, SHT 2)

(-SM OPTION ONLY)

-K: POLYIMIDE FILM

(USE K-DOT-.295-.406-.005)

(SEE FIG 6, SHT 3)

(-SM OPTION ONLY)

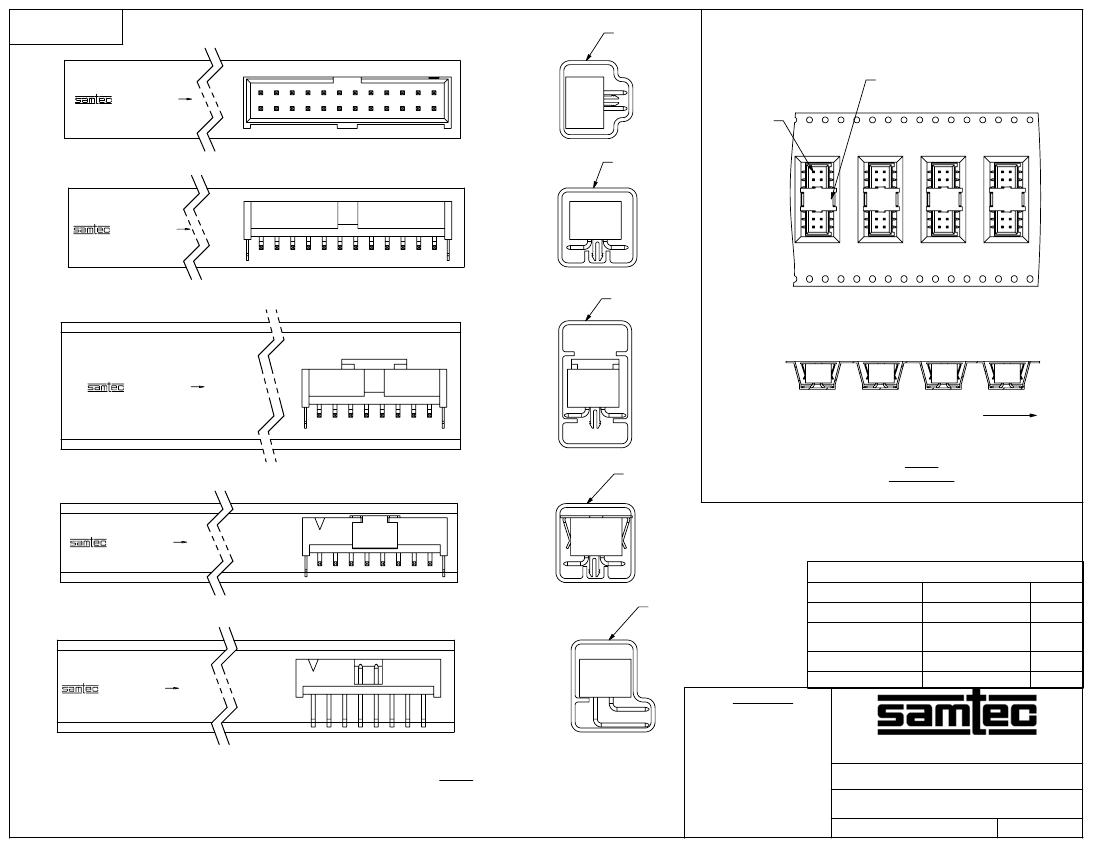

-TR: TAPE AND REEL

(SEE FIG 7, SHT 4)

(-SM OPTION ONLY)

ROW SPECIFICATION

-D: DOUBLE (USE LTMM-XX-D-LC)

2 MAX SWAY

(EITHER DIRECTION)

FIRST POSITION

INDICATOR

"A"

2 MAX SWAY

(EITHER DIRECTION)

CONTACT AREA

.190 4.83

REF

.125 3.18 REF

"A"

.015 0.38 REF

.020 0.50 SQ

REF (TYP)

"A"

2 MAX SWAY

(EITHER DIRECTION)

(NO OF POS X .07874[2.0000] + .0598[1.519]) .003[0.76]

.010 0.25 REF

"B"

.075 1.91

LC-05-TM

.056 1.42 REF

2 MAX SWAY

(EITHER DIRECTION)

THROUGH HOLE

LTMM-112-02-XX-D-LC SHOWN

FIG 1

SECTION "A"-"A"

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

INSULATOR: LCP, COLOR: BLACK

TERMINAL: PHOSPHER BRONZE

LTMM ASSEMBLY

c:\enterprisevault\DWG\MISC\MKTG\LTMM-1XX-XX-XX-D-XX-XX-MKT.SLDDRW

BY:

BRYAN T

LTMM-1XX-XX-XX-D-XX-XX

05/28/1992

SHEET
