1008-016-2101 datasheet, PDF - EEWORLD Datasheet

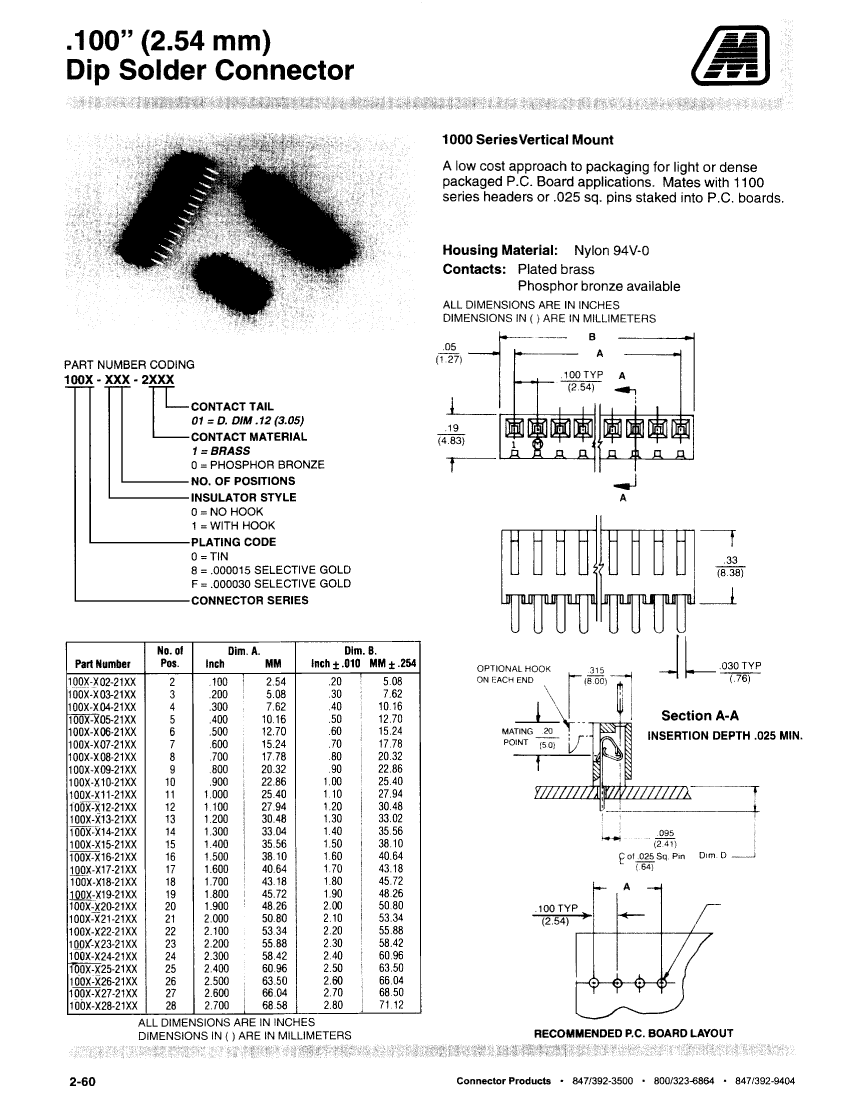

1008-016-2101: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1008-016-2101 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.19 inch
subject depth	0.33 inch
body length	1.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1000
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1
