MAL214696476E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MAL214696476E3

MAL214696476E3: DescriptionCAP ALUM 4700UF 20% 25V RADIAL; CategoryPassive components capacitor; File Size136KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAL214696476E3 Overview

CAP ALUM 4700UF 20% 25V RADIAL

MAL214696476E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
leakage current	1.178 mA
length	31 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
Guideline	AEC-Q200
ripple current	2170 mA
surface mount	NO
Delta tangent	0.2
Terminal pitch	7.5 mm
Terminal shape	WIRE

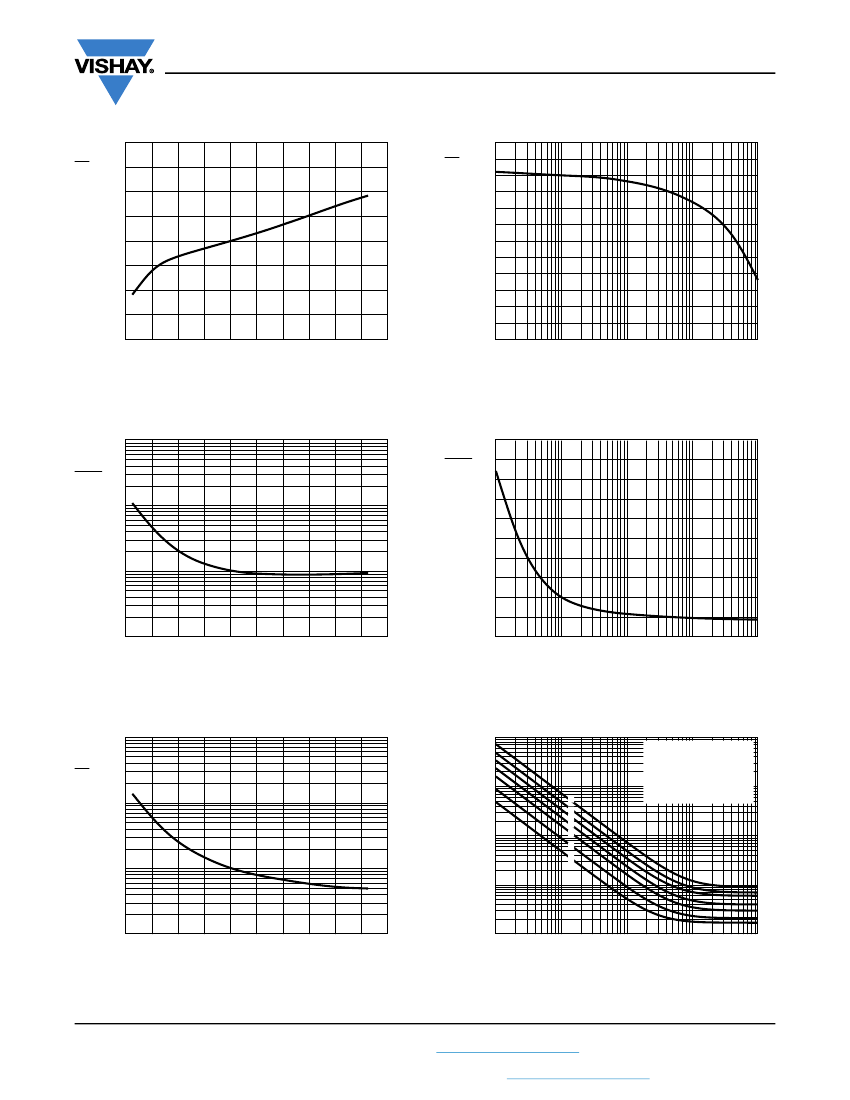

Preview

Download Datasheet

View All

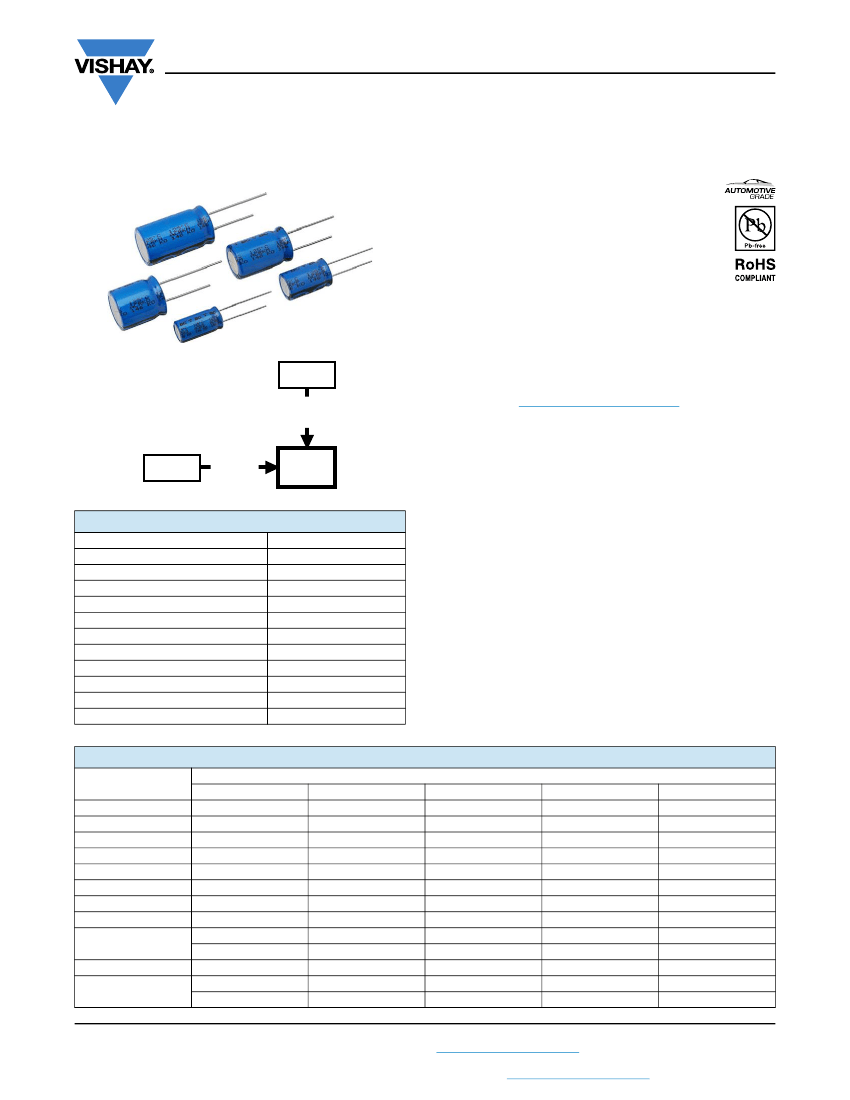

146 RTI

www.vishay.com

Vishay BCcomponents

Aluminum Electrolytic Capacitors

Radial, High Temperature, Low Impedance

FEATURES

• Very long useful life:

2500 h to 6000 h at 125 °C

• High stability, high reliability

• Very low ESR

• AEC-Q200 qualified

• Excellent ripple current capability

• Polarized aluminum electrolytic capacitors,

non-solid electrolyte

• Radial leads, cylindrical aluminum case with pressure

relief, insulated with a blue PET sleeve

• Charge and discharge proof

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

140 RTM

lower Z

longer life

APPLICATIONS

150 RMI

125 °C

146 RTI

• Power supplies (SMPS, DC/DC converters) for industrial,

automotive, telecommunications and military

• Smoothing, filtering and buffering

MARKING

QUICK REFERENCE DATA

DESCRIPTION

Nominal case sizes (Ø D x L in mm)

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 125 °C

Useful life at 125 °C

Useful life at 40 °C, 1.8 x I

applied

Shelf life at 0 V, 125 °C

Based on sectional specification

Climatic category IEC 60068

VALUE

10 x 12 to 18 x 35

68 μF to 6800 μF

± 20 %

16 V to 63 V

-55 °C to +125 °C

2000 h to 5000 h

2500 h to 6000 h

400 000 h

1000 h

IEC 60384-4 / EN 130300

55 / 125 / 56

The capacitors are marked (where possible) with the

following information:

• Rated capacitance (in μF)

• Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Date code, in accordance with IEC 60062

• Code indicating factory of origin

• Logo of manufacturer

• Upper category temperature (125 °C)

• Negative terminal identification

• Series number (146)

SELECTION CHART FOR C

, U

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

100

150

220

330

390

470

560

680

820

1000

10 x 12

10 x 16

10 x 20

10 x 12

10 x 16

10 x 20

12.5 x 20

(V)

10 x 12

10 x 16

10 x 20

12.5 x 20

12.5 x 25

10 x 12

10 x 16

10 x 20

12.5 x 20

12.5 x 25

16 x 20

18 x 20

16 x 25

10 x 12

10 x 16

10 x 20

12.5 x 20

12.5 x 25

16 x 20

18 x 20

16 x 25

18 x 25

16 x 31

16 x 35

18 x 31

Revision: 22-Mar-17

Document Number: 28401

For technical questions, contact:

aluminumcaps1@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
