MKP1847H52025JK2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> MKP1847H52025JK2

Preview

MKP1847H52025JK2: DescriptionMKP 2F 5% 250VAC PITCH 27,5 PINS; CategoryPassive components; File Size106KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MKP1847H52025JK2 Overview

MKP 2F 5% 250VAC PITCH 27,5 PINS

MKP1847H52025JK2 Parametric

Parameter Name	Attribute value
capacitance	2µF
Tolerance	±5%
Rated voltage - AC	250V
Rated voltage - DC	500V
dielectric materials	Polypropylene (PP), metallized
ESR (equivalent series resistance)	15 mOhms
Operating temperature	-40°C ~ 105°C
Installation type	Through hole
Package/casing	Radial
size/dimensions	1.260" long x 0.591" wide (32.00mm x 15.00mm)
Height - Installation (maximum)	1.012"（25.70mm）
Termination	PC pin
lead spacing	1.083"（27.50mm）
application	EMI, RFI suppression
grade	-
characteristic	-

Preview

Download Datasheet

View All

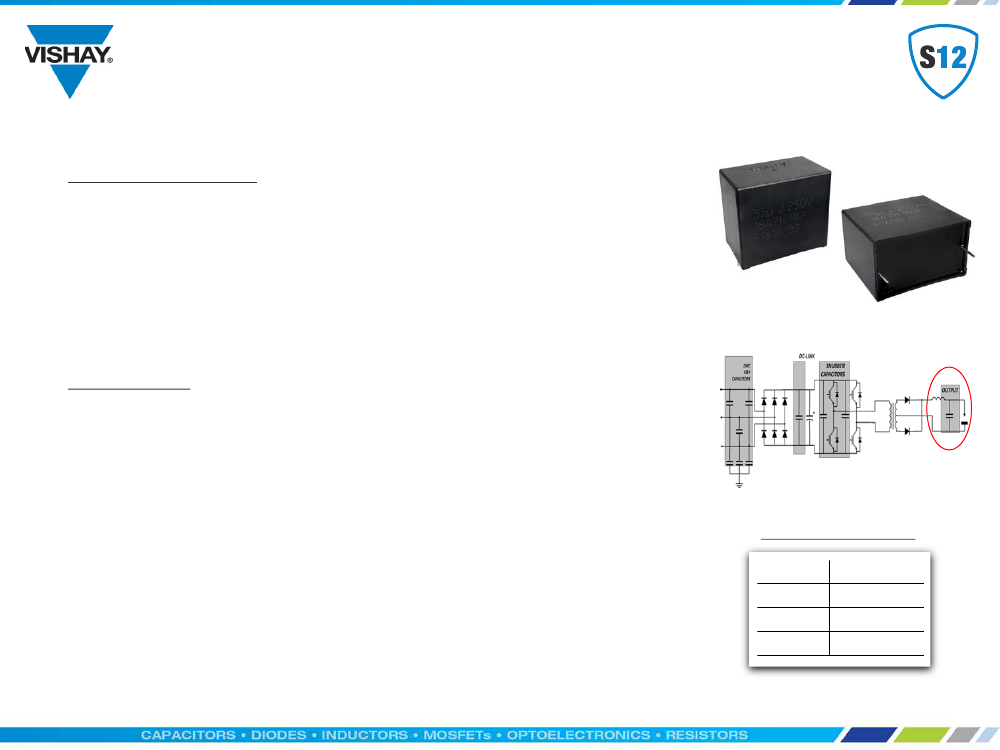

MKP1847H AC Filtering Film Capacitor

Robust Design for High Humidity Environments

TECHNICAL FEATURES

High robustness under high humidity

Test damp heat, steady state: 85ºC, 85%RH, 1000hours rated voltage applied

Rated voltages: 250V

AC

, 310V

AC

, 350Vac and 480V

AC

Segmented film

UL 810 (electrical pending)

APPLICATIONS

Power electronic generates high frequencies and harmonics, which must be

filtered by using LC and LCL filters at the output.

APPS EX. UPS

This is the field of applications for Vishay´s new MKP1847H, designed to

ensure extremely stable capacitance and ESR parameters over long service life

independently from the environmental conditions during operation.

Typical applications are: Outdoor, UPS, Renewable Energy, Welding Equipment,

RANGE OVERVIEW

1µF – 35µF

1µF – 22µF

2µF - 7µF

250Vac / 500Vdc

310Vac / 630Vdc

350Vac / 700Vdc

480Vac / 1000Vdc

1
