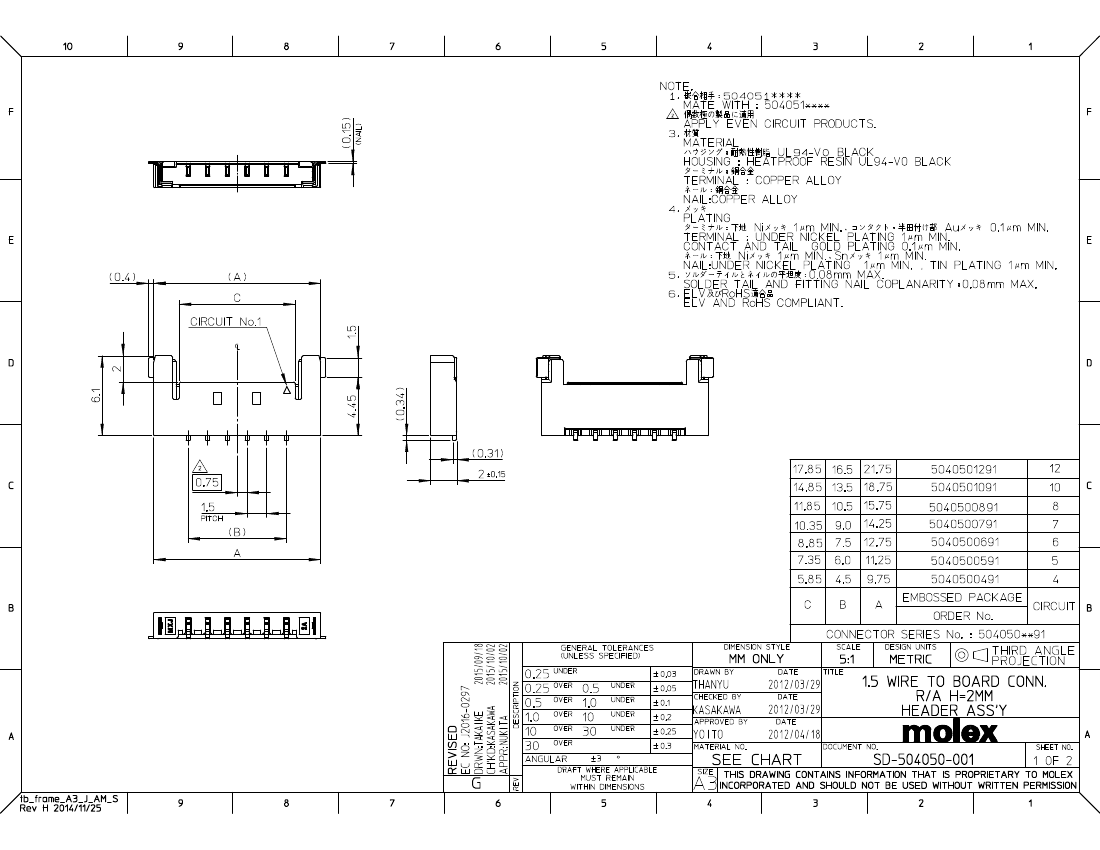

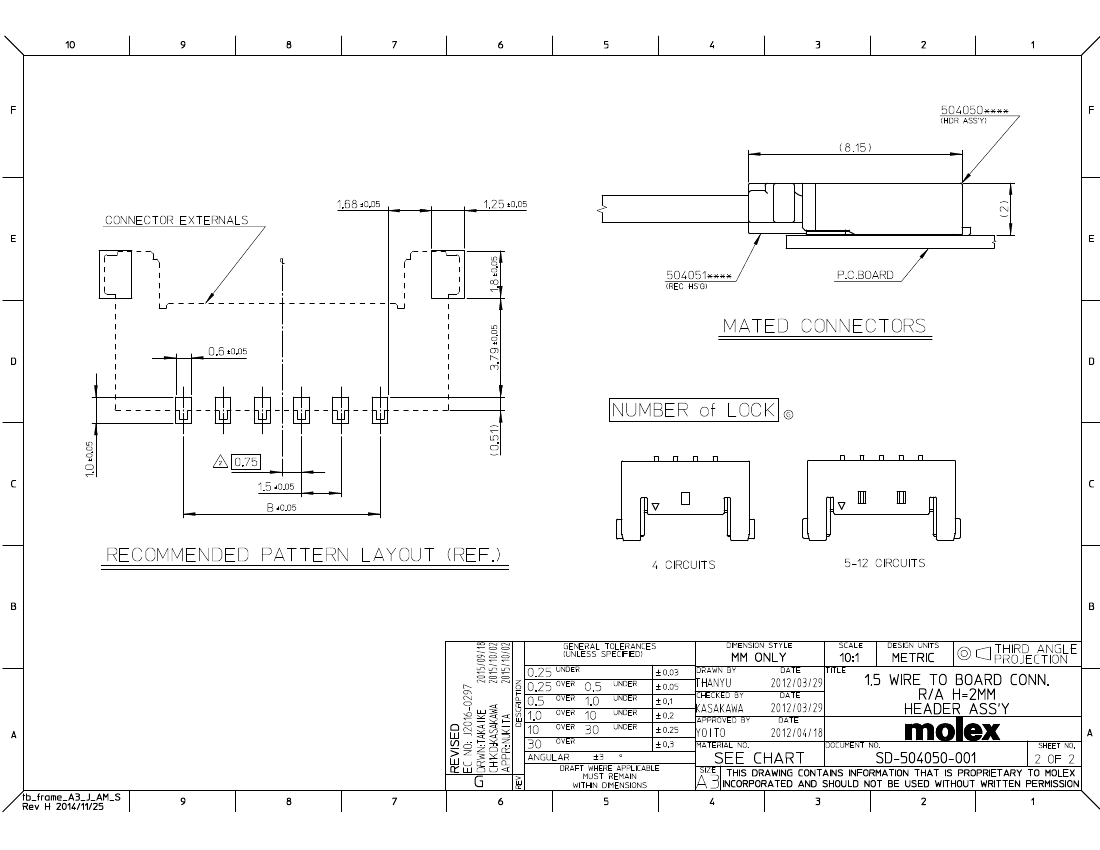

CONN WIRE TO BOARD RA 6POS

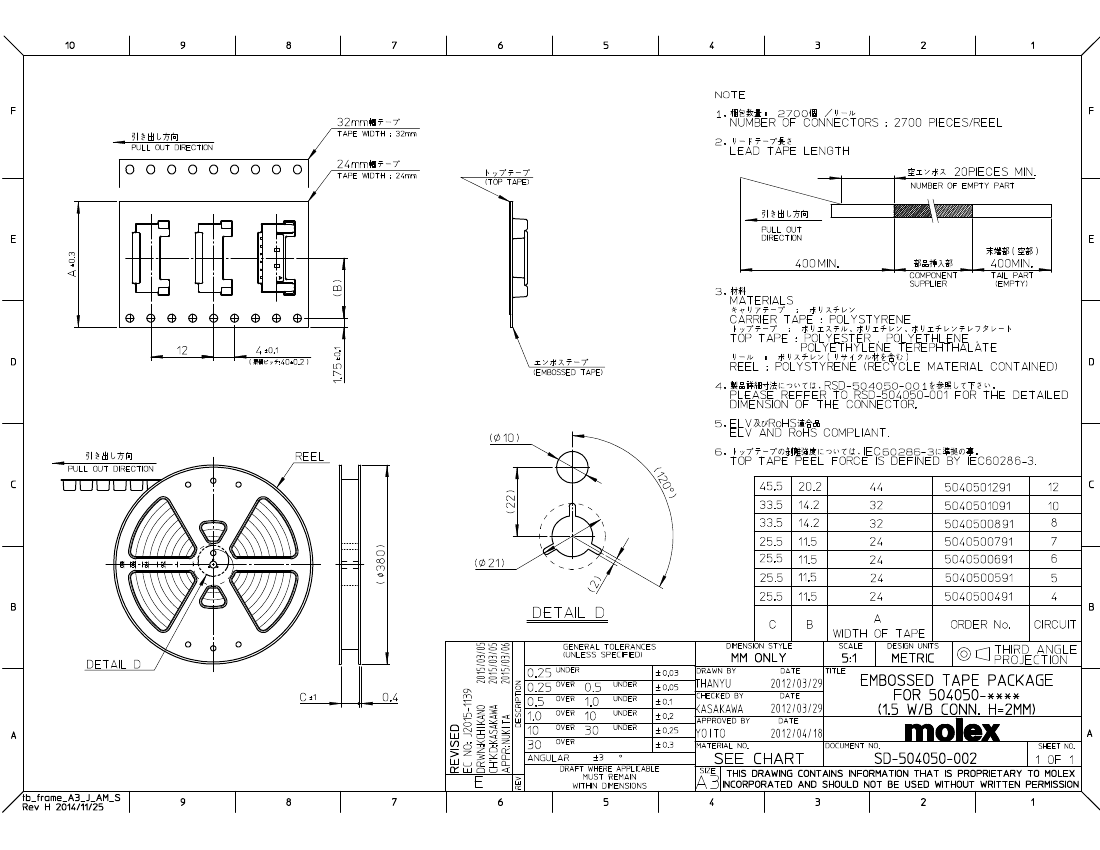

| Parameter Name | Attribute value |
| Connector type | Connector |
| Contact type | Male plug type |
| Spacing - Mating | 0.059"（1.50mm） |
| Number of pins | 6 |
| Number of rows | 1 |
| Line spacing - patching | - |
| Number of pins loaded | - |
| style | Board to cable/wire |
| shield | Covered - 4 walls |
| Installation type | Surface mount, right angle |
| Termination | welding |
| Fastening type | pin lock |
| Contact Length - Mating | - |
| Contact length - terminal | - |
| Overall contact length | - |
| Insulation height | 0.079"（2.00mm） |
| Contact shape | rectangle |
| Contact surface treatment - mating | gold |
| Contact Surface Treatment Thickness - Mating | - |
| Contact Surface Preparation - Column | gold |
| Contact material | copper alloy |
| Insulation Materials | thermoplastic |
| characteristic | Fixed solder tail |
| Operating temperature | - |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | black |
| Rated current | - |
| Rated voltage | - |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | - |
| application | Automotive, general, industrial, lighting, telecommunications |
| 5040500691 | 5040500791 | 5040500891 | 5040501091 | 5040501291 | 5040500491 | |
|---|---|---|---|---|---|---|
| Description | CONN WIRE TO BOARD RA 6POS | CONN WIRE TO BOARD RA 7POS | 15 WB HEADER ASS'Y EMBTP PKG 8P | CONN WIRE TO BOARD RA 10POS | 15 WB HEADER ASS'Y EMBTP PKG 12P | CONN WIRE TO BOARD RA 4POS |
| Connector type | Connector | Connector | Connector | Connector | Connector | Connector |
| Contact type | Male plug type | Male plug type | Male plug type | Male plug type | Male plug type | Male plug type |
| Spacing - Mating | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） |
| Number of pins | 6 | 7 | 8 | 10 | 12 | 4 |
| Number of rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of pins loaded | - | - | all | all | all | all |
| style | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire |
| shield | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls |
| Installation type | Surface mount, right angle | Surface mount, right angle | Surface mount, right angle | Surface mount, right angle | Surface mount, right angle | Surface mount, right angle |
| Termination | welding | welding | welding | welding | welding | welding |
| Fastening type | pin lock | pin lock | pin lock | pin lock | pin lock | pin lock |
| Insulation height | 0.079"（2.00mm） | 0.079"（2.00mm） | 0.079"（2.00mm） | 0.079"（2.00mm） | 0.079"（2.00mm） | 0.079"（2.00mm） |
| Contact shape | rectangle | rectangle | rectangle | rectangle | rectangle | rectangle |
| Contact surface treatment - mating | gold | gold | gold | gold | gold | gold |
| Contact Surface Preparation - Column | gold | gold | gold | gold | gold | gold |
| Contact material | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy |
| Insulation Materials | thermoplastic | thermoplastic | thermoplastic | thermoplastic | thermoplastic | thermoplastic |
| characteristic | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail |
| Material flammability rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation color | black | black | black | black | black | black |
| application | Automotive, general, industrial, lighting, telecommunications | Automotive, general, industrial, lighting, telecommunications | Automotive, general, industrial, lighting, telecommunications | Automotive, general, industrial, lighting, telecommunications | Automotive, general, industrial, lighting, telecommunications | Automotive, general, industrial, lighting, telecommunications |
