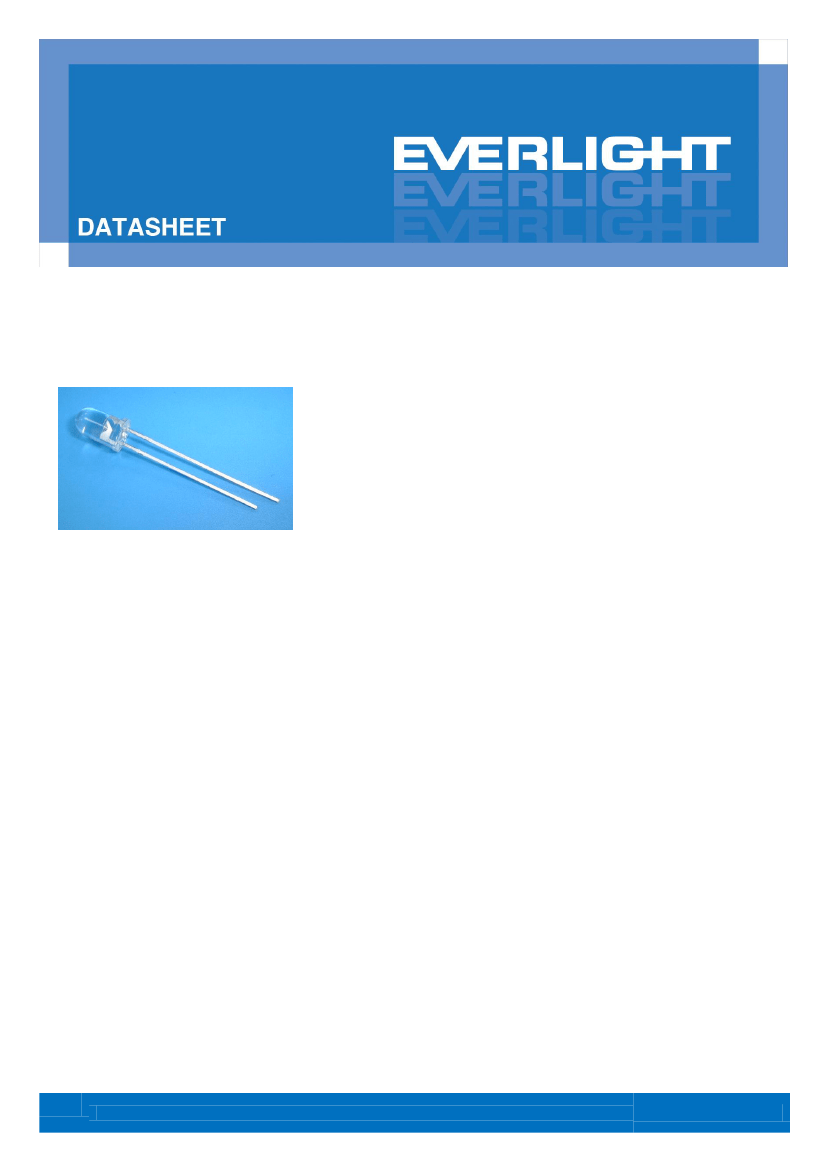

LAMP
334-15/X1C3-1TVA
Features
• Popular T-1 3/4 round package
• High luminous power
• Typical chromaticity coordinates x=0.40, y=0.39
according to CIE1931
• Bulk, available taped on reel.
• ESD-withstand voltage: up to 4KV
• The product itself will remain within RoHS compliant version
• Compliance with EU REACH
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Description
• The series is designed for application required high luminous intensity.
• The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal warm white.
Applications
• Message panels
• Optical Indicators
• Backlighting
• Marker Lights
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.01, 2015. Issue No:DLE-0000701_Rev.3
www.everlight.com
DATASHEET
LAMP
334-15/X1C3-1TVA
Device Selection Guide
Chip
Materials
InGaN
Emitted Color
Warm White
Resin Color
Water Clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
ESD
Zener Reverse Current
Soldering Temperature
Symbol
I
F
I
FP
V
R
P
d
T
opr
T
stg
ESD
HBM
I
z
T
sol
Rating
30
100
5
110
-40 ~ +85
-40 ~ +100
4K
100
260
℃
for 5 sec.
Unit
mA
mA
V
mW
℃
℃
V
mA
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Zener Reverse Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Chromaticity Coordinates
Symbol
V
F
Vz
I
R
I
V
2θ1/2
x
Min.
2.8
5.2
-----
7150
----
----
----
Typ.
-----
-----
-----
----
30
0.40
0.39
Max.
3.6
-----
50
14250
----
----
----
Unit
V
V
μA
mcd
deg
----
----
Condition
I
F
=20mA
Iz=5mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
y
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.01, 2015. Issue No:DLE-0000701_Rev.3
www.everlight.com
DATASHEET
LAMP
334-15/X1C3-1TVA
Bin Range of Luminous Intensity
Bin Code
T
U
V
Note:
Tolerance of Luminous Intensity: ±10%
Min.
7150
9000
11250
Max.
9000
11250
14250
Unit
Condition
mcd
I
F
=20mA
Forward Voltage Combination
Bin Code
0
1
2
3
Min.
2.8
3.0
3.2
3.4
Max.
3.0
3.2
3.4
3.6
V
I
F
=20mA
Unit
Condition
Note:
Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
1
Bins
D1+D2+E1+E2+F1+F2
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.01, 2015. Issue No:DLE-0000701_Rev.3
www.everlight.com
DATASHEET
LAMP
334-15/X1C3-1TVA

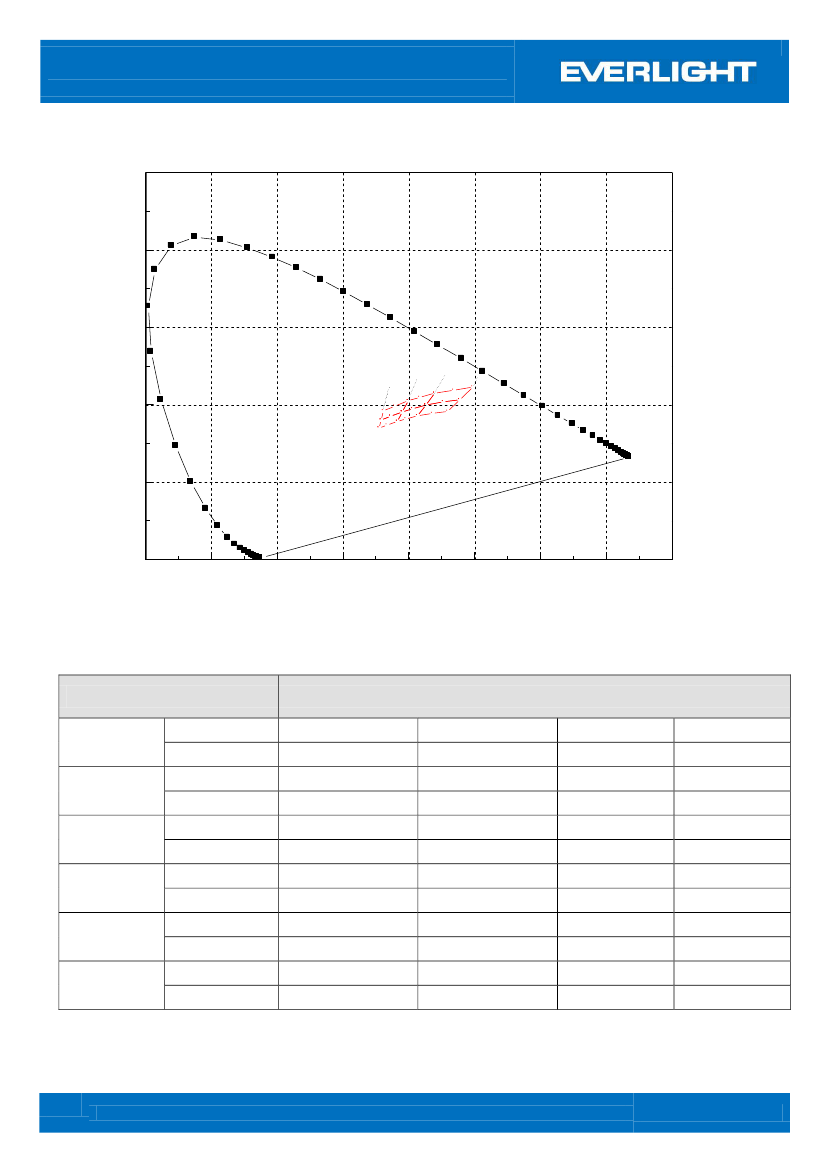

CIE Chromaticity Diagram
1.0
0.8
0.6
CIE-Y
4600K
3800K 3200K 2500K
F1
E1
0.4
D1
D2
F2
E2
0.2
0.0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
CIE-X
Color Ranks (I
F
=20mA，Ta=25
℃
)
Color Ranks
D1
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
0.357
0.361
0.354
0.340
0.389
0.382
0.382
0.358
0.425
0.400
0.412
0.372
0.361
0.385
0.357
0.361
0.398
0.411
0.389
0.382
0.439
0.431
0.425
0.400
CIE
0.398
0.411
0.389
0.382
0.439
0.431
0.425
0.400
0.497
0.466
0.477
0.413
0.389
0.382
0.382
0.358
0.425
0.400
0.412
0.372
0.477
0.413
0.458
0.383
D2
E1
E2
F1
F2
Note:
Measurement uncertainty of the color coordinates：±0.01
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.01, 2015. Issue No:DLE-0000701_Rev.3
www.everlight.com
DATASHEET
LAMP
334-15/X1C3-1TVA

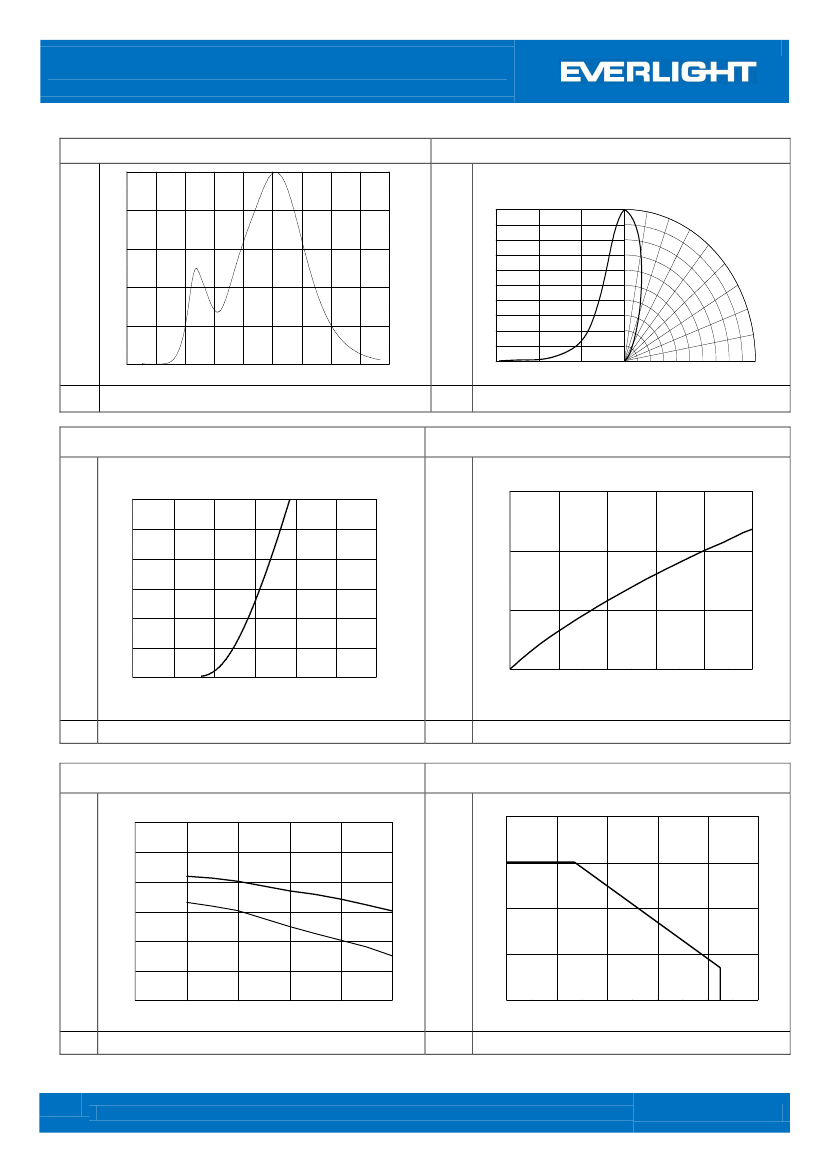

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength (Ta=25℃)
1.0
O
O
O
O
Directivity (Ta=25℃)
90
60
30
0
Relative Intensity (a.u.)
10
O
0.8
Relative Intensity(a.u.)
Radiation Angle
Relative Intensity
暖½光波長--DATA
0.5
1.0
20
O
30
O
40
O
0.6
50
O
60
O
0.4
70
O
0.2
80
O
0.0
350
0
400
450
500
550
600
650
700
750
800
0
0.5
90
1.0
O
Wavelength (nm)
Forward Current vs. Forward Voltage (Ta=25℃)
Wavelength(nm)
Radiation Angle
Relative Intensity (a.u.)
Relative Intensity vs. Forward Current (Ta=25℃)
30
1.5
Relative Intensity(a.u.)
Forward Current (mA)
25
20
15
10
5
0
1.5
1.0
0.5
0.0
2.0
2.5
3.0
3.5
4.0
4.5
0
5
10
15
20
25
Forward Voltage (V)
Chromaticity Coordinate vs. Forward Current(Ta=25℃)
Forward Current (mA)
Forward Current vs. Ambient Temp.
40
0.420
Chromaticity Coordinates
Chromaticity Coordinate
Forward Current (mA)
0.410
0.400
0.390
0.380
0.370
0.360
Forward Current(mA)
x
y
30
20
10
0
10
20
30
40
50
0
0
20
40
60
80
O
100
Forward Current(mA)
Forward Current (mA)
Ambient Temperature Ta( C)
Ambient Temperature Ta(℃)
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.01, 2015. Issue No:DLE-0000701_Rev.3
www.everlight.com
