Part Number

Search

5011902017

Description
CONN HEADER 1MM 20POS SMD GOLD
CategoryThe connector
File Size408KB,5 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

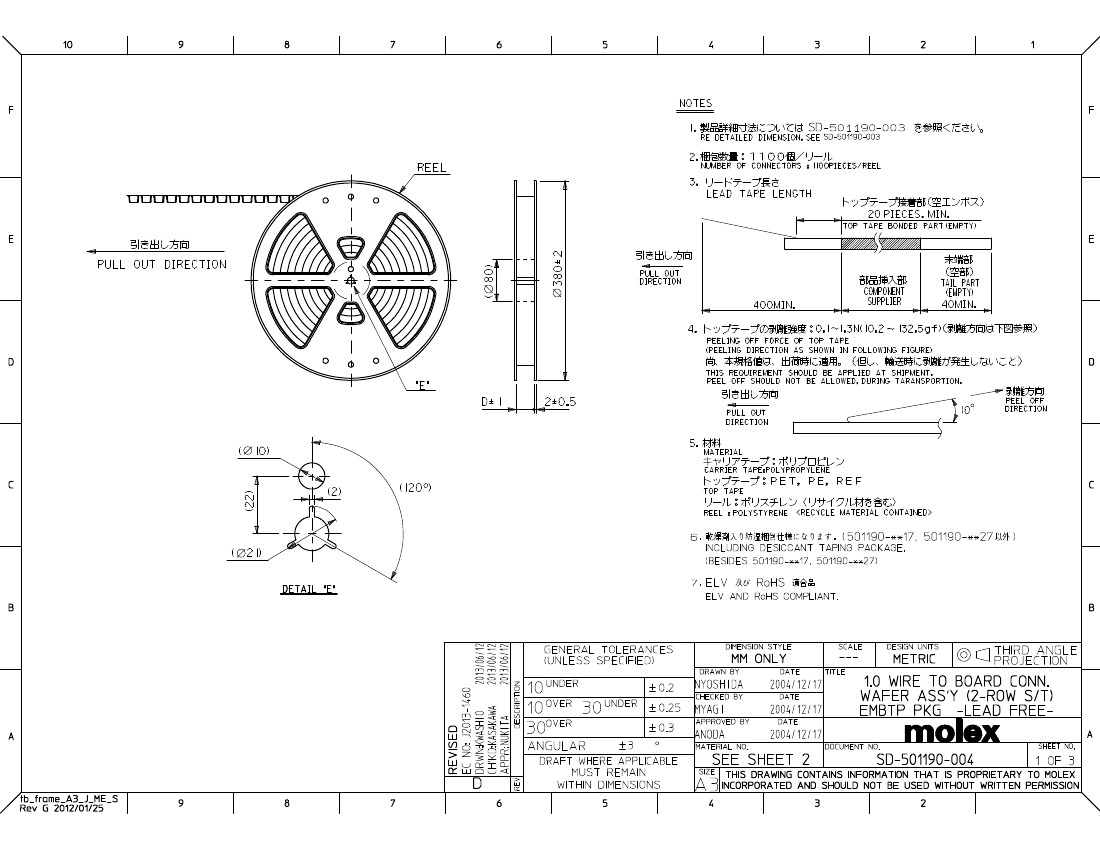

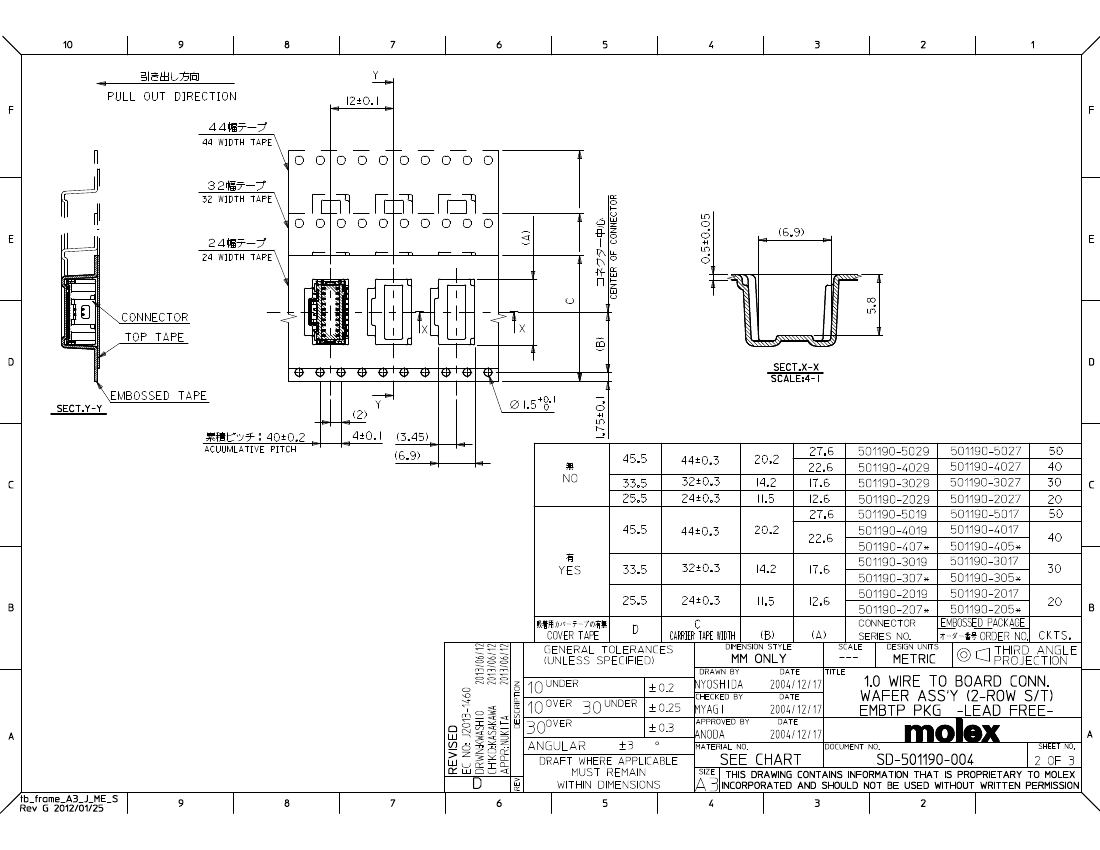

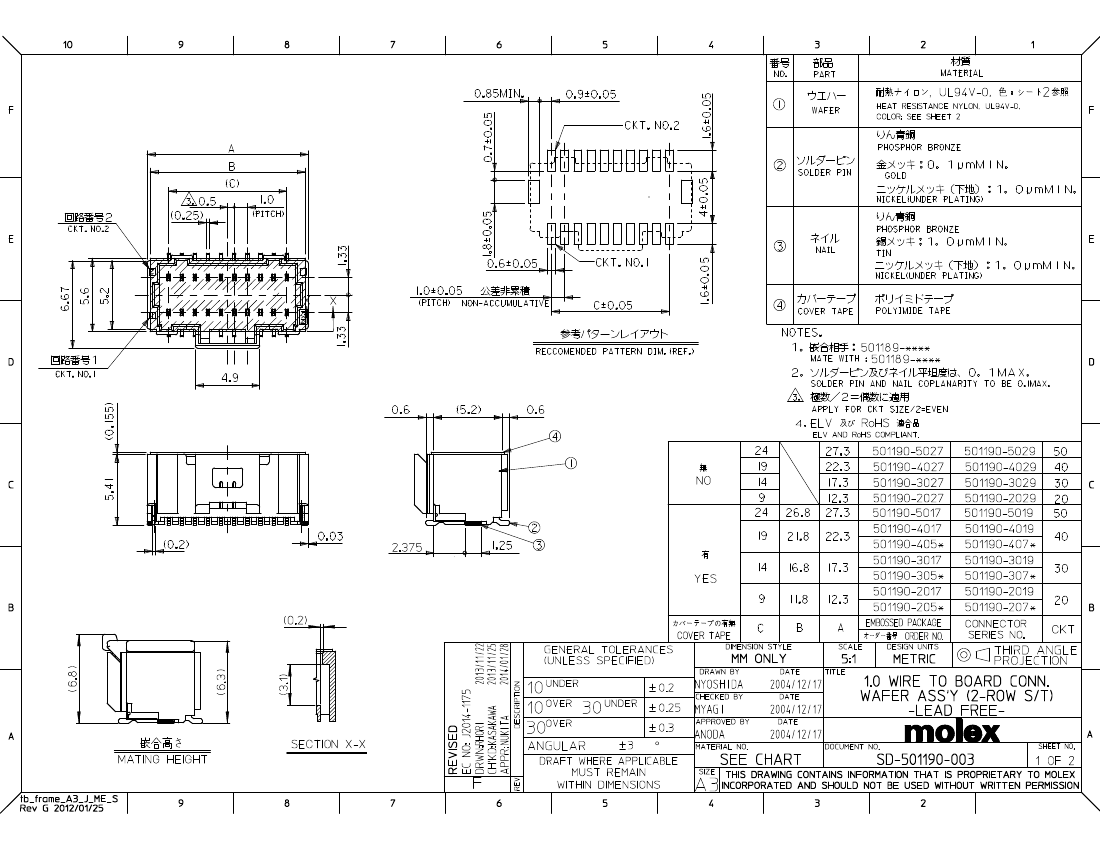

5011902017 Overview

CONN HEADER 1MM 20POS SMD GOLD

5011902017 Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typeMale pin
Spacing - Mating0.039"(1.00mm)
Number of pins20
Number of rows2
Line spacing - patching0.105"(2.66mm)
Number of pins loadedall
styleBoard to cable/wire
shieldCovered - 4 walls
Installation typesurface mount
Terminationwelding
Fastening typelatch holder
Contact Length - Mating-
Contact length - terminal-
Overall contact length-
Insulation height0.213"(5.40mm)
Contact shapeSquare
Contact surface treatment - matinggold
Contact Surface Treatment Thickness - Mating3.90µin(0.099µm)
Contact Surface Preparation - Column-
Contact materialPhosphor bronze
Insulation MaterialsPolyamide (PA), nylon
characteristicPick and place, weld hold
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colornatural
Rated current-
Rated voltage-
Joint stack height6.8mm
Contact Surface Treatment Thickness - Column-
applicationUniversal

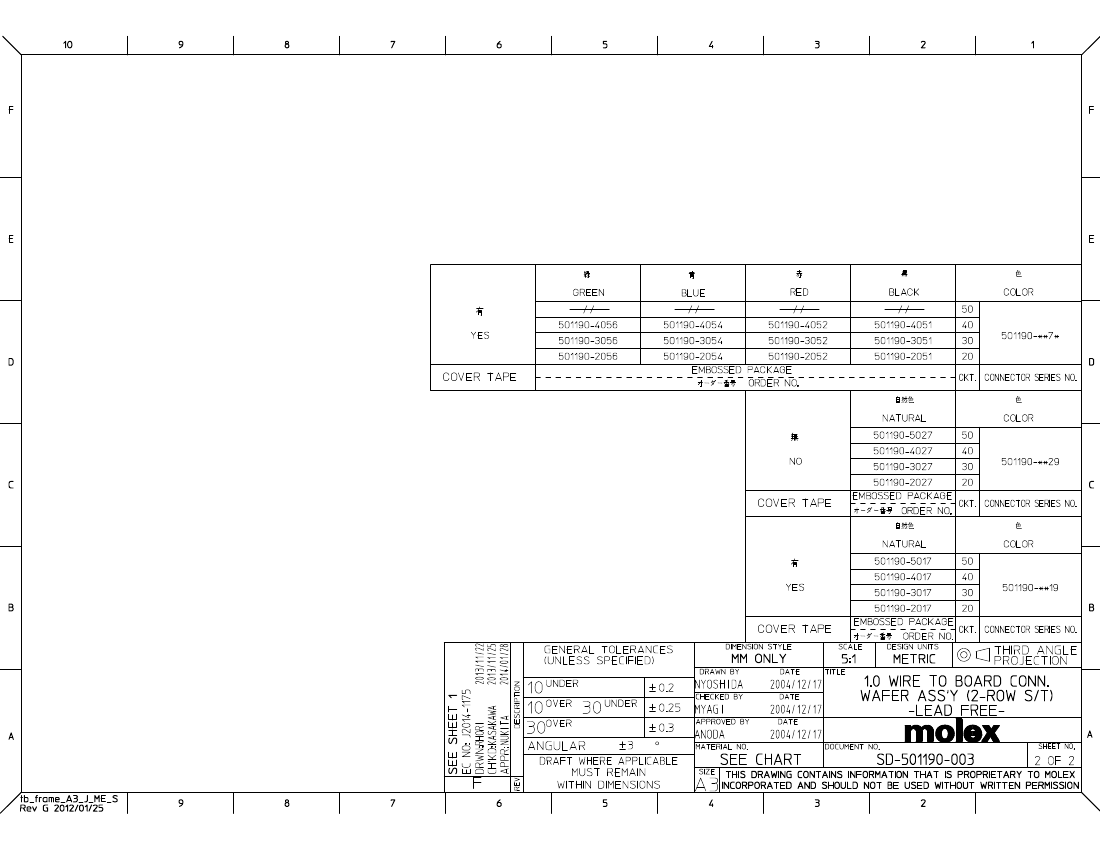

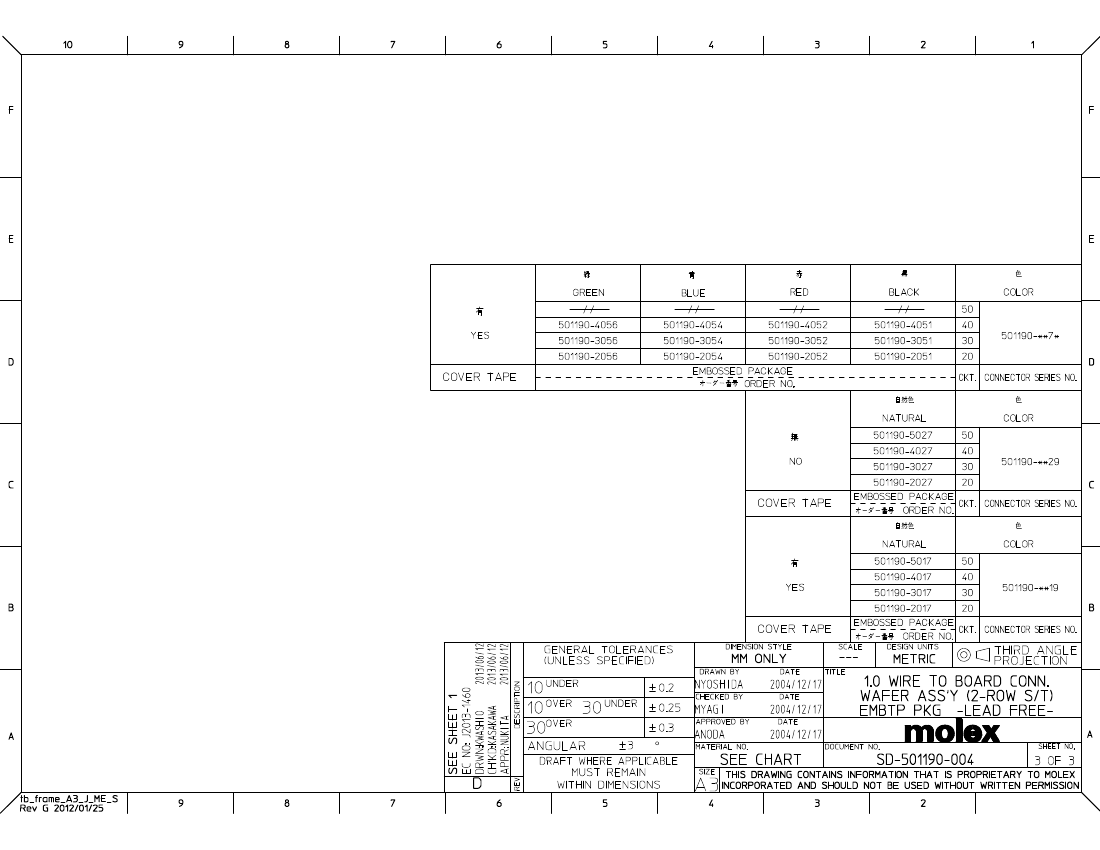

5011902017 Related Products

5011902017 5011903027 5011903017 5011904017 5011905027
Description CONN HEADER 1MM 20POS SMD GOLD CONN HEADER 30CKT 1MM VERT DUAL CONN HEADER 1MM 30POS SMD GOLD CONN HEADER 1MM 40POS SMD GOLD CONN HEADER 50CKT 1MM VERT DUAL
Connector type Connector Connector Connector Connector Connector
Contact type Male pin Male pin Male pin Male pin Male pin
Spacing - Mating 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm)
Number of pins 20 30 30 40 50
Number of rows 2 2 2 2 2
Line spacing - patching 0.105"(2.66mm) 0.105"(2.66mm) 0.105"(2.66mm) 0.105"(2.66mm) 0.105"(2.66mm)
Number of pins loaded all all all all all
style Board to cable/wire Board to cable/wire Board to cable/wire Board to cable/wire Board to cable/wire
shield Covered - 4 walls Covered - 4 walls Covered - 4 walls Covered - 4 walls Covered - 4 walls
Installation type surface mount surface mount surface mount surface mount surface mount
Termination welding welding welding welding welding
Fastening type latch holder latch holder latch holder latch holder latch holder
Insulation height 0.213"(5.40mm) 0.213"(5.40mm) 0.213"(5.40mm) 0.213"(5.40mm) 0.213"(5.40mm)
Contact shape Square Square Square Square Square
Contact surface treatment - mating gold gold gold gold gold
Contact Surface Treatment Thickness - Mating 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm)
Contact material Phosphor bronze Phosphor bronze Phosphor bronze Phosphor bronze Phosphor bronze
Insulation Materials Polyamide (PA), nylon Polyamide (PA), nylon Polyamide (PA), nylon Polyamide (PA), nylon Polyamide (PA), nylon
characteristic Pick and place, weld hold Fixed solder tail Pick and place, weld hold Pick and place, weld hold Fixed solder tail
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation color natural natural natural natural natural
Joint stack height 6.8mm 6.8mm 6.8mm 6.8mm 6.8mm
application Universal Universal Universal Universal Universal
