8086-0-00-21-00-00-33-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8086-0-00-21-00-00-33-0

8086-0-00-21-00-00-33-0: DescriptionCONN PC PIN CIRC 0.075DIA GOLD; CategoryThe connector terminals; File Size709KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8086-0-00-21-00-00-33-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8086-0-00-21-00-00-33-0	-	-	View	Buy Now

8086-0-00-21-00-00-33-0 Overview

CONN PC PIN CIRC 0.075DIA GOLD

8086-0-00-21-00-00-33-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

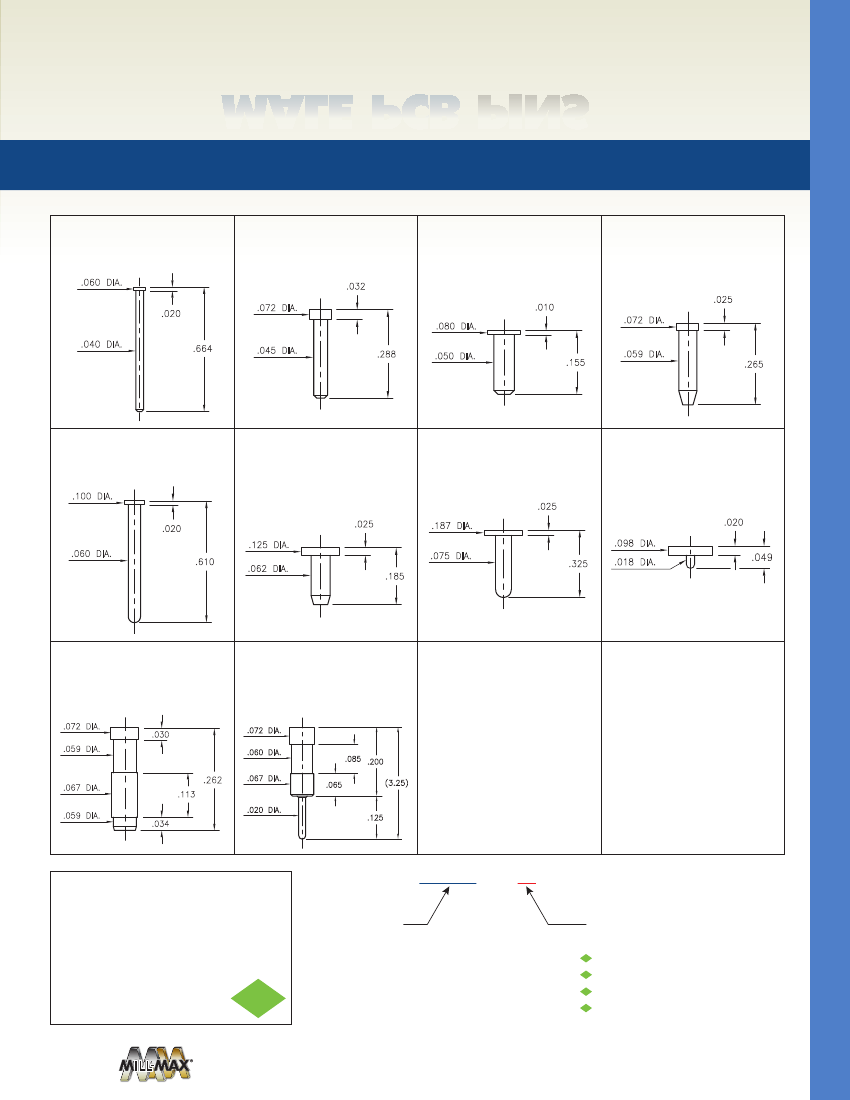

MALE PCB

PINS

PRINTED CIRCUIT PINS • NAIL HEAD TYPE

1179

1179-0-00-XX-00-00-33-0

Solder mount in .044 mounting hole

.060 DIA.

.020

.040 DIA.

9872

9872-0-00-XX-00-00-33-0

Solder mount in .049 mounting hole

.032

.072 DIA.

2381

2381-0-00-XX-00-00-33-0

.010

.080 DIA.

Solder mount in .054 mounting hole

Also available on 16mm wide carrier tape:

1,800 parts per 13” reel.

See page 224.1 for Tape & Reel details

9265

9265-0-00-XX-00-00-38-0

.025

.072 DIA.

Solder mount in .063 mounting hole

Also available on 16mm wide carrier tape:

1,170 parts per 13” reel.

See page 224.1 for Tape & Reel details

.664

.045 DIA.

.288

.050 DIA.

.155

.059 DIA.

.265

6142

6142-0-00-XX-00-00-33-0

Solder mount in .064 mounting hole

.100 DIA.

9022

9022-0-00-XX-00-00-33-0

.025

.125 DIA.

.610

8086

Solder mount in .066 mounting hole

Also available on 24mm wide carrier tape:

1,500 parts per 13” reel.

See page 224.1 for Tape & Reel details

8086-0-00-XX-00-00-33-0

Solder mount in .079 mounting hole

.025

.187 DIA.

4541

4541-0-00-XX-00-00-03-0

Solder mount in .022 mounting hole

.020

.060 DIA.

.020

.098 DIA.

.075 DIA.

.062 DIA.

.185

.325

.018 DIA.

.049

1980

.072 DIA.

.059 DIA.

1980-0-00-00-XX-00-03-0

Surface mount, Target Connector

Also available on carrier tape: 1,450 parts per

13” reel. Order as:

319-10-1XX-40-080001

.030

2820

2820-0-00-XX-00-00-03-0

.072 DIA.

.060 DIA.

.067 DIA.

Also available in HSMT connector series:

328-XX-1XX-40-020001

1,450 parts per 13” reel

See page 87.4 for Tape & Reel details

.085 .200

.065

(3.25)

.067 DIA.

.059 DIA.

.262

.113

.020 DIA.

.034

.125

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - 0 - 00 -

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 207 | MALE PCB PINS
