ELECTRICAL MODEL DOCUMENTATION
MODEL SUMMARY
S-parameter model of USB Type A through-hole mated receptacle.
The model generated includes board effects.
Receptacle board: Finished-hole and solder pad diameter of 0.9mm
and 1.3mm respectively with FR4 board thickness of 1.6mm.
APPLICABLE PART NUMBER:
1050570001
MODEL FILENAME:
spm105057_revA_wp.s4p
MODEL TYPE:
SPM
MODEL SOURCE:
Simulation
NUMBER OF PORTS:
4
STRUCTURE:
Assembly
VALIDATION:
No
MAXIMUM FREQUENCY:
5 GHz
DISCLAIMERS:
Information contained in this document is simulated. Molex Incorporated does not
guarantee the performance of the final product to the information provided in this document.
Molex does not represent, warrant or guarantee the accuracy of the information, expressly disclaims
all warranties including the implied warranties of merchantability and fitness for particular purpose,
and shall not be liable for any damages whatsoever arising from use of, or inability to use, the
information contained in this document or accompanying electronic file.
The user is responsible for verifying the results of their use of this information, and assume all risk of
doing or not doing so. Use of the electronic file evidences user's agreement to the above terms.

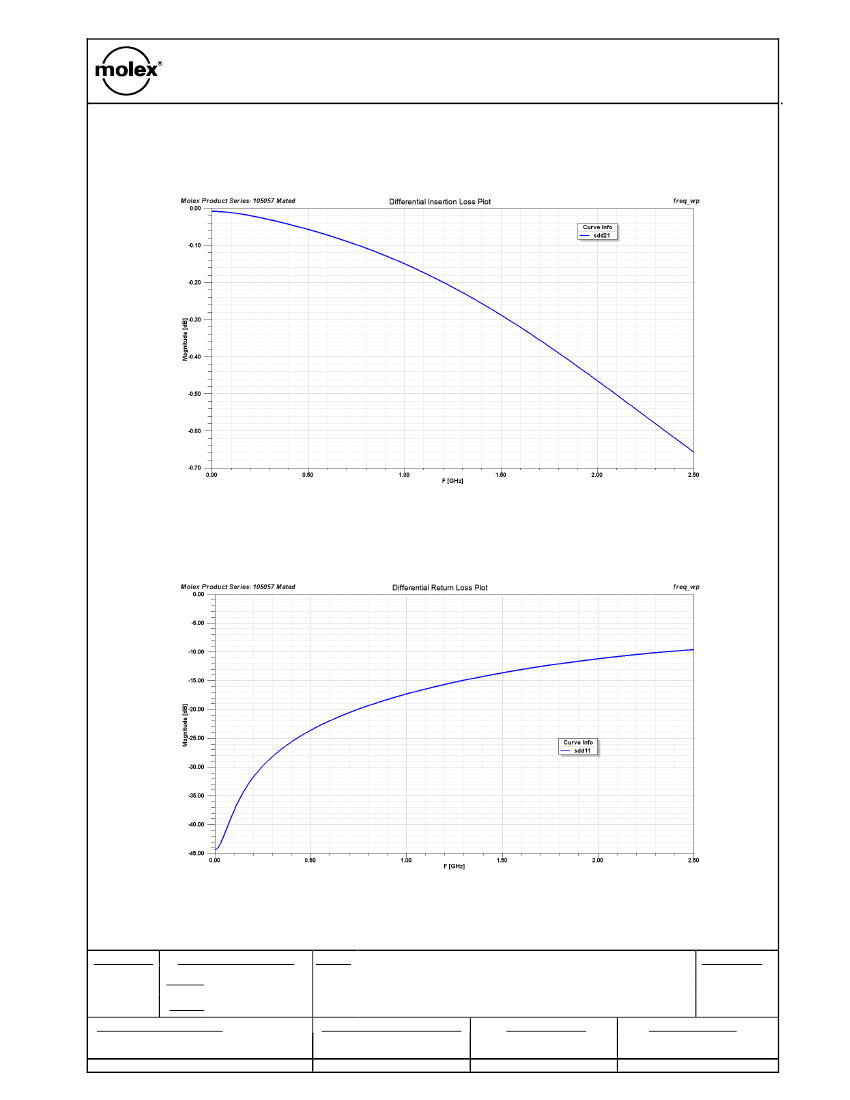

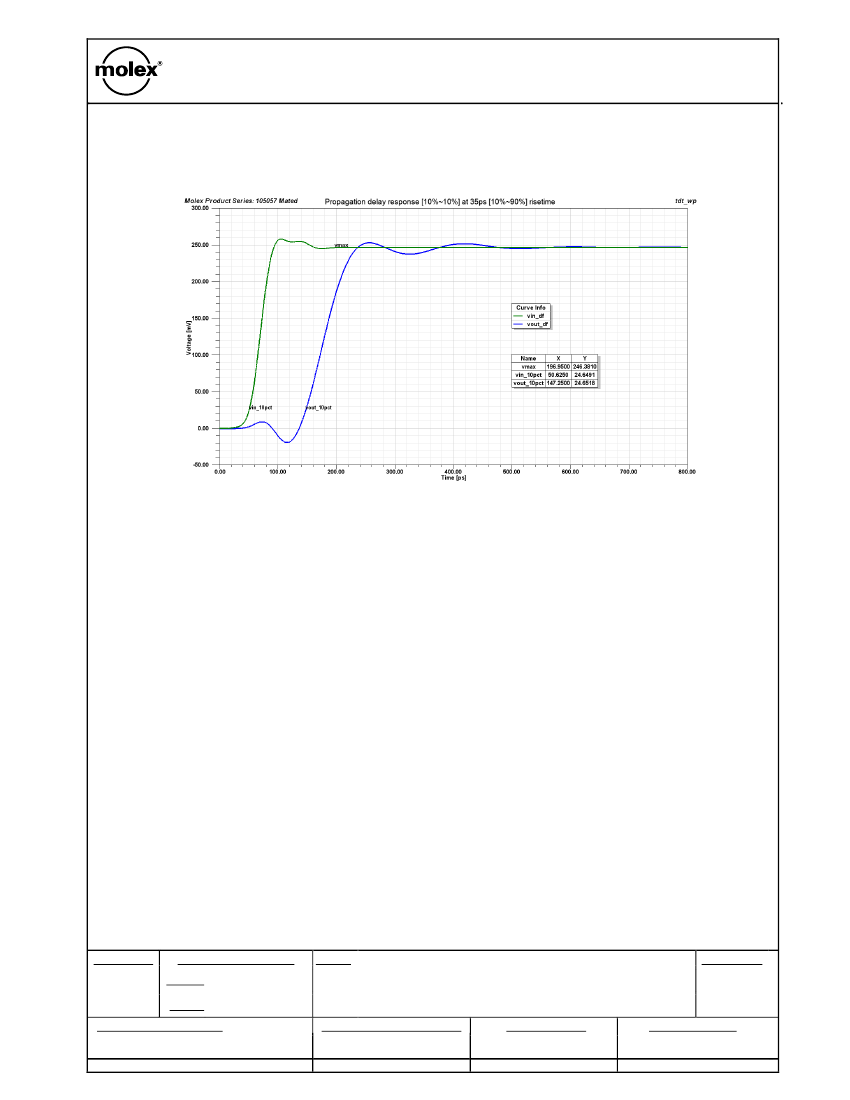

Any charts or schematics in this report are only for general reference. The schematic allows the user to
configure a similar simulation circuit in any simulation tool. The resulting charts provided allow a
comparison of results to the Molex simulation using the stated schematic.
REVISION:
ECN INFORMATION:
EC No:
DATE:
TITLE:
A
S2010-0929
2010/05/10
USB Type A Through-Hole Mated Receptacle
105057-0001 Mated
MOLEX CONFIDENTIAL
CHECKED BY:
SHEET No.
1
of
5
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
EE-105057-001
CMWONG 2010/05/10
WTCHUA 2010/05/10
ACHEAH 2010/05/12
TEMPLATE FILENAME: SPM[SIZE_A](V.1).DOC
ELECTRICAL MODEL DOCUMENTATION
CONDUCTOR TO PORT MAPPING TABLE
SIGNAL PATHS
Conductor
P2
P3
Ports
in_p2, out_p2
in_p3, out_p3
PRE-DEFINED RETURN PATHS
Conductor
P1
P4
Label
G
G

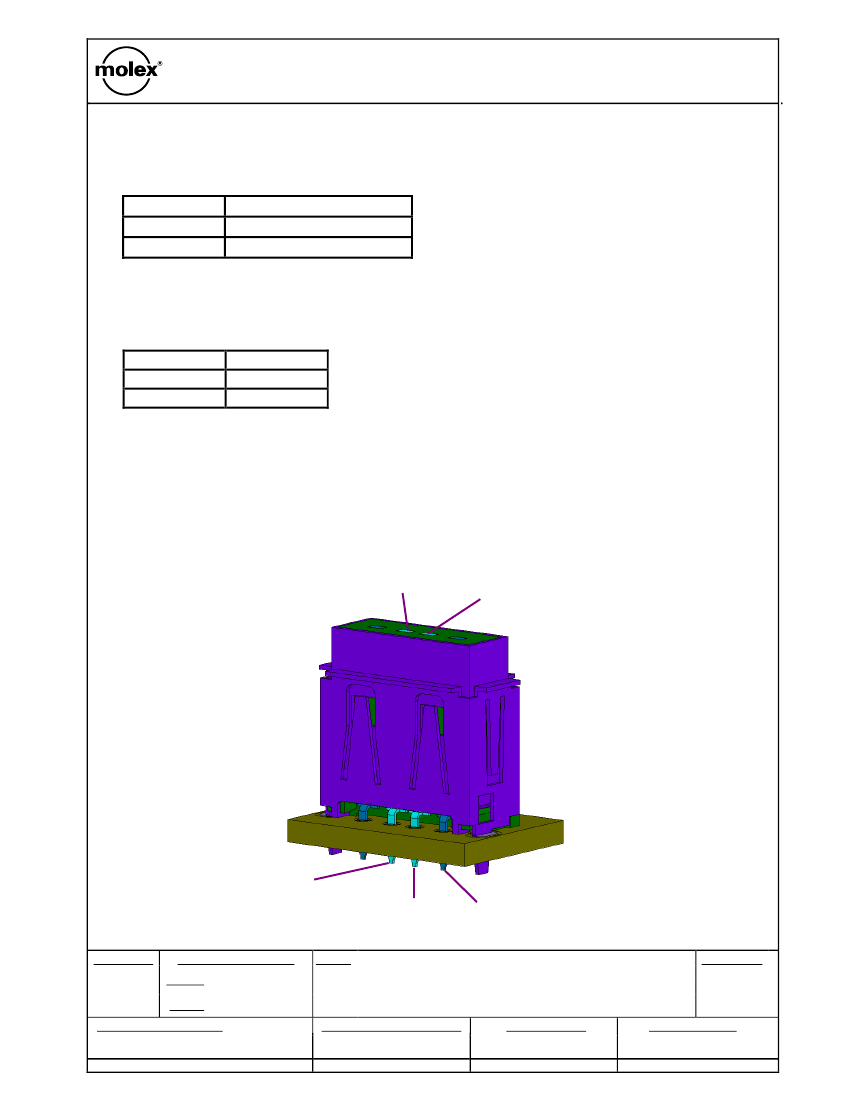

PART ILLUSTRATIONS
Pin 3 (out_p3)
Pin 2 (out_p2)
Pin 3 (in_p3)
Pin 2 (in_p2)
Pin 1 (G)
REVISION:
ECN INFORMATION:
EC No:
DATE:
TITLE:
A
S2010-0929
2010/05/10
USB Type A Through-Hole Mated Receptacle
105057-0001 Mated
MOLEX CONFIDENTIAL
CHECKED BY:
SHEET No.
2
of
5
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
EE-105057-001
CMWONG 2010/05/10
WTCHUA 2010/05/10
ACHEAH 2010/05/12
TEMPLATE FILENAME: SPM[SIZE_A](V.1).DOC
ELECTRICAL MODEL DOCUMENTATION

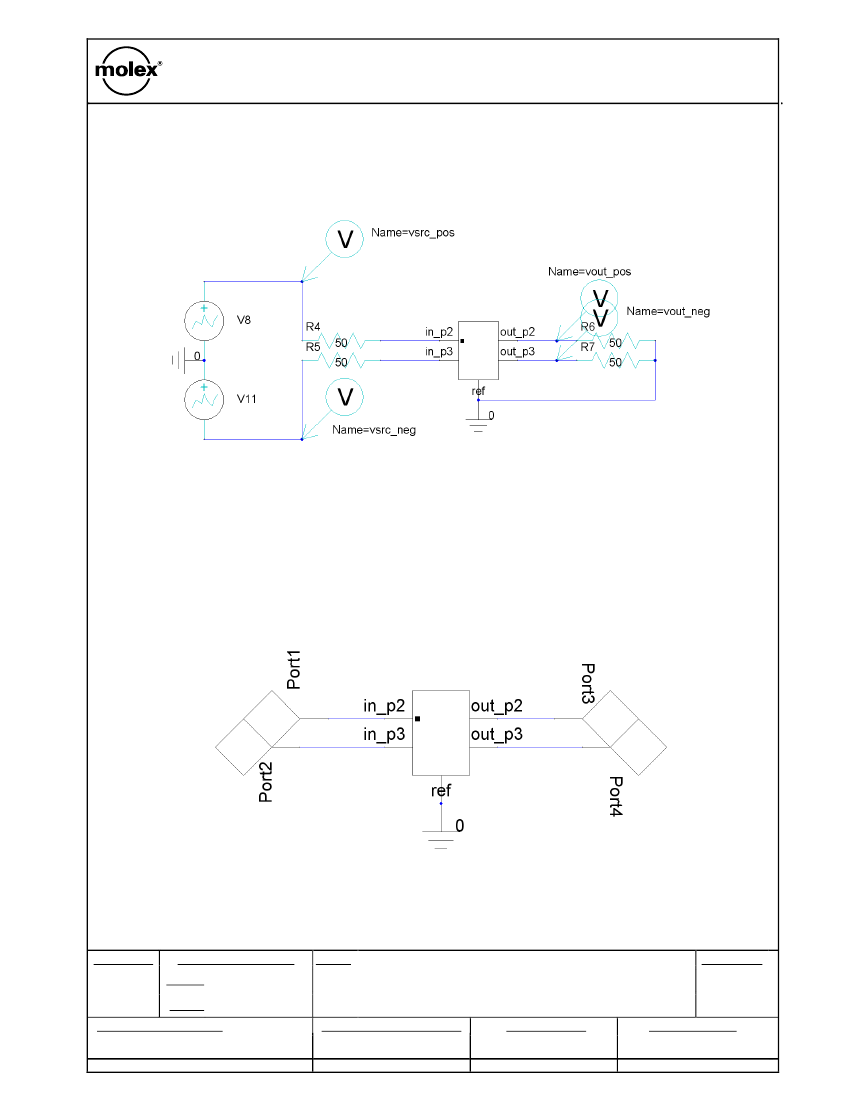

REFERENCE SCHEMATICS
Time Domain Schematic
Frequency Domain Schematic
REVISION:
ECN INFORMATION:
EC No:
DATE:
TITLE:
A
S2010-0929
2010/05/10
USB Type A Through-Hole Mated Receptacle
105057-0001 Mated
MOLEX CONFIDENTIAL
CHECKED BY:
SHEET No.
3
of
5
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
EE-105057-001
CMWONG 2010/05/10
WTCHUA 2010/05/10
ACHEAH 2010/05/12
TEMPLATE FILENAME: SPM[SIZE_A](V.1).DOC
