02.11.2018
MICON 5 - Short-travel switch, SMT Standard
1.14.002.111/0000

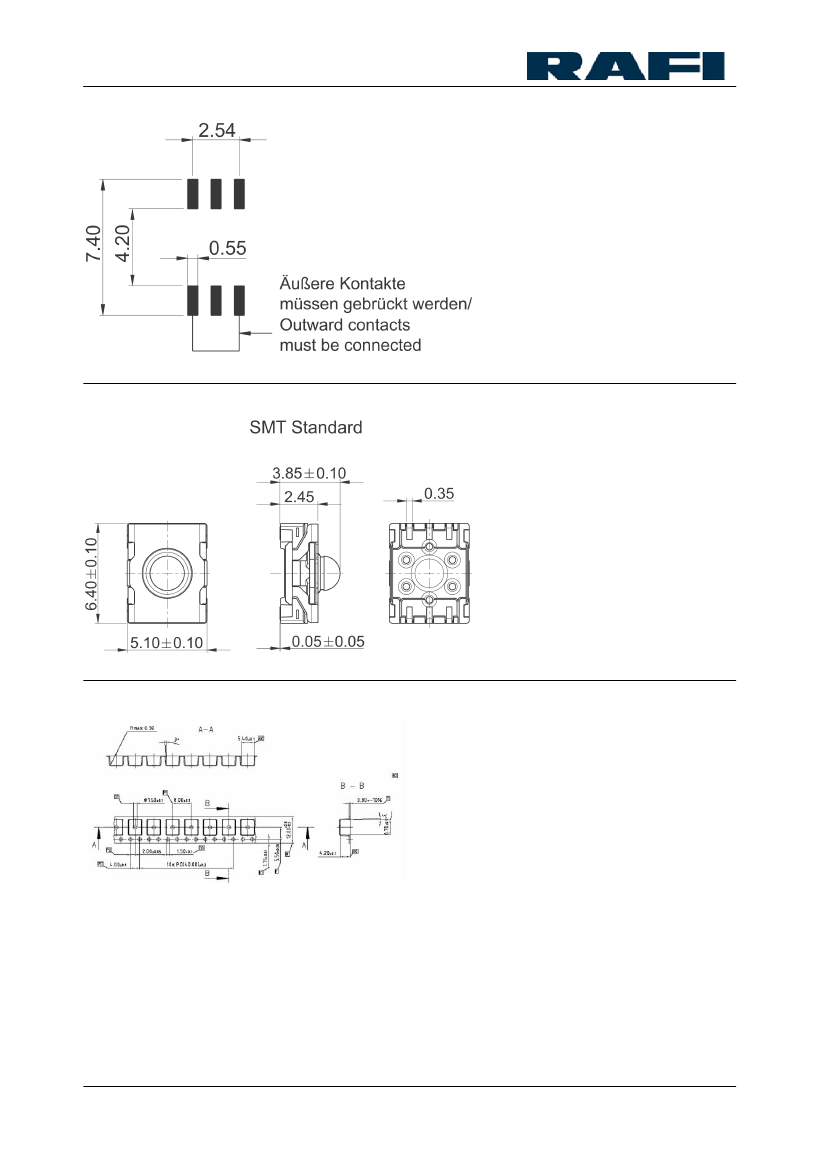

Dimensions
Length of housing
Width of housing
Overall height
Mechanical design
Mounting
Terminals
Contact system

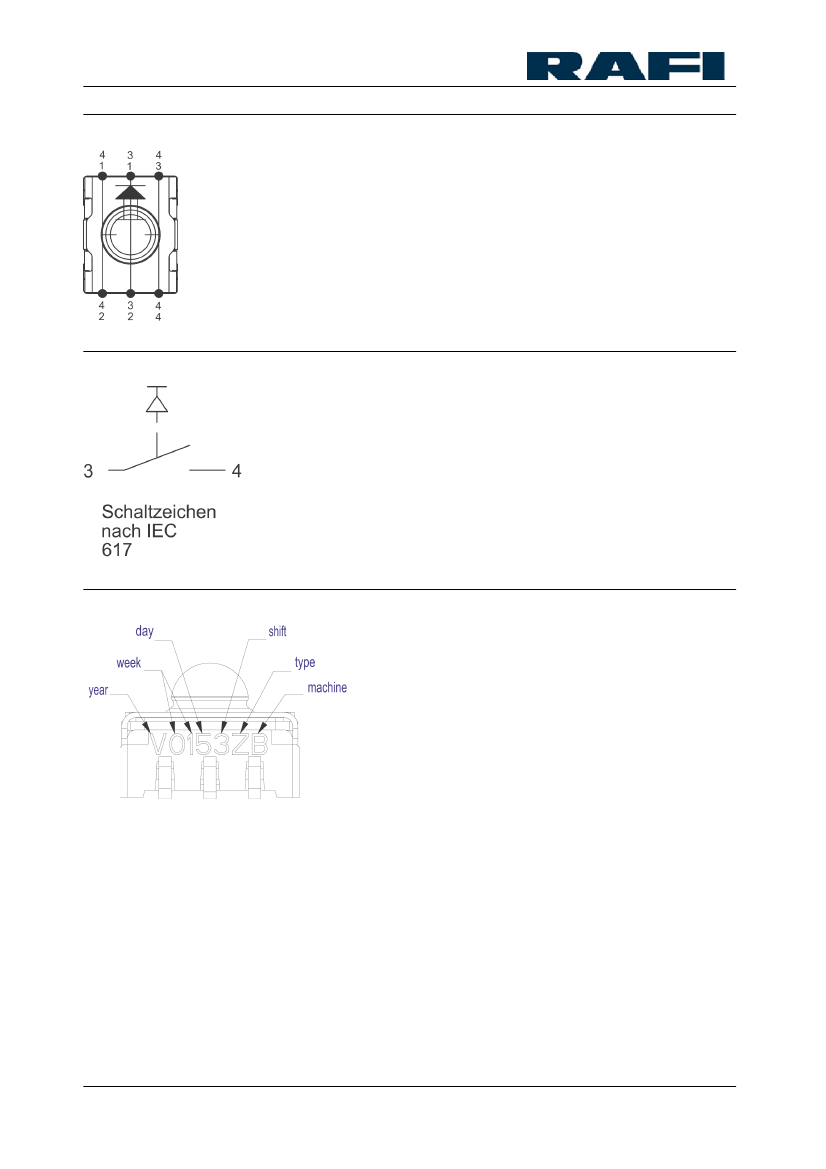

Contact arrangement
Contact materials
Illumination
Mechanical characteristics
Operating force F1 (±20%)
Switching travel S2 (±0.15 mm)
Electrical characteristics
Rated voltage min.
Rated voltage max.
Rated current min.
Rated current max.
Rated power max. (ohmic load)
Contact resistance when new
Rated voltage restistance AC
Insulation resistance
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Resistance to environment
Operating life (test force)
Solder heat resistance / Solderability
Flammability of materials
Packing
Produkt type
ROHS compliant
REACH compliant
6.4 mm
5.1 mm
3.85 mm
soldering
SMT
snap-action contact
1 NO
Au
no
5.5 N
0.9 mm
0.02 V
35 V
0.01 mA
100 mA
1W
? 100 mΩ
250 V
10
9
Ω
-40 °C
+90 °C
IEC 60068-2 -14,-30,-33, -78
1,000,000 (8 N)
DIN EN 60068-2-58
UL 94 V1
tape and reel à 2100 pieces
W
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
02.11.2018
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
02.11.2018
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
