5010170608 datasheet, PDF - EEWORLD Datasheet

5010170608: DescriptionCONN PLUG 60POS 0.4MM SMD; CategoryThe connector; File Size579KB，8 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

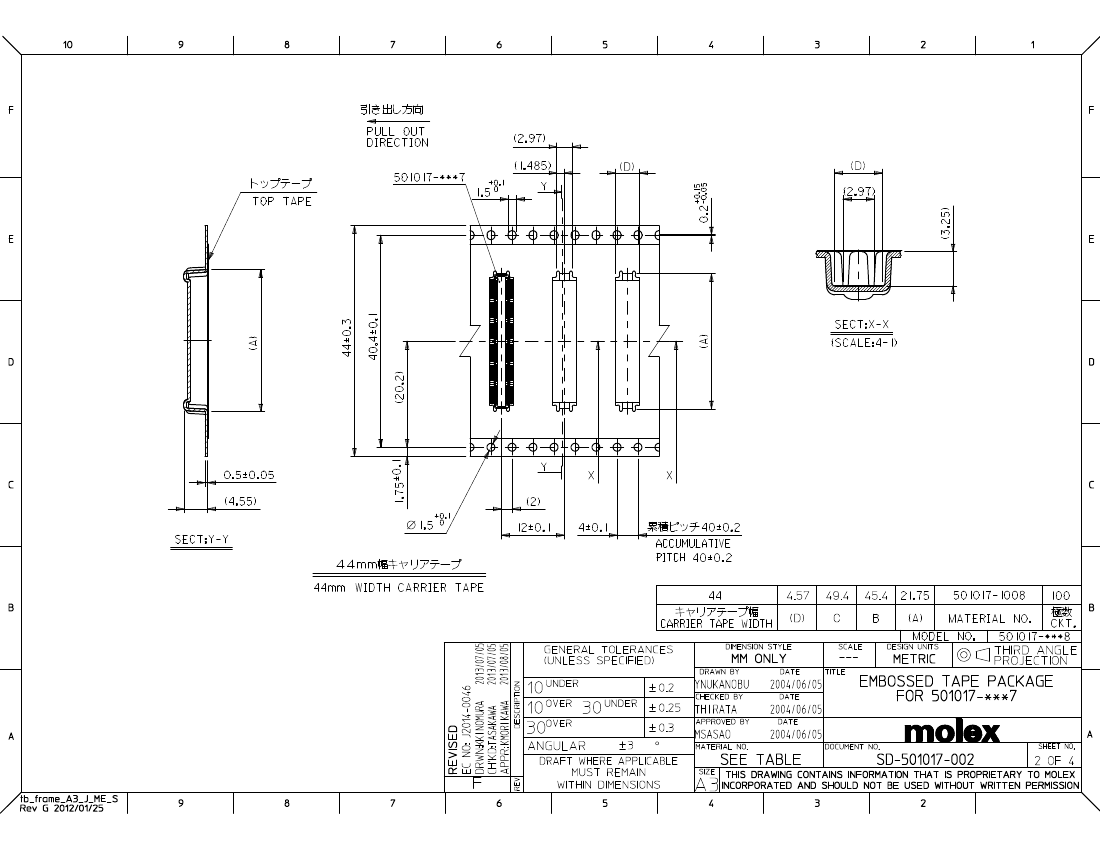

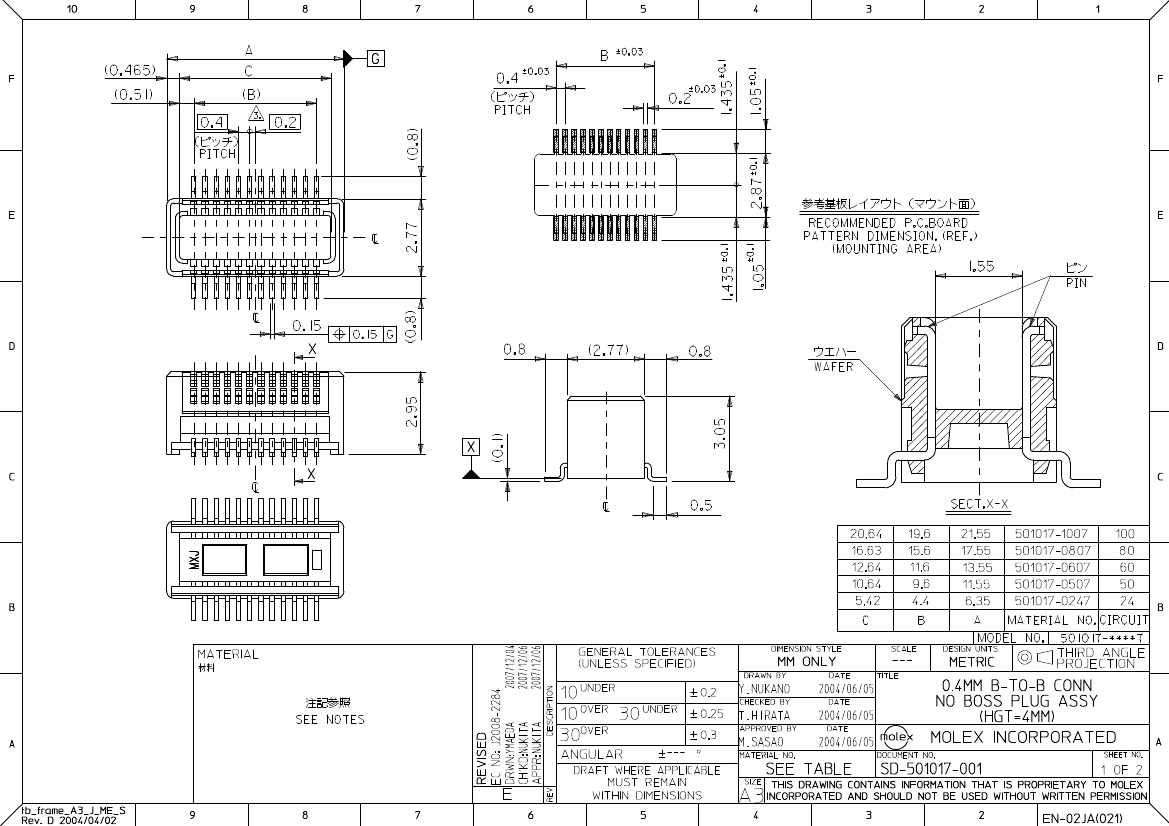

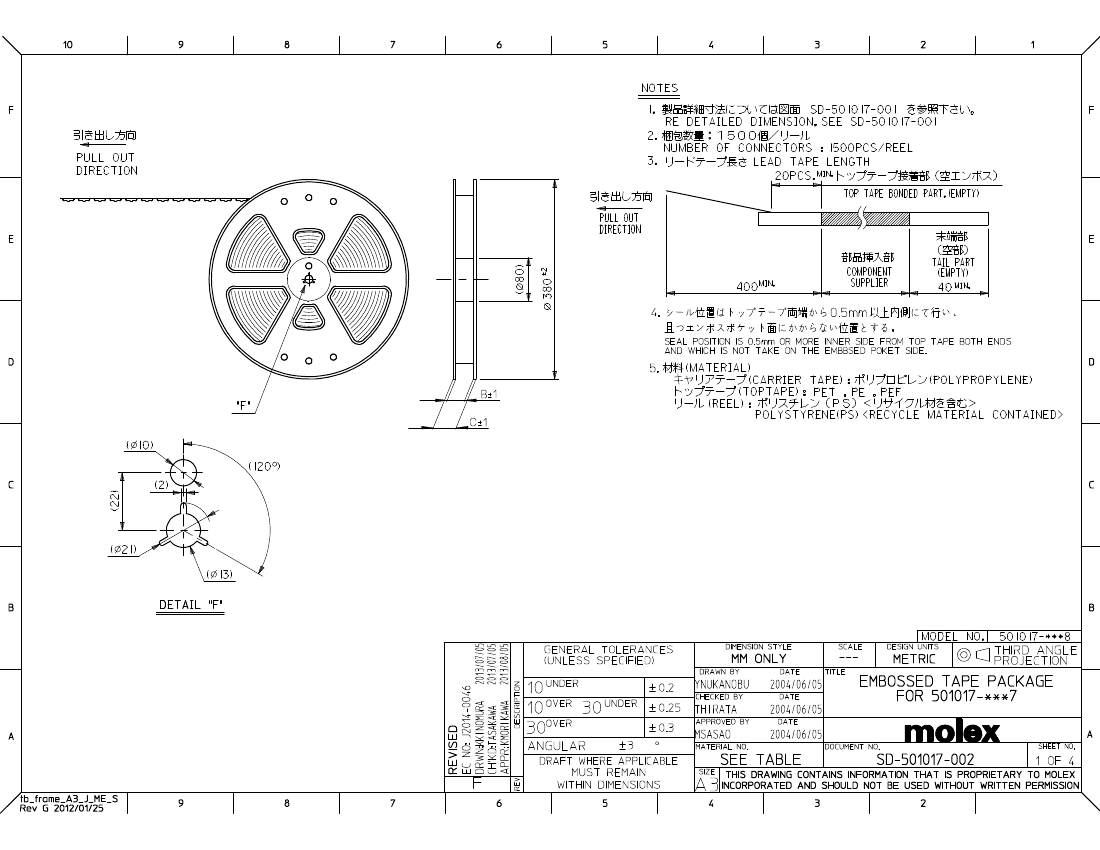

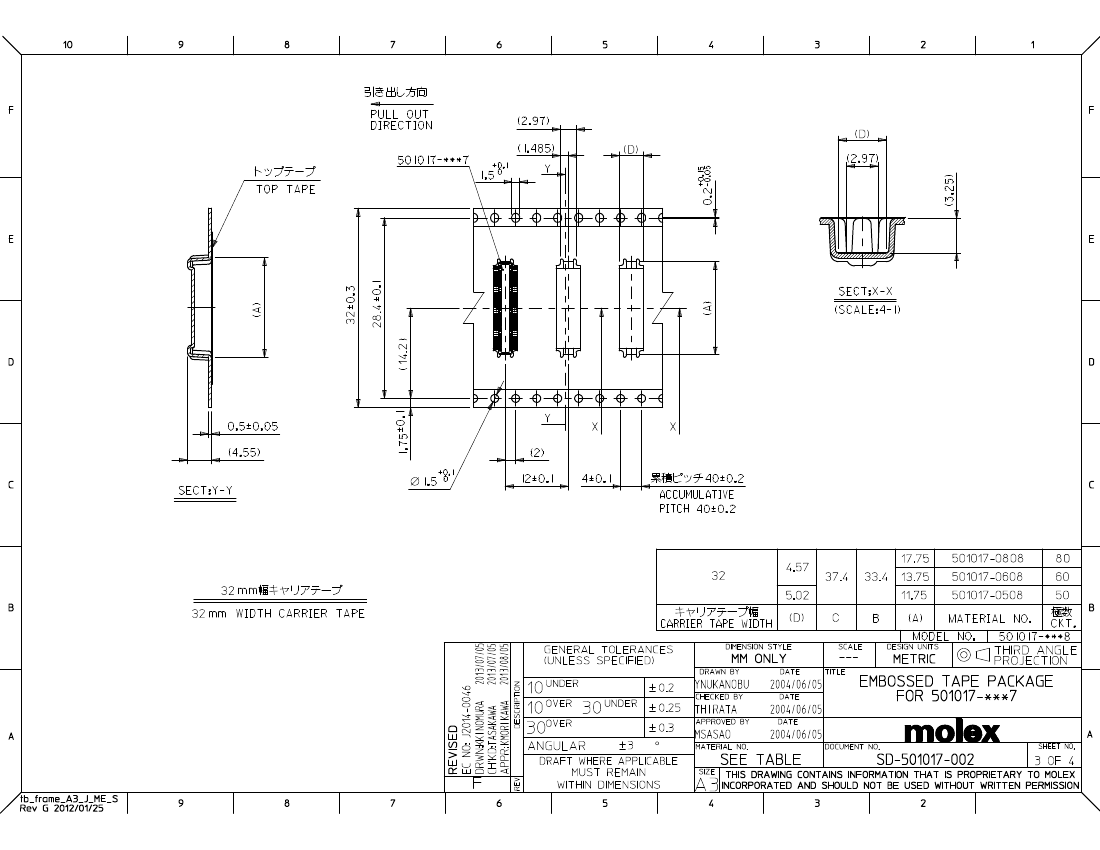

5010170608 Overview

CONN PLUG 60POS 0.4MM SMD

	5010170608	5010170248	5010170508	5010170808	5010171008
Description	CONN PLUG 60POS 0.4MM SMD	CONN PLUG 24POS 0.4MM SMD	CONN PLUG 50POS 0.4MM SMD	CONN PLUG 80POS 0.4MM SMD	CONN PLUG 100POS 0.4MM SMD
Connector type	Plug, housing contact	Plug, housing contact	Plug, housing contact	Plug, housing contact	Plug, housing contact
Number of pins	60	24	50	80	100
spacing	0.016"（0.40mm）	0.016"（0.40mm）	0.016"（0.40mm）	0.016"（0.40mm）	0.016"（0.40mm）
Number of rows	2	2	2	2	2
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount
Contact plating	gold	gold	gold	gold	gold
Contact plating thickness	10.0µin（0.25µm）	10.0µin（0.25µm）	10.0µin（0.25µm）	10.0µin（0.25µm）	10.0µin（0.25µm）

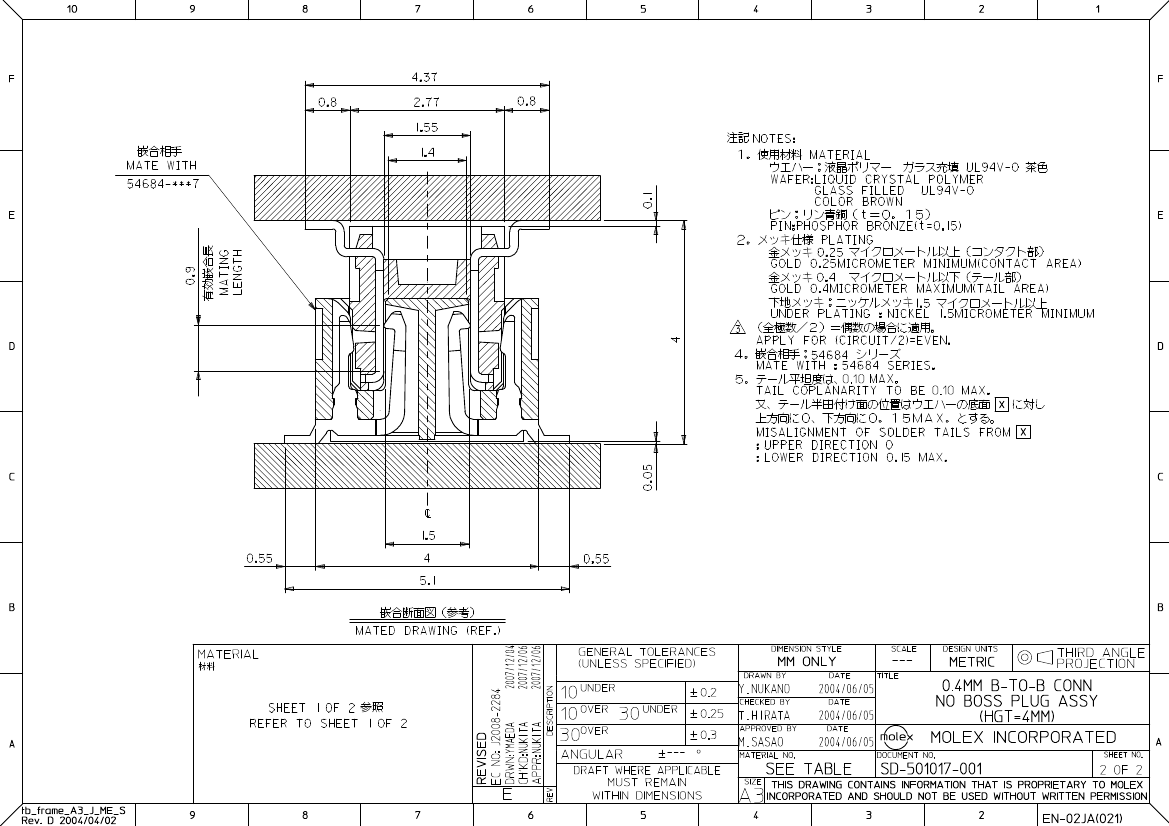

Joint stack height	4mm	4mm	4mm	4mm	4mm
board height	0.120"（3.05mm）	0.120"（3.05mm）	0.120"（3.05mm）	0.120"（3.05mm）	0.120"（3.05mm）
