68XR10KLF datasheet, PDF - EEWORLD Datasheet

68XR10KLF: DescriptionRESISTOR, TRIMMER, CERMET, 20 TURN(S), 0.5W, 10000ohm, 3/8 INCH, SQUARE, 3 PINS, ROHS COMPLIANT; CategoryPassive components The resistor; File Size864KB，4 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric View All

68XR10KLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	68XR10KLF	-	-	View	Buy Now

RESISTOR, TRIMMER, CERMET, 20 TURN(S), 0.5W, 10000ohm, 3/8 INCH, SQUARE, 3 PINS, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1735385731
package instruction	PCB Mount, 3824
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.6
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Trimmer Pot
JESD-609 code	e3
Lead diameter	0.51 mm
Lead length	4.6 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	9.53 mm
Package length	9.53 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	6.22 mm
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	85 °C
resistance	10000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	7200 deg
size code	3824
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

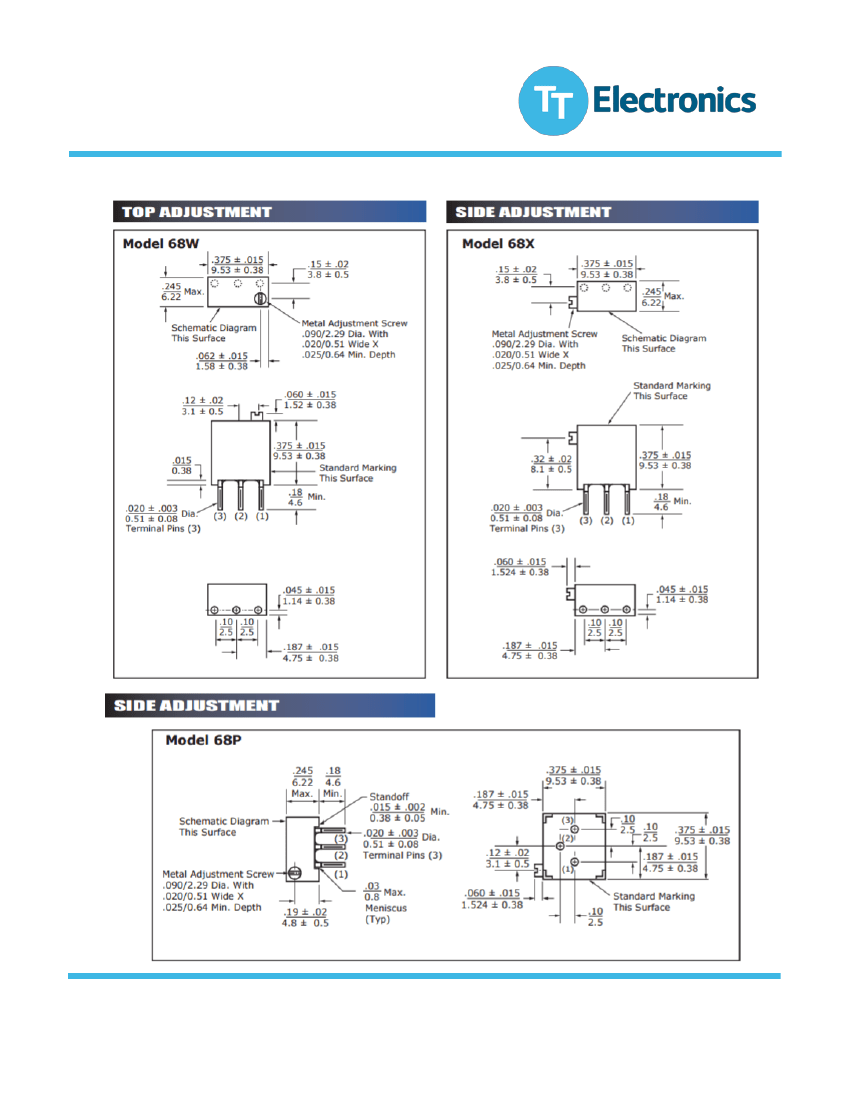

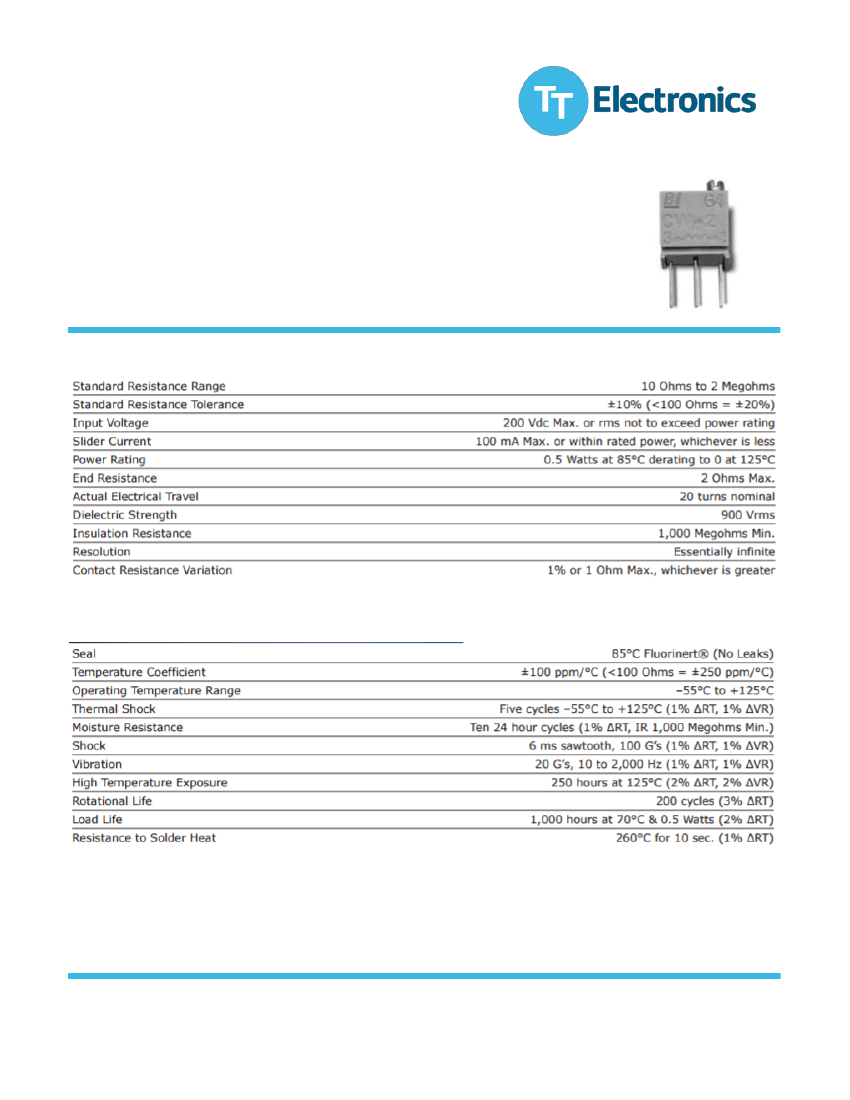

Multi-Turn Trimmer

Model 68

Features:



3/8” square



Cermet

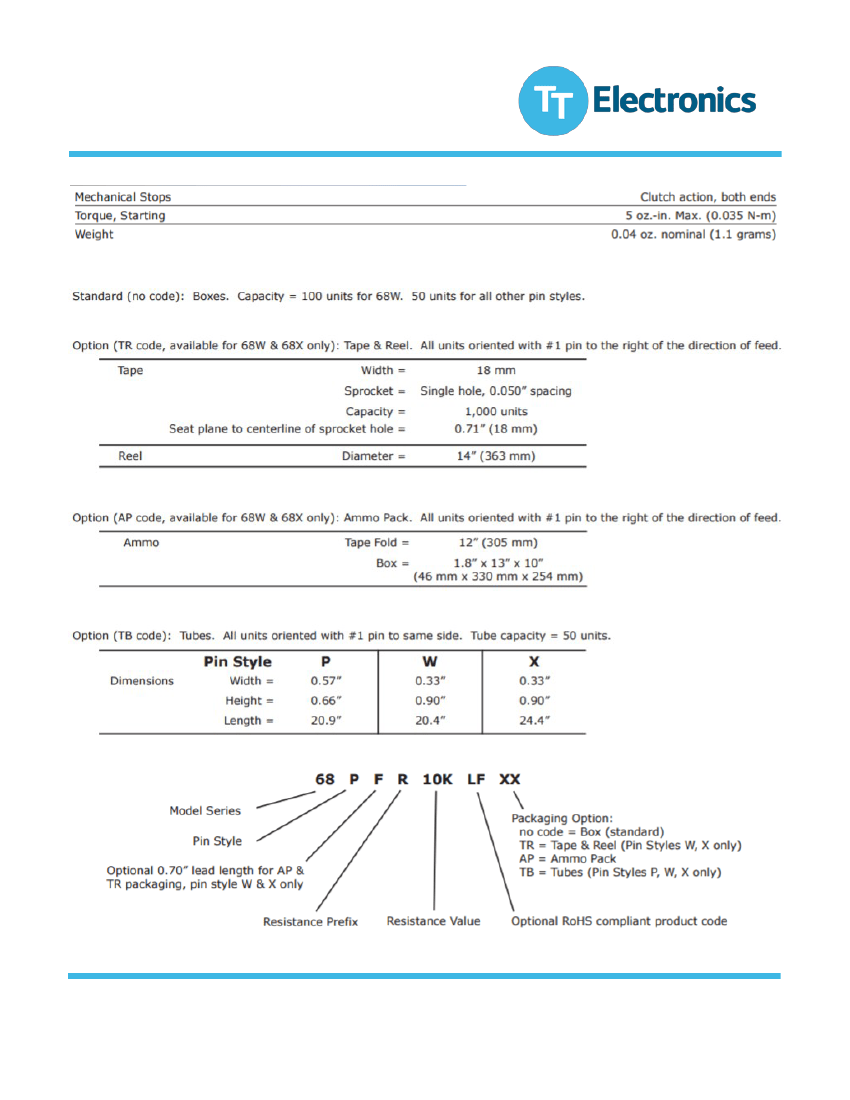

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
