3487 datasheet, PDF - EEWORLD Datasheet

3487: DescriptionSWITCH PUSH SPST-NO GRN 10MA 5V; Categoryaccessories; File Size141KB，2 Pages; ManufacturerAdafruit

Download Datasheet Parametric View All

3487 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3487	-	-	View	Buy Now

SWITCH PUSH SPST-NO GRN 10MA 5V

Parameter Name	Attribute value
type	Standard, illuminated
circuit	SPST-NO
switch function	Off - instantaneous
Rated current	10mA（DC）
Rated voltage - DC	5V
Actuator type	circle, button
Color - Actuator/Cap	Transparent (green filter ytterbium/diffuser)
lighting type, color	LED, green
Lighting voltage (nominal)	5 VDC
Installation type	Front panel installation
Terminal type	Quick Connect - 0.110" (2.8mm)
Intrusion protection	-
characteristic	arcade style
Panel opening size	Round - 30.00mm diameter
Operating temperature	-
Mechanical life	-
Electrical life	-

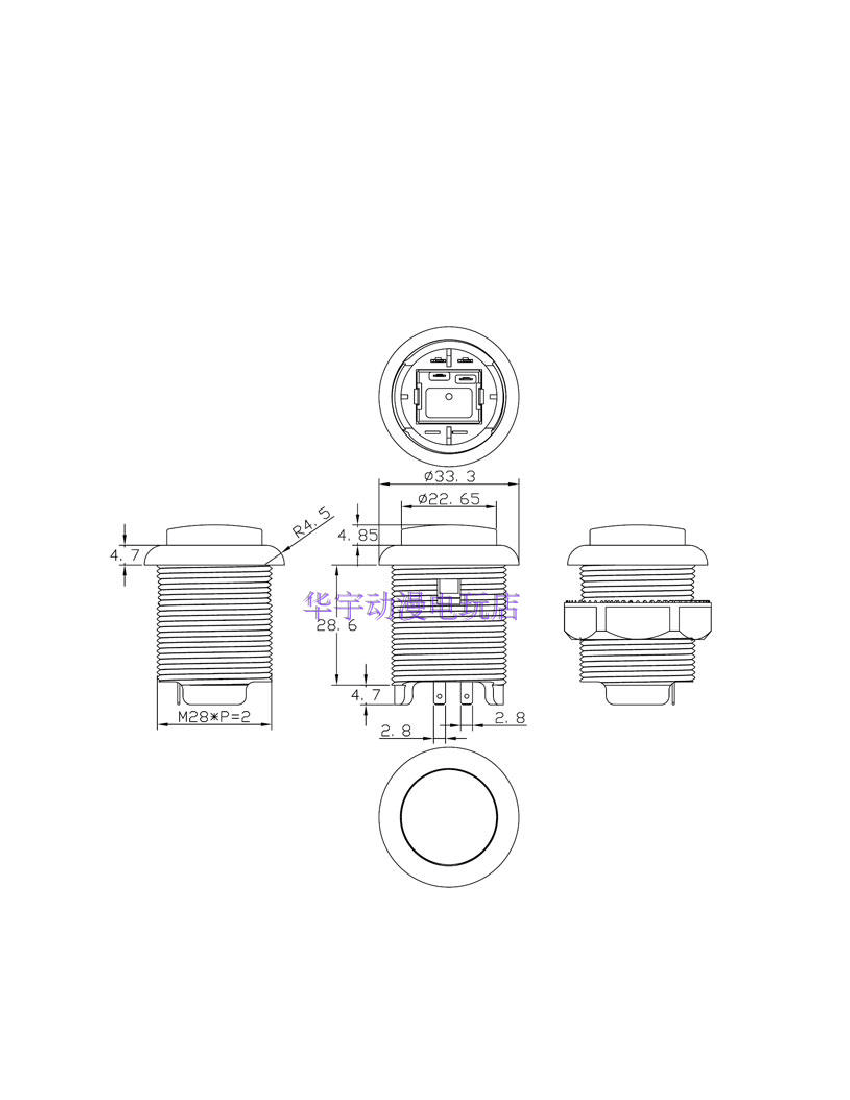

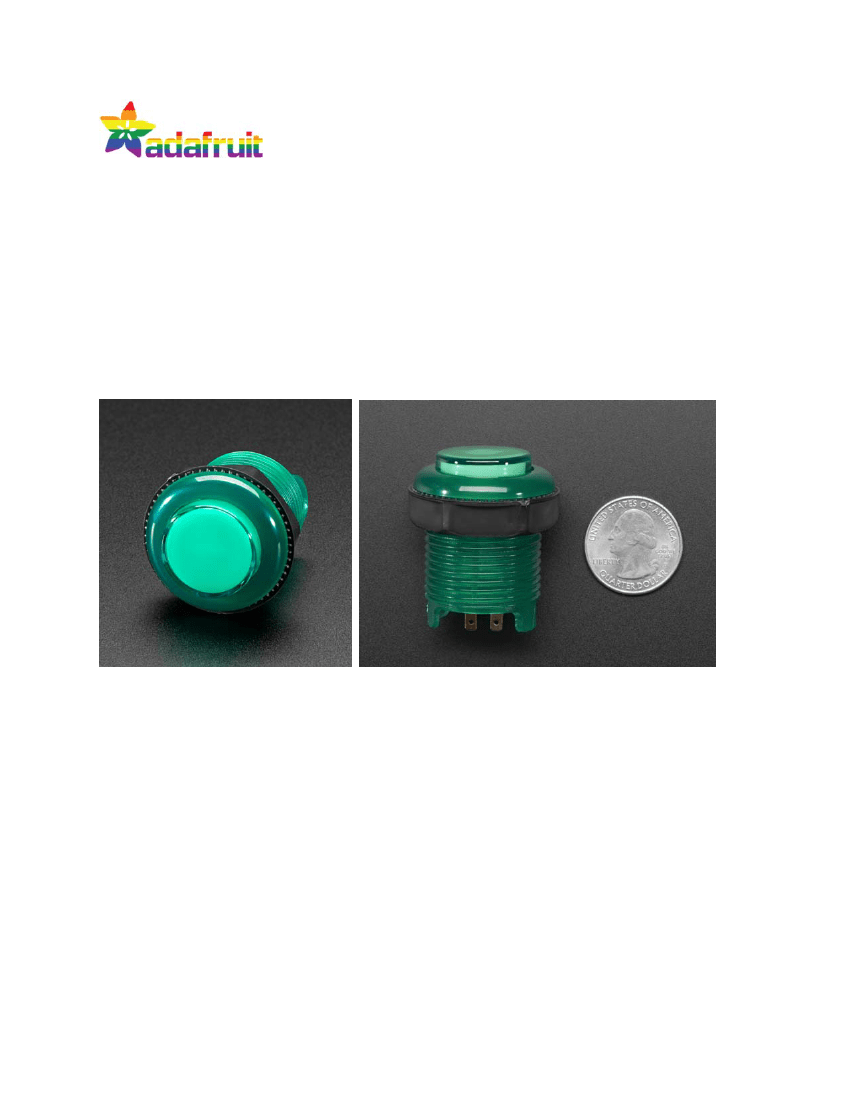

Arcade Button with LED - 30mm

Translucent Green

PRODUCT ID: 3487



Description

A button is a button, and a switch is a switch, but these translucent arcade buttons are in a class of their

own. Particularly because they have

LEDs built right in!

That's right, you'll be button-mashing amidst a

wash of beautiful light with these lil' guys. They're the same size as common miniature arcade controls, and

require a 30mm diameter hole for mounting. Thus they are sometimes referred to as 30mm diameter.

The buttons screw in place, so you can use with up to ~20mm thick material, and will cover up if the hole if

it isn't perfectly round and clean. The action is smooth, without a strong click, yet you can definitely feel

when the button is pressed. A tiny micro-switch is pre-installed, with gold plated contacts.

Even unlit, they look fantastic: all of the colors have a crystal translucent glossy look. As noted they have

two surface mount LEDs with resistors built in, buried in the button body. Next to the switch contacts are

two additional contacts for powering/controlling the LEDs. The two LEDs are connected in

parallel

with

~1K resistors each, so you can power the LED from a microcontroller pin or direct from 5V (say USB)

with 10mA draw. You can go down to 3.3V power, only 2mA per button, but they'll be dimmer.
