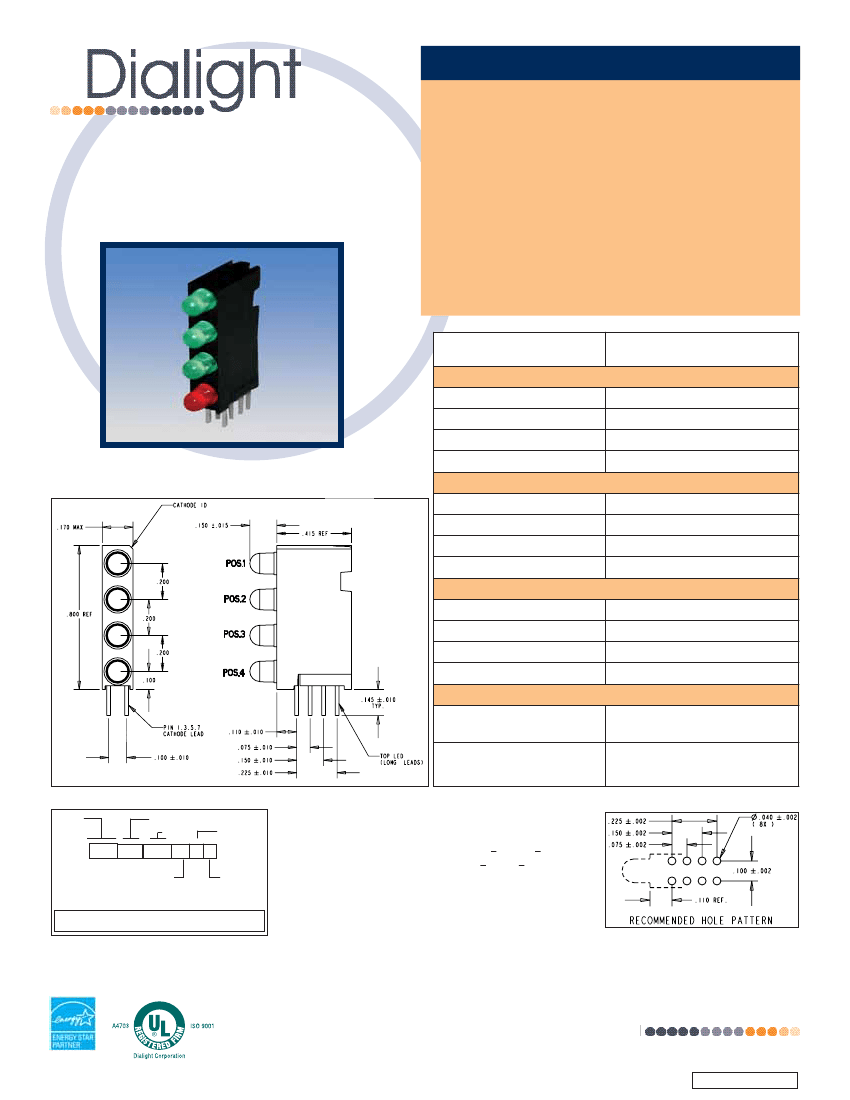

FEATURES / BENEFITS
Multiple CBIs form horizontal LED arrays on 1.91 mm
(0.075”) center lines.
High Contrast, UL 94 V-0 rated, black housing
Oxygen index: 32%
Polymer content: PBT, 0.949 g
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
LEDs are safe for direct viewing per IEC 825-1,
EN 60825-1
568 Series
3mm LED CBI
®
Circuit Board Indicator
QUAD-LEVEL
PART NUMBER
HIGH EFFICIENCY - LED TYPE 1
568-0101-111
568-0102-222
568-0102-323
568-0103-232
COLOR*
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
LOW CURRENT - LED TYPE 2
568-0201-111
568-0202-222
568-0202-323
568-0203-232
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 3
568-0301-111
568-0302-222
568-0302-323
568-0303-232
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
BI-COLOR - LED TYPE 7
568-0701-111
RED/GREEN-RED/GREEN-
RED/GREEN-RED/GREEN
568-0704-444
YELLOW/GREEN-YELLOW/GREEN-
YELLOW/GREEN-YELLOW/GREEN
PART NUMBER ORDERING CODE
Series
LED Type
LED 1
LED 3
* LED 1, LED 2, LED 3, LED 4
Tolerance note:
As noted, otherwise:
• LED Protrusion: +0.4 mm [+0.016]
• CBI Housing: +0.2mm [+0.008]
Contact factory for information on
custom color combinations.
568 -0x
0x
LED 2
-x x x
LED 4
Color =
0) Blank, 1) Red or Red/Green Bi-Color,
2) Green, 3) Yellow, 4) Yellow/Green Bi-Color
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEA568X001_B
3mm LED CBI
®
Circuit Board Indicator
Quad-Level
OPERATING CHARACTERISTICS (T
A
= 25
O
C)
HIGH EFFICIENCY - LED TYPE 1
Peak
Wavelength (nm)
635
565
585
Part Number
Color
Red
Iv
mcd
10.0
12.6
10.0
V
F
volts
2
2.1
2.1
Test Current
(mA)
10
10
10
Viewing Angle
2
O
1/2
60
o
60
o
60
o
568-010x-xxx
Green
Yellow
LOW CURRENT - LED TYPE 2
Peak
Wavelength (nm)
635
565
585
Part Number
Color
Red
lv
mcd
1.6
1.6
1.6
V
F
volts
1.7
1.9
1.8
Test Current
(mA)
2
2
2
Viewing Angle
2
O
1/2
60
o
60
o
60
o
568-020x-xxx
Green
Yellow
INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 3
Peak
Wavelength (nm)
635
565
583
Part Number
Color
Red
lv
mcd
4
8
8
Test
Voltage
5
5
5
Test Current
(mA)
10
12
10
Viewing Angle
2
O
1/2
60
o
60
o
60
o
568-010x-xxx
Green
Yellow
BI-COLOR - LED TYPE 7
Part Number
568-070x-xxx
Color
Green/Red
Green/Yellow
Peak
Wavelength (nm)
565/635
565/585
lv
mcd
10.0/4.7
6.3/4.3
V
F
volts
2.1/2.0
2.1/2.1
Test Current
(mA)
10/10
10/10
Viewing Angle
2
O
1/2
60
o
60
o
D
IALIGHT
RESERVES THE RIGHT TO MAKE CHANGES AT ANY TIME IN ORDER TO SUPPLY THE BEST PRODUCT POSSIBLE
.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEA568X001_B
