CT2016-6 Overview

4MM DIY STKP BUTTON BLUE

CT2016-6 Parametric

Parameter Name	Attribute value
type	Banana plug, stackable
gender	male head
Plug/Mating Plug Diameter	Standard banana style
Installation type	free hanging
Termination	non-welding
insulation	Non-mate end insulation
characteristic	-
color	blue
Wire gauge	12 AWG
Contact plating	nickel
Contact material	copper beryllium
Matrix material	Polyamide (PA), nylon
Operating temperature	-20°C ~ 80°C

Preview

Download Datasheet

View All

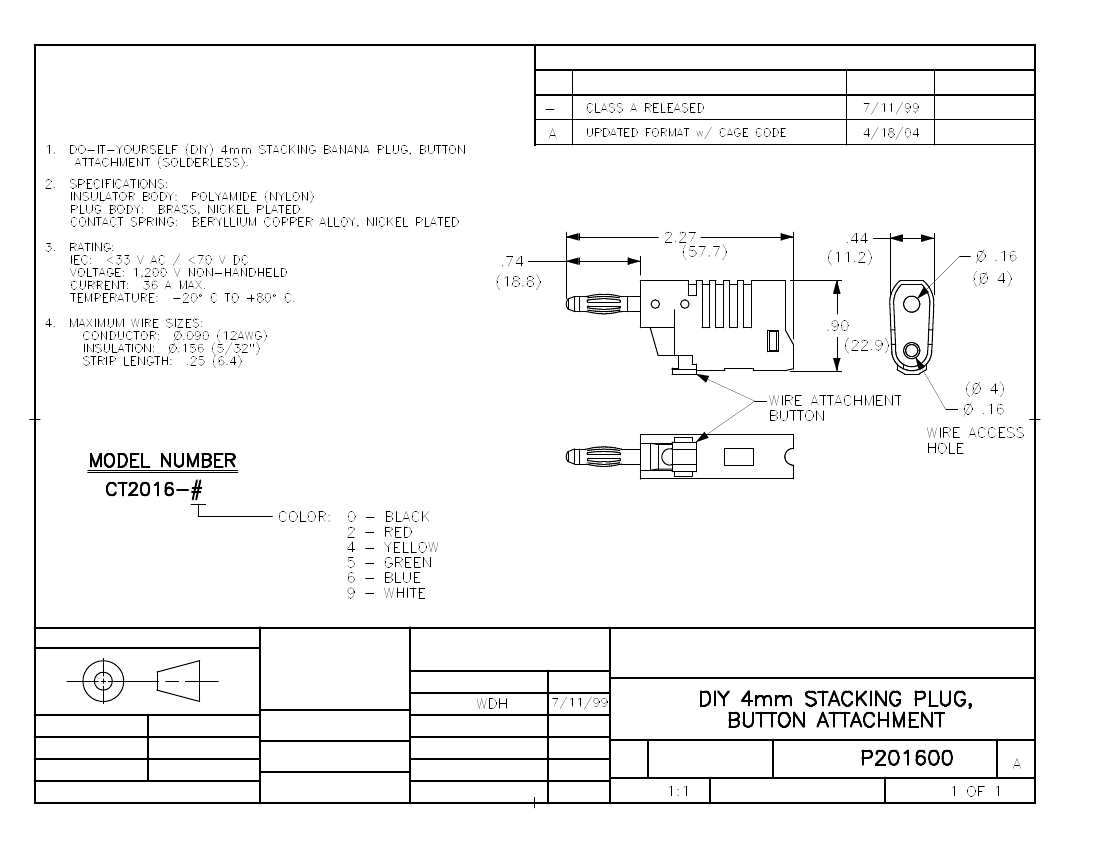

THIS IS ISSUED IN STRICT CONFIDENCE THAT

IT IS NOT USED AS A BASIS FOR

MANUFACTURE OR SALE AND THAT IT IS NOT

COPIED, REPRINTED OR DISCLOSED TO A

THIRD PARTY EITHER WHOLLY OR IN PART

WITHOUT THE PRIOR WRITTEN CONSENT OF

CAL TEST ELECTRONICS, INC.

REVISIONS

REV.

DESCRIPTIONS

DATE

APPROVED

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS

DECIMALS

± 1/32

.XX ± .02

.XXX ±.005

DO NOT SCALE DRAWING

MATERIAL

CONTRACT NO.

Cal Test Electronics

DATE

TITLE

22820 Savi Ranch Parkway

Yorba Linda, CA 92887- 4610

APPROVALS

DRAWN

CHECKED

ENGR.

DESIGN ACTIVITY

FINISH

NEXT ASSY

APPLICATION

USED ON

SIZE

A

CAGE CODE

43F45

DWG. NO.

REV.

SCALE

SHEET

CT2016-6 Related Products

	CT2016-6	CT2016-2	CT2016-5	CT2016-9	CT2016-4	CT2016-0
Description	4MM DIY STKP BUTTON BLUE	4MM DIY STKP BUTTON RED	4MM DIY STKP BUTTON GREEN	4MM DIY STKP BUTTON WHITE	4MM DIY STKP BUTTON YELLOW	4MM DIY STKP BUTTON BLACK
type	Banana plug, stackable	Banana plug, stackable	Banana plug, stackable	Banana plug, stackable	Banana plug, stackable	Banana plug, stackable
gender	male head	male head	male head	male head	male head	male head
Plug/Mating Plug Diameter	Standard banana style	Standard banana style	Standard banana style	Standard banana style	Standard banana style	Standard banana style
Installation type	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging
Termination	non-welding	non-welding	non-welding	non-welding	non-welding	non-welding
insulation	Non-mate end insulation	Non-mate end insulation	Non-mate end insulation	Non-mate end insulation	Non-mate end insulation	Non-mate end insulation
color	blue	red	green	White	yellow	black
Wire gauge	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG
Contact plating	nickel	nickel	nickel	nickel	nickel	nickel
Contact material	copper beryllium	copper beryllium	copper beryllium	copper beryllium	copper beryllium	copper beryllium
Matrix material	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
Operating temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C
