Part Number

Search

MS13AFG01

Description
SWITCH SLIDE SPDT 0.4VA 28V
Categoryaccessories
File Size532KB,7 Pages
ManufacturerNKK Switches
Environmental Compliance
Download Datasheet Parametric View All

MS13AFG01 Online Shopping

Suppliers Part Number Price MOQ In stock
MS13AFG01 - - View Buy Now

MS13AFG01 Overview

SWITCH SLIDE SPDT 0.4VA 28V

MS13AFG01 Parametric

Parameter NameAttribute value
circuitSPDT
Contact timeNot short circuit (BBM)
switch functionon-off-on
Rated current0.4VA(AC/DC)
Rated voltage - AC28V
Rated voltage - DC28V
Actuator typestandard
Actuator length5.10mm
Contact materialcopper
Contact platinggold
Installation typePanel mounting
Terminal typeLug
characteristicEpoxy sealed terminals
Operating temperature-30°C ~ 85°C
Actuator materialPolybutylene terephthalate (PBT), glass fiber reinforced
Switching stroke3.50mm
Mechanical life100,000 cycles
Electrical life50,000 cycles
force-

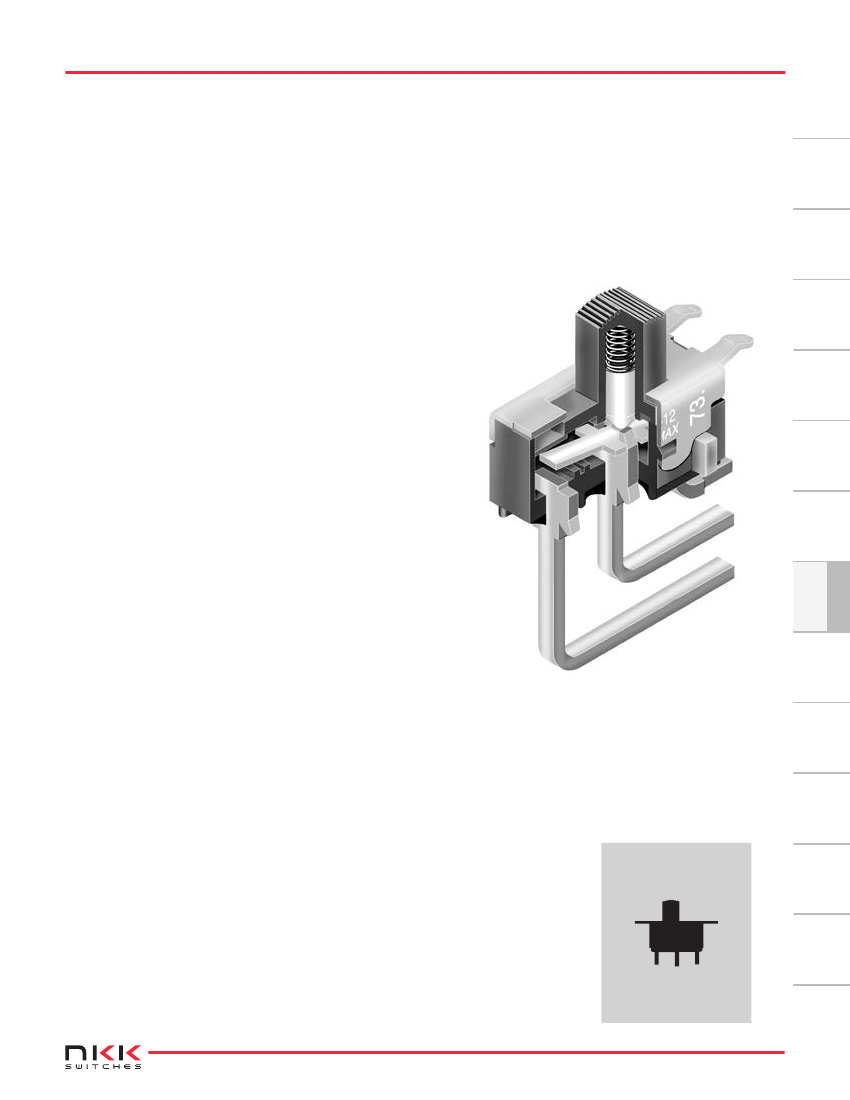

Series MS
Toggles
Miniature Slides
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
Logic/Power Level:
(gold over silver)
6A @ 125V AC or 3A @ 250V AC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Combines silver & gold ratings
Note: Find additional explanation of dual rating & operating range in Supplement section.
Programmable Illuminated PB
Pushbuttons
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Total Travel:
Keylocks
10 milliohms maximum for silver; 20 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum
25,000 operations minimum for silver; 50,000 operations minimum for gold
Nonshorting (break-before-make)
On-None-On circuit .087” (2.2mm); all other circuits .138” (3.5mm)
Materials & Finishes
Actuator:
Frame:
Dust Cover:
Case:
Movable Contacts:
H
Stationary Contacts:
Terminals:
Glass fiber reinforced PBT resin (UL94V-0)
Stainless steel for panel & PCB mount; phosphor bronze with tin plating for bracket mount
Phosphor bronze with nickel plating
Glass fiber reinforced diallyl phthalate resin (UL94V-0)
Silver alloy (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Silver capped copper with silver plating (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Copper or brass with silver or gold plating
Slides
Rotaries
Tactiles
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Processing
Touch
Soldering:
Cleaning:
Wave Soldering recommended (PC Mount). See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Indicators
Standards & Certifications
Flammability Standards:
UL:
CSA:
UL94V-0 rated actuator & case
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” to end of part number to order UL recognized switch.
All Single & Double Pole Double Throw models recognized at 6A @ 125V AC & 3A @ 250V AC.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” to end of part number to order CSA certified switch.
All Double Throw & 3 Throw models certified at 6A @ 125V AC, 3A @ 250V AC, &
0.4VA maximum @ 28V DC.
Supplement
Accessories
H30
www.nkkswitches.com
