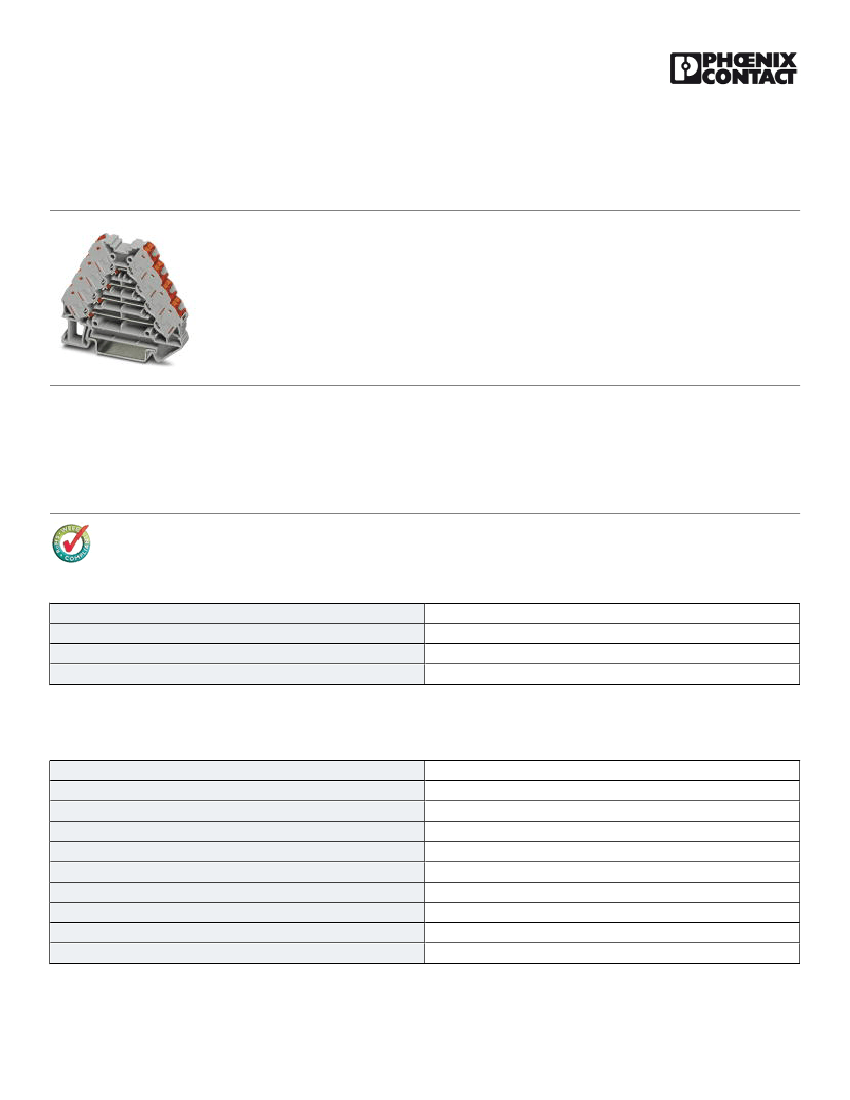

Marshalling panel - PTRV 4 /RD - 3270121
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling panel, Nom. voltage: 250 V, Nominal current: 10 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 12 - 26, Connection type: Push-in connection, Width: 8.3 mm, Length: 64 mm, Color: gray, Assembly: NS
35/7,5, NS 35/15
Product Features
■
■
■
■
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Individual color assignment of cable and terminal point to ensure error-free, safe operation
Tool-free wiring in a confined space thanks to compact size
The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
10 pc
85369010
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
Insulating material group
Connection in acc. with standard
4
16
1.5 mm²
gray
PA
V0
6 kV
III
I
IEC 60947-7-1
03/11/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/3270121
Marshalling panel - PTRV 4 /RD - 3270121
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
10 A (with 1.5 mm² conductor cross section)
10 A
250 V
Yes
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.3 mm
64 mm
55.5 mm
63 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
12
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
27141118
27141118
27141118
27141141
03/11/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/3270121
Marshalling panel - PTRV 4 /RD - 3270121
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141141
27141141
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000901
EC000901
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
D
26-14
10 A
300 V
03/11/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/3270121
Marshalling panel - PTRV 4 /RD - 3270121
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
D
26-14
10 A
300 V
Drawings
Circuit diagram
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
03/11/2016 Page 4 / 4
