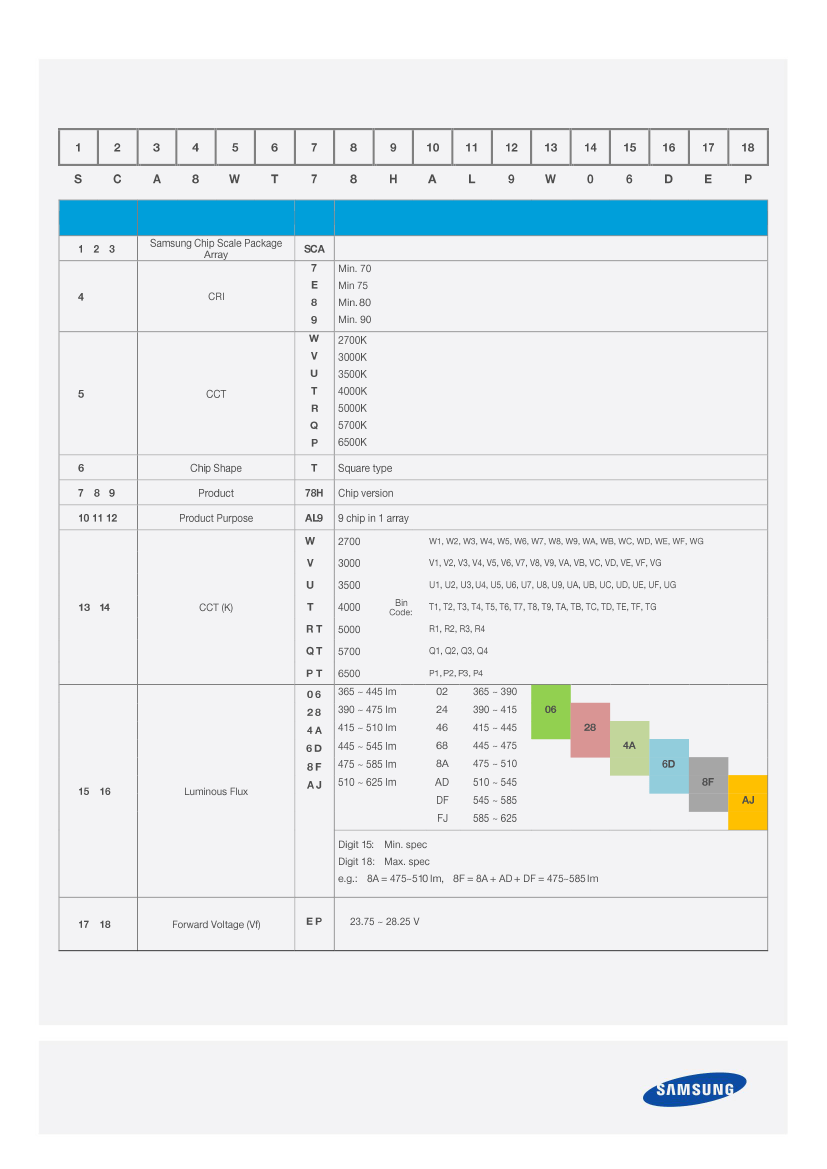

SCA9WT78HAL9W006EP Overview

LED LH309A WARM WHITE 2700K SMD

SCA9WT78HAL9W006EP Parametric

Parameter NameAttribute value
colorwhite, warm color
CCT(K)2700K

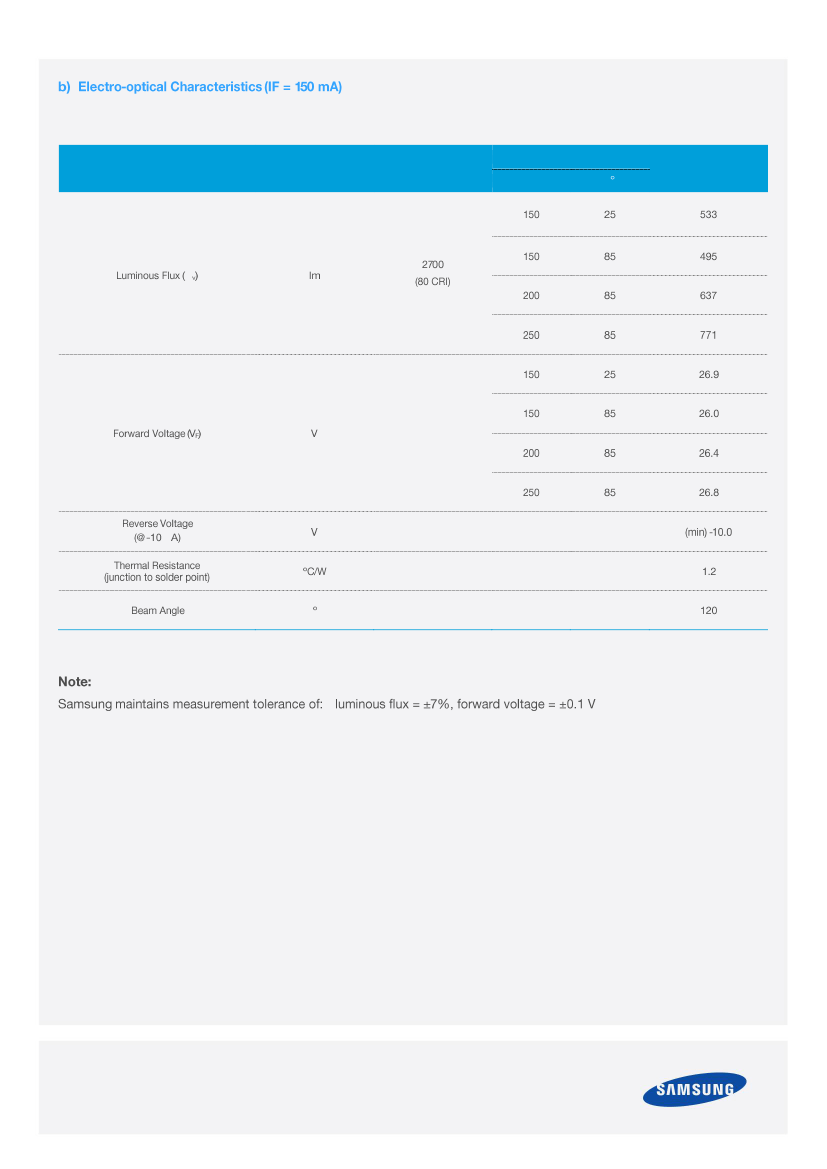

Flux, current at 85°C - Test405 lm(365 lm ~ 445 lm)
Flux, current at 25°C - Test-
Current - Test150mA
Voltage - Forward (Vf) (Typical)26V
Lumens/Watt at different test currents104 lm/W
CRI (high color rendering index)90

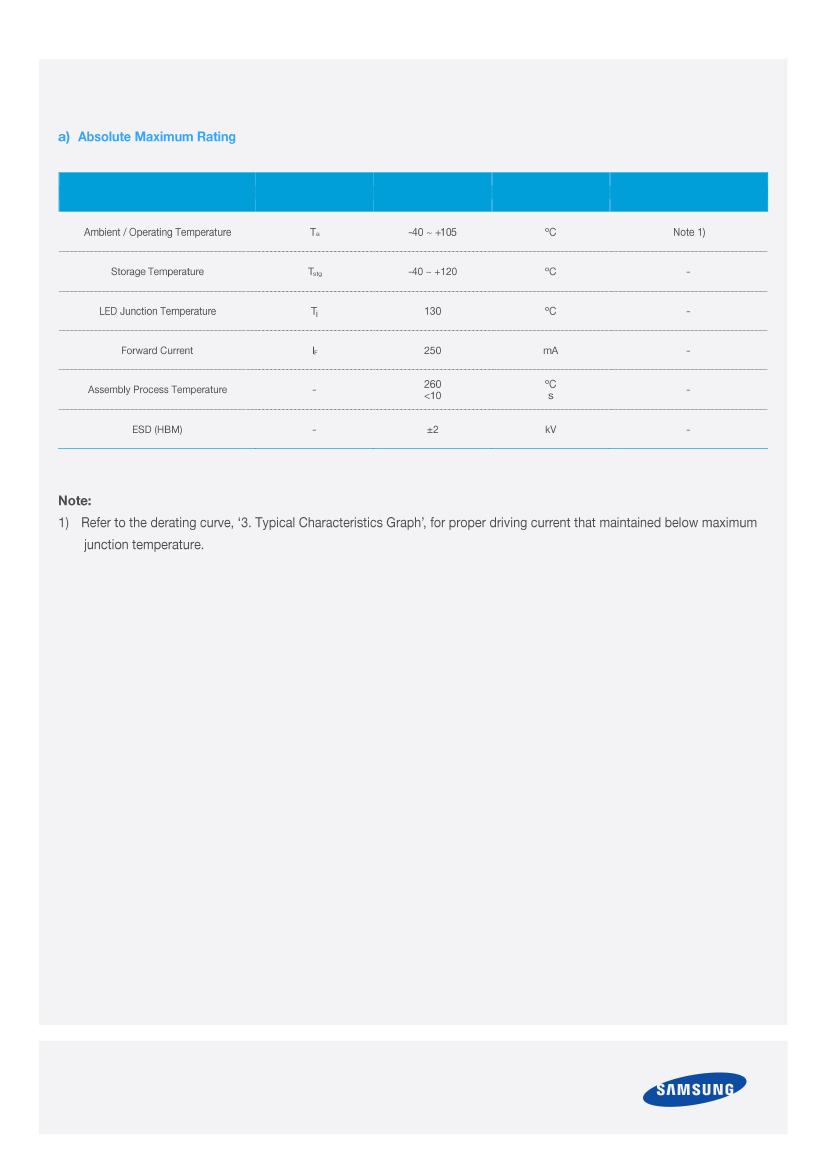

Current - maximum250 mA
perspective120°
Installation typesurface mount
Package/casing2020 (5050 Metric)
Supplier device packaging12-CSP
size/dimensions0.197" long x 0.197" wide (5.00mm x 5.00mm)
Height - Installation (maximum)0.016"(0.40mm)
Package thermal resistance1.2°C/W
Product Family Data Sheet
0.1 (Preliminary
Rev. 1 2016. 05. 24 ) 2015.02.23
1#

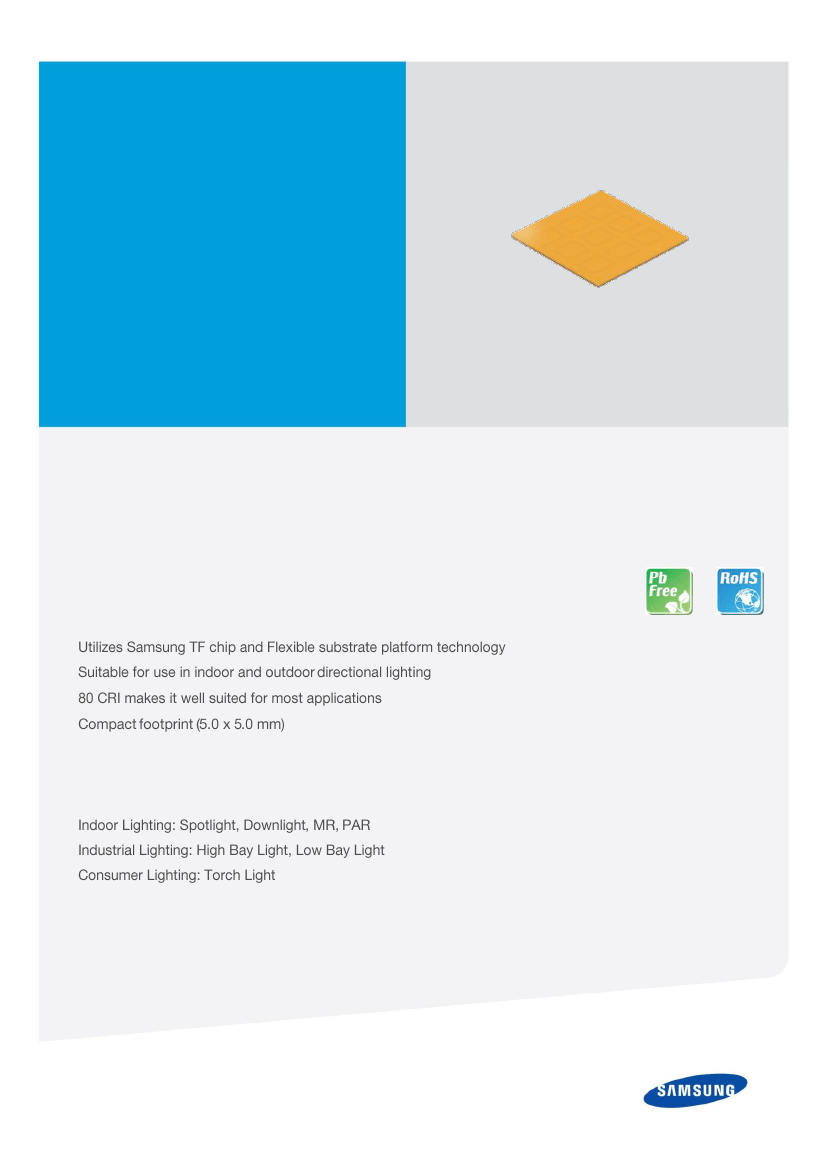

High Power LED Series
Chip Scale Package Array
LH309A
Making use of CSP, Samsung’s fundamental "building block",
provide with greater design flexibility and better light quality
Features & Benefits
Applications
