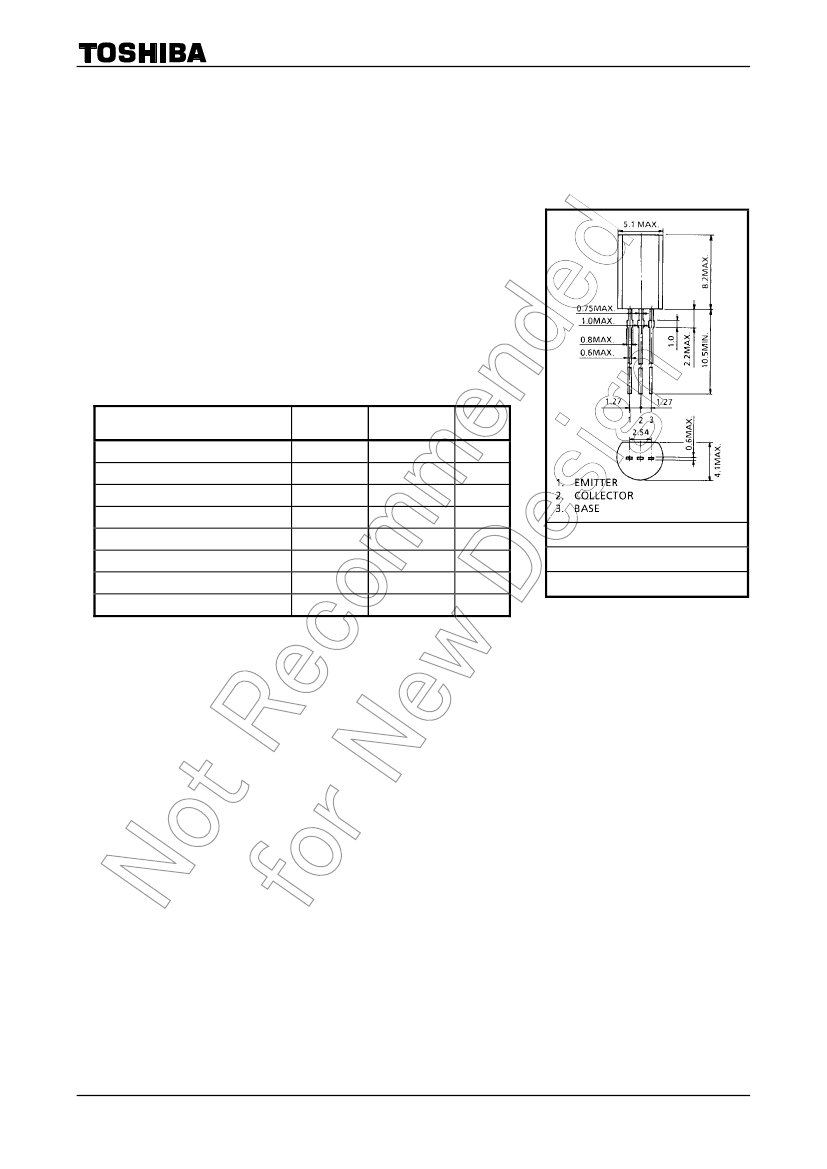

2SC2229
TOSHIBA Transistor
Silicon NPN Triple Diffused Type (PCT Process)
2SC2229
Black and White TV Video Output Applications
High-Voltage Switching Applications
Driver Stage Audio Amplifier Applications
Unit: mm
•
•
•
High breakdown voltage: V
CEO
= 150 V (min)
Low output capacitance: C
ob
= 5.0 pF (max)
High transition frequency: f
T
= 120 MHz (typ.)
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
200
150
5
50
20
800
150
−55
to 150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TOSHIBA
TO-92MOD
―
2-5J1A
Weight: 0.36 g (typ.)
Note1: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2009-12-21
2SC2229
