For board-to-board For board-to-FPC
Partly to Be Discontinued
Last time buy: September 30, 2016
Narrow pitch connectors
(0.35mm pitch)
P35S
3. Greater flexibility in connector
placement.
Pattern wiring to the connector bottom is
made possible with a molded covering on
the undersurface of the connector.
<Socket>
<Header>

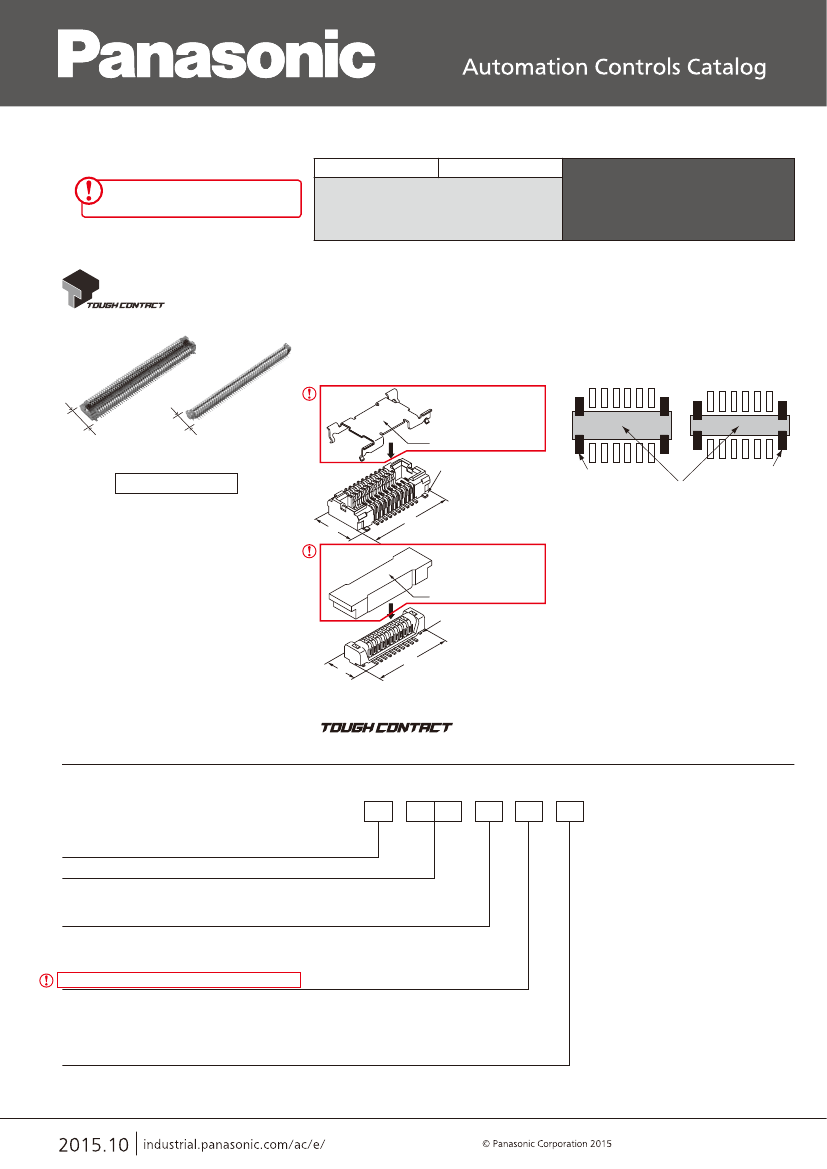

FEATURES
1. Small size 0.35 mm pitch
contributes to device miniaturization.
Smaller compared to P4S (20 pin
contacts):
Socket — 11% smaller,
Header — 12% smaller
ORDERING INFORMATION
AXT
1: Narrow Pitch Connector P35S (0.35 mm pitch) Socket
2: Narrow Pitch Connector P35S (0.35 mm pitch) Header
Number of pins (2 digits)
Mated height
<Socket>/<Header>
1: For mated height 1.5 mm
Functions
<Socket>/<Header>
2: No pickup cover, without positioning bosses
6: With pickup cover, without positioning bosses
Surface treatment (Contact portion / Terminal portion)
<Socket>
4: Ni plating on base, Au plating on surface (for Ni barrier available)
<Header>
4: Ni plating on base, Au plating on surface
3.
m
6m
2.
35
Socket
Header
Pickup cover (Material: SUS)
(Both covered and uncovered
types are available.)
RoHS compliant
6.05 (20 pin contacts)
3.60
m
m
Socket
Soldering terminals
at each corner
Soldering terminals
Soldering terminals
at each corner
at each corner
Connector bottom:
Create any thru-hole and pattern wiring.
4. Gull-wing-shaped terminals to
facilitate visual inspections.
5. Connectors for inspection available
Pickup cover (Material: LCP)
(Both covered and uncovered
types are available.)
Soldering terminals
at each corner
APPLICATIONS
Mobile devices, such as cellular
phones, digital still cameras and
digital video cameras.
Header
5.23 (20 pin contacts)
2.35
2. Strong resistance to adverse
environments! Utilizes
“
” construction
for high contact reliability.
1
4
–1–
ACCTB30E 201509-T
Narrow pitch connectors
P35S
(0.35mm pitch)
Partly to Be Discontinued
Last time buy: September 30, 2016
PRODUCT TYPES
Mated height
Number of pins
20
22
24
26
28
30
32
34
36
38
40
50
52
60
70
80
90
100
Part number
Socket
AXT120124
AXT122124
AXT124124
AXT126124
AXT128124
AXT130124
AXT132124
AXT134124
AXT136124
AXT138124
AXT140124
AXT150124
AXT152124
AXT160124
AXT170124
AXT180124
AXT190124
AXT100124
Header
AXT220124
AXT222124
AXT224124
AXT226124
AXT228124
AXT230124
AXT232124
AXT234124
AXT236124
AXT238124
AXT240124
AXT250124
AXT252124
AXT260124
AXT270124
AXT280124
AXT290124
AXT200124
Inner carton
Packing
Outer carton
1.5mm
3,000 pieces
6,000 pieces
Notes: 1. Regarding ordering units; During production: Please make orders in 1-reel units.
For samples, please contact our sales office.
2. If you require the pickup cover, change the eighth digit of the part number from “2” to “6” in your order. Note that the pickup cover is not available for some types
depending on the number of pins. Check the latest product specifications.
3. The above part numbers are for connectors without positioning bosses, which are standard. When ordering connectors with positioning bosses, please contact our
sales office.
SPECIFICATIONS
1. Characteristics
Item
Rated current
Rated voltage
Electrical
characteristics
Breakdown voltage
Insulation resistance
Contact resistance
Composite insertion force
Composite removal force
Contact holding force
(Socket contact)
Ambient temperature
Soldering heat resistance
Storage temperature
Specifications
0.25A/pin contact (Max. 4 A at total pin contacts)
60V AC/DC
150V AC for 1 min.
Min. 1,000MΩ (initial)
Max. 100mΩ
Max. 0.981N/pin contacts
×
pin contacts (initial)
Min. 0.0588N/pin contacts
×
pin contacts
Min. 0.981N/pin contacts
–55°C to +85°C
Max. peak temperature of 260°C (on the surface of the
PC board around the connector terminals)
300°C within 5 sec. or 350°C within 3 sec.
–55°C to +85°C (product only)
–40°C to +50°C (emboss packing)
Measuring the maximum force.
As the contact is axially pull out.
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
No freezing at low temperatures
Conformed to MIL-STD-202F, method 107G
Order Temperature (°C)
0
1
–55
−3
2
3
85
+3
0
4
0
–55
−3
Time (minutes)
30
Max. 5
30
Max. 5
Conditions
—
—
Rated voltage is applied for one minute and check for
short circuit or damage with a detection current of 1mA.
Using 250V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
Mechanical
characteristics
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
5 cycles, insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
120 hours, insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
24 hours, insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
48 hours,
contact resistance max. 100mΩ
50 times
50 pin contact type: Socket: 0.06 g Header: 0.03 g
Conformed to IEC60068-2-78
Temperature 40±2°C, humidity 90 to 95% R.H.
Conformed to IEC60068-2-11
Temperature 35±2°C, saltwater concentration 5±1%
Temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of
max. 200 times/hours
2. Material and surface treatment
Part name
Molded portion
Material
LCP resin (UL94V-0)
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Au plating on surface (Except for front edge of terminal)
However, the area adjacent to the socket terminal is exposed to Ni on base.
Soldering terminals portion;
Socket: Ni plating on base, Pd + Au flash plating on surface (Expect for front edge of terminal)
Header: Ni plating on base, Au plating on surface (Expect for front edge of terminal)
Contact and Post
Copper alloy
–2–
ACCTB30E 201509-T
Partly to Be Discontinued
Last time buy: September 30, 2016
Narrow pitch connectors
P35S
(0.35mm pitch)

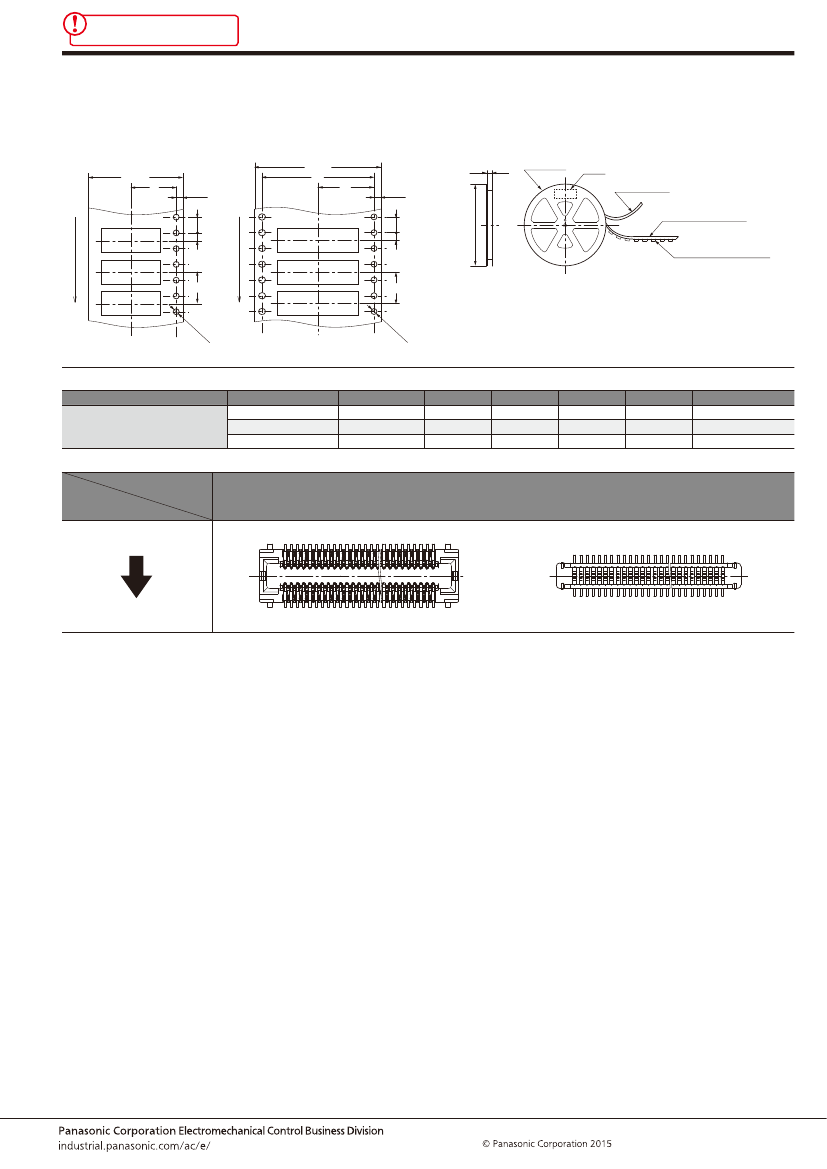

EMBOSSED TAPE DIMENSIONS
(unit: mm, Common for respective contact type, socket and header)
• Tape dimensions (Conforming to JIS C 0806:1990.
However, some tapes have mounting hole pitches that do
not comply with the standard.)
Tape I
Tape II
A±0.3
C
1.75
A±0.3
B
C
1.75
380 dia.
• Plastic reel dimensions (Conforming to EIAJ ET-7200B)
D±1
Taping reel
Label
Top cover tape
Embossed carrier tape
Pull out direction
2
Pull out direction
4
4
2
Embossed mounting-hole
8.0
8.0
1.
5
+0
0 .1
1.
a.
5
di
+0
0 .1
di
a.
Dimension table (mm)
Mated height
Common for socket and header:
1.5mm
Number of pins
Max. 24
26 to 70
72 to 100
Type of taping
Tape I
Tape I
Tape II
A
16.0
24.0
32.0
B
—
—
28.4
C
7.5
11.5
14.2
D
17.4
25.4
33.4
Quantity per reel
3,000
3,000
3,000
Connector orientation with respect to direction of progress of embossed tape
Type
Direction of
tape progress
Socket
Common for P35S
Header
Note: There is no indication on this product regarding top-bottom or left-right orientation.
–5–
ACCTB30E 201509-T
