REVISION D
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
0.70 .028 REF
1
"KEYWAY"
1.27 .050 REF
INTERFACE
-J: JACK
CJT-T-P-XX-ST-TH1
TERMINATION
-TH1: THROUGH HOLE
ORIENTATION
-ST: STRAIGHT
PLATING SPECIFICATION
-HH: HEAVY GOLD / HEAVY GOLD
30µ" Au / 50µ" Ni MIN ON PIN
30µ" Au / 50µ" Ni MIN ON OUTER CONTACT
-GF: GOLD / FLASH GOLD
10µ" Au / 50µ" Ni MIN ON PIN
3µ" Au / 50µ" Ni MIN ON OUTER CONTACT
(SEE TABLE 1)
6.35 .250
REF
2
4.70 .185 REF
C
GENDER
-T: TERMINAL
TYPE
-P: PCB
90°±3.5° (2 PLCS)
(PIN CENTER TO KEYWAY CENTER)
"A"
0.71 .028 (2 PLCS)
C
3
1
10.01 .394
REF
9.76 .384
(TYP)
7.31 .288
REF
2
'B'
"A"
1.27 .050 REF
(TYP)
0.51 .020 REF
(TYP)
C
SECTION "A"-"A"
0.51 .020 REF
(TYP)
0.76 .030 REF
(TYP)
POSITION INSULATOR
FLUSH TO BODY +/-0.10
DETAIL 'B'
SCALE 16 : 1
NOTES:
2.54 .100 REF
(TYP)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE FOR CENTER CONTACT: 7 N [1.57 LB].
INSULATOR: 20 N [4.5 LB].
3. PRODUCT TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
TRAY: TY-SMA001-1,
COVER: TY-SMA001-2.
X.X: 0.3 [.01]
5
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
MATERIAL:
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322

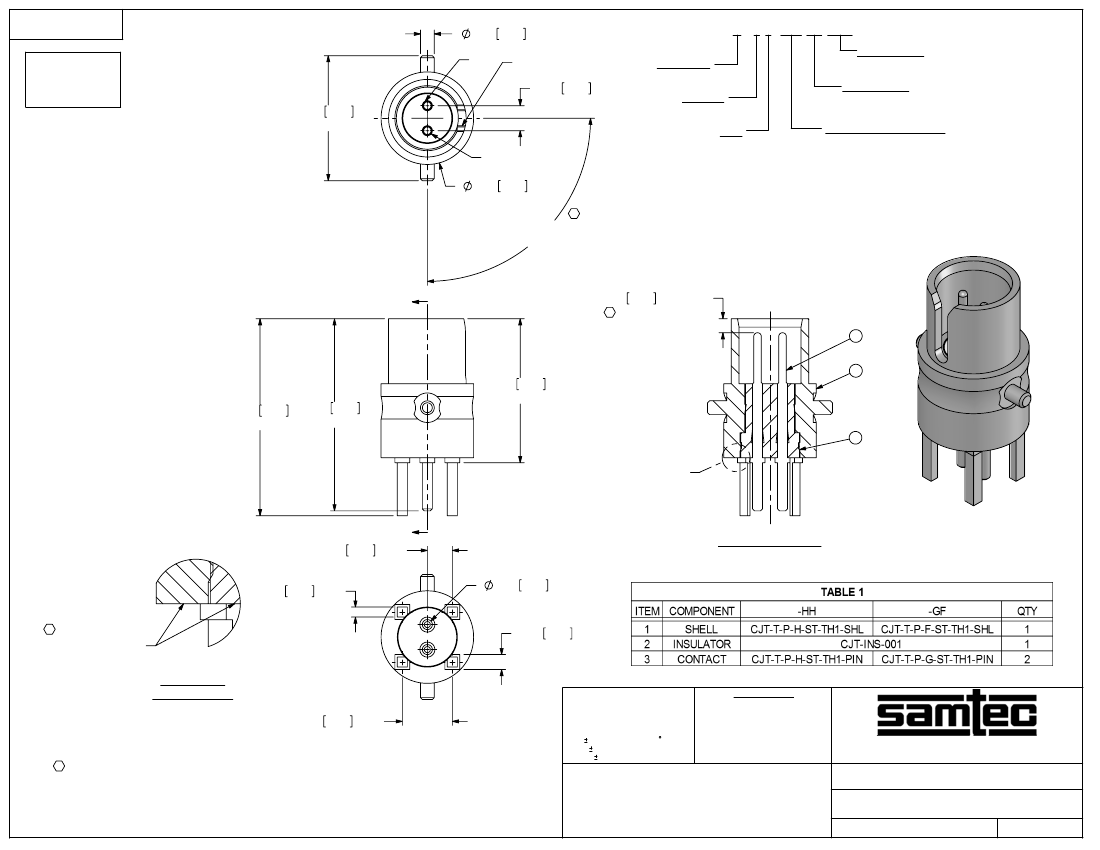

DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
CONTACT: PHOS BRONZE
OTHER METAL: BRASS
DIELECTRIC: PTFE
STRAIGHT CIRCULAR JACK TWINAX
CJT-T-P-XX-ST-TH1
12/03/2010
F:\DWG\MISC\MKTG\CJT-T-P-XX-ST-TH1-MKT.SLDDRW
BY:
ALVIN W
SHEET
1
OF
2
REVISION D
RECOMMENDED
PCB
LAYOUT
* 0.84 .033 PTH
(4 PLCS)
2.54 .100
(TYP)
*
0.64 .025 PTH
(2 PLCS)
1.27 .050
(TYP)
1.27 .050
* TO BE SOLDERED USING PASTE-IN-HOLE TECHNOLOGY.
RECOMMENDED
STENCIL
LAYOUT
NOTE: STENCIL TO BE .152 [.0060] THICK
3.00 .118 (TYP)
0.25 .010 (TYP)
2.03 .080 (TYP)
0.38 .015 (TYP)
0.84 .033 (TYP)
3.43 .135 (TYP)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 10:1
STRAIGHT CIRCULAR JACK TWINAX
CJT-T-P-XX-ST-TH1
12/03/2010
SHEET
2
OF
2
F:\DWG\MISC\MKTG\CJT-T-P-XX-ST-TH1-MKT.SLDDRW
BY:
ALVIN W
