54809-3398 datasheet, PDF - EEWORLD Datasheet

54809-3398: DescriptionCONN FPC BOTTOM 33POS 0.30MM R/A; CategoryThe connector; File Size579KB，6 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

54809-3398 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54809-3398	-	-	View	Buy Now

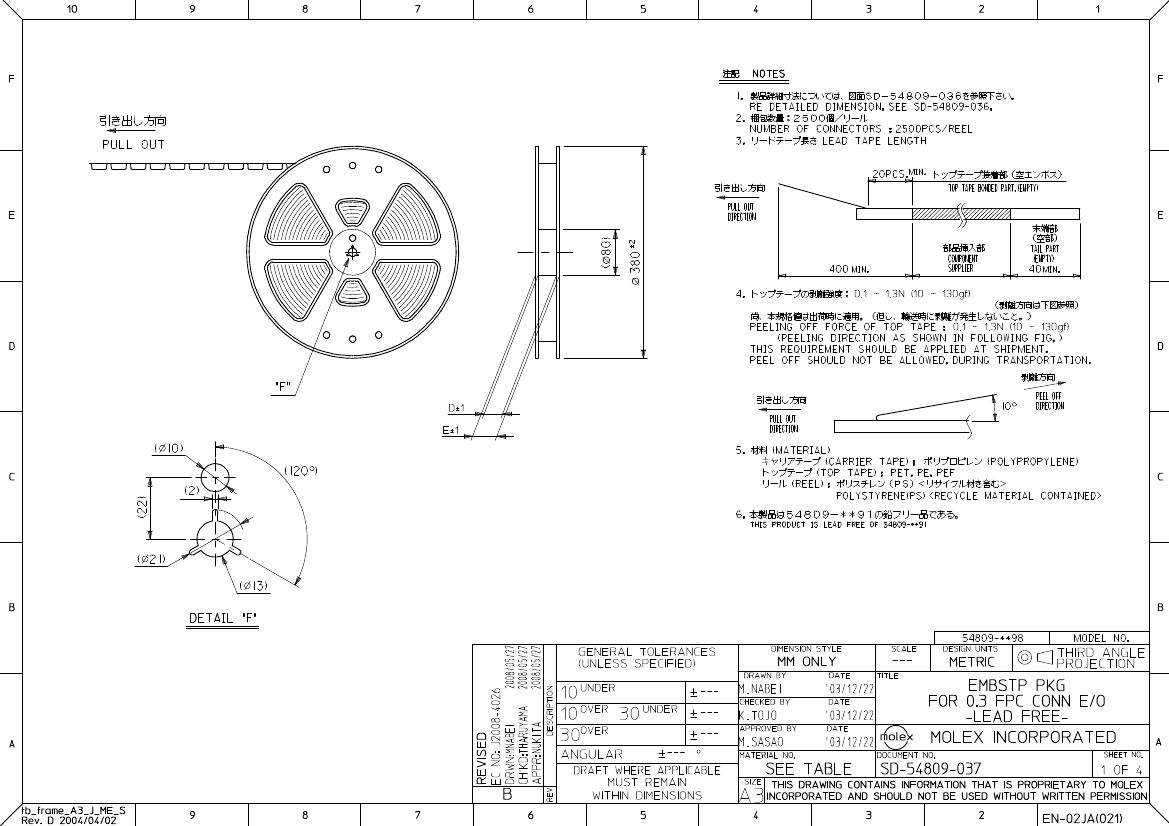

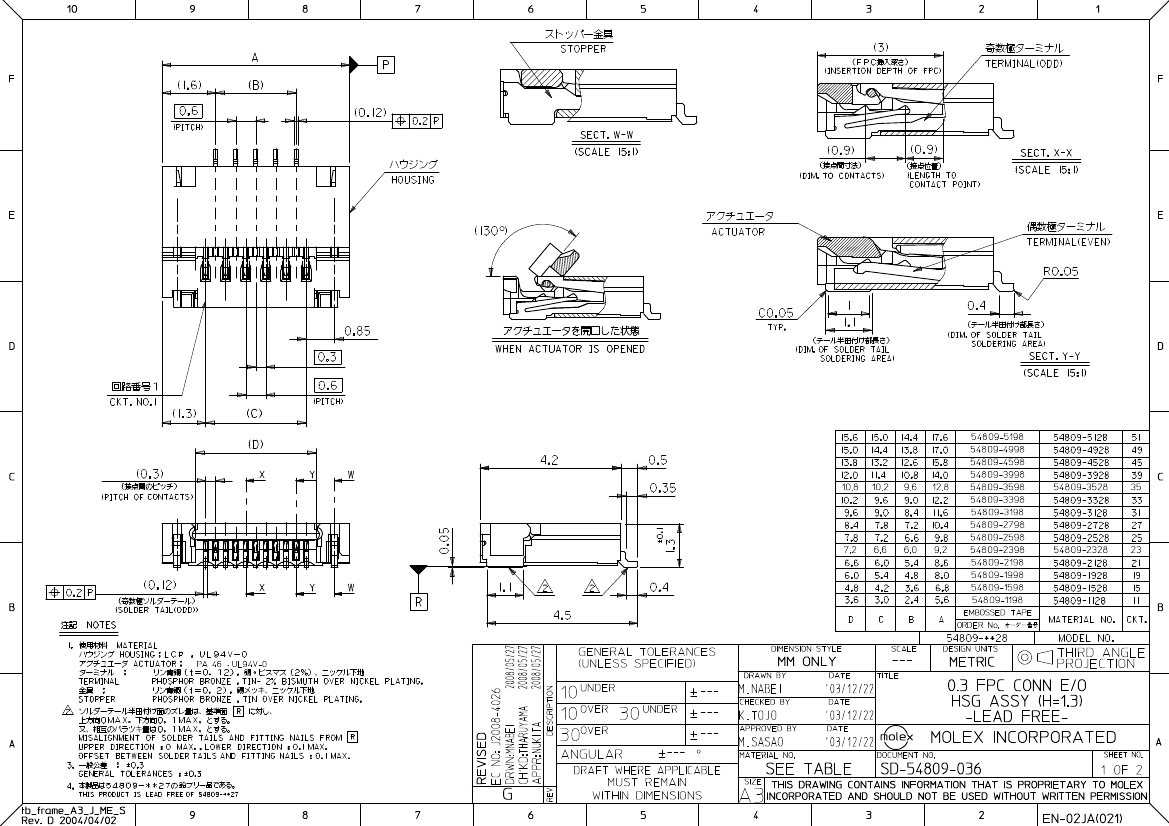

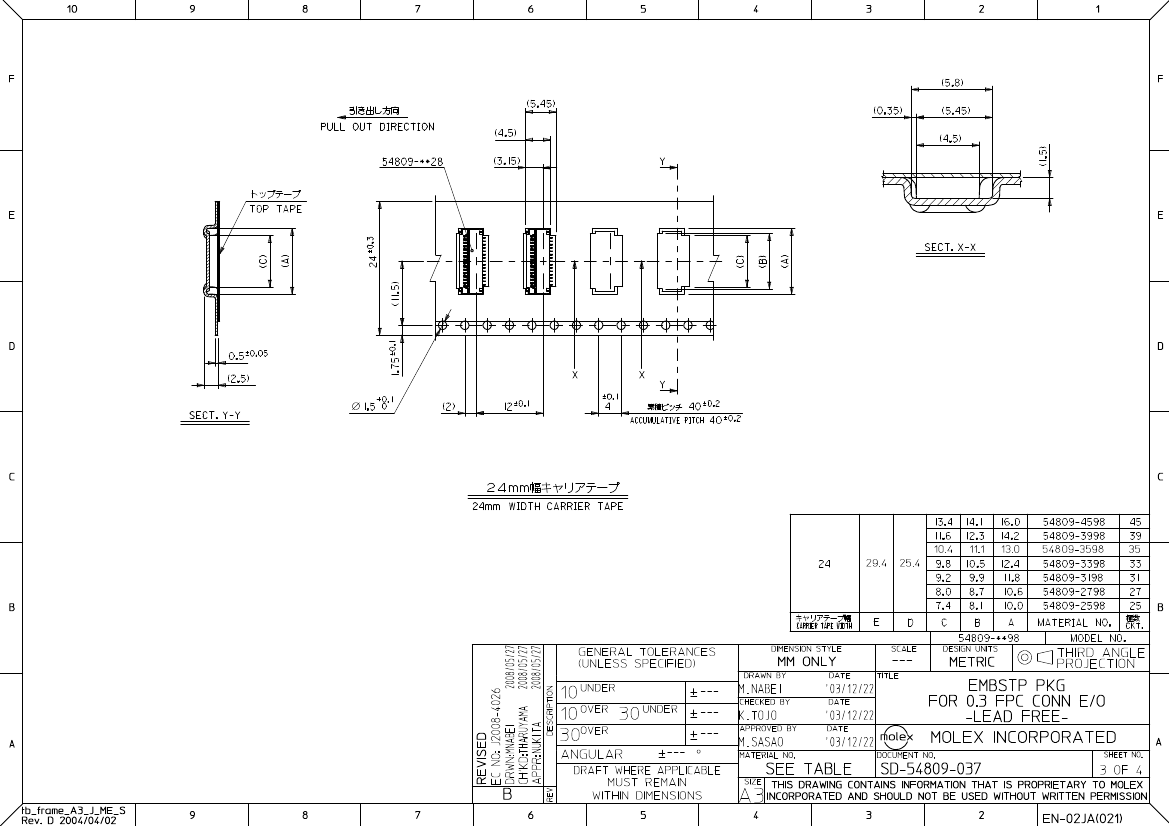

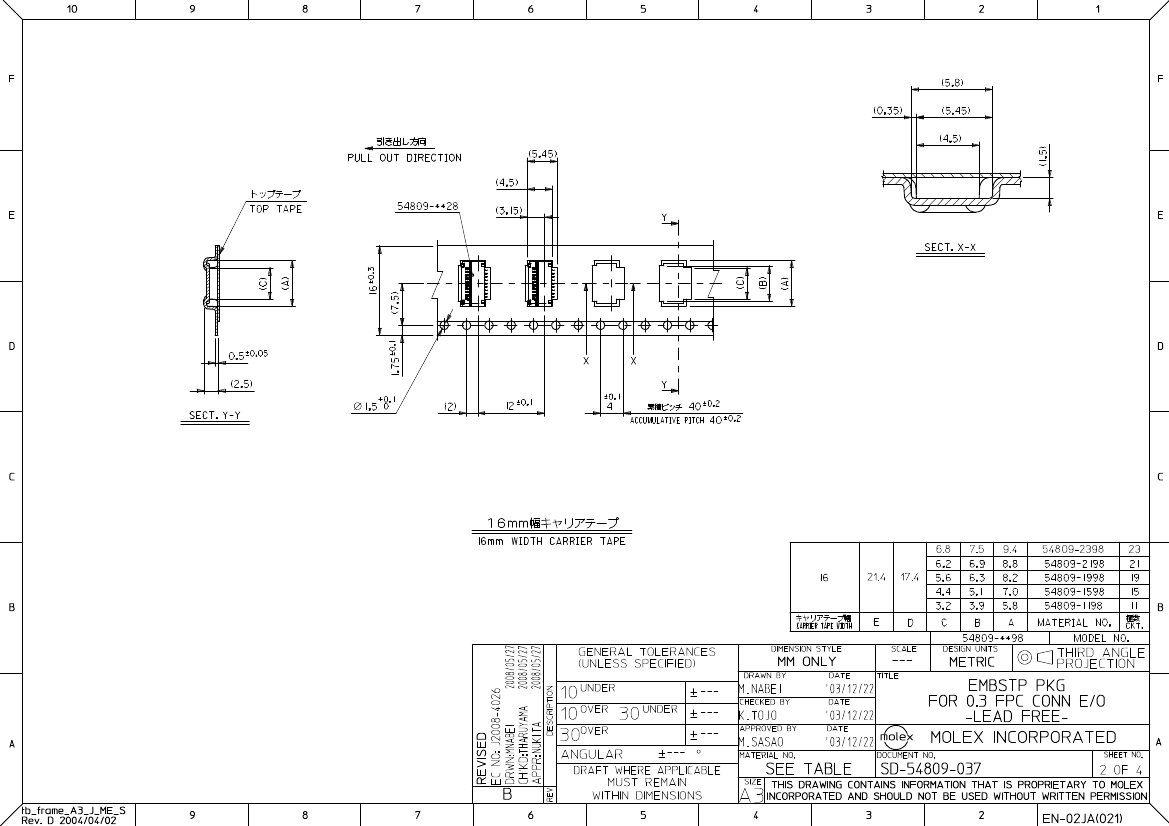

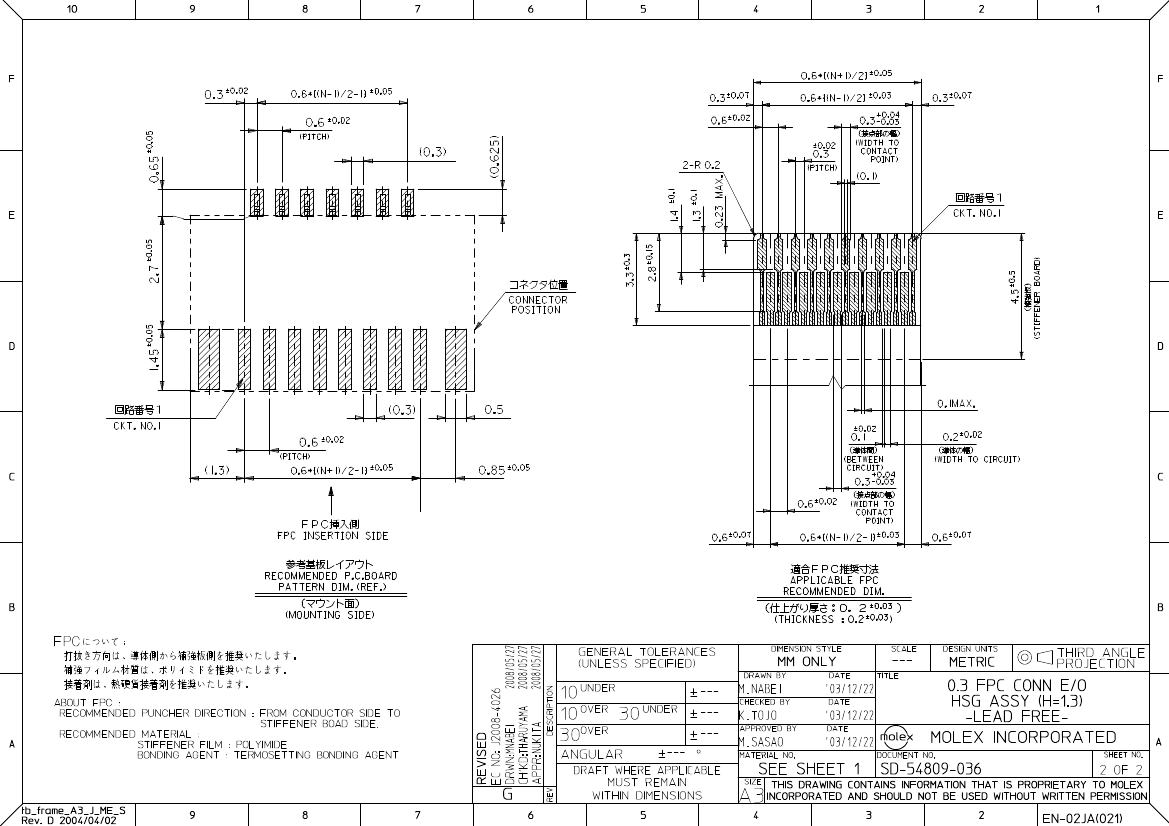

CONN FPC BOTTOM 33POS 0.30MM R/A

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	33
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.051"（1.30mm）
Lock function	trigger lock
Cable end type	tapered
Contact material	Phosphor bronze
Contact plating	tin bismuth
Shell material	Liquid Crystal Polymer (LCP)
Actuator material	Polyamide (PA46), Nylon 4/6
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.3A
Contact plating thickness	-
Shell color	-
Actuator color	-
Number of patches	20

	54809-3398	54809-4598	54809-5198
Description	CONN FPC BOTTOM 33POS 0.30MM R/A	CONN FPC BOTTOM 45POS 0.30MM R/A	CONN FPC BOTTOM 51POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom
Number of pins	33	45	51
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm
board height	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）
Lock function	trigger lock	trigger lock	trigger lock
Cable end type	tapered	tapered	tapered
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	tin bismuth	tin bismuth	tin bismuth
Shell material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Actuator material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.3A	0.3A	0.3A
Number of patches	20	20	20
