SSM-114-S-DH datasheet, PDF - EEWORLD Datasheet

SSM-114-S-DH: DescriptionCONN RCPT .100" 28POS DUAL HORZ; CategoryThe connector The connector; File Size19KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

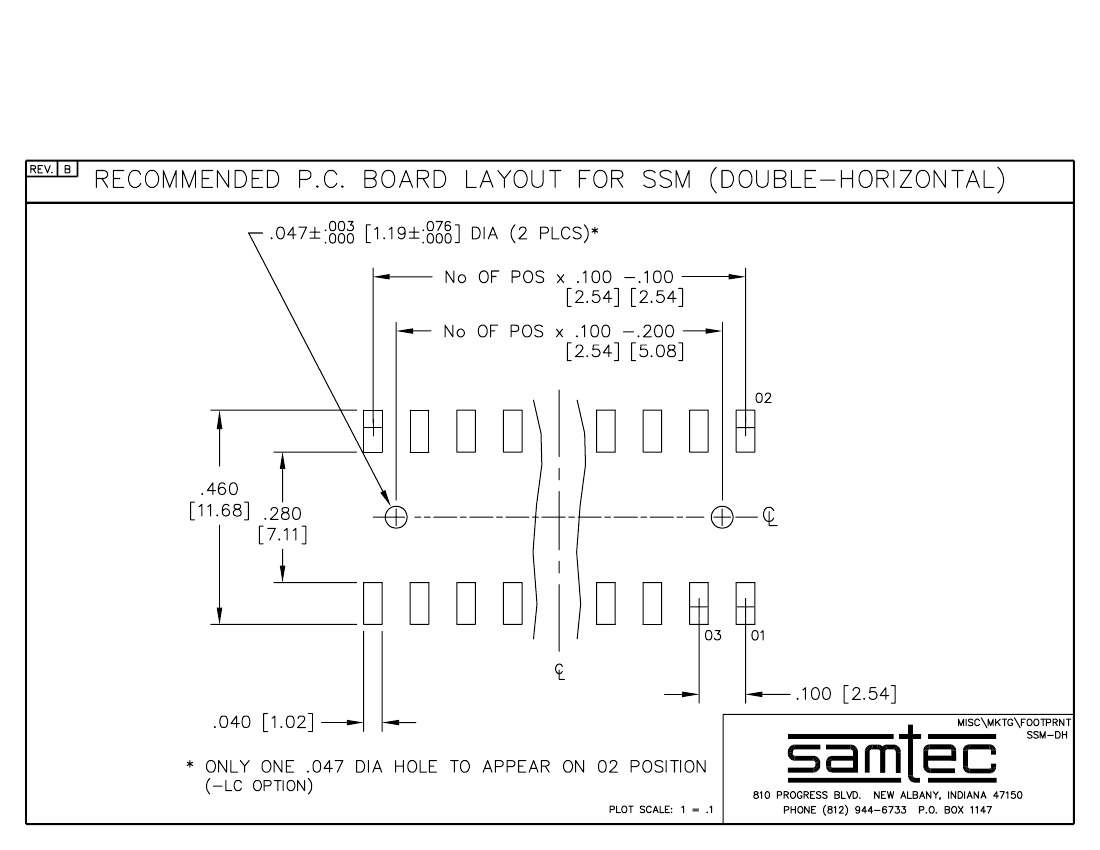

Download Datasheet Parametric View All

SSM-114-S-DH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSM-114-S-DH	-	-	View	Buy Now

CONN RCPT .100" 28POS DUAL HORZ

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	28 Position, Surface Mount PCB Socket Strips, 0.100" pitch
Other features	E.L.P., TIGER CLAW
body width	0.225 inch
subject depth	0.32 inch
body length	0.7 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	10.16 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
