3560/10 315SF

Description
MULTI-PAIR 10COND 26AWG GRY 315'
CategoryWire/cable
File Size721KB,5 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Environmental Compliance
Download Datasheet Parametric View All

3560/10 315SF Overview

MULTI-PAIR 10COND 26AWG GRY 315'

3560/10 315SF Parametric

Parameter NameAttribute value
Cable typeMultiple pairs
Number of conductors10 (5 twisted pairs)
Wire gauge26 AWG
Number of wire strandssolid
conductor materialCopper, tin plated
Sheath (insulation) materialPolyvinyl chloride (PVC)
Sheath (insulation) diameter0.265"(6.73mm)
Shield typefoil, braided wire
length315.0'(96.0m)
Casing colorgrey
grade-
characteristic-
Voltage300V
Operating temperature-20°C ~ 80°C
usecommunications, computers, control
Sheath (insulation) thickness0.0260"(0.660mm)
conductor insulationPolyvinyl chloride (PVC)
shielding materialAluminum; copper, tinned
Shielding range100%,90%
3M
Round, Shielded/Jacketed, Disc. Wire Cable
26 AWG Solid, Twisted Pair, PVC/PVC
3560 Series

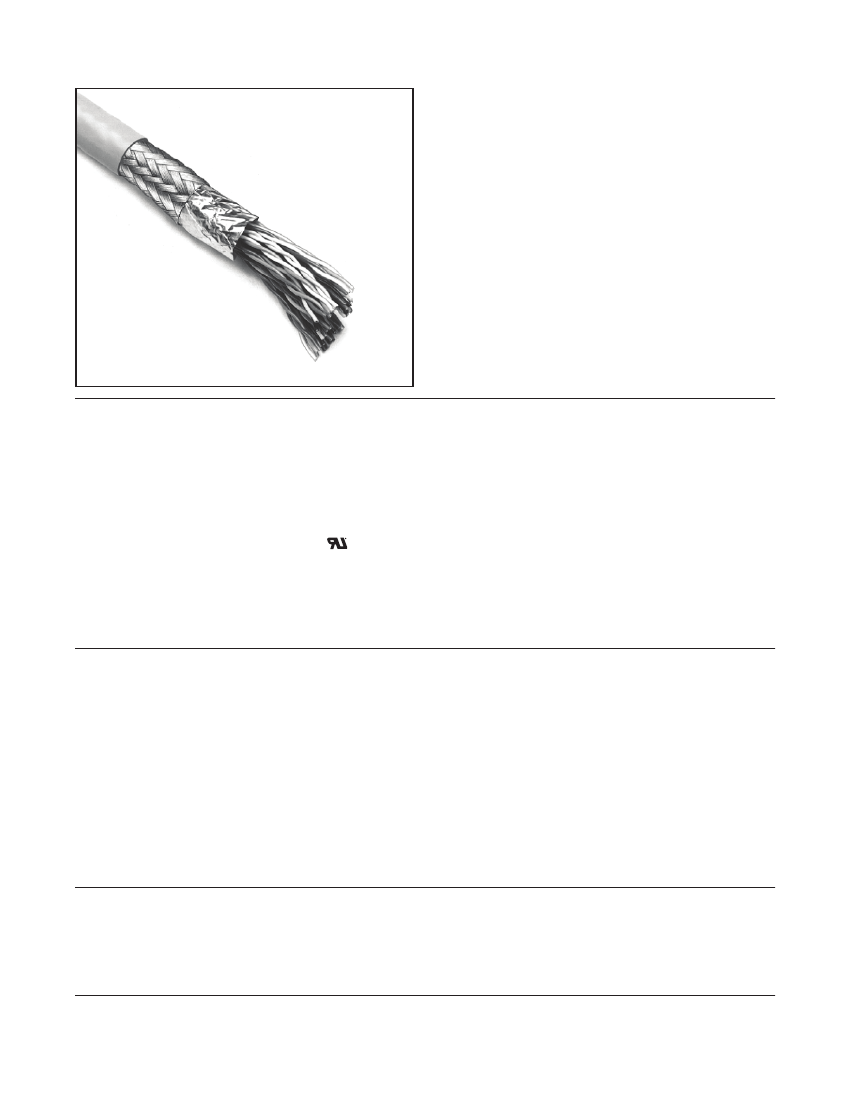

• Twisted pairs reduce crosstalk for balanced drive
applications
• Dual shielding provides 35 db average shielding
effectiveness
• 26 AWG solid wires are color coded for easy
identification
• PVC jacket prevents damage to cable and meets UL
requirements for external wiring applications
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 11, 2009
TS-0672-B
Sheet 1 of 2

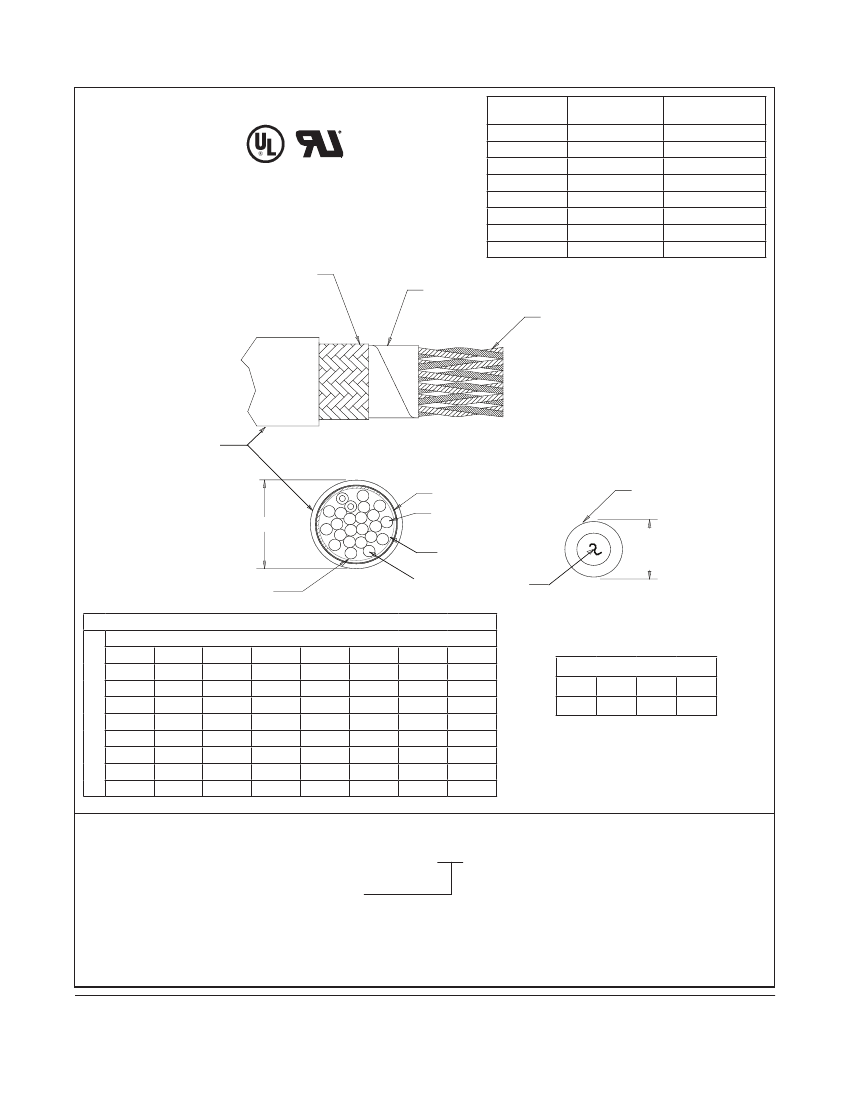

Physical
Jacket Material:
Polyvinyl Chloride (PVC)
Color: Gray
Primary Material: PVC
Marking
:
Standard:
(UL) CL2 75C 26 AWG or AWM 2464 3M XX
C
AWM IIA/B 80C 150V FT1 EU <50V
(where XX may be NU, MR or NW)
Conductors:
26 AWG [ 0.404 ] Tinned Solid Copper
Shielding:
0.001 [ 0.03 ] Thick Aluminum/Polyester Film Foil and
90% Coverage Tinned Copper Braid
Electrical
Voltage Rating:
USA: N.E.C. 725 CL2 or AWM 300V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Balanced
Characteristic Impedance:
Unbalanced
59
Ω
97
Ω
Canada: 150V
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
29.3 pF/ft [ 96.1 pF/m ]
0.10 μH/ft [ 0.33 μH/m ]
1.73 ns/ft [ 5.68 ns/m ]
59%
17.8 pF/ft [ 58.4 pF/m ]
0.17 μH/ft [ 0.56 μH/m ]
1.73 ns/ft [ 5.68 ns/m ]
59%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
USA: CL2; 75°C Max or AWM: -20°C to +80°C
Flammability Rating:
USA: N.E.C. 725, CL2
UL File No.: E118773, Power Limited Circuit Cable CL2: (or AWM Style 2464)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Canada: -20°C to +80°C
Canada: FT1
