REVISION BG
DO NOT
SCALE FROM
THIS PRINT
SSQ-1XX-XX-XXX-X-XX-XXX-XX-XX
No OF POSITIONS
-01 THRU -50
(PER ROW)
OPTION
**-MW: METAL WASHER (SEE FIG 7, SHT 3)
(N/A WITH -LL OR -RA)
(N/A WITH -T)
(AVAILABLE ON -01, -02, -21, & -22 STYLES ONLY)
(AVAILABLE ON POS -02 THRU -30 ONLY)
OPTION
-LL: LOCKING LEAD (SEE FIG 6, SHT 2)
(N/A WITH SINGLE ROW, 1 OR 2 POS)
POLARIZATION OPTION
INDICATE POS (SEE FIG 8, SHT 3)
OPTION
-RA: RIGHT ANGLE (SEE FIG 2, SHT 2)
(N/A ON LEAD STYLE -01)
ROW SPECIFICATION
-S: SINGLE, USE SSW-XX-S
-D: DOUBLE, USE SSW-XX-D
-T: TRIPLE, USE SSW-XX-T
-Q: TRIPLE (SEE FIG 4, SHT 2) USE SSW-XX-T
(-T WITH ONLY 2 OUTER ROWS FILLED)
-P: POLARIZED,
USE SSW-XX-P (SEE FIG 5, SHT 2)
LEAD STYLE
(SEE TABLE 1)
-01 THRU -04: STANDARD INSERTION FORCE
-21 THRU -24: LOW INSERTION FORCE
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL
-T: MATTE TIN ON ENTIRE PIN
(NOT AVAILABLE FOR -21 THROUGH -24 LEAD STYLES)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-TL: TIN/LEAD (90/10±5%) ON ENTIRE PIN
(AVAILABLE ONLY ON LEAD STYLE -01)
-TM: MATTE TIN ON ENTIRE PIN
(NOT AVAILABLE FOR -21 THROUGH -24 LEAD STYLES)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10±5%) ON TAIL
(AVAILABLE ONLY ON LEAD STYLE -01)
.095 2.41
REF
.335 8.51
REF
(NO OF POS x .100[2.54] + .020[0.51])
±.010[0.25]
(SEE NOTE 7 & 10)
** - MW OPTION, DO NOT DESIGN IN.
SAMTEC WILL ONLY SUPPORT EXISTING
BUSINESS AS OF 02/12/2002
.295 7.49 REF
.195 4.95 REF
C
"B"
(FOR MACHINE FILL,
SEE NOTE 11)
C
.100 2.54
"G"
2 MAX SWAY
(EITHER DIRECTION)
'A'
NOTES:
.025 0.64 SQ
REF (TYP)
(SEE NOTE 4)
-S

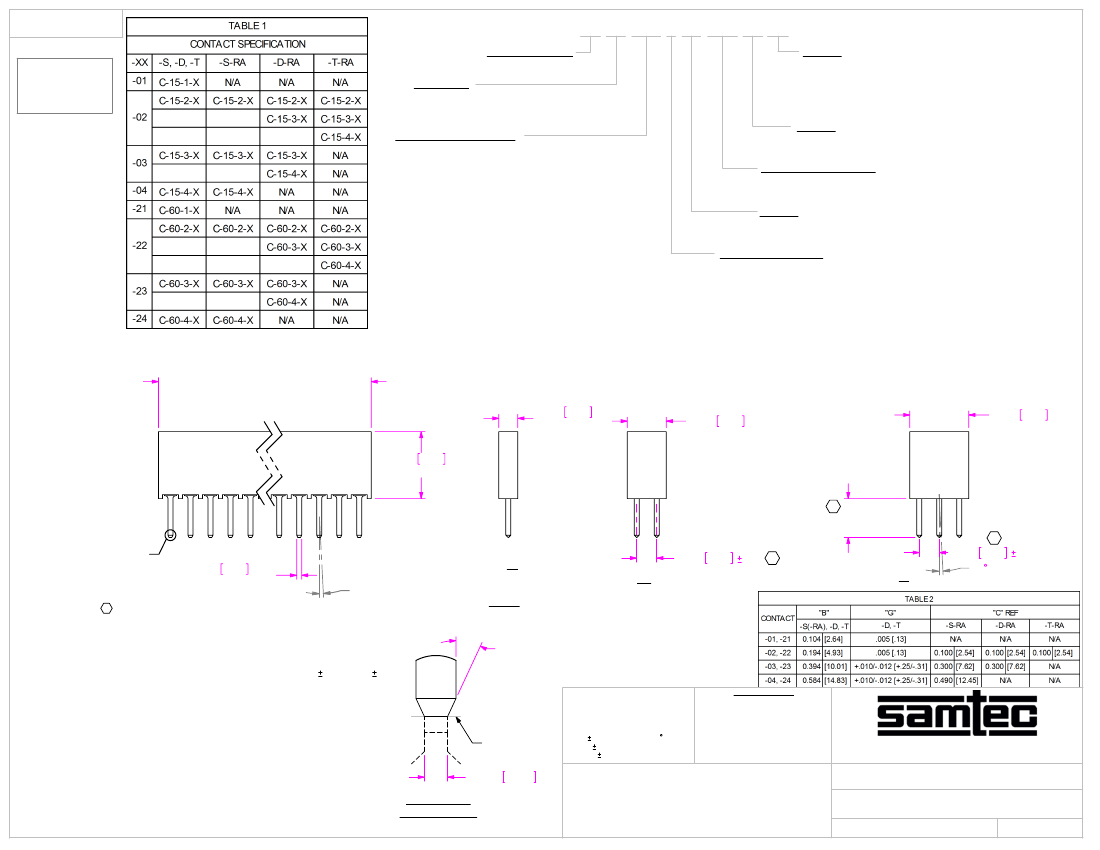

FIG 1
SSQ-1XX-XX-X SHOWN
25° REF
.100 2.54
"G"
C
-D
-T
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 1.5 LB.
3. MAXIMUM ALLOWABLE BOW: .003[.08] INCH/INCH.
4. MAXIMUM ALLOWABLE SWAY: HAND FILL 4° (TYP).
MACHINE FILL 1° (TYP).
5. MAXIMUM VARIATION BETWEEN PIN ROWS: .010[0.25].
6. END WALLS AFTER CUTTING SHOULD BE .020 .003 [0.51 .08]
7. MAXIMUM CUT FLASH: .010[0.25].
8. SHEAR LOCATION TO BE WITHIN .001[0.03] OF THE
BREAK OFF CENTER LOCATION FOR MACHINE FILL.
9. NOTCH ON -P-RA OPTION TO BE ORIENTED AS SHOWN.
10. NO FLASH IS ALLOWED BELOW LEADS OR IN HOLES OF BODY.
11. +.000[0.00]/-.005[0.13] FOR MACHINE FILL ONLY,
SSQ-1XX-XX-X-S, SSQ-1XX-XX-X-D, SSQ-1XX-XX-X-T (IN-PROCESS),
SSQ-1XX-XX-X-S-RA.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
(SEE NOTE 8)
.0145 0.368 REF
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DETAIL 'A'
SCALE 16 : 1
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
PURVIS
06/12/1987
SHEET
1
OF
3
BY:
REVISION BG
C
"C" REF
(SEE TABLE 2, SHT 1)
90°
SEE NOTE 9
.06 1.5
.100 2.54
C
C
"D"
C
"F"
.200 5.08
.200 5.08
.200 5.08
C
"E"
C

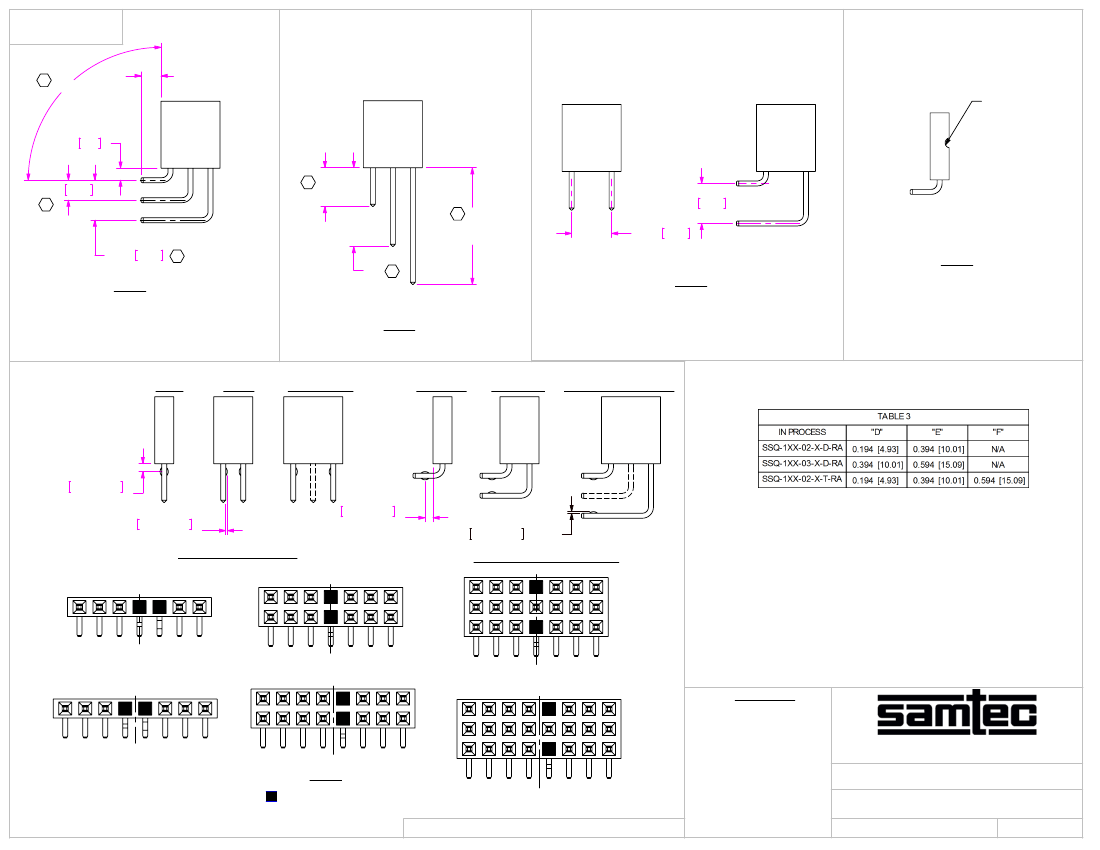

SSQ-1XX-XXX-X-Q-RA SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1, FIG 2)
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
SSQ-1XX-X-S-RA
SSQ-1XX-X-D-RA
SSQ-1XX-X-T-RA
SSQ-1XX-X-P-RA
FIG 2
FIG 4
SSQ-1XX-XXX-X-RA-P SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 2)
FIG 5
IN-PROCESS RIGHT ANGLE
FIG 3
-S-LL
-D-LL
-T-LL/-Q-LL
-S-RA-LL
-D-RA-LL
-T-RA-LL/-Q-RA-LL
.040±.010 1.02±0.25
(TYP)
.008±.002 0.20±0.05
(TYP)
.040±.010 1.02±0.25
(TYP)
.008±.002 0.20±0.05 (TYP)
STRAIGHT VERSION
RIGHT ANGLE VERSION
C
L
C
L
C
L
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
-LL: LOCKING LEAD
= CRIMP LOCATION
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
FIG 6
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SHEET SCALE: 2:1
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
BY:
PURVIS
06/12/1987
SHEET
2
OF
3
REVISION BG

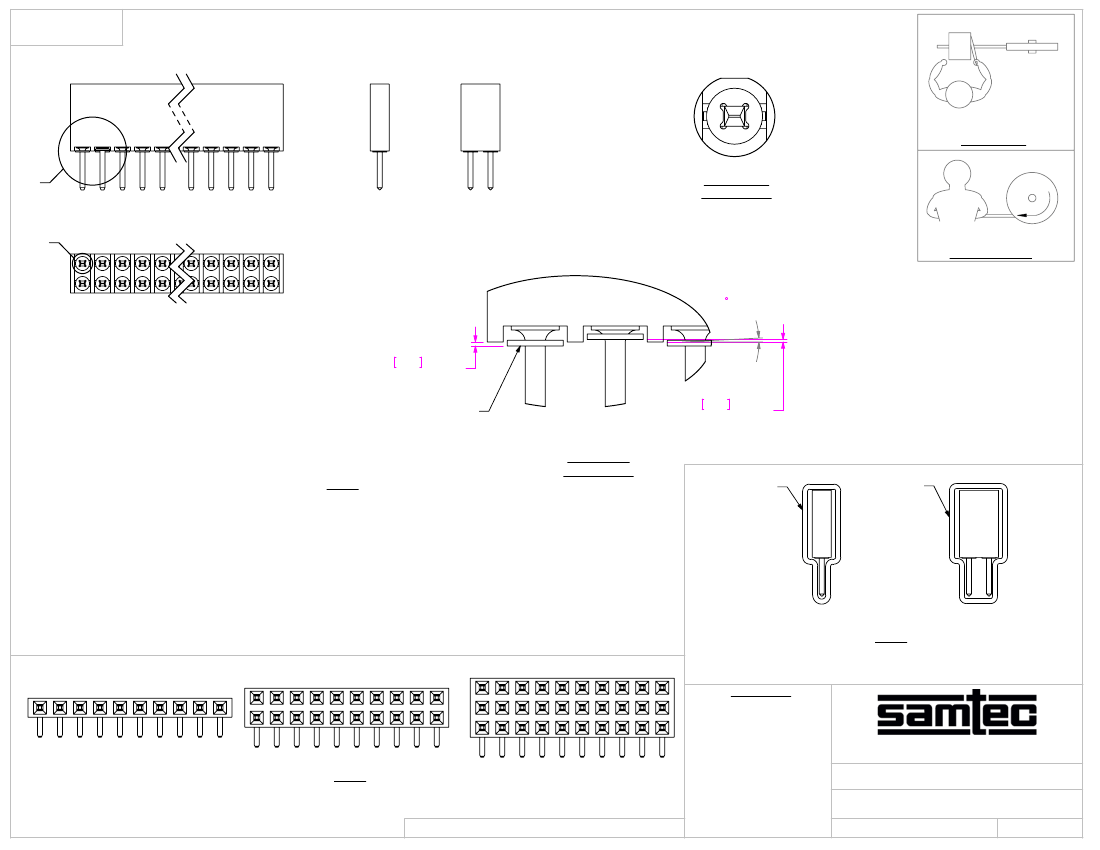

TOOLING
REEL
OPERATOR
TOP VIEW
'B'
DETAIL 'C'
SCALE 8 : 1
'C'
OPERATOR
REEL
FRONT VIEW
WASHER REEL ASSEMBLY
ORIENTAION VIEW
3 MAX SWAY
(EITHER DIRECTION)
.005 0.13 MAX
(MEASURE AT TAIL)
ESQ-04-MW-T
.003 0.08 MAX
(MEASURE AT TAIL)
SSQ-1XX-XXX-X-MW SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
**-MW: METAL WASHER
(ONE PER POSITION)
(N/A ON -LL OR -RA OPTION OR TRIPLE ROW)
(STYLE -01, -02, -21 AND -22 ONLY)
(AVAILABLE ON POS -02 THRU -30 ONLY)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
** - MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS AS OF 02/12/2002
FIG 7
DETAIL 'B'
SCALE 8 : 1
PT-1-24-01-53
PT-1-24-02-53
-S
03
*
PROPRIETARY NOTE
FOR METAL WASHERS ONLY
(ALL OTHER OPTIONS BULK PACKAGED)
FIG 9
-D
01 02 03
02
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
03 01
POLARIZATION LOCATION
INSERT PK-15-N INTO SPECIFIED POS
AND BREAK OFF TAB
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
FIG 8
04 01
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SHEET SCALE: 2:1
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
BY:
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
PURVIS
06/12/1987
SHEET
3
OF
3
