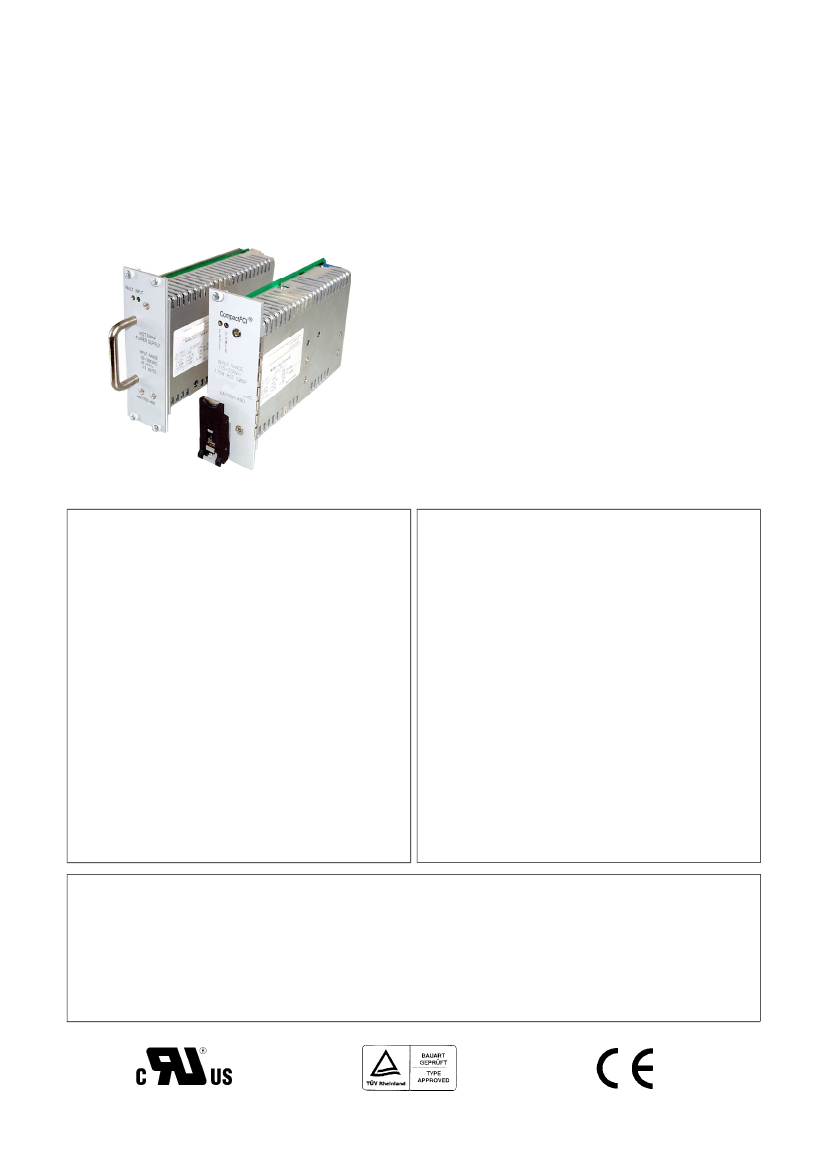

UNIVERSAL AC INPUT HARMONIC CORRECTION AC-DC HOT-SWAP

CompactPCI QUAD OUTPUT 175 WATTS CURRENT SHARING

SWITCHING POWER SUPPLIES

TPAC175P

TPAC175D

SERIES

FEATURES:

175W IN 3U X 8HP EUROCARD PACKAGE

UNIVERSAL AC INPUT WITH PFC

INTERNAL OR-ING DIODES FOR

N+1 REDUNDANCY

HOT-SWAPPABLE

DROOP CURRENT SHARING

EMI MEET EN55022 / FCC CLASS A

CE MARKING COMPLIANCE

FULLY COMPLIANT WITH PICMG

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Typ. 90-264Vac with PFC.

Power Factor Correction:

Meet Harmonic Correction

IEC1000-3-2. Power Factor typ. 0.98.

Input Connector:

PCIH47M400A1 for

AC175P.

DIN41612 M24/8 for

AC175D.

Input Frequency:

47-63Hz.

Inrush Current:

Less than 30A @ 230Vac.By thermistor.

Input Current:

2.2A @115Vac/1.1A @230Vac for

TPAC175D.

2.4A @115Vac/1.2A @230Vac for

AC175P.

Dielectric Withstand:

Meet IEC950 regulation.

EMI:

Meet EN55022 / FCC Class A.

Hold-up Time:

5mS @115V & 230Vac after power fail signal.

Remote ON/OFF:

Available at [INH#] & [EN#] pins.

Power Fail Signal:

Available at [FAL#] pin.

Status LED:

<Green> means valid input voltage.

<Amber> means a critical fault.

Thermal Protection:

Installed NTC for thermal sensor

at [DEG#] pin.

Earth Leakage:

Less than 0.5mA @230Vac.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Typ. 175W continuous.

Output Connector:

PCIH47M400A1 for

AC175P.

DIN41612 M24/8 for

AC175D.

Line Regulation:

Typ. 0.5%.

Load Regulation:

VO1 & VO2 typ. ±1.0%.

VO3 & VO4 typ. ±2.0%.

Noise & Ripple:

Typ. 1% peak-peak or 50mV, which is greater.

OVP:

Built-in at VO1 & VO2.

Adjustability:

Available at VO1 & VO2. VO3 factory set.

Remote Sensing:

Available at VO1 & VO2.

Hot-Swap:

Available.

N+1 Redundancy:

Installed with OR-ing diodes for

N+1 redundancy operation.

Current Sharing:

Droop current sharing at all output.

Power OK Signal:

Available for VO1 & VO2.

Over Current Protection (OCP):

Installed in all outputs.

Overload Protection (OLP):

Fully protected against

output oveload and short circuit.

Typically set at 130-150% max. load.

Consult factory for special OLP setting.

GENERAL SPECIFICATION

Efficiency:

Typ. 75-78%.

Switching Frequency:

100 KHz.

Circuit Topology:

Half-bridge circuit.

Transient Response:

Typ. 1.0mS for a 25% load change.

Safety Standard:

IEC950/ UL1950 Class I.

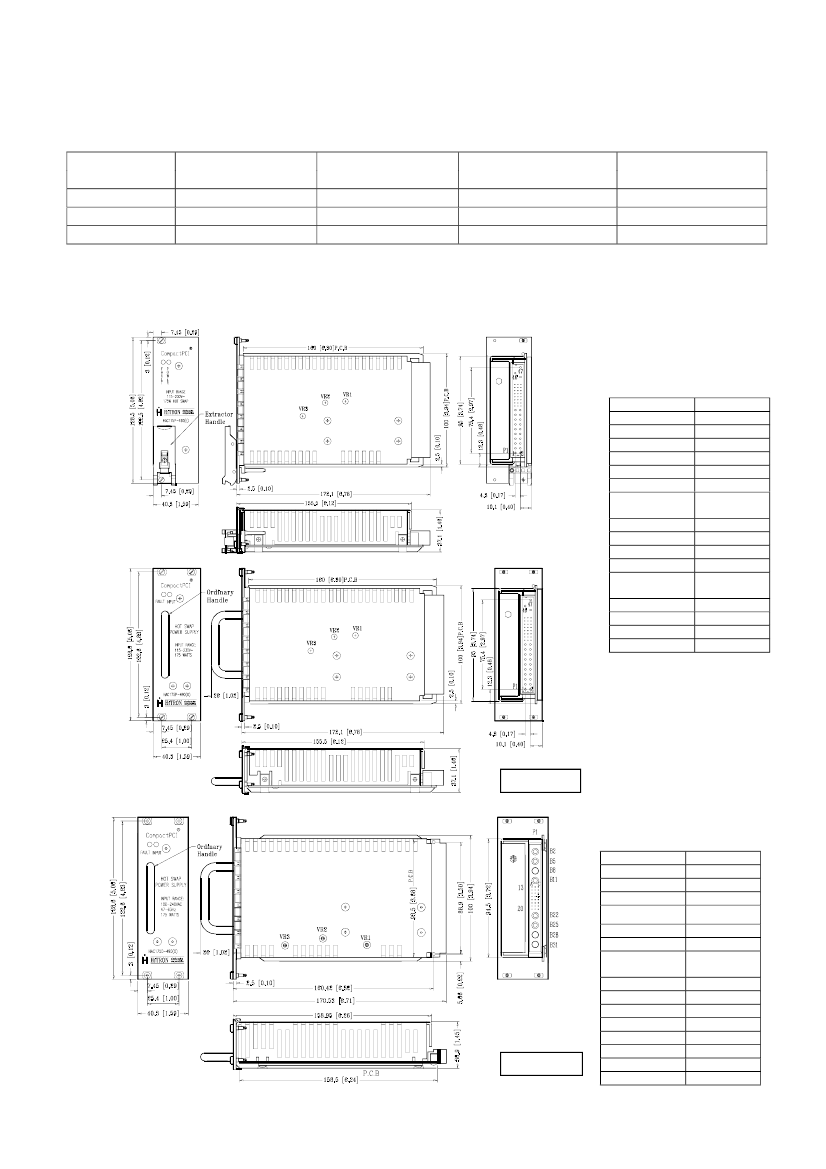

Construction:

Eurocard 3U x 8HP x 160mm

CompactPCI format. Front Panel with either

Ordinary handle or Extractor handle.

Operating Temperature:

0 to +50°C at full load with

specified air flow.

Derates linearly to 50% at +70°C.

Storage Temperature:

-40°C to +85°C.

Temperature Coefficient:

Typ. ±0.02% /°C.

Cooling:

At least 20cfm (600lfm) airflow is required to

deliver full rating load.

Power Density:

3.2 Watts /Cubic Inch.

Note:

All measurements are at nominal input, full load, and +25℃ unless otherwise specified.

In application
