ADVANCED ENGINEERING
Technical Data Sheet
E LE CT R I C A L I N S UL ATI O N
Te c hni c a l D a t a S he e t
Rated to 200°C
Class H
UL Recognized
File# E329694
Grade A (8,000 V)
Grade B (4,000 V)
Grade C (2,500 V)
NEMA TF-1 - TYPE 6
MIL-I-003190/6
ASTM D372
FR Silicone Coated Fiberglass
Grade A, B, & C

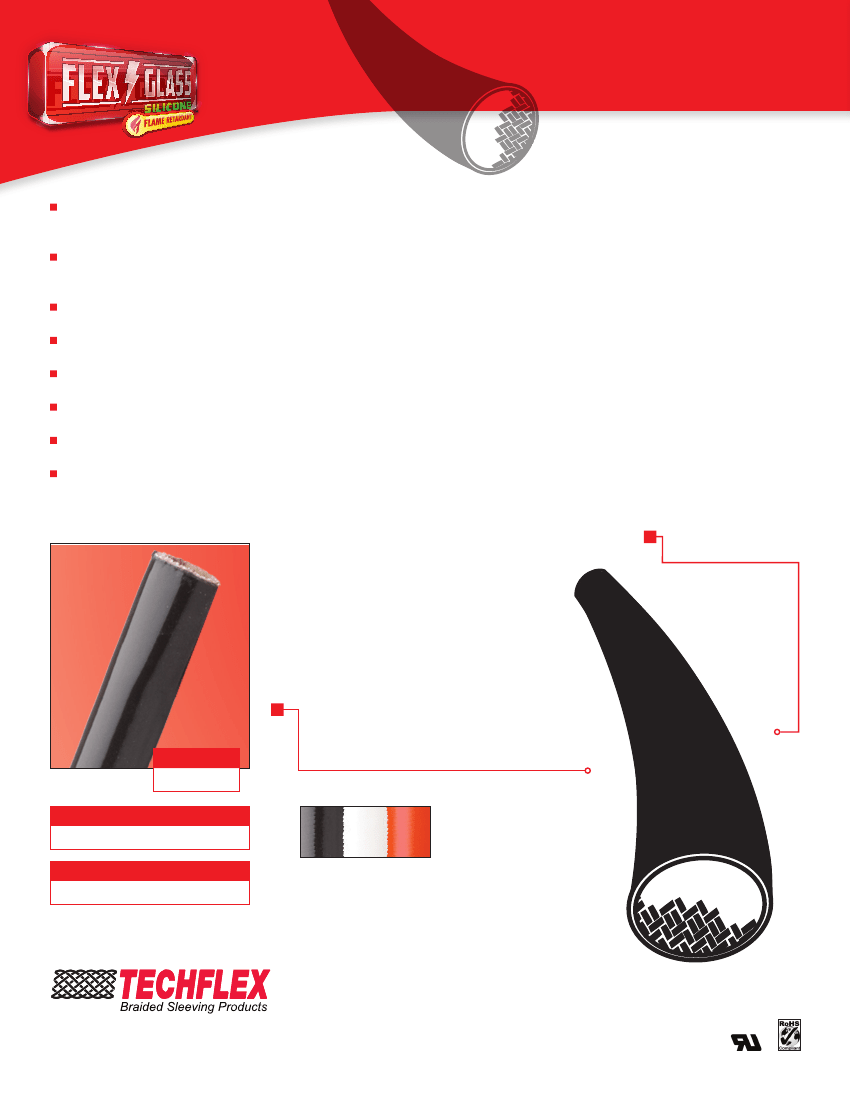

FLAME RETARDANT SILICONE FLEX GLASS (SF) sleeving is an extremely
flexible braided fiberglass sleeve coated with a flame retardant elastometric sili-
cone rubber sheath.
The unique self-fitting construction allows SF sleeving to expand slightly for easy
installation, and provides a snug fit for minimum movement and reduced internal
abrasion.
SF sleeving is rated to 392°F. (Class H), is abrasion resistant, and maintains it’s flexi-
bility in low temperature environments. It is available in a very wide range of sizes,
and is ideal for use in appliance assemblies, wire harnesses, transformer leads,
power supplies, motor coil and heater leads.
Colors Available:
3= BK, WH & RD
Cut Cleanly
Scissors
Material
Silicone Coated Fiberglass
Grade
A, B, & C
FR Silicone Flex Glass is available in 3 colors:
Black (BK), White (WH) and Red (RD).
800.323.5140 • 973.300.9242 • fax: 973.300.9409
104 Demarest Road • Sparta, NJ 07871
www.techflex.com
VW-1
EL ECTR IC A L INSULATION
ADVANCED ENGINEERING
Tech n i cal Data Shee t
Technical Data Sheet
Put-Ups
Nominal
Size
24
22
20
18
16
14
12
10
9
8
7
6
5
4
3
2
1
0
3/8”
7/16”
1/2”
5/8”
3/4”
7/8”
1”
1 1/4”
1 1/2”
Diameter
0.022”
0.027”
0.034”
0.042”
0.053”
0.066”
0.085”
0.106”
0.118”
0.133”
0.148”
0.166”
0.186”
0.208”
0.234”
0.263”
0.294”
0.330”
0.375”
0.438”
0.500”
0.625”
0.750”
0.875”
1.000”
1.250”
1.500”
Part#
SFAG.24
SFAG.22
SFAG.20
SFAG.18
SFAG.16
SFAG.14
SFAG.12
SFAG.10
SFAG.09
SFAG.08
SFAG.07
SFAG.06
SFAG.05
SFAG.04
SFAG.03
SFAG.02
SFAG.01
SFAG.00
SFA0.38
SFA0.44
SFA0.50
SFA0.63
SFA0.75
SFA0.88
SFA1.00
SFA1.25
SFA1.50
Grade
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Available
Colors
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
Part#
SFBG.24
SFBG.22
SFBG.20
SFBG.18
SFBG.16
SFBG.14
SFBG.12
SFBG.10
SFBG.09
SFBG.08
SFBG.07
SFBG.06
SFBG.05
SFBG.04
SFBG.03
SFBG.02
SFBG.01
SFBG.00
SFBG.38
SFBG.44
SFBG.50
SFBG.63
SFBG.75
SFBG.88
SFBG1.00
N/A
N/A
Grade
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
Part#
SFCG.24
SFCG.22
SFCG.20
SFCG.18
SFCG.16
SFCG.14
SFCG.12
SFCG.10
SFCG.09
SFCG.08
SFCG.07
SFCG.06
SFCG.05
SFCG.04
SFCG.03
SFCG.02
SFCG.01
SFCG.00
SFC0.38
SFC0.44
SFC0.50
SFC0.63
SFC0.75
SFC0.88
SFC1.00
N/A
N/A
Grade
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
N/A
N/A
Available
Colors
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
BK,WH,RD
N/A
N/A
Bulk
Spool
500’
500’
500’
500’
500’
500’
250’
250’
250’
250’
250’
250’
250’
250’
250’
250’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
Shop
Spool
250’
250’
250’
250’
250’
250’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
50’
50’
50’
50’
50’
50’
50’
50’
50’
N/A
N/A
www.techflex.com
CHEMICAL RESISTANCE
Resistant to oils, acids, alkalies, organic solvents and aliphatic hydrocarbons.
OPERATING TEMPERATURE RANGE
-75°C/-103°F to 220°C/428°F
© 2016 Techflex, Inc. - Any unauthorized reproduction, in whole or part, in any medium whatsoever, without the express written permission of Techflex, Inc. is strictly forbidden.
Techflex product names and logos are registered trademarks of Techflex, Inc., unless otherwise attributed. The contents and illustrations contained herein are believed to be reliable.
Techflex makes no warranties as to their accuracy or completeness and disclaims any liability in connection with their use. Techflex’s only obligations are those in standard terms of
sale for these products and Techflex will not be liable for any consequential or other damages arising due to misuse of these products or typographical errors or omissions.
11-15
Users should make their own evaluation to determine the suitability of these products for their unique and specific applications.
