M23053-12-207-C datasheet, PDF

Datasheet> All Categories > Wire/cable> M23053-12-207-C

M23053-12-207-C: Description15AWG PTFE HEATSHRNK 2:1 NTRL 4'; CategoryWire/cable; File Size445KB，1 Pages; ManufacturerTechflex, Inc.; Websitehttps://www.techflex.com/; Environmental Compliance

Download Datasheet Parametric View All

M23053-12-207-C Overview

15AWG PTFE HEATSHRNK 2:1 NTRL 4'

M23053-12-207-C Parametric

Parameter Name	Attribute value
type	sleeve, elastic
Shrinkage	2 to 1
length	4.00'（1.22m）
Inner diameter (factory)	0.110"（2.79mm）
Inner diameter - after recovery	0.066"（1.68mm）
Wall thickness after restoration	0.016"（0.41mm）
Material	Polytetrafluoroethylene (PTFE)
characteristic	Flame retardant, solvent resistant
color	transparent
Operating temperature	-75°C ~ 260°C
Shrinkage temperature	343°

Preview

Download Datasheet

View All

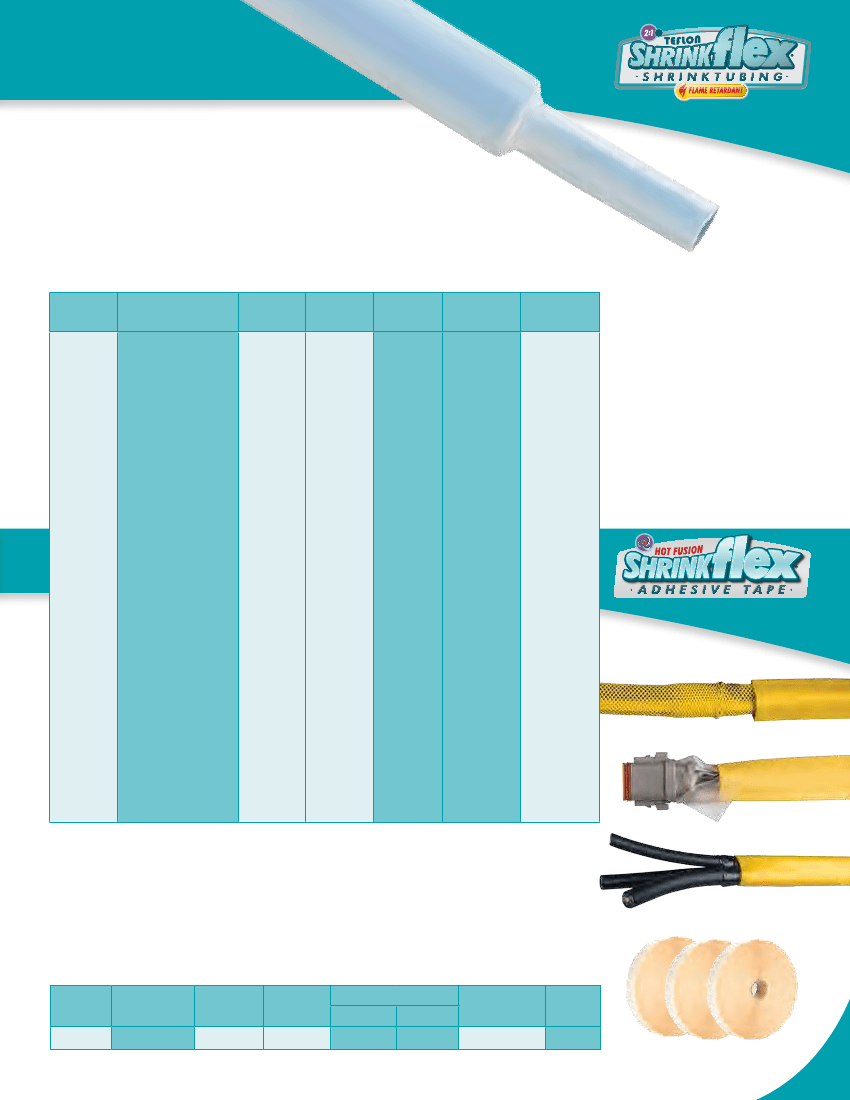

H E ATSH RINK

TUB ING

2:1 PTFE Heatshrink Tubing

2:1 Polytetrafluoroethylene heatshrink tubing has the lowest coefficient of friction

of any polymer and possesses a broad temperature range, allowing it to excel

equally in extreme cold and hot environments.

When ordering our 2:1 PTFE heatshrink, order as size after shrinking.

Nominal

Size

24 AWG

22 AWG

20 AWG

19 AWG

18 AWG

17 AWG

15 AWG

14 AWG

13 AWG

12 AWG

11 AWG

10 AWG

9 AWG

1/8”

8 AWG

7 AWG

6 AWG

5 AWG

4 AWG

3 AWG

1/4”

2 AWG

1 AWG

5/16”

0 AWG

3/8”

7/16”

1/2”

5/8”

3/4”

7/8”

1”

Part

M23053-12-201-C

M23053-12-202-C

M23053-12-203-C

M23053-12-204-C

M23053-12-205-C

M23053-12-206-C

M23053-12-207-C

M23053-12-208-C

M23053-12-210-C

M23053-12-211-C

M23053-12-212-C

M23053-12-213-C

M23053-12-214-C

M23053-12-215-C

M23053-12-216-C

M23053-12-217-C

M23053-12-218-C

M23053-12-219-C

M23053-12-220-C

M23053-12-221-C

M23053-12-222-C

M23053-12-223-C

M23053-12-224-C

M23053-12-225-C

M23053-12-226-C

M23053-12-228-C

M23053-12-229-C

M23053-12-230-C

M23053-12-231-C

M23053-12-232-C

M23053-12-233-C

M23053-12-234-C

Unshrunk

Diameter

1.27mm

1.40mm

1.52mm

1.65mm

1.93mm

2.16mm

2.79mm

3.05mm

3.56mm

3.81mm

4.32mm

4.85mm

5.21mm

5.46mm

6.10mm

6.86mm

7.67mm

8.13mm

9.40mm

9.91mm

10.41mm

10.92mm

11.43mm

11.94mm

14.22mm

16.64mm

19.05mm

23.62mm

28.58mm

33.27mm

38.10mm

Shrunk

Diameter

0.69mm

0.81mm

0.99mm

1.09mm

1.24mm

1.37mm

1.70mm

1.83mm

2.03mm

2.26mm

2.57mm

2.84mm

3.15mm

3.30mm

3.58mm

4.01mm

4.52mm

5.03mm

5.69mm

6.32mm

6.60mm

7.06mm

7.90mm

8.36mm

8.81mm

10.13mm

11.73mm

13.31mm

16.64mm

19.96mm

23.14mm

26.31mm

Wall

Thickness

0.30mm

0.41mm

0.51mm

0.64mm

0.76mm

0.89mm

Put Up/4

’

Pcs.

Available

Colors

Clear

(CL)

• Shrink Temperature

650°F (343°C)

• Mil-I-DTL-23053/12

• Excellent Dielectric

Strength

• Resistant to All

Common Solvents,

Acids, and Bases

• High Operating Temp.

up to to 500°F (260°C)

Splice sleeving

Hot Fusion Tape

Techflex hot-melt adhesive tape works great in conjunction with our sleeving

and heatshrink products. HFA has good adhesion to polyolefin, PET, PVC,

copper, and nylon. Hot Fusion Tape is very flexible and can be field cut to fit your

application. Use when extra adhesive may be needed, in areas between wire

bundles for weatherproofing, or under heatshrink products not available with

pre-coated dual wall adhesive. Tape activates easily when shrinking your tubing.

Nominal

Size

2”

Adhesive lining

Added waterproofing

Part

HFA2.00CL

Width

1.97”

Thickness

0.012”

Standard Spool Put-Ups

Bulk Spool

100’

Shop Spool

25’

Available

Colors

Clear (CL)

Lbs/

100’

1.16

1-973-300-9242

www.techflex.com
