0876682002 Overview

PWR REC RA THOLE GOLD 34POS

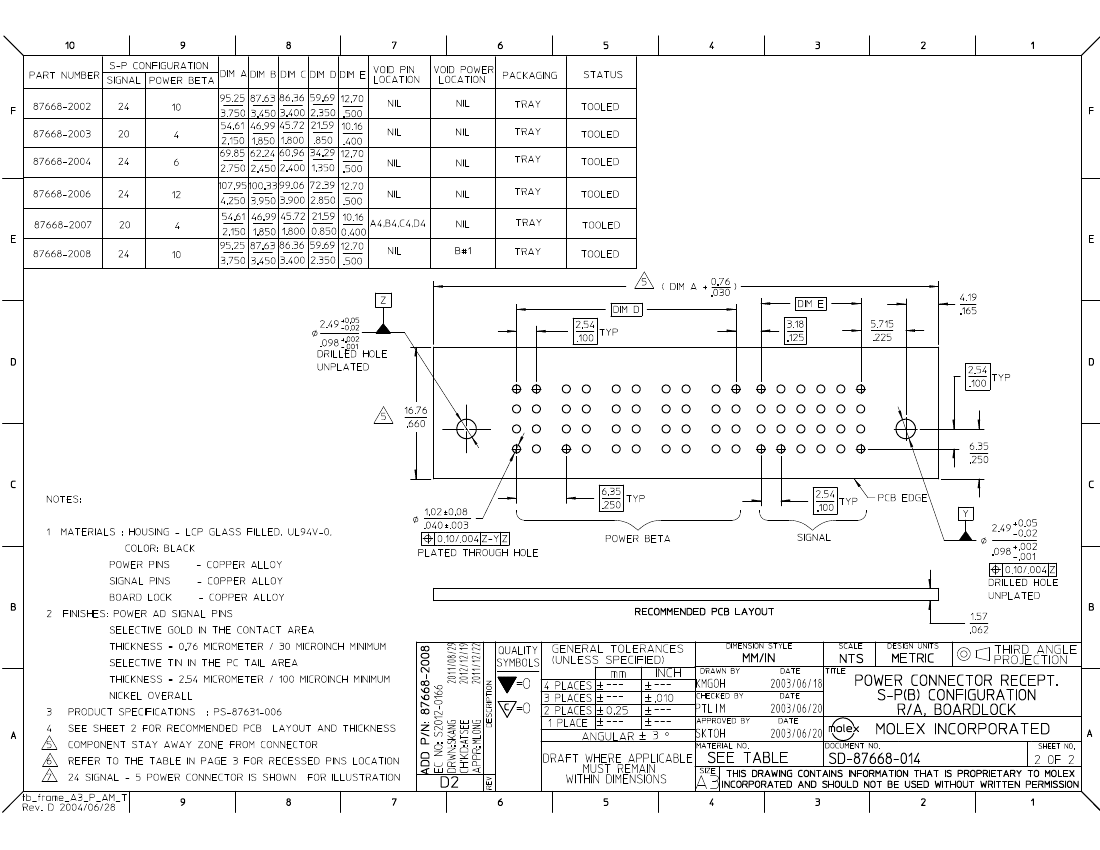

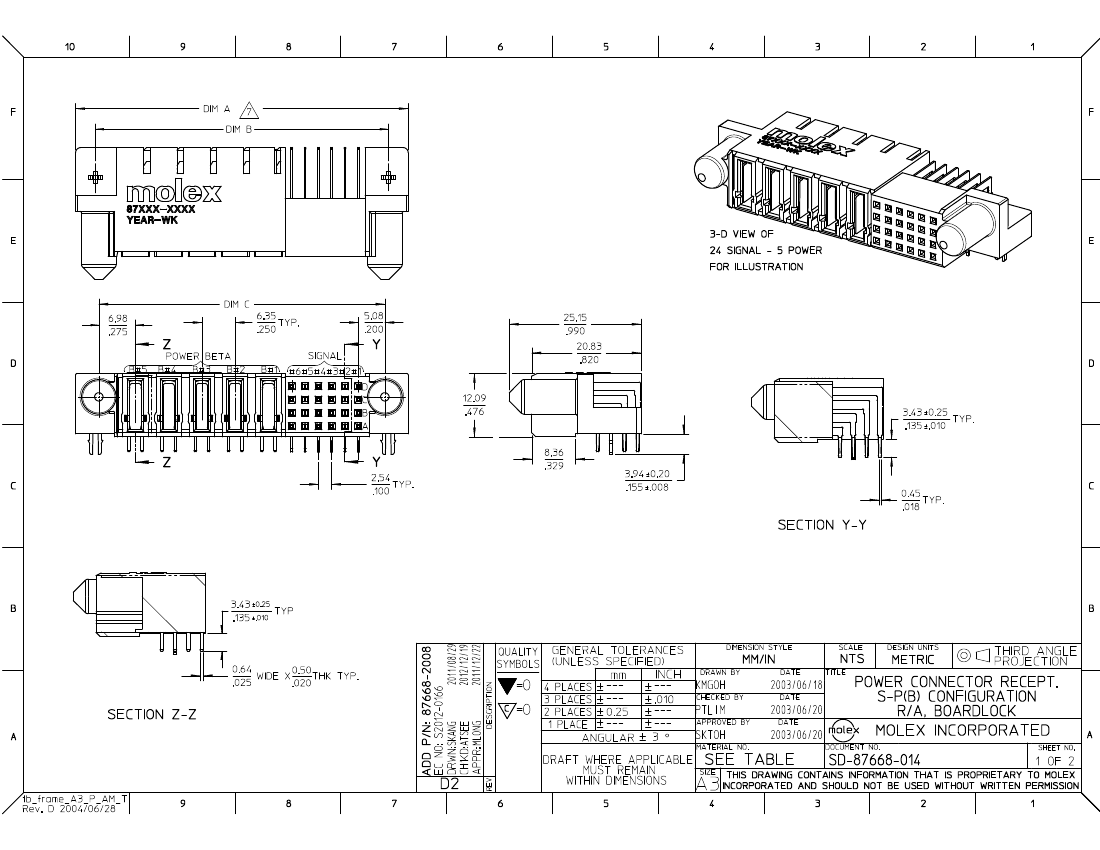

Parameter Name	Attribute value
Connector usage	-
Connector type	Sockets, female sockets and blade sockets
Connector style	-
Number of pins	34
Number of pins loaded	all
spacing	0.100"（2.54mm）
Number of rows	4
Number of columns	-
Installation type	Board edge, through hole, right angle
Termination	welding
Contact layout (typical)	24 signals, 10 power
characteristic	Board lock, guide pin
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
color	black
Rated current	-
Material flammability rating	UL94 V-0
Operating temperature	-20°C ~ 105°C
Rated voltage	-

	0876682002	0876682004
Description	PWR REC RA THOLE GOLD 34POS	CONN RCPT 30POS R/A THRO HOLE
Connector type	Sockets, female sockets and blade sockets	Sockets, female sockets and blade sockets
Number of pins	34	30
Number of pins loaded	all	all
spacing	0.100"（2.54mm）	0.100"（2.54mm）
Number of rows	4	4
Installation type	Board edge, through hole, right angle	Board edge, through hole, right angle
Termination	welding	welding
Contact layout (typical)	24 signals, 10 power	24 signals, 6 power
characteristic	Board lock, guide pin	Board lock, guide pin
Contact plating	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）
color	black	black
Material flammability rating	UL94 V-0	UL94 V-0
Operating temperature	-20°C ~ 105°C	-20°C ~ 105°C
