185-HMA-B06-AB-50/125 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 185-HMA-B06-AB-50/125

185-HMA-B06-AB-50/125: DescriptionFiber Optic FC Connector, 50/125um, Multi Mode, Simplex, Plug; CategoryThe connector The connector; File Size203KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

185-HMA-B06-AB-50/125 Overview

Fiber Optic FC Connector, 50/125um, Multi Mode, Simplex, Plug

185-HMA-B06-AB-50/125 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC FC CONNECTOR
Coupling type	THREADED
DIN compliance	NO
Fiber size	50/125um
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HMA
model	MULTI
Options	GENERAL PURPOSE
Base Number Matches	1

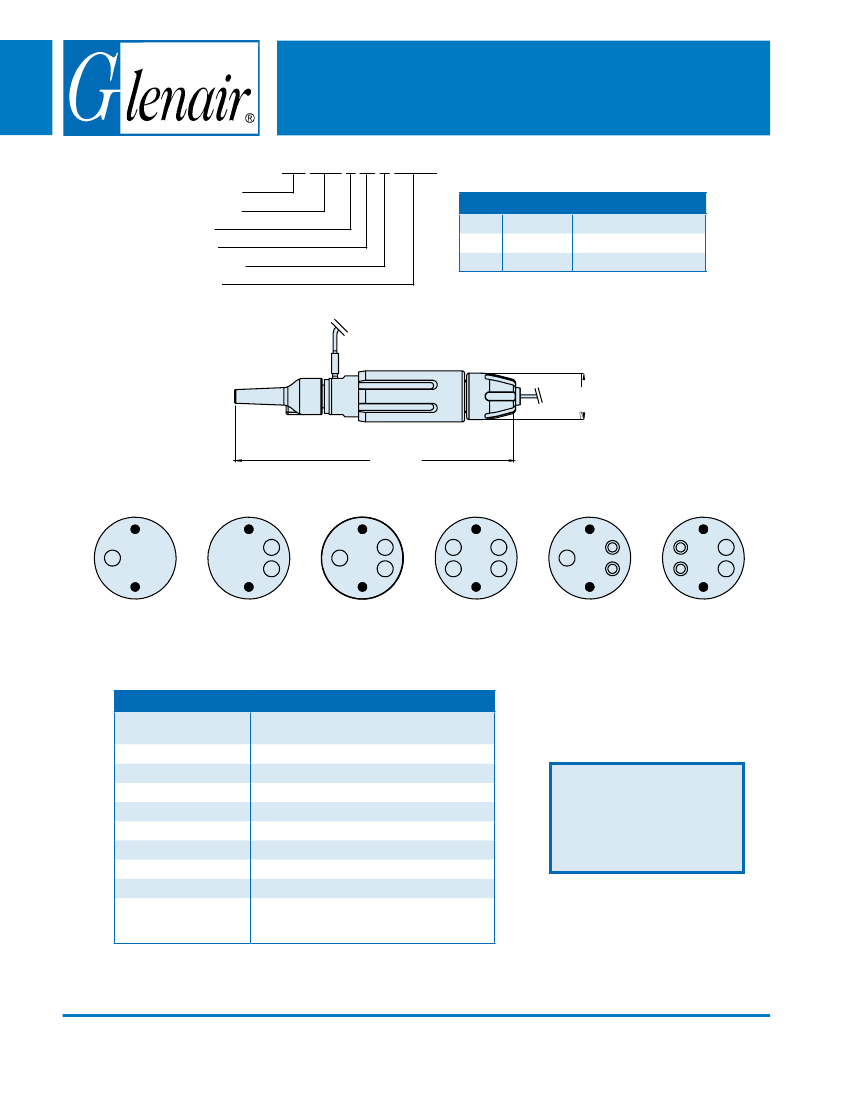

Preview

Download Datasheet

View All

Expanded Beam

Connectors

Product Series

Basic Number

Planform

06 = Plug

Finish (Table II)

Fiber Type

PLANFORM

1 CHANNEL

PLANFORM

2 CHANNEL

185-HMA (06 Plug)

Expanded Beam Fiber Optic Connector

HMA Series: Miniaturized Hermaphroditic

185-HMA-A 06-C-50/125

TABLE II: FINISH

SYM

Material

Aluminum

FINISH

Anodized, Black

Nickel Aluminum Bronze

HMA SERIES PLuG

ł 1.02

Dia

(26 mm)

6.18

(157 mm)

PLANFORMS

PLANFORM

3 CHANNEL

PLANFORM D

4 CHANNEL

PLANFORM

Hybrid 1+2

PLANFORM

Hybrid 2+2

TABLE I: PERFORMANCE

Optical Loss

Return Loss

Operating Temperature

Storage Temperature

Water Immersion

Vibration Sinusoidal

Free Fall Resistance

Bump Resistance

Tensile Strength

Cable Variations

50/125 @ 850/1300nm 0.6 dB Typical

9/125 @ 13190/1550nm 1.0 dB Typical

9/125 @ 1310/1550nm> 45 dB (Typical 48 dB)

-40°C to +70°C

-55°C to +85°C

Up to 2M Depth

10-500Hz, 0.75 Amplitude @ 10g Acceleration

500 Falls onto Concrete from 1.2M height

4,000 Bumps @ 40g Acceleration

Tensile of 1,500N, Cable Dependent

Compatible with Tactical cable:

Plug <6mm O/D Bulkhead <3mmO/D

Other Cable Sizes Available on request

PART SuPPLIED ONLY AS

TERMINATED ASSEMBLY

CONSuLT FACTORY

FOR CABLE DESIGN

All Tests Compliant to BS EN 186000-1 Specifications

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

G-12
