TN2219A
TN2219A
(TN2222A)
C
TO-226
B
E
NPN General Purpose Amplifier
This device is for use as a medium power amplifier and switch requiring
collector currents up to 500 mA. Sourced from Process 19. See
PN2222A for characteristics.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Value
40
75
6.0
1.0
-55 to +150
Units
V
V
V
A
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
Max
TN2219A
1.0
8.0
125
50
Units
W
W/°C
°C/W
°C/W
1997 Fairchild Semiconductor Corporation
TN2219A
NPN General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CEX
I
CBO
I
EBO
I
BL
Collector-Emitter Breakdown Voltage*
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
Base Cutoff Current
I
C
= 10 mA, I
B
= 0
I
C
= 10
µA,
I
E
= 0
I
E
= 10
µA,
I
C
= 0
V
CE
= 60 V, V
EB(OFF)
= 3.0 V
V
CB
= 60 V, I
E
= 0
V
CB
= 60 V, I
E
= 0, T
A
= 150°C
V
EB
= 3.0 V, I
C
= 0
V
CE
= 60 V, V
EB(OFF)
= 3.0
40
75
6.0
10
10
10
10
20
V
V
V
nA
nA
µA
nA
nA
ON CHARACTERISTICS
h
FE
DC Current Gain
I
C
= 0.1 mA, V
CE
= 10 V
I
C
= 1.0 mA, V
CE
= 10 V
I
C
= 10 mA, V
CE
= 10 V
I
C
= 150 mA, V
CE
= 10 V
I
C
= 150 mA, V
CE
= 1.0 V
I
C
= 500 mA, V
CE
= 10 V
I
C
= 150 mA, I
B
= 15 mA
I
C
= 500 mA, I
B
= 50 mA
I
C
= 150 mA, I
B
= 1.0 mA
I
C
= 500 mA, I
B
= 5.0 mA
35
50
75
100
50
40
300
V
CE(
sat
)
V
BE(
sat
)
Collector-Emitter Saturation Voltage*
Base-Emitter Saturation Voltage*
0.6
0.3
1.0
1.2
2.0
V
V
V
V
SMALL SIGNAL CHARACTERISTICS
C
obo
C
ibo
h
fe
rb’C
C
NF
Re(h
ie
)
Output Capacitance
Input Capacitance
Small-Signal Current Gain
Collector Base Time Constant
Noise Figure
Real Part of Common-Emitter
High Frequency Input Impedance
V
CB
= 10 V, I
E
= 0, f = 100 kHz
V
EB
= 0.5 V, I
C
= 0, f = 100 kHz
I
C
= 1.0 mA, V
CE
= 10 V, f = 1.0 kHz
I
C
= 10 mA, V
CE
= 10 V, f = 1.0 kHz
I
E
= 20 mA, V
CB
= 20 V, f= 31.8 MHz
I
C
= 100
µA,
V
CE
= 10 V, R
S
= 1.0 kΩ
f = 1.0 kHz, B
W
= 1.0 kHz
I
C
= 20 mA, V
CE
= 20 V,
f = 300 MHz
50
75
8.0
25
300
375
150
4.0
60
pF
pF
pS
dB
Ω
SWITCHING CHARACTERISTICS
t
d
t
r
t
s
t
f
Delay Time
Rise Time
Storage Time
Fall Time
V
CC
= 30 V, V
BE(OFF)
= 0.5 V,
I
C
= 150 mA, I
B1
= 15 mA
V
CC
= 30 V, I
C
= 150 mA,
I
B1
= I
B2
= 15 mA
10
25
225
60
ns
ns
ns
ns
*
Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle
≤
2.0%

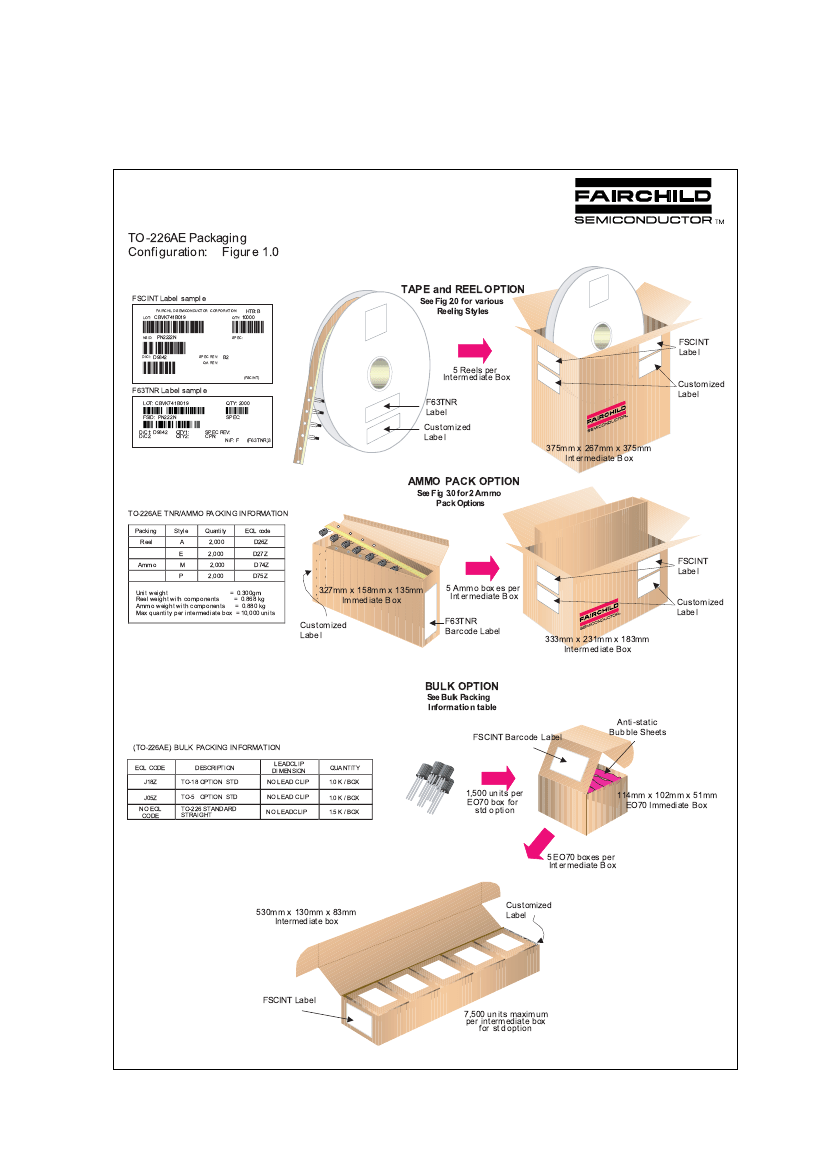

TO-226AE Tape and Reel Data
TO -226AE Packaging
Conf iguratio n:
Fi gur e 1.0
TAPE and REEL OPTION
FSCINT Label sampl e
FAIRCHIL D S EMICONDUCTOR CORPORATION
L OT:
S e Fig 2
e
.0 for va rious
HTB:B
10000
Reeli g Styles
n
CBVK741B019
QTY:
NSID:
PN2222N
SP EC:
FSCINT
SP EC RE V:
QA REV:
D/C1:
D9842
B2
Labe l
5 Reels per
Int er med iate B ox
(FSCINT)
F63TNR Label s ampl e
LOT: CBVK7 41B019
QTY: 2000
Cus tom ized
Labe l
F63TNR
Labe l
Cus tom ized
FSID: PN222N
SPEC:
D/C1: D9842
D/C2:
QTY1:
QTY2:
SPEC REV:
CPN:
N/F: F
(F63TNR)3
Labe l
375m m x 267m m x 375mm
Int er med iate B ox
AMMO PACK OPTION
S e Fig 3
e
.0 for 2 Ammo
Pack Option
s
TO-226AE TNR/AMMO PACKING INF R
O MATION
Packing
Reel
Style
A
E
Qua
ntity
2,000
2,000
2,000
2,000
EOL code
D26Z
D27Z
D74Z
D75Z
Am m o
M
P
FSCINT
Labe l
327m m x 158m m x 135mm
Im med iate B ox
5 A mm o box es per
Int er med iate B ox
Uni t wei gh t
Reel weig ht wi th c om po nents
Amm o weig ht wi th c omp on en ts
= 0.300g m
= 0.868 k g
= 0.880 k g
Cus tom ized
Labe l
Max q uanti ty p er i nte rm ed iate b ox = 10,000 un its
Cus tom ized
Labe l
F63TNR
Bar c ode Label
333m m x 231m m x 183mm
Int er med iate B ox
BULK OPTION
S e Bulk P
e
acking
Informat ion tabl
e
Anti -stati c
FSCINT Bar c ode Label
(TO-226AE ) BULK PACKING INFORMATION
LEADCLIP
DIMENSION
NO L EAD CLIP
NO L EAD CLIP
NO L EADCLIP
Bub ble Sheets
EOL CO
DE
J18Z
J05Z
NO EOL
CODE
DESCRIPTION
TO-18 OPTION STD
TO-5
OPTION STD
QUANTITY
1.0 K / BOX
1.0 K / BOX
1.5 K / BOX
1,500 un its per
EO70 box for
s td o pti on
114m m x 102m m x 51mm
EO70 Im mediate B ox
TO-226 STANDARD
STRAIGHT
5 EO70 boxes pe r
Int er med iate B ox
530m m x 130m m x 83mm
Inter med iate box
Cus tomized
Label
FSCINT Labe l
7,500 un its m axim um
per interm edi at e box
for st d opt ion
©2000 Fairchild Semiconductor International
October 1999, Rev. A1
TO-226AE Tape and Reel Data, continued

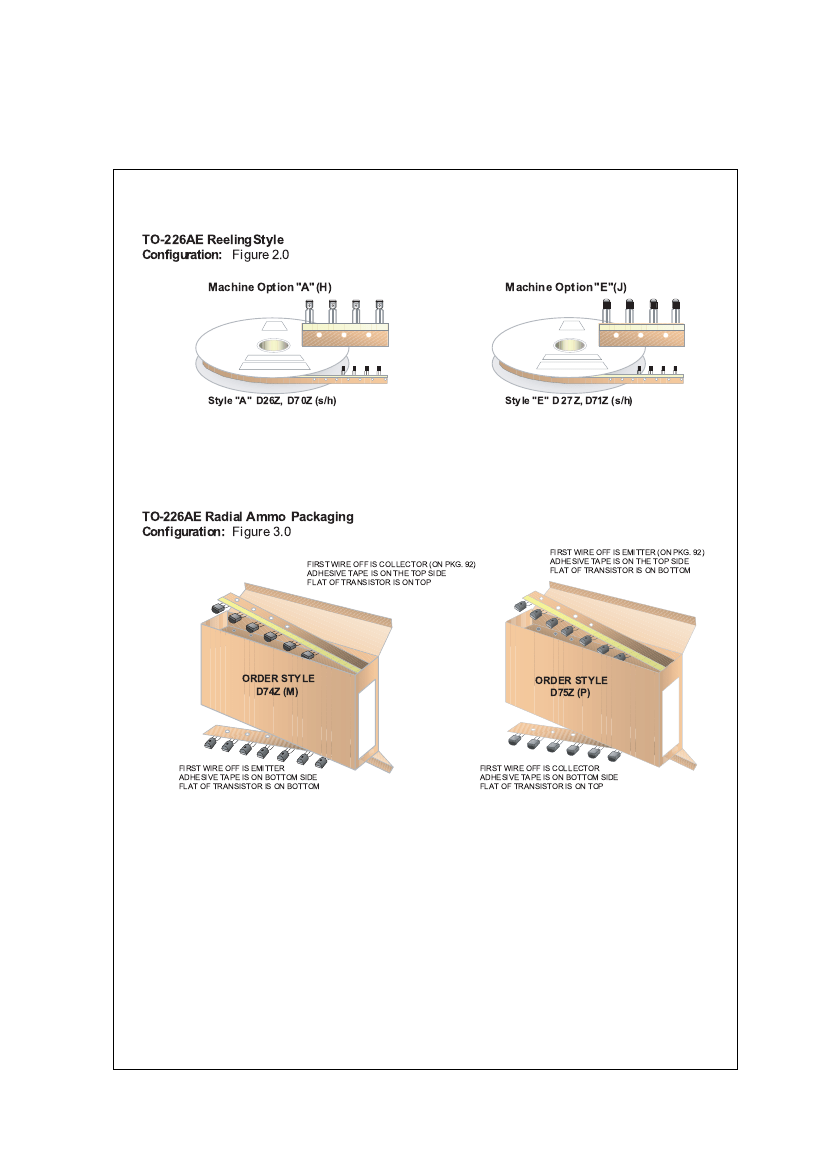

TO-226AE Reeling Style
Configuration:
Fi gure 2.0
Machine Option "A" (H)
Machine Option "E"(J)
Style "A" D26Z, D70Z (s/h)
Style "E" D 27Z, D71Z (s/h)
TO-226AE Radial Ammo Packaging
Configuration:
Fi gure 3.0
FIRST WIRE OFF IS EMITTER (ON PKG. 92)
FIRST WIRE OFF IS COL LECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE
D74Z (M)
ORDER STYLE
D75Z (P)
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
FIRST WIRE OFF IS COL LECTOR
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
October 1999, Rev. A1
TO-226AE Tape and Reel Data, continued

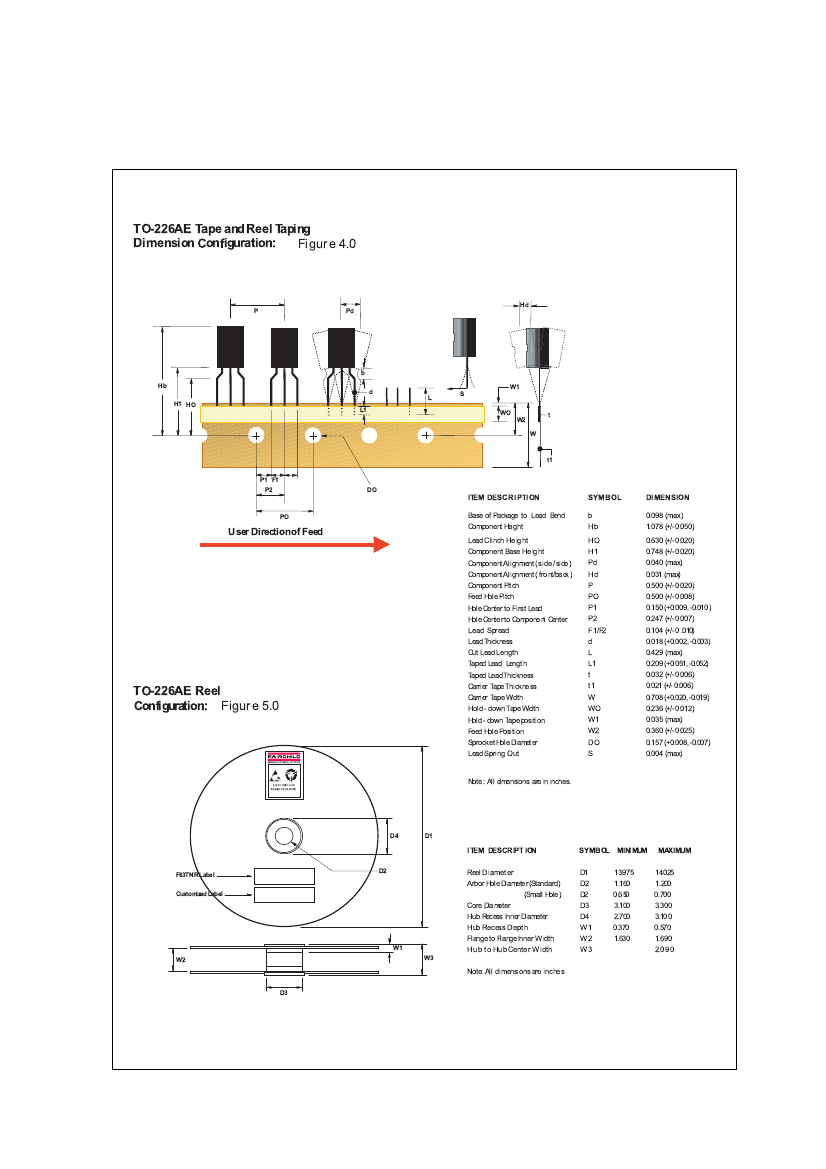

TO-226AE Tape and Reel T
aping
Dimension Configuration:
Fi gur e 4.0
Hd
P
Pd
b
Hb
W1
L
H1
HO
L1
S
d
WO
W2
W
t
t1
P1
F1
DO
P2
ITEM DESCRI PTION
Base of P
ackage to Le
ad Bend
Componen Height
t
Lead Clinch He ight
Component Base Heig ht
Componen Alignm
t
ent (s ide / side )
Componen Alignm
t
ent ( front/bac )
k
Componen Pitch
t
Feed H
ole P
itch
Hole Center to First Lead
Hole Center to C
omponen C
t enter
Lead Spread
Lead T
hickness
Cut Le
ad Length
Taped L
ead Le
ngt h
Taped L
ead T
hicknes
s
SYM BOL
b
Hb
HO
H1
Pd
Hd
P
PO
P1
P2
F1/F2
d
L
L1
t
t1
W
WO
W1
W2
DO
S
DIMENSION
0.098 (max)
1.078 (
+/- 0.
050)
0.630 (
+/- 0.
020)
0.748 (
+/- 0.
020)
0.040 (max
)
0.03 (max
1
)
0.500 (
+/- 0.
020)
0.500 (
+/- 0.
008)
0.150 (+0.009, -0.010 )
0.247 (
+/- 0.
007)
0.104 (
+/- 0 .
010)
0.018 (+0.002, -0.003)
0.429 (max
)
0.209 (+0.05 -0.052
1,
)
0.032 (
+/- 0.
006)
0.02 (
1 +/- 0.
006)
0.708 (+0.02 -0.019)
0,
0.236 (
+/- 0.
012)
0.035 (max
)
0.360 (
+/- 0.
025)
0.157 (+0.008, -0.007)
0.004 (max
)
PO
User Direction of Feed
TO-226AE Reel
Configuration:
Fi gur e 5.0
Carrier T
ape Thickness
Carrier Tape W
idth
Hold - down T
ape W
idth
Hold - down T
ape position
Feed H
ole P
osition
Sprocket Hole Diam
eter
Lead Spring O ut
E LE CT ROS TA TIC
S EN SI TIV E D EV ICE S
Note : All d
imensions ar in inches.
e
D4
D1
ITEM D
ESCRIPT IO
N
SYMBO
L
MINIMUM
MAXIMUM
F63TNR Label
D2
Reel Diamet er
Arbor H
ole Diam
eter (Standard)
D1
D2
D2
D3
D4
W1
W2
W3
13
.975
1.160
0. 0
65
3. 0
10
2. 0
70
0.370
1.630
14
.025
1.200
0.700
3.300
3.100
0.570
1.690
2.09 0
Custom
ized Label
(Small H
ole)
Core D
iam
eter
Hub R
ecess Inner Diam
eter
Hu Recess Dept h
b
Flange to F
lange Inner W idth
W1
Hu b to Hu b Cente r W idth
W3
W2
Note: All dimensions are inches
D3
October 1999, Rev. A1
