3663.01.2310.011 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3663.01.2310.011

Preview

3663.01.2310.011: DescriptionRF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

3663.01.2310.011 Overview

RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack

3663.01.2310.011 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
subject depth	0.661 inch
Body diameter	0.189 inch
Body/casing type	JACK
Cable type	RG-178
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact point gender	FEMALE
Contact resistance	5 mΩ
Contact style	COAX
Dielectric withstand voltage	500VDC V
Durability	500 Cycles
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1.5 A
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.06
Base Number Matches	1

Preview

Download Datasheet

View All

16,8

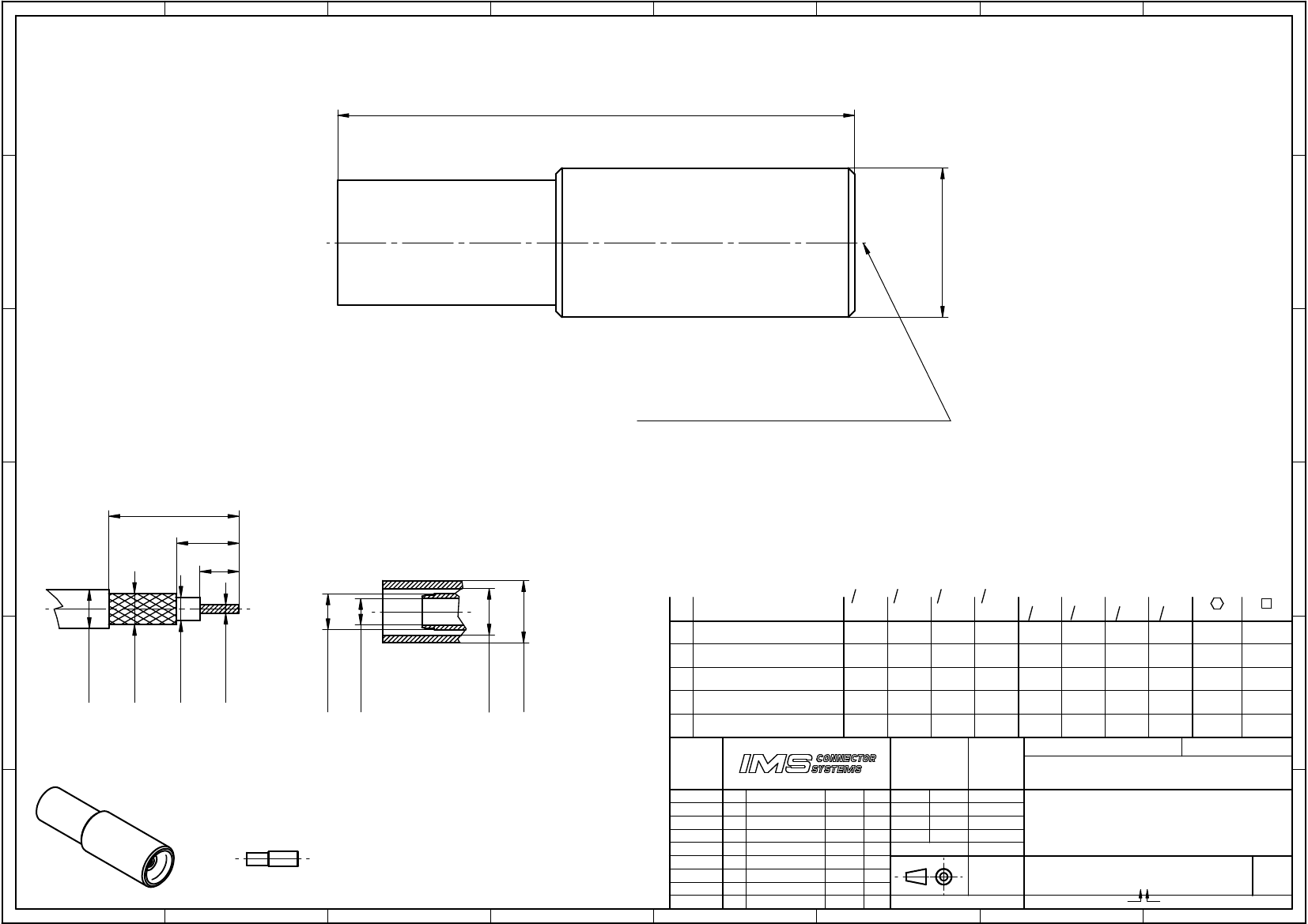

Steckbereich nach IEC 1169-36 Grad2.

Mating area acc to IEC 1169-36 Grade2.

Kabelzuschnitt:

Stripping

dimension

9,5

5

2,5

Für Kabel /

For cable

Type

CG Typ

1

2

RG 178 BU, RG 196 AU

RG 174 BU, RG316 U

4,8

oD1 oD2 oD3 oD4

max. max. max. max. oD5 oD6

2,10

2,92

1,30

2,20

0,90

1,58

0,30

0,54

1,10

1,60

1,70

2,30

Crimp

oD7

2,25

3,00

oD8

3,10

4,00

Aussen/out Innen / in

2,67

3,25

0,7

D1

D2

D3

D4

D6

D5

D7

D8

5

RG 316 U-d

3,10

2,50

1,55

0,54

1,60

2,30

3,35

4,05

3,25

0,7

M/s 3:1

M/s 1:1

general tolerance

ISO 2768

mH

angle: ± 5°

date

generate 14.03.03

checked

Norm

name

Sarfert

scale: 10:1

Assembly instruction: M43

Stripping dimension: K1

Kabelbuchse

Cable mount jack

Rev.

EC_200_07 a

rev.

nr.

compl. revised

alteration

17.01.08 Pölz

date name

3663.01.2310.0´´

cable group (CG)

surface code

a

3663.01.2310.011 Related Products

	3663.01.2310.011	3663.01.2310.055	3663.01.2310.051	3663.01.2310.021	3663.01.2310.025	3663.01.2310.015
Description	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF MCX Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack
Reach Compliance Code	compli	compliant	compliant	compli	compli	compli
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.661 inch	0.661 inch	0.661 inch	0.661 inch	0.661 inch	0.661 inch
Body diameter	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Cable type	RG-178	RG-316	RG-316	RG-316	RG-316	RG-178
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	COAX	COAX	COAX	COAX	COAX	COAX
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1	1	1
voltage standing wave ratio	1.06	1.06	1.06	1.06	1.06	1.06
Maker	-	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
