8996-0-31-15-13-80-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8996-0-31-15-13-80-04-0

8996-0-31-15-13-80-04-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size71KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8996-0-31-15-13-80-04-0 Overview

PCB Terminal, ROHS COMPLIANT

8996-0-31-15-13-80-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	8996
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

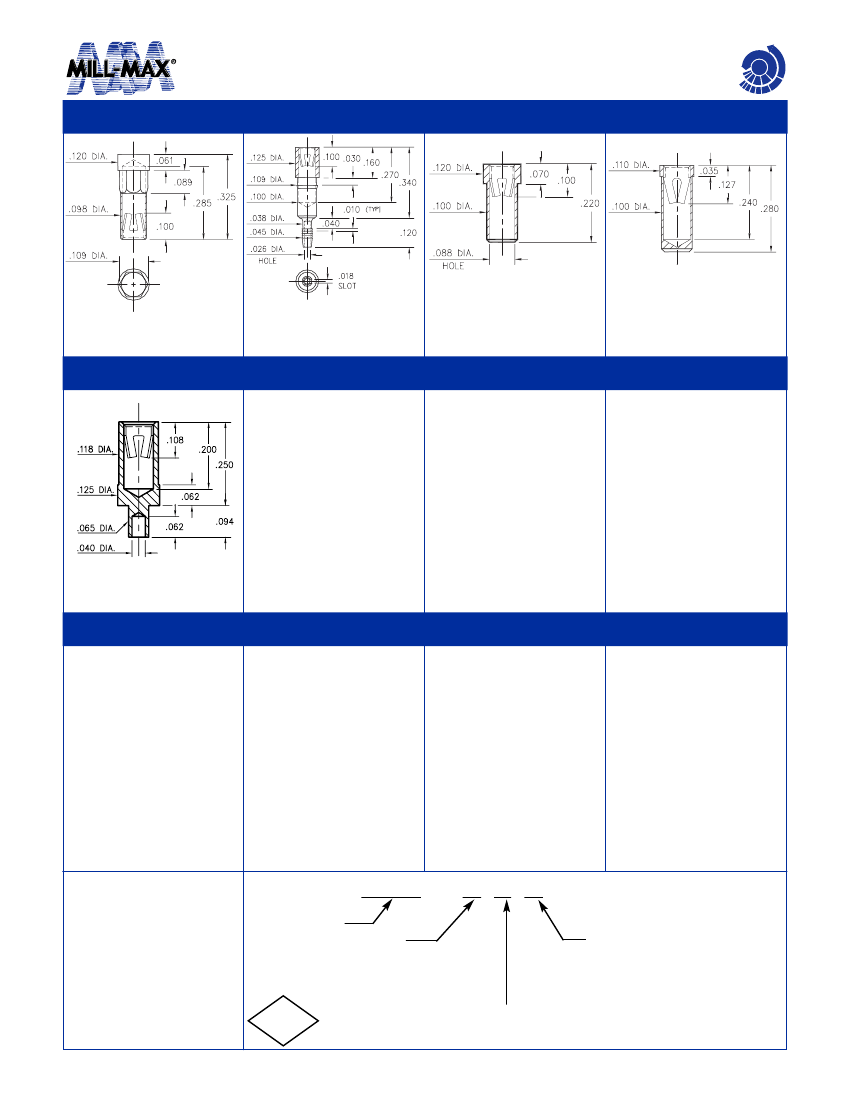

PIN RECEPTACLES

for .048” - .064” diameter pins (#13 contact)

for .045” - .065” diameter pins (#23 contact)

CHI

PINS

8365

8996

9064

9280

8365-0-15-XX-13-XX-10-0

Hex-pressfit in .106 plated

thru hole.

8996-0-31-XX-13-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .060→.100 thick board.

9064-0-15-XX-13-XX-10-0

Solder mount in .102 min.

mounting hole

9280-0-15-XX-13-XX-10-0

Solder mount in .102 min.

mounting hole

4900

4900-0-19-XX-23-XX-10-0

Swage mount in .067 hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - X3 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

SELECT CONTACT

#13 or #23

CONTACT (DATA ON PAGES 224 & 225)

w w w. m i l l - m a x . c o m

160

516-922-6000
