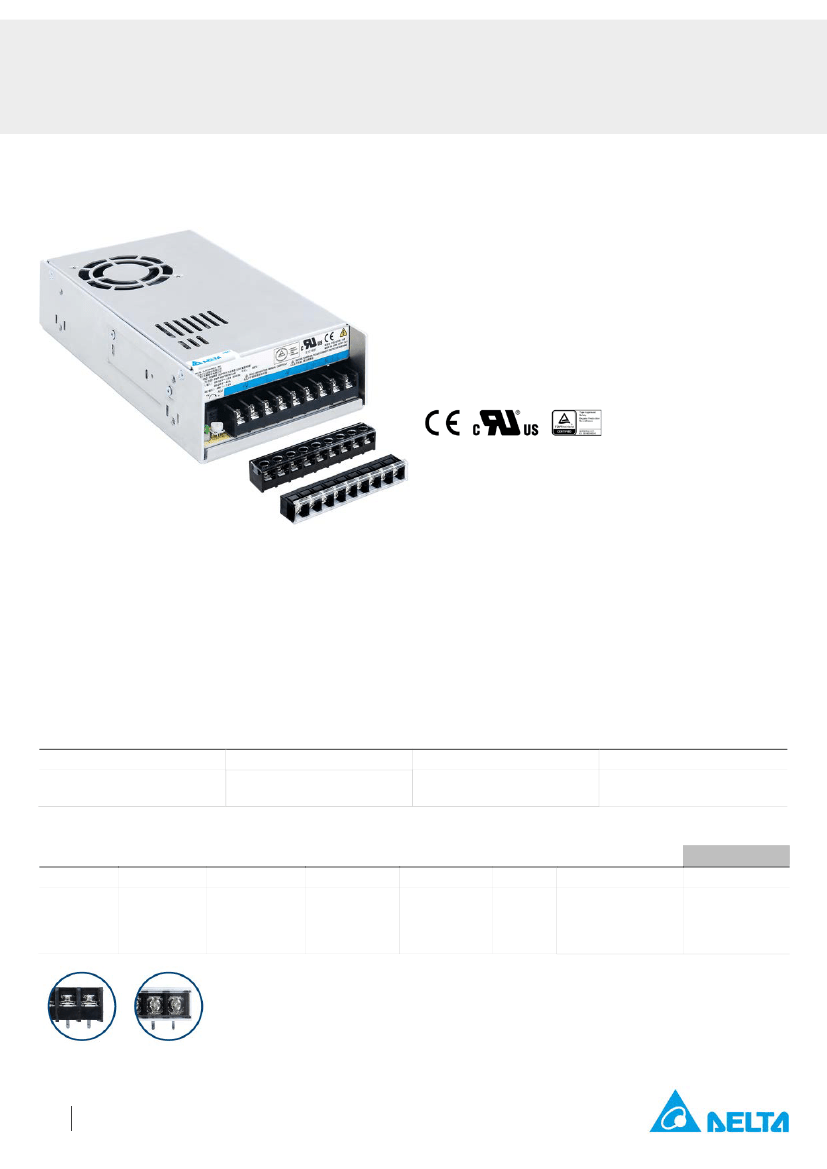

TECHNICAL DATASHEET
PMT Panel Mount Power Supply
48V 350W 1 Phase / PMT-48V350W1A
□□
PMT
Highlights & Features
•
•
•
•
•
AC input voltage range selectable by switch
Full aluminium casing for light weight and corrosion resistant
handling
Built-in automatic fan speed control circuit
MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature
Protections
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-48V350W1A☐☐
Unit Weight:
0.83 kg (1.83 lb)
Dimensions (L x W x D):
215 x 115 x 50 mm
(8.46 x 4.53 x 1.97 inch)
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers
and solution providers - Delta. PMT-48V350W1A☐☐ offers a nominal output voltage of 48V with a wide operating temperature range
from -10°C to +70°C and can withstand shock and vibration (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In
addition to features like overvoltage and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other
brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the
components and product specifications. The series of products has an expected life time of 10 years and will have no output power de-
rating from 100Vac to 132Vac & 200Vac to 264Vac.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-48V350W1A☐☐
Input Voltage Range
90-132Vac, 180-264Vac
(Selectable by Switch)
Rated Output Voltage
48Vdc
Rated Output Current
7.30A
Model Numbering
CC Code**
PM
T–
48V
Output Voltage
350W
Output Power
1
Single Phase
A
No PFC
□
Connector Type
R – Terminal Block
K – Front Face*
□
Blank – Without
connector cover
A – With
connector cover
Panel Mount Product Type
T – Enclosed
R
K*
*Options
**For Terminal Block Type
1
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 03)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
48V 350W 1 Phase / PMT-48V350W1A
□□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
Max Inrush Current (Cold Start)
Leakage Current
100-120Vac, 200-240Vac (Selectable by Switch)
90-132Vac, 180-264Vac (Selectable by Switch)
50-60Hz
47-63Hz
7.00A typ. @ 115Vac, 4.00A typ. @ 230Vac
87.5% typ. @ 230Vac
40A typ. @ 115Vac, 60A typ. @ 230Vac
< 3.5mA @ 240Vac
Output Ratings / Characteristics*
Nominal Output Voltage
Factory Set Point Tolerance
Output Voltage Adjustment Range
Output Current
Output Power
Line Regulation
Load Regulation
PARD** (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
48Vdc
48Vdc ± 1%
43.2-52.8Vdc
7.30A (350W max.)
350W
± 0.5% typ.
± 1% typ.
< 240mVpp
< 50ms @ nominal input (100% load)
< 1000ms @ nominal input (100% load
)
16ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)
± 5% @ 10-50% load and 50-100% load
8,000µF Max
*For power de-rating from > 50°C to 70°C, see power de-rating on page 3.
**PARD is measured with an AC coupling mode, 5cm wires, and in parallel with 0.1µF ceramic capacitor & 47µF electrolytic capacitor
.
Mechanical
Case Cover / Chassis
Dimensions (L x W x D)
Unit Weight
Indicator
Cooling System
Terminal
Wire
Noise (1 Meter from power supply)
PMT-48V350W1AR☐
PMT-48V350W1AK
Aluminium
215 x 115 x 50 mm (8.46 x 4.53 x 1.97 inch)
0.83 kg (1.83 lb)
Green LED (DC OK)
Forced Cooling
M3.5 x 9 Pins (Rated 300V/15A)
M3.5 x 9 Pins (Rated 300V/20A)
AWG 22-12
Sound Pressure Level (SPL) < 52dBA
2
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 03)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
48V 350W 1 Phase / PMT-48V350W1A
□□
Environment
Surrounding Air Temperature
Power De-rating
Operating
Storage
-10°C to +70°C
-25°C to +85°C
> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / V
< 200Vac de-rate power by 3% / V
5 to 95% RH (Non-Condensing)
0 to 5,000 Meters (16,400 ft.)
Non-Operating
Operating
Non-Operating
Over Voltage Category
Pollution Degree
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3
times per direction, 18 times in total
IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G
peak); 90 min per axis for all X, Y, Z direction
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak;
20 min per axis for all X, Y, Z direction
II
2
Operating Humidity
Operating Altitude
Shock Test
Vibration
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Internal Fuse at L pin
Protection Against Shock
*PE: Primary Earth
57.6V~67.2V, Latch Mode
105%~150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery)
Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)
T10AH
Class I with PE* connection
Reliability Data
MTBF
Expected Cap Life Time
> 700,000 hrs as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
10 years (115Vac & 230Vac, 50% load @ 40°C)
3
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 03)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
48V 350W 1 Phase / PMT-48V350W1A
□□
Safety Standards / Directives
Safety Entry Low Voltage
Electrical Safety
TUV Bauart
UL/cUL recognized
CB scheme
SELV (EN 60950-1)
EN 60950-1
UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
IEC 60950-1
In conformance with EMC Directive 2014/30/EU and Low
Voltage Directive 2014/35/EU
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
3.0KVac
1.5KVac
0.5KVac
CE
Material and Parts
Galvanic Isolation
EMC
Emissions (CE & RE)
Immunity
Electrostatic Discharge
IEC 61000-4-2
CISPR 32, EN 55032, EN 55011, FCC Title 47: Class B
EN 55024
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 3 Criteria A
1)
80MHz-1GHz, 10V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Level 3 Criteria A
1)
150kHz-80MHz, 10Vrms
Criteria A
1)
10A/Meter
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
NA
IEC/EN 61000-3-3
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips and Interruptions
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC 61000-4-12
Harmonic Current Emission
Voltage Fluctuation and Flicker*
*Fulfills tested conditions
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 03)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
48V 350W 1 Phase / PMT-48V350W1A
□□

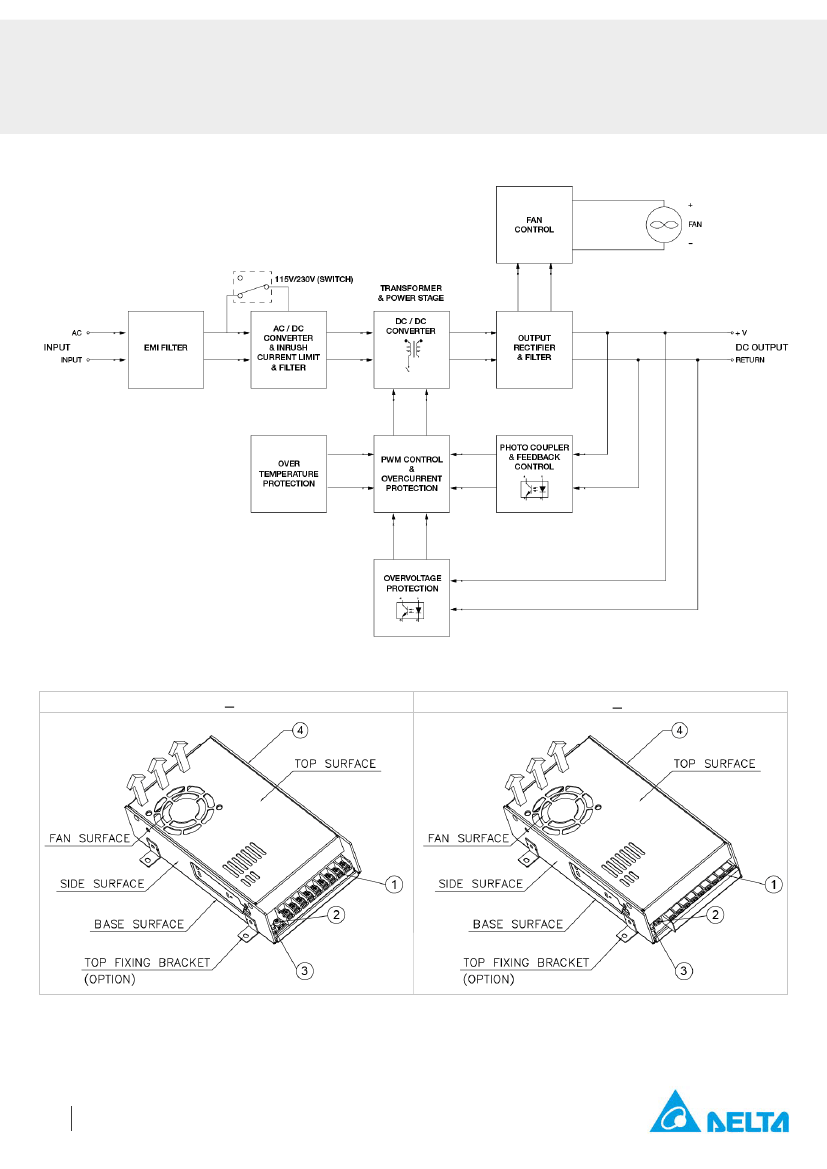

Block Diagram
Device Description
PMT-48V350W1AR:
Terminal Block
PMT-48V350W1AK:
Front Face
1)
2)
3)
4)
Input & Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
AC selectable switch
5
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 03)
